Allnet ALL3073V2WLAN ALL3073V2WLAN Wi-Fi Socket Indoors
EAN:
Part number:
Item no:
Highlights & Details

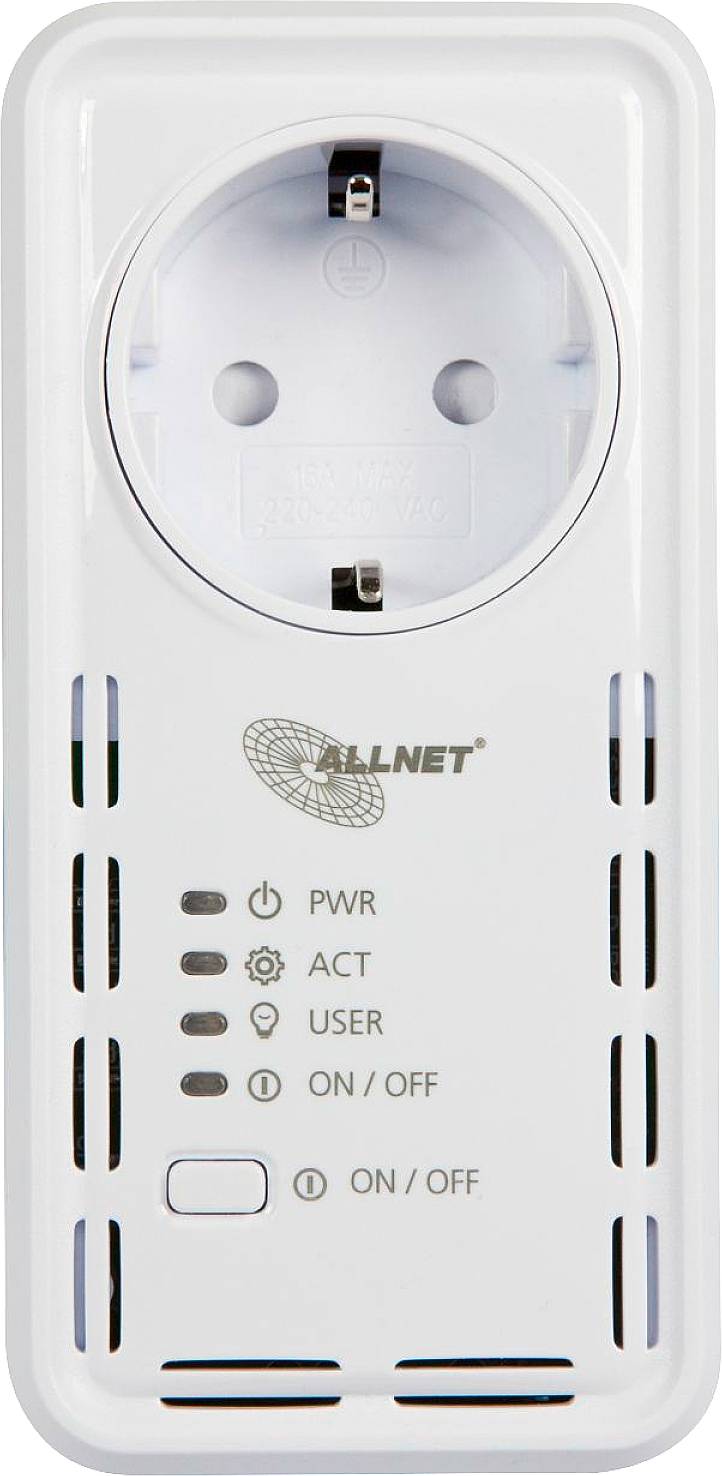

Allnet ALL3073V2WLAN network socket for IP Building Automation
- Enables the switching of the connected consumer (up to 16 A) via the integrated web server - new release 3.2
- Wireless LAN according to IEEE802.11b/g/n with 300 Mbps & 10/100 Mbit RJ45 network connection
- German earthing contact plug/socket
- For 200 - 250 V AC voltage
- Switching time, programmatically or manually possible
Technical specifications
- Max. Switching current 16 A
- 1 x RJ45 LAN 10/100 Mbit/s.
- Weight: 200 g
- Product type
Socket
- Mounting type
Adapter
- Used at
Indoors
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Transfer Standard (Smart Home)
Wi-Fi
- Width
68 mm
- Height
125 mm
- Depth
60 mm
- Dim
(W x H x D) 68 x 125 x 60 mm
- Hub
Not required
n.rel.
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2227955 Allnet ALL3073V2WLAN ALL3073V2WLAN Wi-Fi Socket Indoors
Description
The ALL3073v2 network socket can be used to switch electrical devices on and off via a computer network. The ALL3073v2 acts here as an adapter between the power socket and the electrical consumer. It is integrated into a computer network and receives a unique IP address. The configuration and operation is independant of a specific platform or operating system via any web browser from PC, MAC, web pad or Smartphone. No additional software is required.
The switching processes can be programd manually, time-controlled, etc. Several ALL3073v2 can be connected in a network depending on each other. You also work with other ALLNET automation solutions, such as ALL369x Powermeter, ALL3418v2, ALL3500, ALL3505, ALL4500, or ALL5000.
The ALLNET ALL3073v2 adapter is also equipped with the heavily revised user interface 3.2. In addition to numerous innovations in the user interface, Release 3.2 also offers the possibility for the first time to integrate several ALLNET remote sensors and actuators quickly and easily into the control interface via JSON. This allows sensor data to be managed across locations via a central interface, resulting in significantly greater clarity and easier administration.

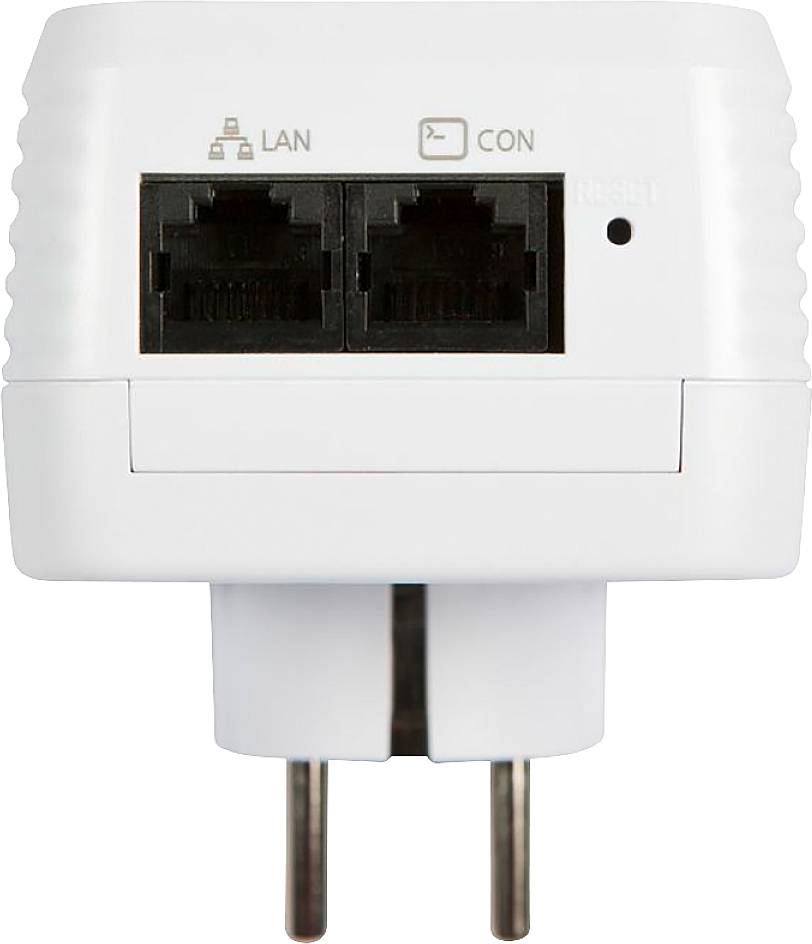

In addition to the wired 10/100Mbit/s RJ45 network interface, the ALL3073v2 also possesses a wireless LAN interface according to IEEE802.1b/g/n standard and can thus also be integrated in a wireless LAN network; both as a client or access point.
With the "Server monitoring function" you can cause the ALL3073v2 to monitor and reset a computer or router.
A ping is sent to the entered system, if the system does not respond within a specified time, the output is switched off for a set time.
Application examples:
Targeted control and restart of PCs and servers from a distance
Restart of router from a distance including automatic start-up (dead time programmable)
Timed-controlled element reduction of unnecessary power consumption by standby devices
This text is machine translated.
The switching processes can be programd manually, time-controlled, etc. Several ALL3073v2 can be connected in a network depending on each other. You also work with other ALLNET automation solutions, such as ALL369x Powermeter, ALL3418v2, ALL3500, ALL3505, ALL4500, or ALL5000.
The ALLNET ALL3073v2 adapter is also equipped with the heavily revised user interface 3.2. In addition to numerous innovations in the user interface, Release 3.2 also offers the possibility for the first time to integrate several ALLNET remote sensors and actuators quickly and easily into the control interface via JSON. This allows sensor data to be managed across locations via a central interface, resulting in significantly greater clarity and easier administration.
In addition to the wired 10/100Mbit/s RJ45 network interface, the ALL3073v2 also possesses a wireless LAN interface according to IEEE802.1b/g/n standard and can thus also be integrated in a wireless LAN network; both as a client or access point.
With the "Server monitoring function" you can cause the ALL3073v2 to monitor and reset a computer or router.
A ping is sent to the entered system, if the system does not respond within a specified time, the output is switched off for a set time.
Application examples:
Targeted control and restart of PCs and servers from a distance
Restart of router from a distance including automatic start-up (dead time programmable)
Timed-controlled element reduction of unnecessary power consumption by standby devices
This text is machine translated.
Scope of delivery
- Allnet ALL3073V2WLAN network socket for IP Building Automation
System requirements
- Suitable for all network-enabled operating systems.
