Allnet ALL3419 Wi-Fi USB server LAN (10/100 Mbps), RJ45, USB A (USB 2.0)
EAN:
Part number:
Item no:
Allnet ALL3419 MSR Central for IP Building Automation
Highlights & Details
- Sensor detection via network
- Robust metal housing
- Suitable for all operating systems
- SNMP software module for installation
- 3 x I2C sensor ports for optional sensors and actuators
- 1 x USB 2.0 for optional wireless sensors "EnOcean and Plugwise"
Technical specifications
- Dimensions (W x H x D) 85 x 24 x 92 mm
- Weight: 115 g
- Material: Metallic
- Max. power consumption: 3 W
- Product type
Wi-Fi USB server
- Transfer rate
10 / 100 MBit/s
- Interfaces
LAN (10/100 Mbps)
RJ45
USB A (USB 2.0)
- No. of USB ports
1 x
- Factory colour
Black
- Screen size diagonal (inches)
24 inch
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2227954 Allnet ALL3419 Wi-Fi USB server LAN (10/100 Mbps), RJ45, USB A (USB 2.0)
Description

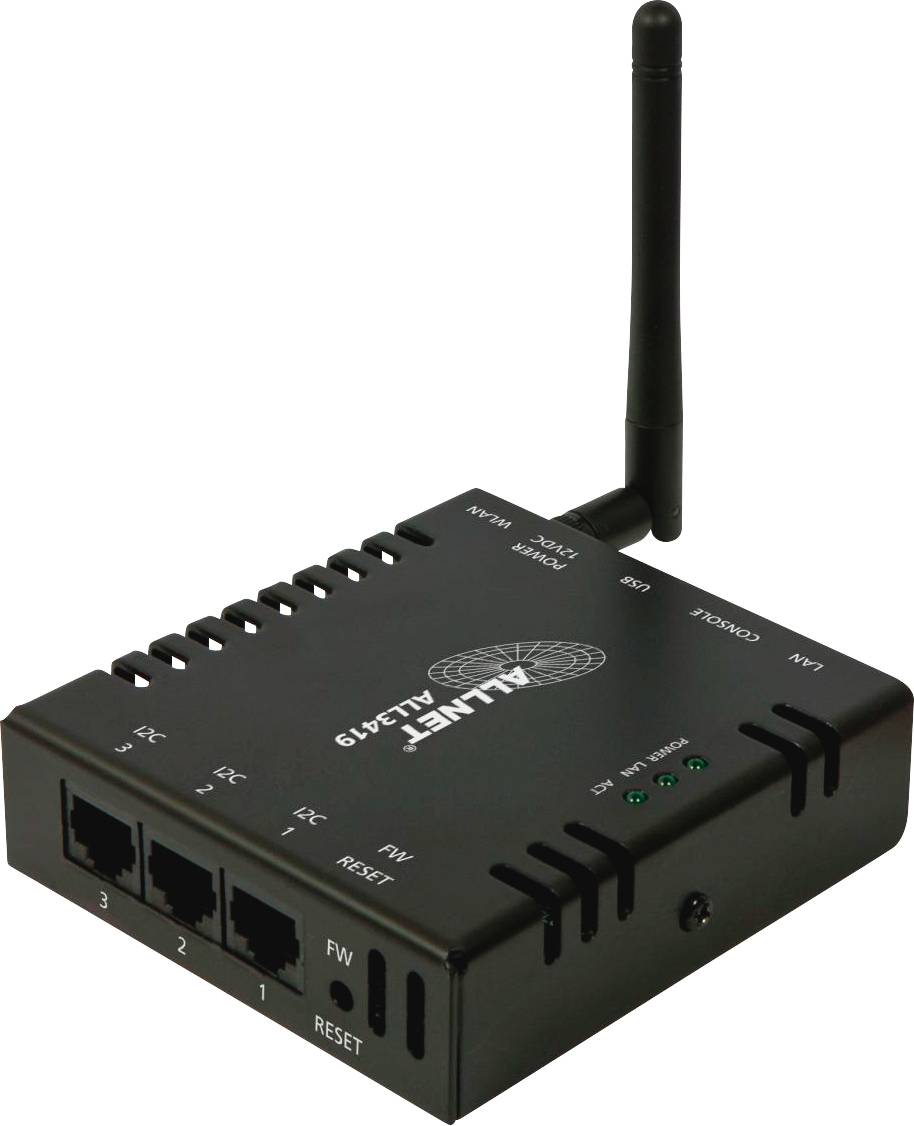

The ALLNET ALL3419 IP thermometer/sensor center is a flexible and cost-effective solution for temperature measurement via network. Its extremely compact design makes it possible to use it even in places that are difficult to access. The robust metal housing has tabs for mounting on wall and ceiling and protects against mechanical damage.
The ALL3419 IP thermometer/sensor center is connected to a computer network via cable or wireless LAN and can be reached via an IP address. The determined values can be viewed directly in the device via a web browser. Additional software is not required for operation. Thus the ALL3419 is suitable for all operating systems.
This text is machine translated.
The ALL3419 IP thermometer/sensor center is connected to a computer network via cable or wireless LAN and can be reached via an IP address. The determined values can be viewed directly in the device via a web browser. Additional software is not required for operation. Thus the ALL3419 is suitable for all operating systems.
This text is machine translated.
Scope of delivery
- ALLNET ALL3419
- Allnet ALL3006 temperature sensor
- WLAN antenna
- External power supply "12V 1A"
- Operating instructions
System requirements
- Suitable for all network-enabled operating systems.
