Allnet Router Router
EAN:
Part number:
Item no:
Highlights & Details

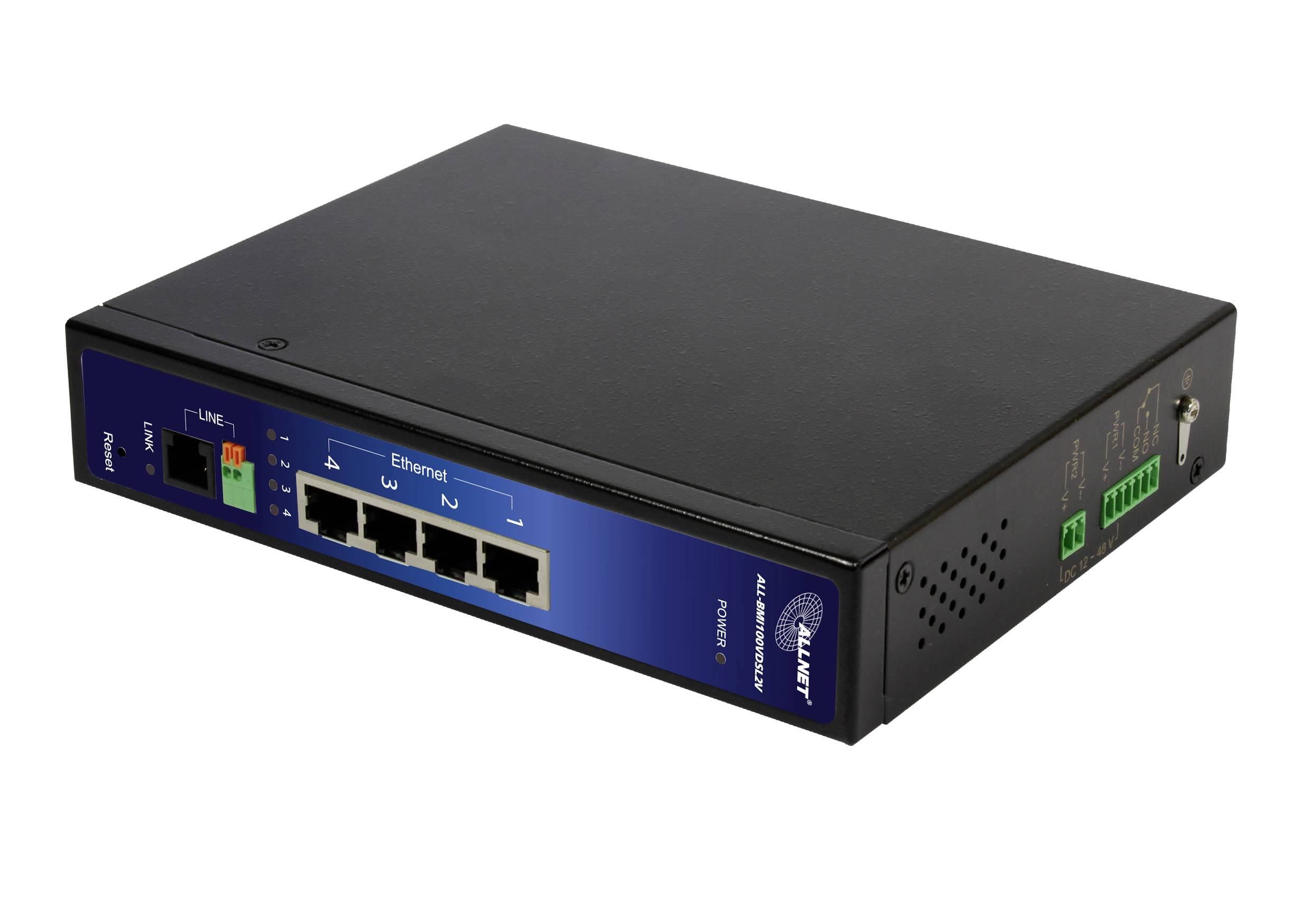

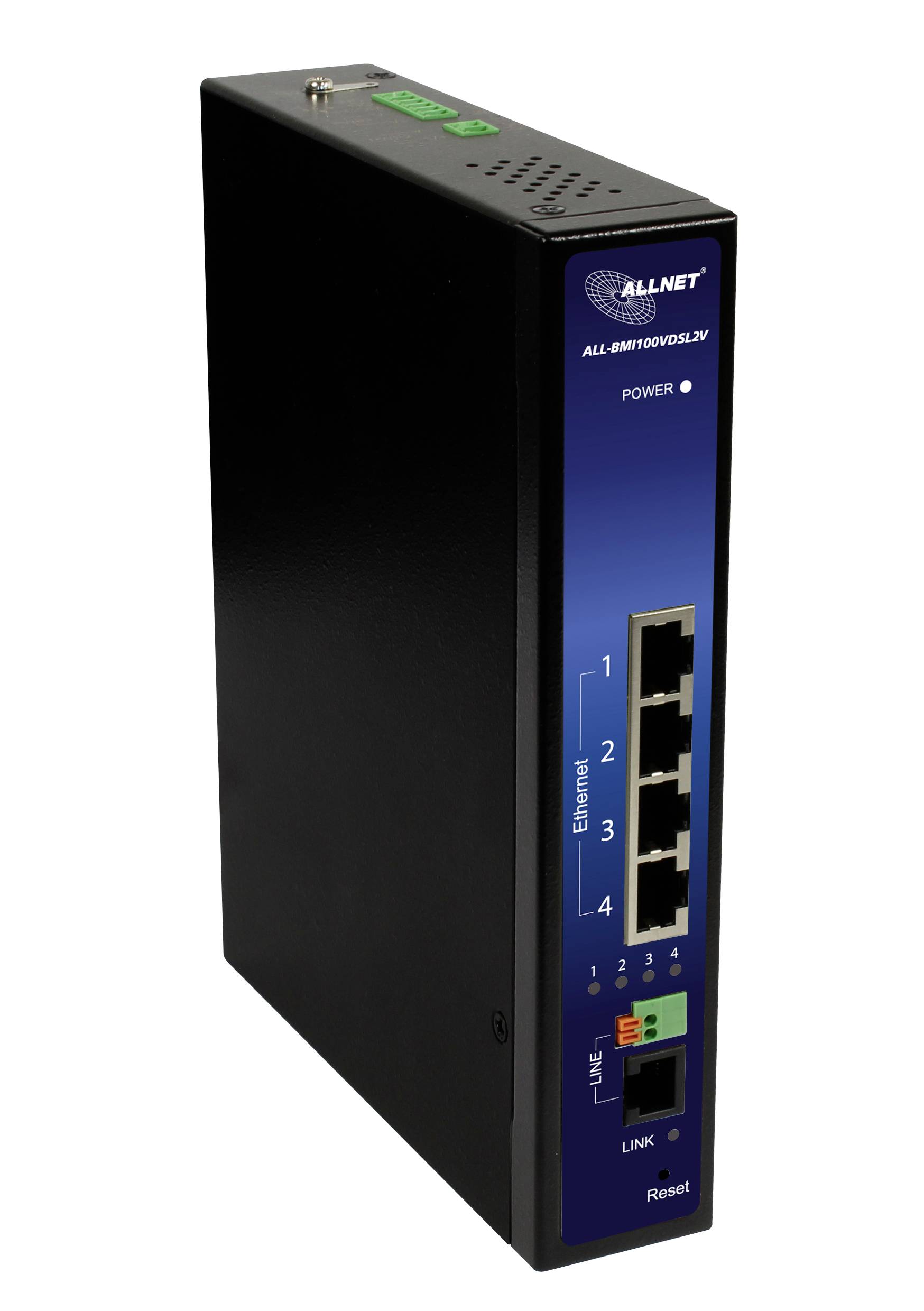

Allnet 172755, Network bridge, 100 Mbit/s, Built-in Ethernet connection, Black
- Product type: Router
- Type:Router
- Transfer rate 1 Gbps
Technical specifications
- Features
- Product type:Network bridge material:Metal
- Product color:Black Reset button:Yes
- International protection type (IP code):IP30 data transmission
- Maximum data transfer rate: 100 Mbit/s Network
- Built-in Ethernet connection:Yes Ethernet LAN interface type:Fast Ethernet
- Ethernet LAN data transfer rates: 10.100 Mbit/s Network standard: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
- Cabling technology:10/100Base-T(X)connections and interfaces
- Transmission technology:Number of Ethernet LAN connections (RJ-45):4Security
- Supported security algorithms:SNMP,SNMPv2,SNMPv3operating conditions
- Temperature range in operation: -20 - 70 °C humidity in operation: 5 - 95 %
- Temperature range during storage: -40 - 70 °C power

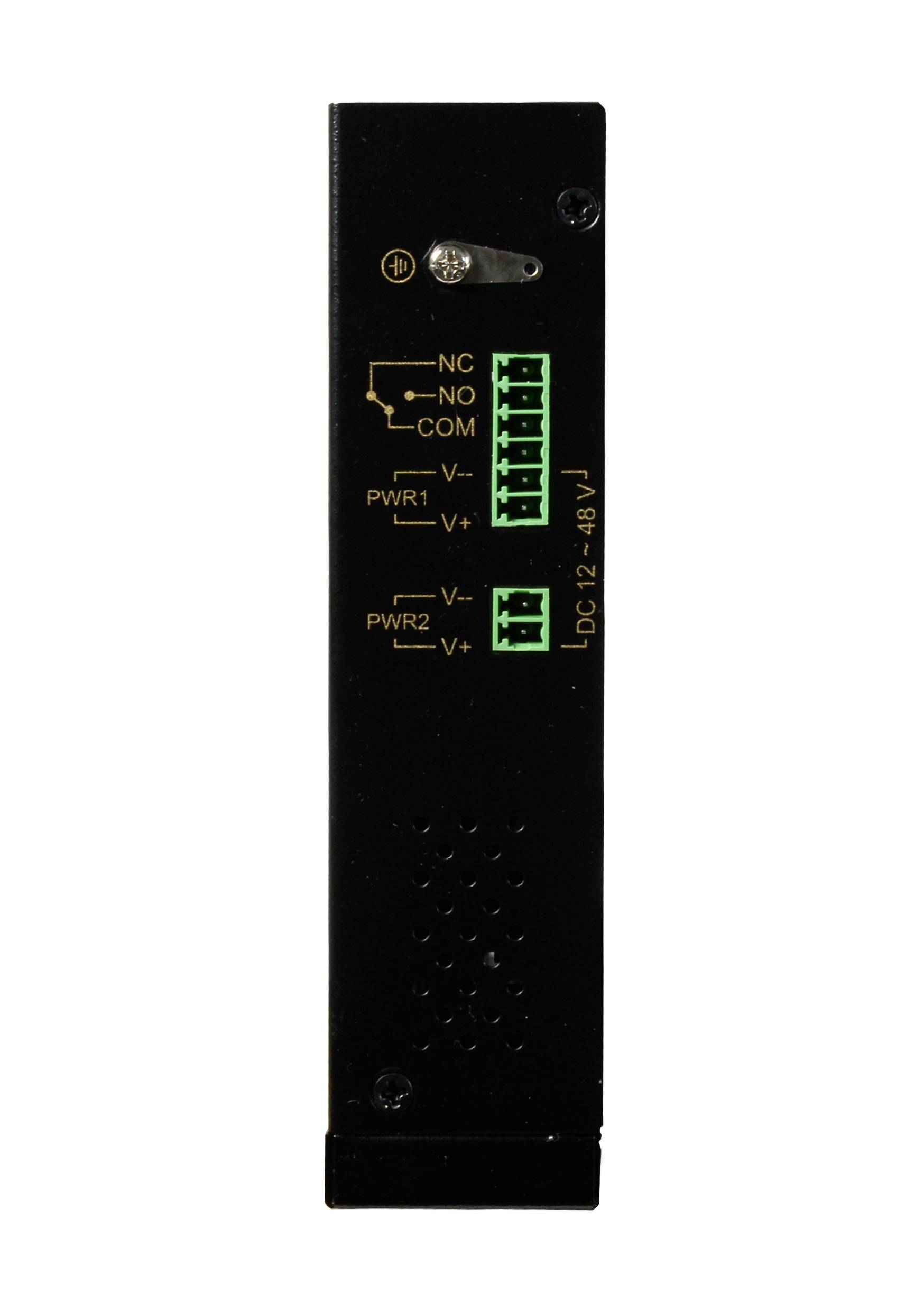

- DC input voltage:12 - 48 V weight and dimensions
- Width:182 mm Depth:142 mm
- Height:35.5 mmWeight:790 gPackaging data
- Quantity per pack:1 piece(s) certificates
- Certified: CE, FCC, RoHS
- Product type
Router
- Type
Router
- Function
Router
- LAN data transfer rate
100 MBit/s
- Interfaces
RJ45
- 10/100 Mbps ports
4 x
- Width
300 mm
- Height
35.5 mm
- Depth
142 mm
- Weight
150 g
- Factory colour
Multicolour
- Length
400 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3732941 Allnet Router Router
Description
Allnet 172755 Maximum data transfer rate of 100 Mbps Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data transfer rates: 10.100 Mbit/s, network standard: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u. Transmission technology: Cabled. Supported security algorithms: SNMP,SNMPv2,SNMPv3. Product type: Network bridge, material: Metal, product color: Black
This text is machine translated.
This text is machine translated.
Features
- General:
- Maximum data transfer rate of 100 Mbps
- Ethernet LAN interface type: Fast Ethernet
- Ethernet LAN data transfer rates of 10.100 Mbit/s.
- Network standard: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
- Transmission technology: Cabled
- Supported security algorithms: SNMP,SNMPv2,SNMPv3
- Product type: Network bridge
- Material: Metallic
- Product color: Black
