Allnet switch 5 port 10/100/1000TX 4x PoE unmanaged layer2 fan-less - switch -
EAN:
Part number:
Item no:
Highlights & Details
Allnet switch unmanaged Layer2• 5x 1GbE• PoE budget 69W• No fan• - switch - 0.1 Gbps
- Number of ports: 5 port
- Product type: Switch
- Type: Switch
- Transfer rate 10 Gbps
Technical specifications
- Form factor: Desktop/wall mounting
- Power source: Direct current
- Product type
Network switch
- Weight
780 g
- Width
100 mm
- Height
26 mm
- Depth
99.4 mm
- Type
Switch
- Factory colour
Black
- Length
400 cm
- Power supply (details)
100 - 240 V
- Input voltage
55 V
- UKCA
yes
- Power over Ethernet (PoE) ports quantity
4
- Fanless
yes
- Operating temperature (T-T)
0 - 40 °C
- Basic switching RJ-45 Ethernet ports quantity
5
- Total Power over Ethernet (PoE) budget
52 W
- Storage relative humidity (H-H)
10 - 90 %
- Wall mountable
yes
- Switching capacity
10 Gbit/s
- Packet forwarding rate (1 Gbps)
1488000 pps
- Packet forwarding rate (10 Mbps)
14800 pps
- Packet forwarding rate (100 Mbps)
148800 pps
- Power over Ethernet (PoE) power per port
30 W
- Power over Ethernet (PoE)
yes
- GARP VLAN Registration Protocol (GVRP)
yes
- Web-based management
yes
- Gigabit Ethernet (copper) ports quantity
5
- Rack mounting
no
- Number of power supply units
1
- Auto MDI/MDI-X
yes
- Operating relative humidity (H-H)
10 - 85 %
- Storage temperature (T-T)
-10 - 70 °C
- Transmission distance (max)
0.1 km
- Built-in processor
yes
- Power supply included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3739678 Allnet switch 5 port 10/100/1000TX 4x PoE unmanaged layer2 fan-less - switch -
Description
Allnet switch 5 port 10/100/1000TX 4x PoE unmanaged layer2 fanless - switch - 0.1 Gbps - duplex - full-duplex - Power over Ethernet - unmanaged
This text is machine translated.
This text is machine translated.
Features
- Port 1-4 PoE output, port 5 = uplink port
- Compact metal casing

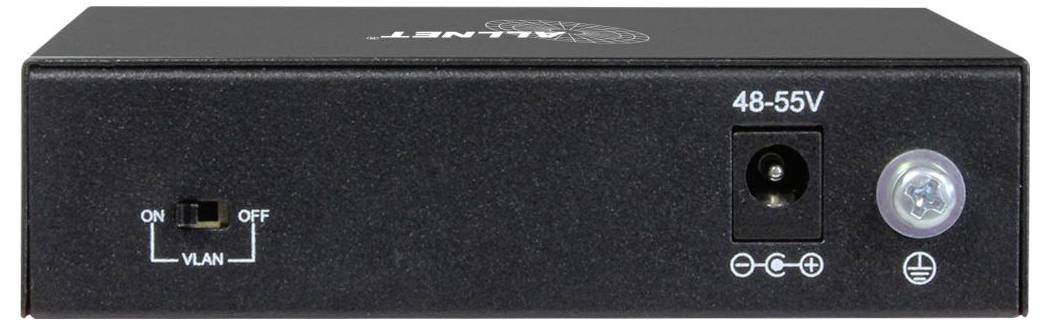

- Default mode or VLAN port isolation mode (interconnect with port 5)
- 2 KV surge protection
- Provides 2K MAC address entry
- Compact dimensions 100 x 99.44 x 26mm

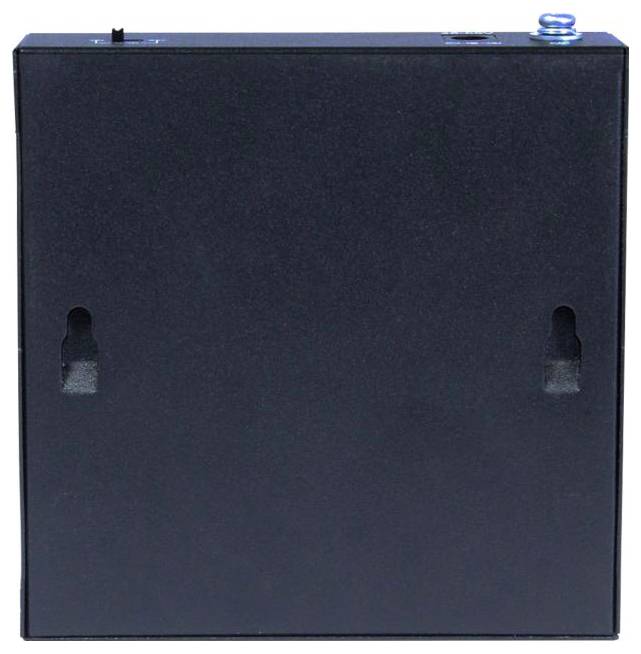

- Wall mounting possible / For optional magnets, see accessories
- Supports IEEE802.3x flow control for Full Duplex

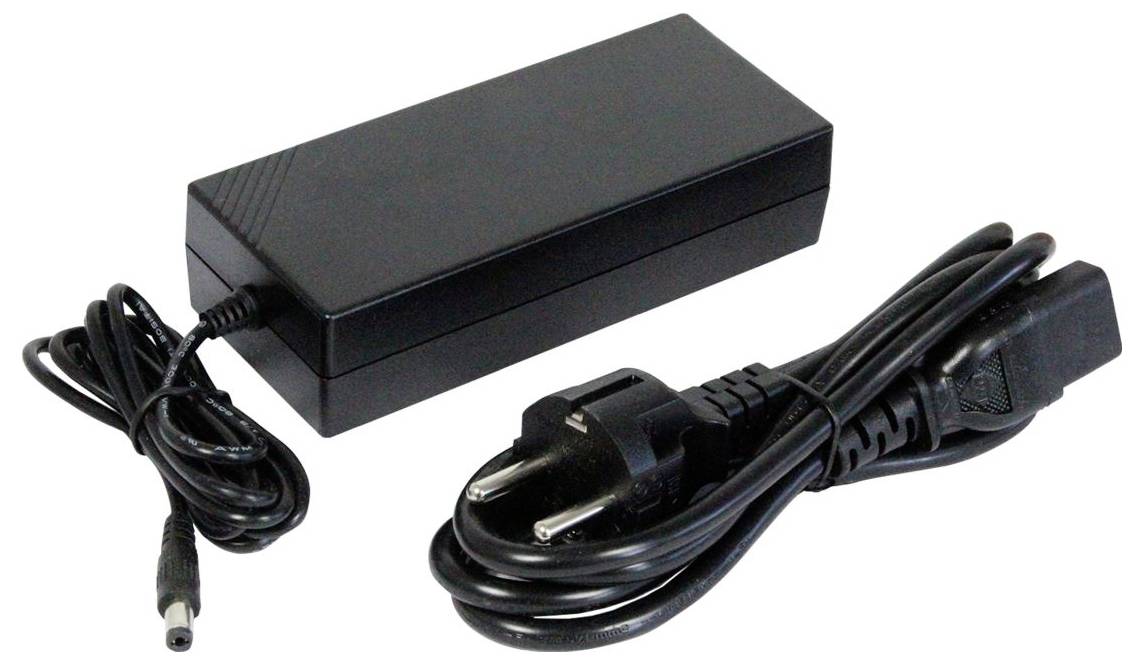

- Power supply and power cable 55VDC / 1.3A included in the delivery.
