Alogic Thunderbolt™ 4 laptop docking station Quad 4K Thunderbolt 4 laptop-dockingstation & portreplikator
EAN:
Part number:
Item no:
Highlights & Details
Alogic TB4DU4 Thunderbolt™ 4 laptop docking station
- Connection A (or inputs): Thunderbolt
- Connecton B (or outputs):
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Other operating systems support: ChromeOS
- Product type
Thunderbolt™ 4 laptop docking station
- Type A
Thunderbolt
- Cable length
0 cm
- Factory colour
Grey
Black
- Width
224 mm
- Height
28 mm
- Depth
85 mm
- Weight
600 g
- Dim
(W x H x D) 224 x 28 x 85 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No of. USB type A 3.1 /3.2 2nd gen
1 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- Keyboard layout
German, QWERTZ
- Material (details)
Aluminium
Acrylonitrile butadiene styrene (ABS)
- 10/100/1000 Mbps ports
1 x
- PSU power
96 W
- Power supply (details)
100-240 V
- Transfer type
Corded
- UKCA
yes
- Ethernet LAN
yes
- Quantity per pack
1 Stück(e)
- Headphone outputs
1
- Card reader integrated
yes
- Thunderbolt 4 ports quantity
2
- Thunderbolt ports quantity
2
- Combo headphone/mic port
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742488 Alogic Thunderbolt™ 4 laptop docking station Quad 4K Thunderbolt 4 laptop-dockingstation & portreplikator
Description

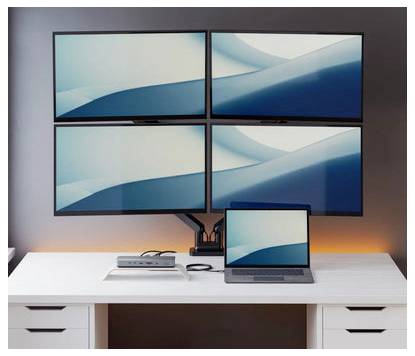

Quad display – up to 4K x 4
Connected to a computer with a Thunderbolt port (or many USB4 devices), the DU4 docking station allows you to connect up to four external displays in flexible combinations via the 2 HDMI, 3 DisplayPort, and 2 Thunderbolt downstream ports*.
The DU4 docking station can also connect up to three displays to laptops without Thunderbolt support.
* The number of available outputs and the maximum resolution depend on the specifications of the computer used. For detailed information about the supported outputs, see the "Resolutions" table.

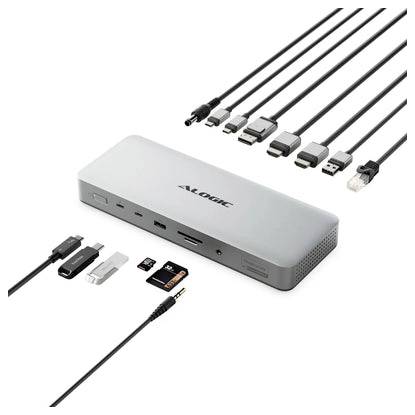

Universal all-in-one connectivity
The DU4 docking station offers universal compatibility and works with all Windows, Mac and Chromebook computers and laptops.

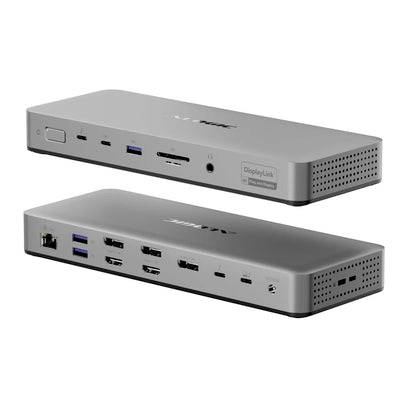

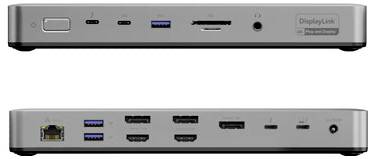

In addition to the support of up to four external monitors, the docking station offers numerous connections for all other common peripherals, including:
2 x Thunderbolt 4 downstream ports (40 Gbit/s / video output-enabled)
2 x HDMI video outputs
3 x DisplayPort video outputs
1 x USB-C 3.2 1st Gen (2 G)
1 x USB-A 3.2 1st Gen (2 G)
2 x USB-A 3.2 1st Gen 1 (5G)
2.5 Gigabit Ethernet
Combined headphone-/microphone socket (384 kHz)
SD and Micro SD Card Reader (SD 4.0 / UHS-II - 312 Mbps)
Easy to deploy
With this docking station, all modern computers with a USB-C connection or older computers with USB-A† can be connected to at least two screens. IT professionals and companies can thus deploy the DU4 docking station as a unified solution for all users.
The DU4 docking station keeps things tidy and provides power to both fixed workstations and flexible hot desks in any organization. Thanks
The lockable slots can secure the docking station in shared work areas. † A USB-C to A adapter or cable is sold separately.
Power plus
The docking station has a 150 W power supply with GaN technology for a powerful and efficient operation.
In addition to the power supply to the docking station and all connected peripherals, the docking station can provide up to 96 W power to the connected laptop - enough to charge even the most power-hungry devices.
This text is machine translated.
