Alpenföhn Silvretta CPU cooler + fan Intel® 1156, Intel® 1155, Intel® 1151, Intel® 1150, AMD AM3+, AMD AM3, AMD AM2+, AM
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
14-day return policy included

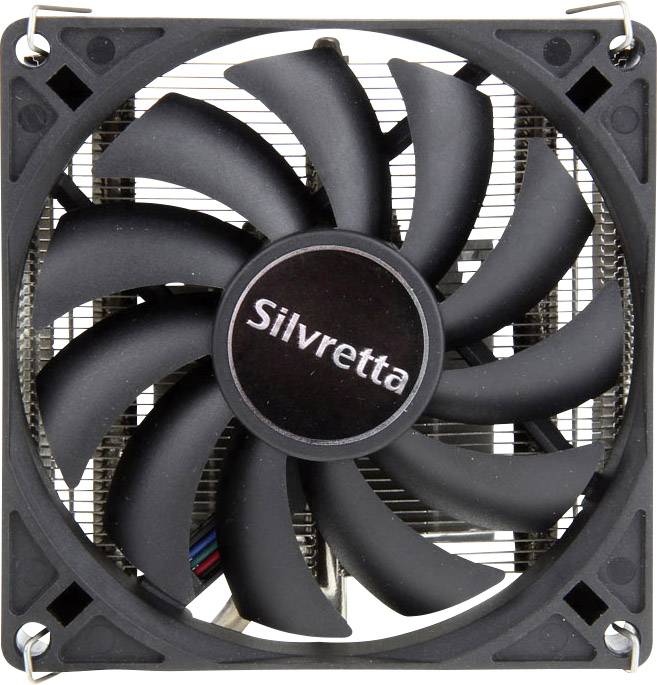

Alpenföhn Silvretta CPU cooler + fan
Highlights & Details
- Max. 45 mm height
- VGA compatibility on mini-ITX Mainboards
- 3 nickel-plated high-performance heat pipes
- Ultra-flat PWM fan
- Secure mounting system for Intel/AMD ®
Technical specifications
- Product type
CPU cooler + fan
Intel® 1156
Intel® 1155
Intel® 1151
Intel® 1150
AMD AM3+
AMD AM3
AMD AM2+
AMD AM2
AMD FM1
AMD AM4
Show more
- Rotational speed (min.)
800 U/min
- Rotational speed (max.)
2800 U/min
- Air discharge
80.03 m³/h
- Type of bearing
Hydraulic bearing
- Connection
4-pin PWM
- Heatsink material
Aluminium
- Weight
250 g
- Features
Heat pipe
- Width
100 mm
- Height
45 mm
- Depth
93 mm
- Fan dimensions
92 x 92 mm
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1385381 Alpenföhn Silvretta CPU cooler + fan Intel® 1156, Intel® 1155, Intel® 1151, Intel® 1150, AMD AM3+, AMD AM3, AMD AM2+, AM
User & Safety Instructions
User & Safety Instructions 1385381 Alpenföhn Silvretta CPU cooler + fan Intel® 1156, Intel® 1155, Intel® 1151, Intel® 1150, AMD AM3+, AMD AM3, AMD AM2+, AM
Description
Alpenföhn ® Silvretta slim CPU cooler for Mini-ITX/Micro ATX
With a total height of only 45 mm, this ideal cooler for Intel/AMD ® based HTPC's and Small Form Factor Systems.
VGA compatibility on mini-ITX Mainboards
Most of the mini-ITX motherboards, the PCIe slot directly next to the CPU socket. Usually the PCIe slot while larger cooler block, the alpenföhn Silvretta due to the max. width of only 93 mm is ideal.
Secure mounting system for AMD/Intel
The included screw mounting system was designed in such a way that a maximum compatibility on mini-ITX motherboards.
This text is machine translated.
With a total height of only 45 mm, this ideal cooler for Intel/AMD ® based HTPC's and Small Form Factor Systems.
VGA compatibility on mini-ITX Mainboards
Most of the mini-ITX motherboards, the PCIe slot directly next to the CPU socket. Usually the PCIe slot while larger cooler block, the alpenföhn Silvretta due to the max. width of only 93 mm is ideal.
Secure mounting system for AMD/Intel
The included screw mounting system was designed in such a way that a maximum compatibility on mini-ITX motherboards.
This text is machine translated.
Features
- High-performance heat pipes
- 3 high-performance heat pipes transport the waste heat of the processor quickly and efficiently to the soldered aluminum fins of the heat sink.
- Ultra-flat PWM fan
- The built-in fan has a 4-pin connector and therefore can be controlled via the motherboard. This enables a speed adjustment between 800 and 2,800 rpm, thus minimum 14.8 dB(A) and a maximum of 80,03 m³/h.
Scope of delivery
- CPU cooler with fan
- Screw mounting system
- Assembly instructions
