Image similar
1/2

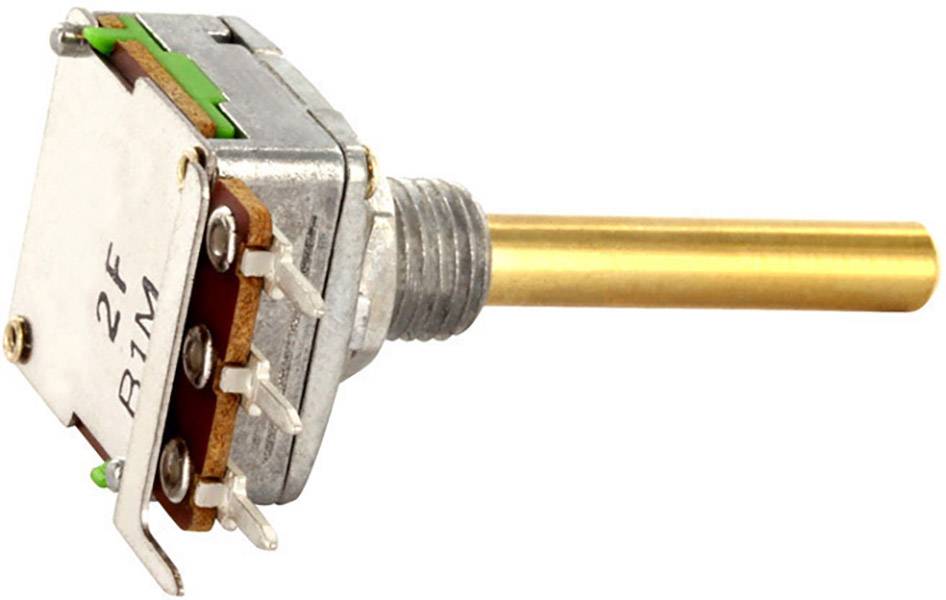

Image similar
Alpha 63250-01400/A1M APM4A1MM Single turn rotary pot Mono 50 mW 1 MΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single turn rotary pot
Resistance
1 MΩ
Resistance characteristic
logarithmic
Output
Mono
Power rating
50 mW
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Highlights & Details
Rotary potentiometer
- 1 MΩ
- logarithmic
Technical specifications
- Product type
Single turn rotary pot
- Resistance
1 MΩ
- Resistance characteristic
logarithmic
- Output
Mono
- Power rating
50 mW
- Cut-off voltage
150 V
- Connection
Print
- Mechanical angle
270°
- Torque (max.)
2 Ncm
- Axle length
30 mm
- Axle type
Metal
Smooth
Round
- Axle Ø
4 mm
- Thread size
M7
- Thread length
8 mm
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Tolerance ±
20 %
- Content
1 pc(s)
- Type
APM4A1MM
Documents & Downloads
Datasheet
Datasheet 1694249 Alpha 63250-01400/A1M APM4A1MM Single turn rotary pot Mono 50 mW 1 MΩ 1 pc(s)
Description
Scope of delivery
- 63250-01400/A1M.
