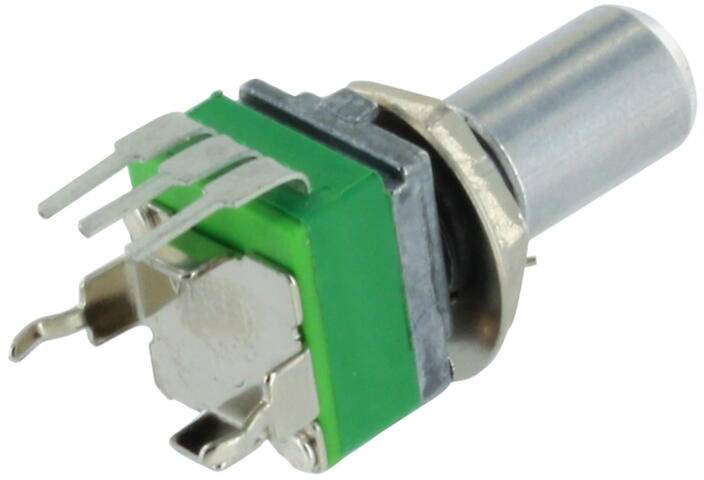

Alpha RD901F-40-15R1-A500K-00D RD901F-40-15R1-A500K-00D Single turn rotary pot Mono 0.05 W 500 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single turn rotary pot
Resistance
500 kΩ
Resistance characteristic
logarithmic
Output
Mono
Power rating
0.05 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
Highlights & Details
Potentiometer log mono 9mm 500K with cage
- 500 kΩ
- logarithmic
Technical specifications
- Product type
Single turn rotary pot
- Resistance
500 kΩ
- Resistance characteristic
logarithmic
- Output
Mono
- Power rating
0.05 W
- Cut-off voltage
300 V
- Switching voltage (max.)
50 V AC
- Connection
Print
- Mechanical angle
300°
- Torque (max.)
2.5 Ncm
- Type
With cage
- Axle length
15 mm
- Axle type
Metal
- Axle Ø
9 mm
- Thread size
M7 x 0,75
- Thread length
5 mm
- Length
15 mm
- Min. temperature
10 °C
- Max. temperature
70 °C
- Content
1 pc(s)
- Type
RD901F-40-15R1-A500K-00D
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2358969 Alpha RD901F-40-15R1-A500K-00D RD901F-40-15R1-A500K-00D Single turn rotary pot Mono 0.05 W 500 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2358969 Alpha RD901F-40-15R1-A500K-00D RD901F-40-15R1-A500K-00D Single turn rotary pot Mono 0.05 W 500 kΩ 1 pc(s)
Description
Scope of delivery
- RD901F-40-15R1-A500K-00D.
