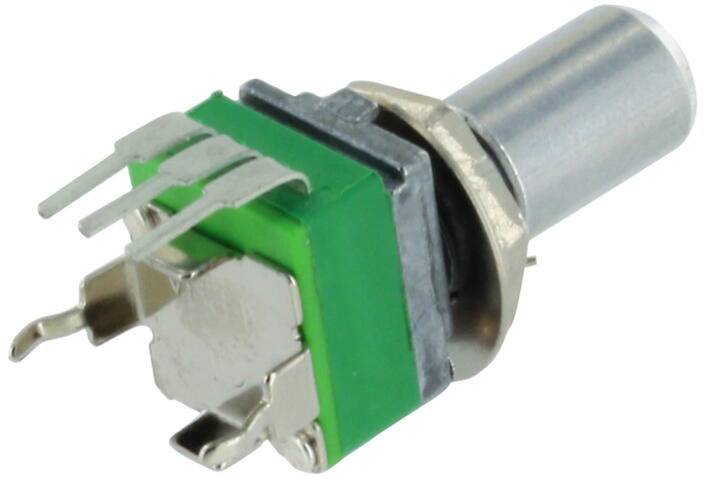

Alpha RD901F-40-15R1-B1M-00D RD901F-40-15R1-B1M-00D Single turn rotary pot Mono 0.05 W 1 MΩ 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Single turn rotary pot
Resistance
1 MΩ
Resistance characteristic
linear
Output
Mono
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Highlights & Details
Potentiometer lin mono 9mm 1M with cage
- 1 MΩ
- linear
Technical specifications
- Packaging type
Piece
- Product type
Single turn rotary pot
- Resistance
1 MΩ
- Resistance characteristic
linear
- Output
Mono
- Power rating
0.05 W
- Cut-off voltage
300 V
- Switching voltage (max.)
50 V AC
- Connection
Print
- Mechanical angle
300°
- Torque (max.)
2.5 Ncm
- Type
With cage
- Axle length
15 mm
- Axle type
Metal
- Axle Ø
9 mm
- Thread size
M7 x 0,75
- Thread length
5 mm
- Length
15 mm
- (Ø)
9 mm
- Min. temperature
10 °C
- Max. temperature
70 °C
- Content
1 pc(s)
- Type
RD901F-40-15R1-B1M-00D
- Dim
(Ø x L) 9 mm x 15 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2358963 Alpha RD901F-40-15R1-B1M-00D RD901F-40-15R1-B1M-00D Single turn rotary pot Mono 0.05 W 1 MΩ 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2358963 Alpha RD901F-40-15R1-B1M-00D RD901F-40-15R1-B1M-00D Single turn rotary pot Mono 0.05 W 1 MΩ 1 pc(s) Piece
Description
Scope of delivery
- RD901F-40-15R1-B1M-00D.
