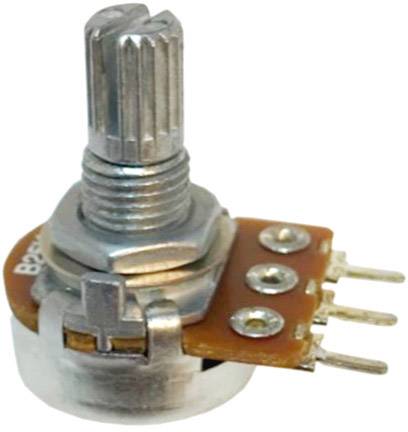

Alpha RV16AF20KB1KM RV16AF20KB1KM Single turn rotary pot Mono 0.2 W 1 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single turn rotary pot
Resistance
1 kΩ
Resistance characteristic
linear
Output
Mono
Power rating
0.2 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
Highlights & Details
- 1 kΩ
- linear

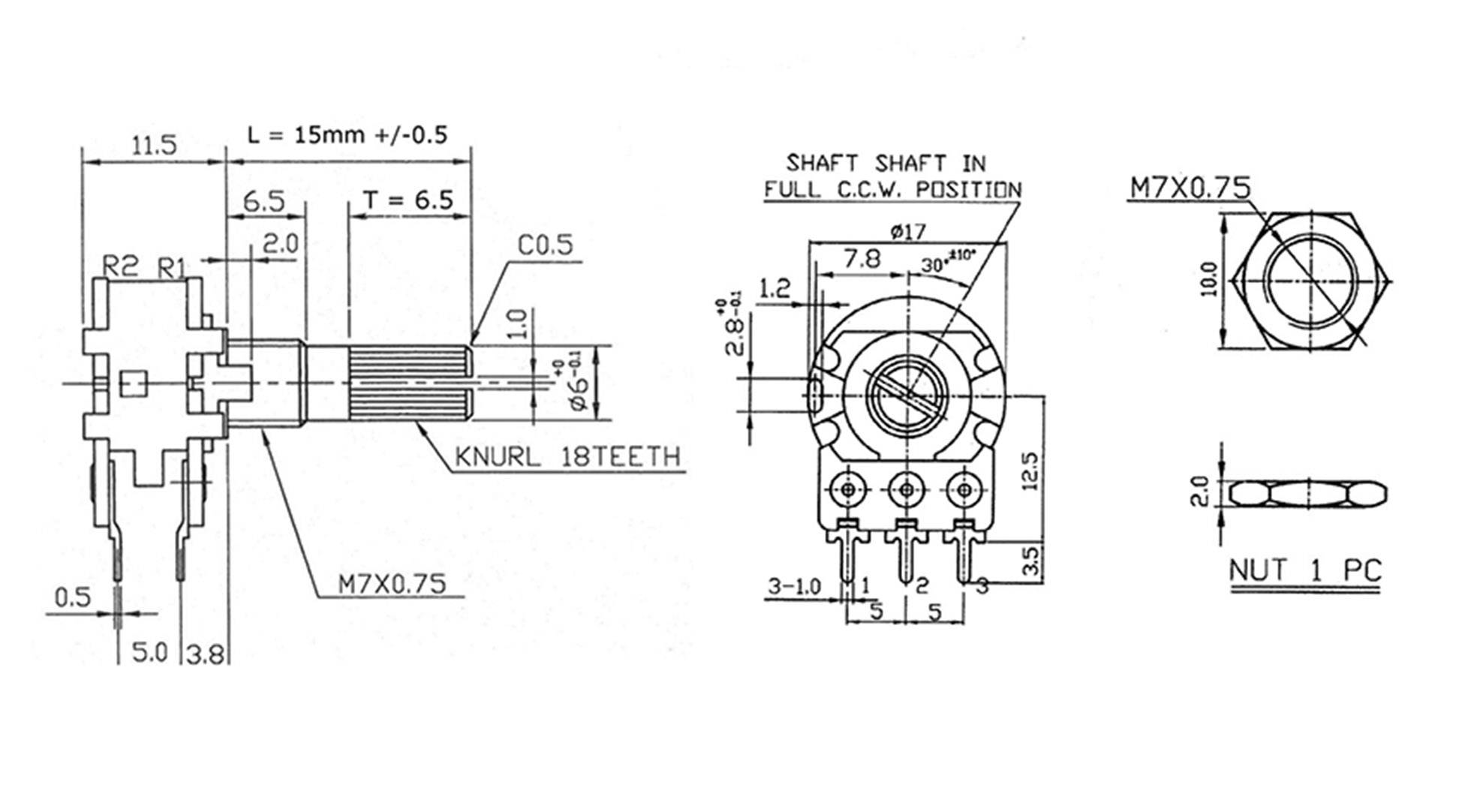

Technical specifications
- Product type
Single turn rotary pot
- Resistance
1 kΩ
- Resistance characteristic
linear
- Output
Mono
- Power rating
0.2 W
- Connection
Print
- Mechanical angle
300°
- Axle length
15 mm
- Axle type
Metal
Serrated
- Axle Ø
6 mm
- Thread size
M7
- Thread length
6.5 mm
- Content
1 pc(s)
- Type
RV16AF20KB1KM
Documents & Downloads
Datasheet
Datasheet 1795531 Alpha RV16AF20KB1KM RV16AF20KB1KM Single turn rotary pot Mono 0.2 W 1 kΩ 1 pc(s)
Description
Scope of delivery
- RV16AF20KB1KM.
