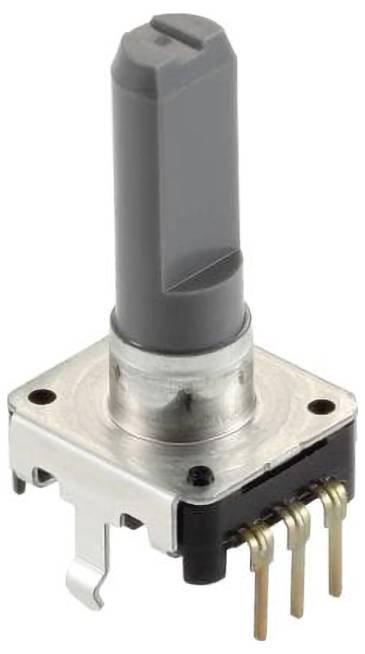

ALPS Encoder 1 pc(s) EC12E1220405
Part number:
Item no:
Product type
Encoder
Type
EC12E1220405
Orientation (connectors)
Axial
RoHS-compliant
Yes
Mounting type
PCB mount
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series EC12
- Contact type: SPST-NO
- Design: Vertical
- Total height 24.5 mm
- Length, socket 12.4 mm
- Width, base 13.2 mm
- Height, socket 5 mm
- Diameter, Shaft 6 mm
- Axis: Plastic
- Attacks: 12
- Pulse output count: 12
- Nominal voltage: 5 V
- Lifetime: 30,000 cycles
- Mechanical rotation angle 360 °
- Torque: 3 mNm
- Product type
Encoder
- Type
EC12E1220405
- Orientation (connectors)
Axial
- RoHS-compliant
Yes
- Mounting type
PCB mount
- Nominal current
0.5 mA
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-10 °C
- Insulation resistance
10 MΩ
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3462864 ALPS Encoder 1 pc(s) EC12E1220405
User & Safety Instructions
User & Safety Instructions 3462864 ALPS Encoder 1 pc(s) EC12E1220405
Description
ALPS encoder EC12
This text is machine translated.
This text is machine translated.
Features
- • Incremental Encoder
- • Compact design
- • Pulse output number: 12
- • Smooth waistband
