ALPS RK09K1130A6S Carbon film pot 0.05 W 10 kΩ 1 pc(s)
Part number:
Item no:
Product type
Carbon film pot
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
0.05 W
Axle type
Plastic
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.97774
10
8% = € 0.08
€ 0.89903
25
11% = € 0.11
€ 0.86755
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.97774 / piece)
€ 0.98
plus VAT.
Highlights & Details
ALPS potentiometer mono V Flat 15mm 10K 1B
- 10 kΩ
- linear
Technical specifications
- ESD Packaging: No ESD
- Series: RK09
- Design: Vertical
- Length, socket 9.8 mm
- Width, base 9.8 mm
- Height, socket 6.8 mm
- Length, shaft 15 mm
- Diameter, Shaft 6 mm
- Axis: Plastic
- Central locking: Without
- Resistance value 10 kOhm
- Resistance unit: KOhm
- Resistance value_1: 10
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.05 W
- Max. OPERATING VOLTAGE (DC) 20 V DC
- Max. OPERATING VOLTAGE (AC) 50 V AC
- Insulation voltage 250 V
- Insulation resistance 100 MOhm
- Lifetime: 5,000 cycles
- Mechanical rotation angle 280 °
- Torque: 8 mNm
- Product type
Carbon film pot
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
0.05 W
- Cut-off voltage
250 V
- Mechanical angle
280°
- Axle length
15 mm
- Axle type
Plastic
- Axle Ø
6 mm
- Case dimensions
9.8 x 9.8 x 6.8 mm
- Length
9.8 mm
- Width
9.8 mm
- Height
6.8 mm
- Tolerance ±
20 %
- Insulation resistance
100 MΩ
- Content
1 pc(s)
- Type
RK09K1130A6S
- Dim
(L x W x H) 9.8 x 9.8 x 6.8 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3527500 ALPS RK09K1130A6S Carbon film pot 0.05 W 10 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3527500 ALPS RK09K1130A6S Carbon film pot 0.05 W 10 kΩ 1 pc(s)
Description

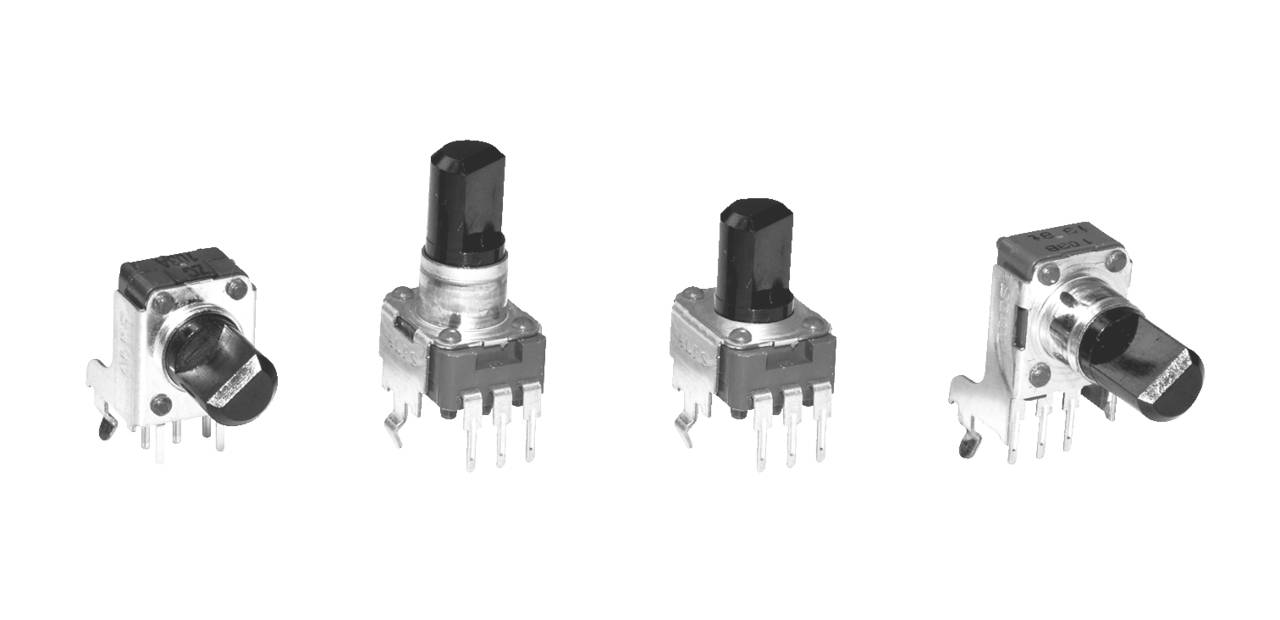

ALPS carbon film potentiometer
This text is machine translated.
This text is machine translated.
Features
- • Compact potentiometer with 9.8 mm width
- • Ideal for designing high density sets
Scope of delivery
- RK09K1130A6S.
