ALPS RK09K1130A8G Carbon film potentiometer 0.05 W 10 kΩ 1 pc(s) Piece
Part number:
Item no:
Packaging type
Piece
Product type
Carbon film potentiometer
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
0.05 W
Datasheet (PDF)
Highlights & Details
ALPS potentiometer mono V round 15mm 10K 1B
- 10 kΩ
- linear
Technical specifications
- ESD Packaging: No ESD
- Series: RK09
- Design: Vertical
- Length, socket 9.8 mm
- Width, base 9.8 mm
- Height, socket 6.8 mm
- Length, shaft 15 mm
- Diameter, Shaft 6 mm
- Axis: Plastic
- Central locking: Without
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.05 W
- Max. OPERATING VOLTAGE (DC) 20 V DC
- Max. OPERATING VOLTAGE (AC) 50 V AC
- Insulation voltage 250 V
- Lifetime: 5,000 cycles
- Mechanical rotation angle 280 °
- Torque: 8 mNm
- Packaging type
Piece
- Product type
Carbon film potentiometer
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
0.05 W
- Switching voltage (max.)
50 V AC
- Mechanical angle
280°
- Axle length
15 mm
- Axle type
Plastic
- Axle Ø
6 mm
- Length
9.8 mm
- Width
9.8 mm
- Height
6.8 mm
- Tolerance ±
20 %
- Insulation resistance
100 MΩ
- Content
1 pc(s)
- Type
RK09K1130A8G
- Dim
(L x W x H) 9.8 x 9.8 x 6.8 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3462859 ALPS RK09K1130A8G Carbon film potentiometer 0.05 W 10 kΩ 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3462859 ALPS RK09K1130A8G Carbon film potentiometer 0.05 W 10 kΩ 1 pc(s) Piece
Description

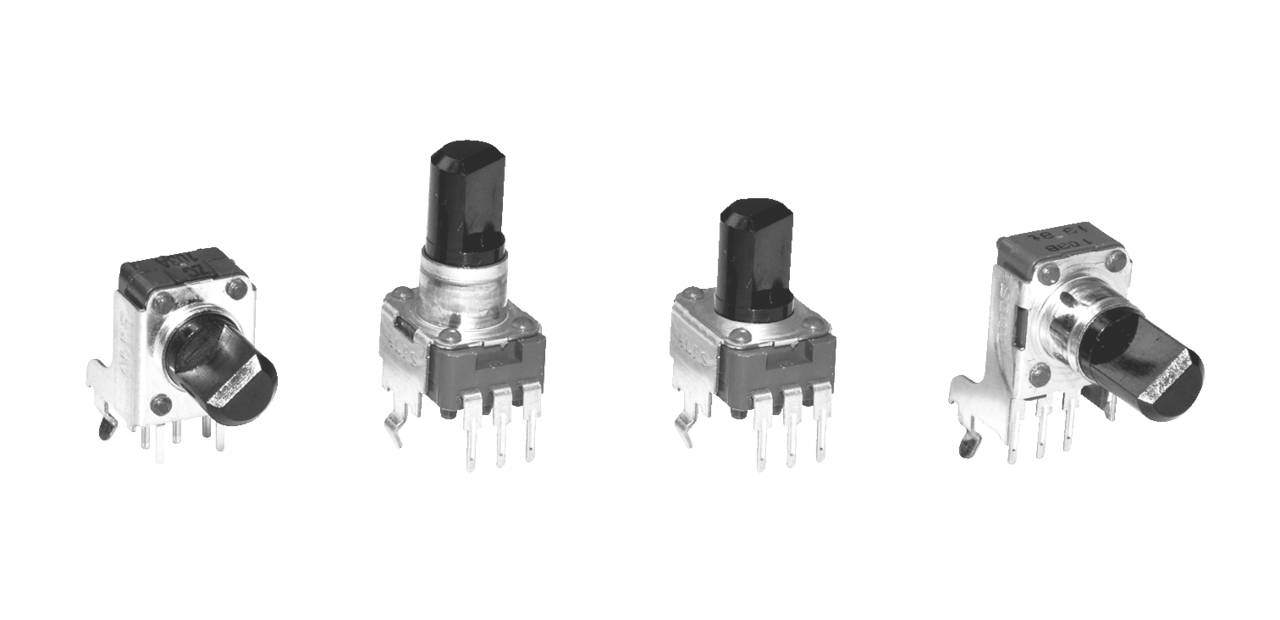

ALPS carbon film potentiometer
This text is machine translated.
This text is machine translated.
Features
- • Compact potentiometer with 9.8 mm width
- • Ideal for designing high density sets
Scope of delivery
- RK09K1130A8G.
