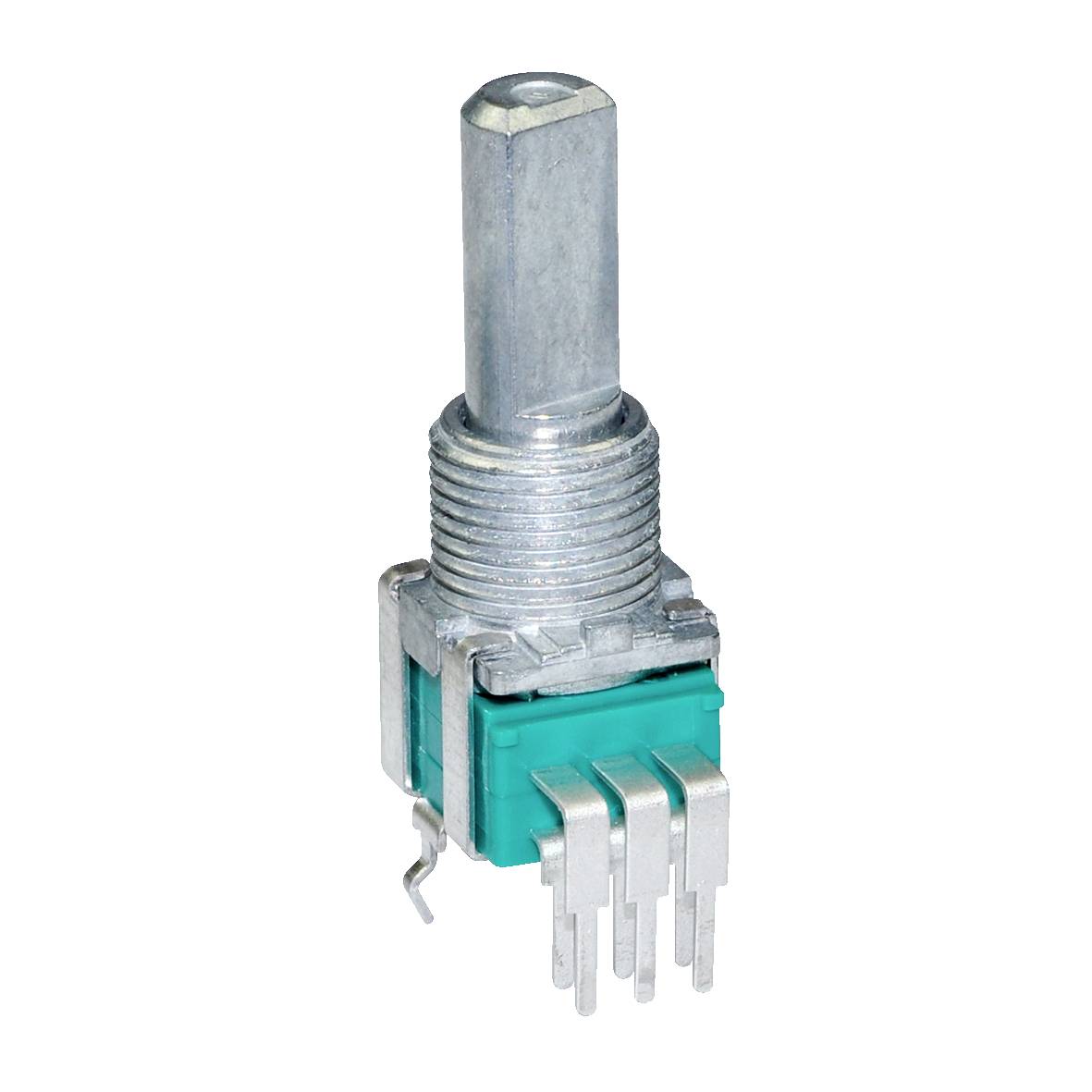

ALPS RK09L114001T Carbon film potentiometer + mid-position detent 0.05 W 10 kΩ 1 pc(s)
Part number:
Item no:
Product type
Carbon film potentiometer
Potentiometer features
+ mid-position detent
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
0.05 W
Datasheet (PDF)
Highlights & Details
ALPS potentiometer mono V 20mm 10K 1B
- 10 kΩ
- linear
Technical specifications
- ESD Packaging: No ESD
- Series RK09L
- Diameter, Shaft 6 mm
- Axle: Metal
- Central locking: With
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.05 W
- Mechanical rotation angle 300 °
- Product type
Carbon film potentiometer
- Potentiometer features
+ mid-position detent
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
0.05 W
- Mechanical angle
300°
- Axle type
Metal
- Axle Ø
6 mm
- Length
10.7 mm
- Width
10.7 mm
- Tolerance ±
20 %
- Content
1 pc(s)
- Type
RK09L114001T
- Dim
(L x W) 10.7 mm x 10.7 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3462860 ALPS RK09L114001T Carbon film potentiometer + mid-position detent 0.05 W 10 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3462860 ALPS RK09L114001T Carbon film potentiometer + mid-position detent 0.05 W 10 kΩ 1 pc(s)
Description
ALPS carbon film potentiometer
This text is machine translated.
This text is machine translated.
Scope of delivery
- RK09L114001T.
