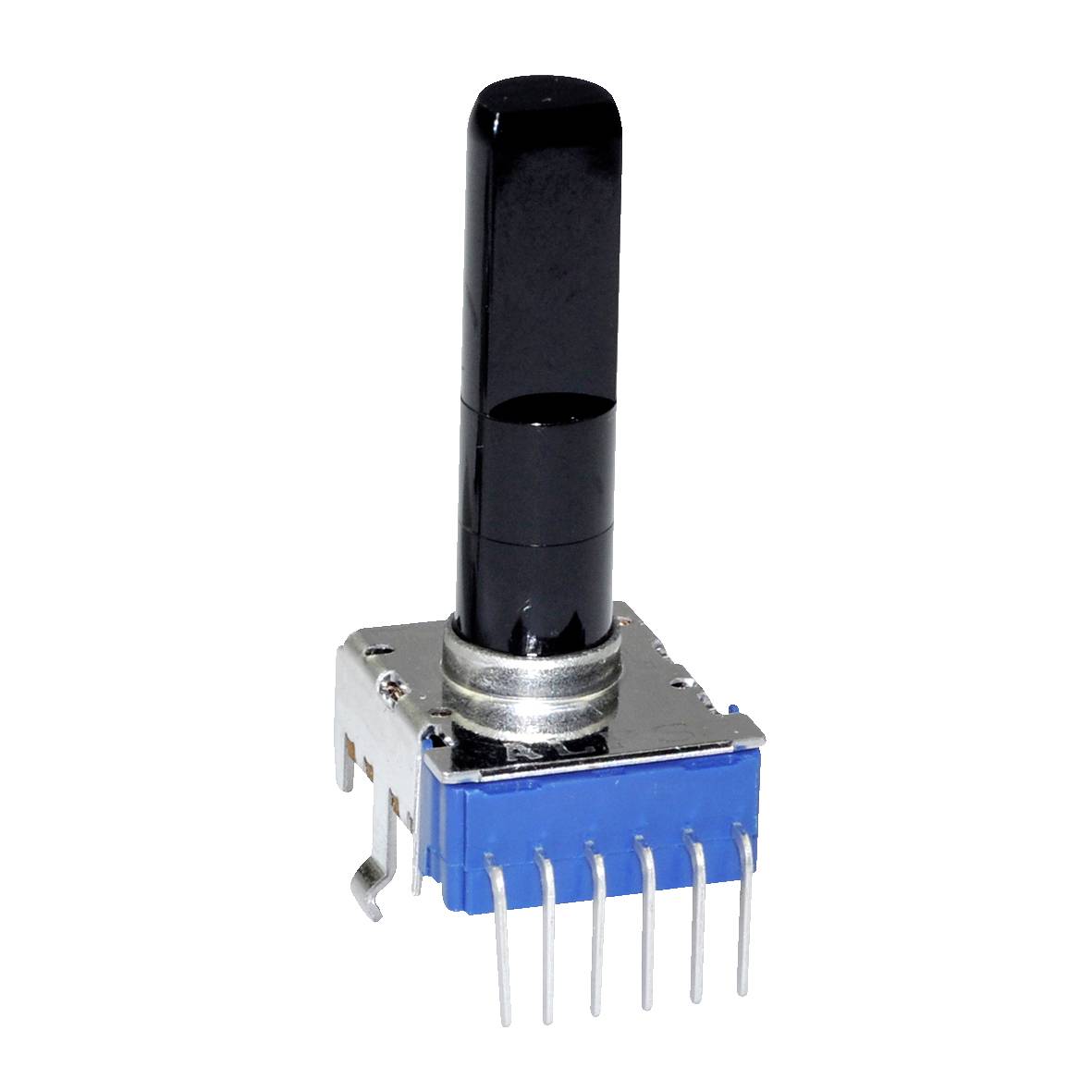

ALPS RK12L1230C0T Carbon film potentiometer 0.05 W 10 kΩ 1 pc(s)
Part number:
Item no:
Product type
Carbon film potentiometer
Resistance
10 kΩ
Resistance characteristic
logarithmic
Power rating
0.05 W
Axle type
Plastic
Datasheet (PDF)
Highlights & Details
ALPS potentiometer Dual V Flat 30mm 10K 15A
- 10 kΩ
- logarithmic
Technical specifications
- ESD Packaging: No ESD
- Series RK12L
- Design: Horizontal
- Length, socket 12 mm
- Width, base 12 mm
- Height, socket 8.6 mm
- Length, shaft 30 mm
- Diameter, Shaft 6 mm
- Axis: Plastic
- Central locking: Without
- Resistance tolerance: ±20 %
- Resistance curve: Pos. log.
- Rated output: 0.5 W
- Max voltage 50 V
- Insulation voltage 300 V
- Life: 15000 cycles
- Mechanical rotation angle 300 °
- Impact strength 0.5 mNm
- Torque: 15 mNm
- Product type
Carbon film potentiometer
- Resistance
10 kΩ
- Resistance characteristic
logarithmic
- Power rating
0.05 W
- Cut-off voltage
50 V
- Mechanical angle
300°
- Axle length
30 mm
- Axle type
Plastic
- Axle Ø
6 mm
- Length
12 mm
- Width
12 mm
- Height
8.6 mm
- Tolerance ±
20 %
- Insulation resistance
100 MΩ
- Content
1 pc(s)
- Type
RK12L1230C0T
- Dim
(L x W x H) 12 x 12 x 8.6 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3462863 ALPS RK12L1230C0T Carbon film potentiometer 0.05 W 10 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3462863 ALPS RK12L1230C0T Carbon film potentiometer 0.05 W 10 kΩ 1 pc(s)
Description
ALPS carbon film potentiometer
This text is machine translated.
This text is machine translated.
Features
- • High-power type with 12mm width
Scope of delivery
- RK12L1230C0T.
