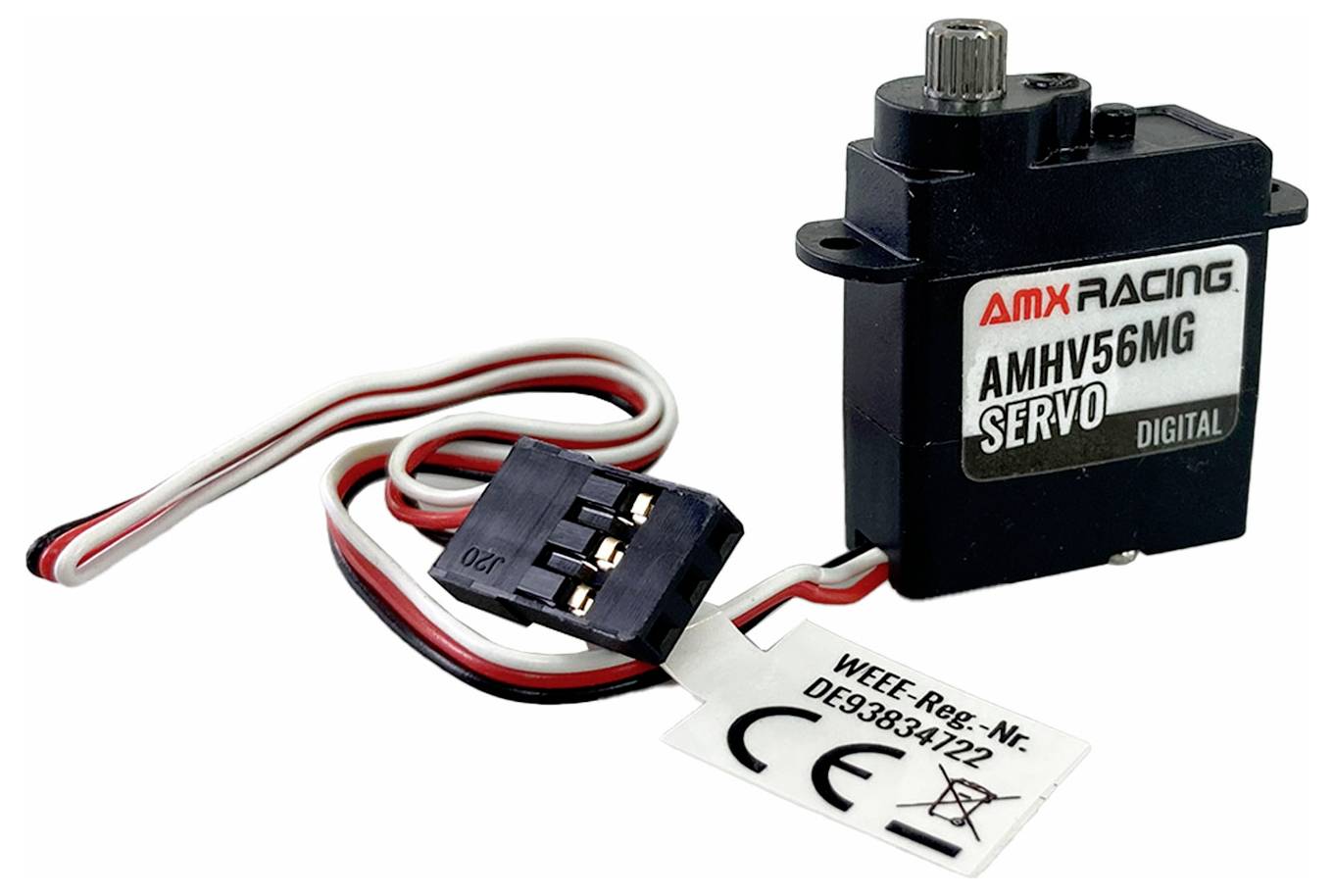

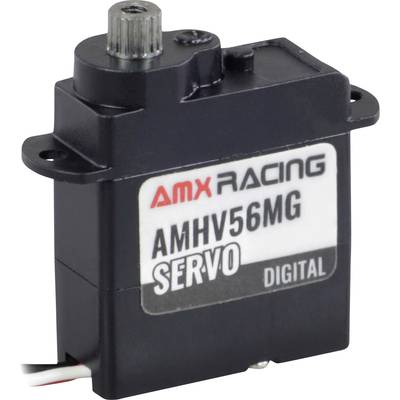

Amewi Mini servo AMXRacing AMHV56MG Mini Analogue servo Gear box material: Metal Connector system: JR
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
5% = € 0.71
€ 13.57
5
7% = € 0.99
€ 13.29
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Operating frequency 1520μs / 330Hz
- Motor: Coreless motor
- Operating voltage DC 4.8 V
- Housing: Plastic
- Regulating speed (4.8V): 0.14sec/60°
- Regulating speed (6V): 0.12sec/60°
- Regulating speed (7.4V): 0.10sec/60°
- Actuating force (4.8V): 0.85kg/cm
- Actuating force (6V): 1.05 kg/cm
- Actuating power (7.4 V): 1.2 kg/cm
- Cable length: 150mm.
- JR connection
- Dim
(L x W x H) 19.8 x 8.2 x 21.5 mm
- Length
19.8 mm
- Width
8.2 mm
- Height
21.5 mm
- Weight
5.6 g
- Actuation time at 4.8 V
0.14 s
- Actuation time at 6 V
0.12 s
- Actuation time (7.4 V)
0.10 s
- Gear box
Metal
- Servo technology
Analogue servo
- Connector system
JR
- Voltage
High
- Manufacturer part #
28448
- Min. operating voltage
4.8 V
- Operating voltage
4.8 - 7.4 V
- Max. operating voltage
7.4 V
- Product type
Mini servo
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3345288 Amewi Mini servo AMXRacing AMHV56MG Mini Analogue servo Gear box material: Metal Connector system: JR
Description
A powerful high-voltage servo with 5.6g weight and below 20 mm size – suitable for small flight models, such as shock-flyers or helicopters and other small RC-vehicles.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Servo
