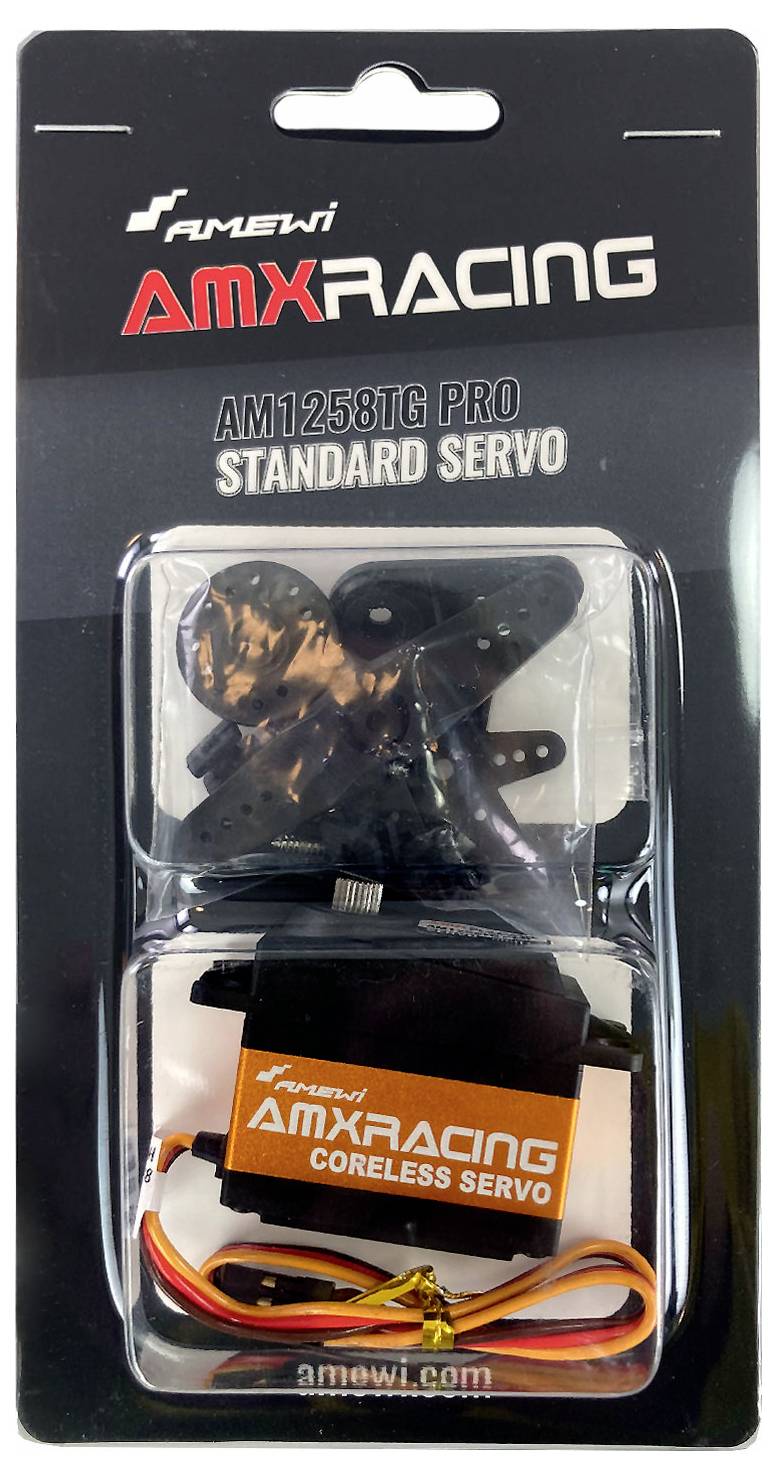

Amewi Standard servo AMXRacing AM1258TG PRO Analogue servo Gear box material: Titanium Connector system: JR
EAN:
Part number:
Item no:
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
14-day return policy included
Technical specifications
- Dead Band: 3μs
- Operating frequency 1520μs / 330Hz
- Motor: Coreless motor
- Operating voltage DC 4.8 V
- Housing: Partial metal
- Regulating speed (4.8V): 0.10sec/60°
- Controlling speed (6V): 0.08sec/60°
- Actuating force (4.8V): 9.6kg/cm
- Actuating power (6V): 12 kg/cm
- Cable length 265mm
- JR connection
- Servo head 25Z
- Product type
Standard servo
- Dim
(L x W x H) 40.3 x 20.2 x 37.2 mm
- Length
40.3 mm
- Width
20.2 mm
- Height
37.2 mm
- Voltage
Low
- Weight
64 g
- Actuation time at 4.8 V
0.010 s
- Actuation time at 6 V
0.08 s
- Gear box
Titanium
- Type of bearing
Double ball bearing
- Servo technology
Analogue servo
- Connector system
JR
- Operating voltage
4.8 - 6 V
- Max. operating voltage
6 V
- Min. operating voltage
4.8 V
- Manufacturer part #
28449
- Suitable for
Universal
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3345300 Amewi Standard servo AMXRacing AM1258TG PRO Analogue servo Gear box material: Titanium Connector system: JR
Description
Fast and powerful Pro-Servo of the latest generation with titanium drive in the standard size of 40mm and 12kg actuating power 6V. Suitable for all RC models of a variety of types that require precision and adjustment accuracy in addition to this size.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Servo
