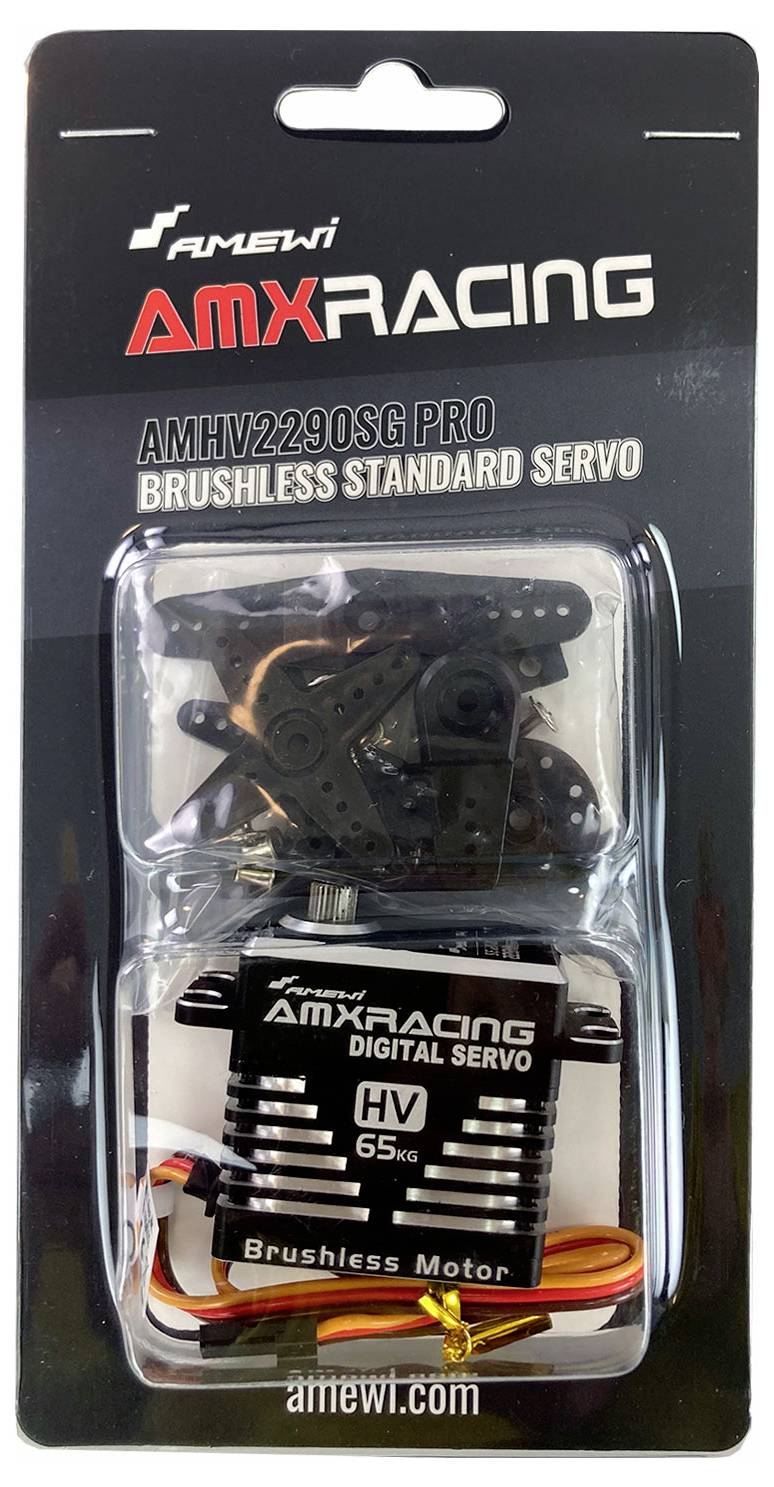

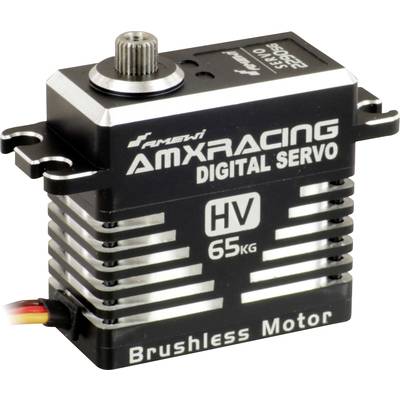

Amewi Standard servo AMXRacing AMHV2290SG PRO Analogue servo Gear box material: Steel Connector system: JR
EAN:
Part number:
Item no:
Number
Total (€ 130.24 / piece)
€
Only 4 Piece(s) available
Technical specifications
- Dead Band: 3μs
- Operating frequency 1520μs / 330Hz
- Engine: Brushless motor
- Operating voltage DC 7.4-8.4V
- Housing: metal
- Regulating speed (7.4V): 0.13sec/60°
- Regulating speed (8.4V): 0.11sec/60°
- Actuating power (7.4V): 50kg/cm
- Actuating power (8.4V): 65kg/cm
- Cable length 265mm
- JR connection
- Servo head 25Z
- Dim
(L x W x H) 40.3 x 20.2 x 37.2 mm
- Length
40.3 mm
- Width
20.2 mm
- Height
37.2 mm
- Weight
81 g
- Actuation time (7.4 V)
0.13 s
- Gear box
Steel
- Type of bearing
Double ball bearing
- Servo technology
Analogue servo
- Connector system
JR
- for brands
Amewi
- Voltage
High
- Manufacturer part #
28458
- Min. operating voltage
7.4 V
- Operating voltage
7.4 - 8.4 V
- Max. operating voltage
8.4 V
- Product type
Standard servo
Variants(All information is without VAT, plus shipping costs)
Gear box
Type of bearing
Dim
Connector system
Voltage
Servo technology
Product type
Width
Amewi Standard servo AMXRacing AMHV2290SG PRO Analogue servo Gear box material: Steel Connector system: JR
This article
Steel
Double ball bearing
(L x W x H) 40.3 x 20.2 x 37.2 mm
JR
High
Analogue servo
Standard servo
20.2 mm
Minimum order quantity: 1
Multiple: 1
€ 130.24*
Amewi Low Profile servo AMXRacing AM4409MG Low Profile Analogue servo Gear box material: Metal Connector system: JR
Metal
Double ball bearing
(L x W x H) 40.5 x 20.3 x 28 mm
JR
Analogue servo
Low Profile servo
20.3 mm
Minimum order quantity: 1
Multiple: 1
€ 22.68*
Amewi Micro servo AMXRacing Micro ST56MG Analogue servo
(L x W x H) 20.2 x 8.5 x 22.3 mm
Analogue servo
Micro servo
8.5 mm
Minimum order quantity: 1
Multiple: 1
€ 14.28*
Amewi Micro servo AMXRacing AM1102HB Analogue servo Gear box material: Plastic Connector system: JR
Plastic
(L x W x H) 16.3 x 8.4 x 17.5 mm
JR
Low
Analogue servo
Micro servo
8.4 mm
Minimum order quantity: 1
Multiple: 1
€ 9.24*
Amewi Micro servo AMXRacing 1181MG Midi Analogue servo Gear box material: Metal Connector system: JR
Metal
(L x W x H) 28 x 13 x 29.7 mm
JR
Low
Analogue servo
Micro servo
13 mm
Minimum order quantity: 1
Multiple: 1
€ 12.60*
Amewi Standard servo AMXRacing AMHV2107MG Midi Analogue servo Gear box material: Metal Connector system: JR
Metal
Double ball bearing
(L x W x H) 30 x 10 x 35.5 mm
JR
High
Analogue servo
Standard servo
10 mm
Minimum order quantity: 1
Multiple: 1
€ 18.48*
Amewi Midi servo AMXRacing AMHV2006MG Midi Analogue servo Gear box material: Metal Connector system: JR
Metal
Double ball bearing
(L x W x H) 23 x 12 x 27.6 mm
JR
High
Analogue servo
Midi servo
12 mm
Minimum order quantity: 1
Multiple: 1
€ 38.65*
Amewi Standard servo AMXRacing 4806HB Digital Digital servo Gear box material: Plastic
Plastic
(L x W x H) 40.5 x 20.3 x 38 mm
Digital servo
Standard servo
20.3 mm
Minimum order quantity: 1
Multiple: 1
€ 11.76*
Amewi Mini servo AMXRacing AMHV56MG Mini Analogue servo Gear box material: Metal Connector system: JR
Metal
(L x W x H) 19.8 x 8.2 x 21.5 mm
JR
High
Analogue servo
Mini servo
8.2 mm
Minimum order quantity: 1
Multiple: 1
€ 14.28*
Amewi Standard servo AMXRacing 4503HB Analog Analogue servo Gear box material: Plastic Connector system: JR
Plastic
(L x W x H) 40.5 x 20.3 x 38 mm
JR
Analogue servo
Standard servo
20.3 mm
Minimum order quantity: 1
Multiple: 1
€ 10.92*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3345302 Amewi Standard servo AMXRacing AMHV2290SG PRO Analogue servo Gear box material: Steel Connector system: JR
Description
Fast, powerful and precise brushless HV servo of the latest generation with steel gear in the standard size of 40mm and an unbelievable 65kg actuating power of 8.4V. The perfect servo for Basher, Scale-Helicopters and airplanes, which require positioning and holding forces in connection with robustness and longevity.
This text is machine translated.
This text is machine translated.

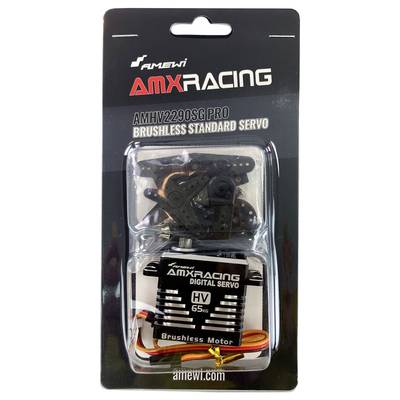

Scope of delivery
- Servo
