Amewi Standard servo AMXRacing AMHV5830MG WP Analogue servo Gear box material: Metal Connector system: JR
EAN:
Part number:
Item no:
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Dead Band: 1μs
- Operating frequency 1520μs / 330Hz
- Motor: Coreless motor
- Operating voltage DC 6-8.4V
- Housing: Partial metal
- Controlling speed (6V): 0.11sec/60°
- Regulating speed (8.4 V): 0.09sec/60°
- Actuating power (6V): 24.7kg/cm
- Actuating power (7.4 V): 30.3 kg/cm
- Cable length 265mm
- JR connection
- Servo head 25Z
- Product type
Standard servo
- Dim
(L x W x H) 40.5 x 20.2 x 38 mm
- Length
40.5 mm
- Width
20.2 mm
- Height
38 mm
- Voltage
High
- Weight
58 g
- Actuation time at 6 V
0.11 s
- Gear box
Metal
- Type of bearing
Double ball bearing
- Servo technology
Analogue servo
- Connector system
JR
- Operating voltage
6 - 8.4 V
- Max. operating voltage
8.4 V
- Min. operating voltage
6 V
- Manufacturer part #
28998
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3345295 Amewi Standard servo AMXRacing AMHV5830MG WP Analogue servo Gear box material: Metal Connector system: JR
Description

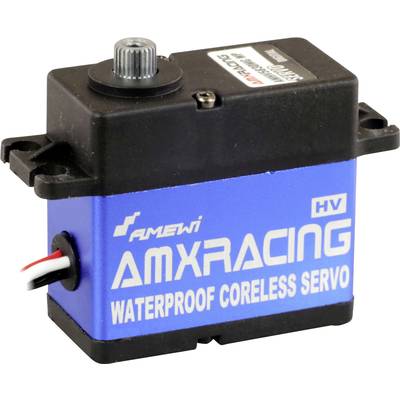

Robust, waterproof and very fast standard 40mm HV servo with metal drive and over 30kg actuating power - suitable for RC-cars, Crawler and scale-vehicles in the scale 1:10 or 1:8.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Servo
