AMF 560904 AC regulator 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

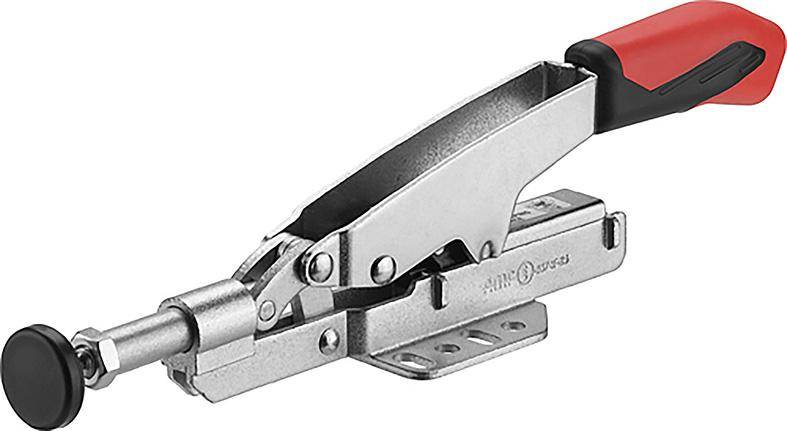

Push rod tensioner No.6874F Gr.15 horizontal base AMF
- Thrust screw M6 x 37
- Design: Horizontal base
- Size: 15
- Holding force F1: 2 kN
- Height of tensioned 58 mm
- Open height 145 mm
- Length tensioned by 177 mm
- Brand: AMF
- Clamping height 17 mm
Technical specifications
- Size: 15
- Thrust screw M6 x 37
- Design: Horizontal base
- Holding force F1: 2 kN
- Open height 145 mm
- Height of tensioned 58 mm
- Clamping height 17 mm
- Length tensioned by 177 mm
- Brand: AMF
- Product type
AC regulator
- Height
17 mm
- Length
177 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3759634 AMF 560904 AC regulator 1 pc(s)
Description

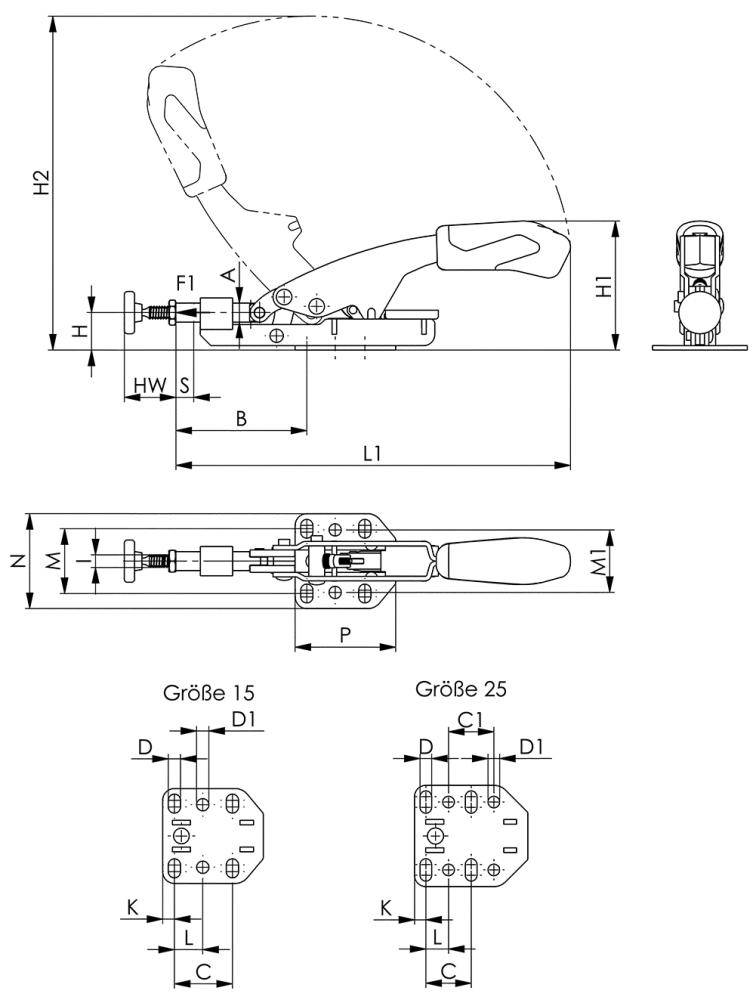

variable · With horizontal base · With continuous compensation function for work pieces with different clamping widths · galvanized and passivated · Ergonomic, oil-resistant handle with large hand rest and soft component · Losing protection for the push-on screw at the clamping arm end · Automatic height compensation S: Size 15 = 8 mm Size 25 = 13 mm maximum height compensation: Size 15 = 25 mm Size 25 = 35 mm Other technical features: · I M6 · B 52-69 mm · P 45 mm · M1:28mm · L 13 mm · Bore diameter 6 mm · H: 17mm · N: 42.5mm · K: 5 mm · M 26-32mm · C: 26 mm · A: 8.5 mm · D 6mm · F1 2 kN · H2 145mm · H1: 58mm · HW min. 13 mm · L1: 177mm · HW max.: 25mm · D1 6 mm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 21020701
