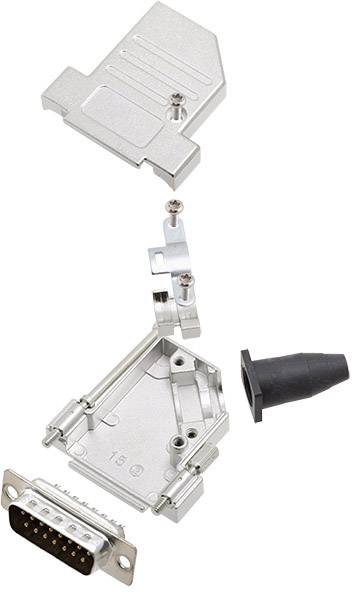

Exploded view of a D-Sub connector with metal housing, screws, and cable protection. Shows individual components and assembly.

Image similar

Exploded view of a D-Sub connector with metal housing, screws, and cable protection. Shows individual components and assembly.

Image similar

Amphenol

Datasheet (PDF)

English

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 8.39 / piece)

€ 12.60

-33 %

€ 8.39

plus VAT.

Report legal concerns

Highlights & Details

D-SUB pin strip set

D-SUB pin strip set
No. of rows: 2
Number of pins: 9

Technical specifications

Factory colour: Zinc

Features: 1x cable entry (lateral)
shielded housing
+ strain relief clip
+ cable sleeve
+ 4-40 knurl head screw

Connection: Solder bucket

Contact surface: Gold on nickel

Contact type: Punched contacts

Number of pins: 9

Connector type: Pin strip, straight

Test voltage: 1000 V

No. of rows: 2

Connection angle: 45°

Contact material: Copper alloy

Mating cycles: 100

Temperature range: -40 °C up to +85 °C

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 1707726 Amphenol L17DTSL09-RG-LJS-S+L717SDE09P D-SUB pin strip set 45 ° Number of pins: 9 Solder bucket 1 pc(s)
