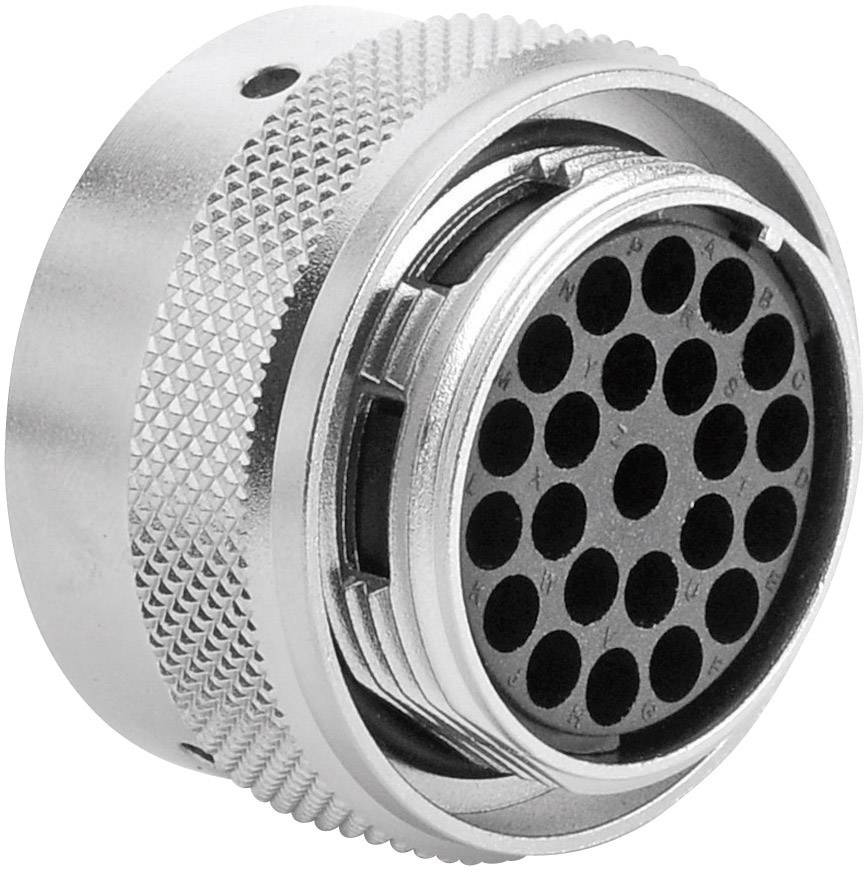

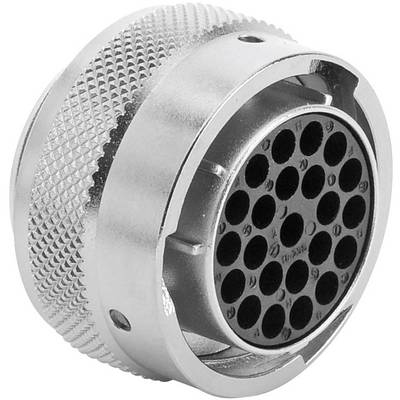

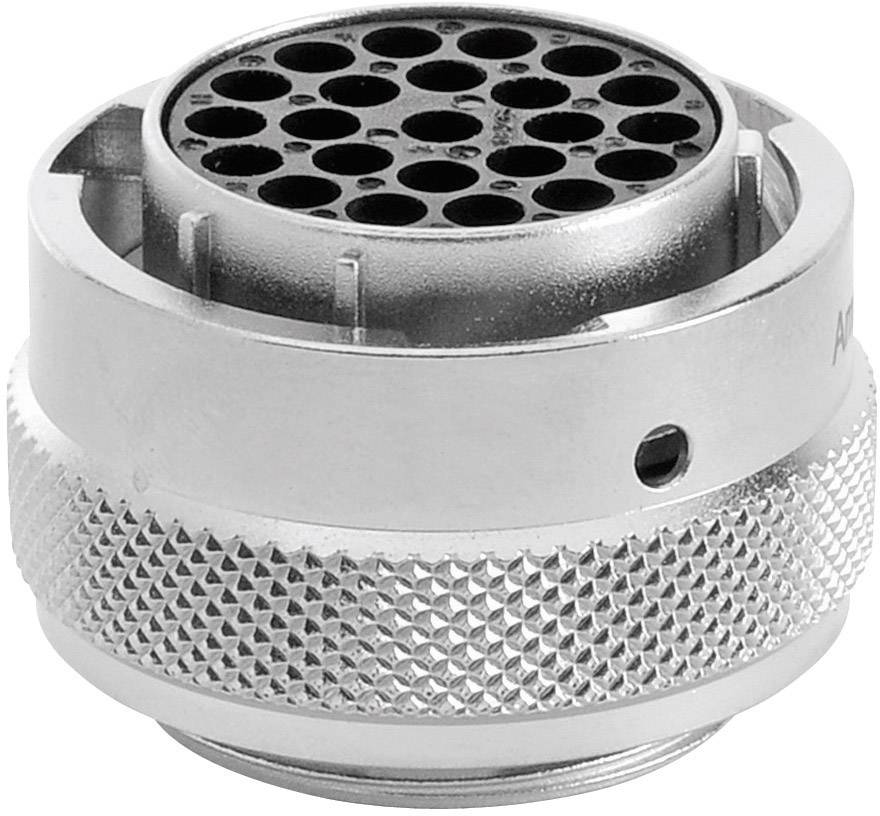

Amphenol RT0618-23SNH Circular Connector
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€
Only 6 Piece(s) available
Technical specifications
- Connector type
Socket, straight
- Total no. of pins
23
- Connection
Crimp
- Content
1 pc(s)
- Max. temperature
+90 °C
- Nominal current
10 A
- Min. temperature
-40 °C
- Nominal current - rounded value
10 A
- Seal
Bayonet
- Nominal voltage
250 V
- Case material
Thermoplastic
- Contact size
16
- Cable Ø range
- Cross-section range
IP67 (when connected)
- Series
RT360™
- Manufacturer part #
RT0618-23SNH
- Type
RT0618-23SNH
- Number of pins
23
- No. of contact sizes
23
- Connection angle
180°
- RoHS-compliant
- Product type
Bullet connector
Documents & Downloads
Datasheet
Datasheet 738216 Amphenol RT0618-23SNH Circular Connector
User & Safety Instructions
User & Safety Instructions 738216 Amphenol RT0618-23SNH Circular Connector
Description
Sturdy, industrial metal connectors, IP67, compatible with other standard industrial connectors.
This text is machine translated.
This text is machine translated.
Hints
Cable sockets without crimp contacts and strain reliefs, which must be ordered separately.
