Andreas Maier Schloss-u. Werkzeugfabrik 90043 Tensioner set
EAN:
Part number:
Item no:
Product type
Tensioner set
Bore Ø
8.6 mm
External length
141 mm
Total length
185 mm
Width
185 mm
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details

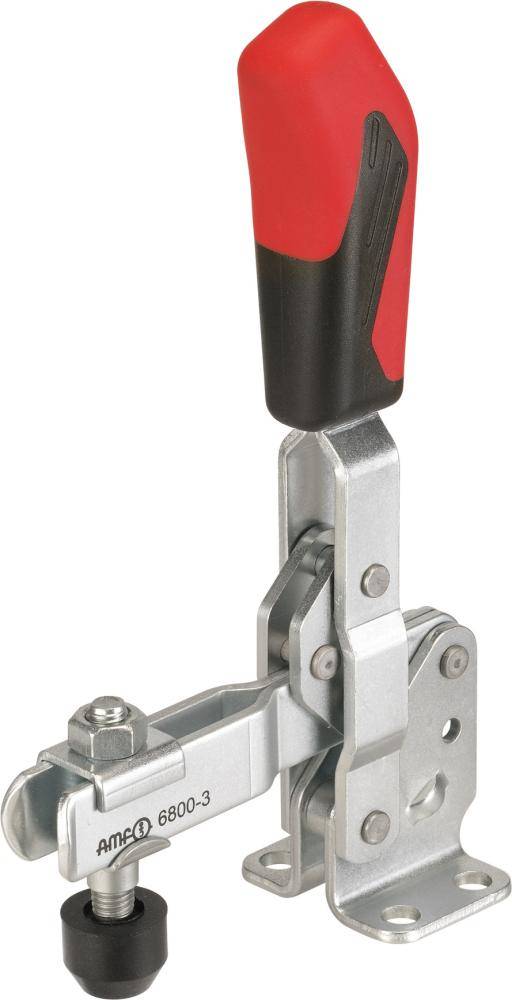

Vertical clamp 90043 Size 4 Holding force (F1) 1.7kN Holding force (F2) 3.0kN Height 221mm Length 141mm Pressing screw M 8 x
- Thrust screw M8 x 65
- Design: Horizontal base
- Base size 64 x 53 mm
- Size 4
- Holding force F1: 1.7 kN
- Holding force F2 3 kN
- Height of tensioned 221 mm
- Length open 141 x 130 mm
- Brand: AMF
- Clamping height 42.5 mm
Technical specifications
- Vertical clamp No.6800 | Size 4 230mmx140mm
- Minimum order quantity: 1 pcs
- Size 4
- Holding force (F1): 1.7kN
- Holding force (F2): 3.0kN
- Height: 221mm
- Length: 141mm
- Thrust screw M 8 x 65
- Opening angle: α 105°
- Weight: 630g
- Product type
Tensioner set
- Bore Ø
8.6 mm
- External length
141 mm
- Total length
185 mm
- Width
185 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3759206 Andreas Maier Schloss-u. Werkzeugfabrik 90043 Tensioner set
Description

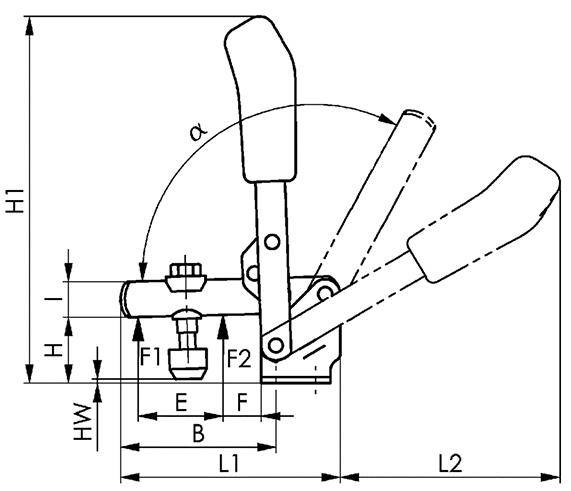

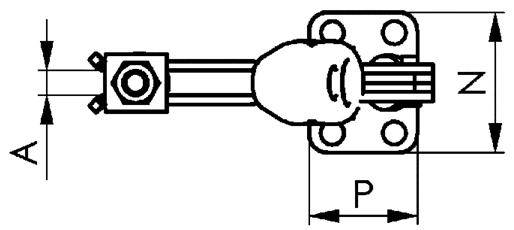

With horizontal base Other technical features: · F 16 mm · a*: 60° · P:53 mm · L: Mm · K: 13mm · C 32 mm · D 8.6mm · a: 105° · F1: 1.7kN · L2:130mm · HW min.: -6mm · L1: 141mm · I: 20mm · F2 3kN · B 101 mm · M1:- · Bore diameter 8.6 mm · H: 42.5mm · N: 64mm · E:54mm · M 43.5-46.5 mm · A: 10mm · H1 221mm · HW max. 22.5mm · Clamping width 54 mm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 21020701
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
