Andreas Maier Schloss-u. Werkzeugfabrik 94128 Tensioner set
EAN:
Part number:
Item no:
Product type
Tensioner set
Bore Ø
5.6 mm
External length
114 mm
Total length
114 mm
Width
100 mm
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details

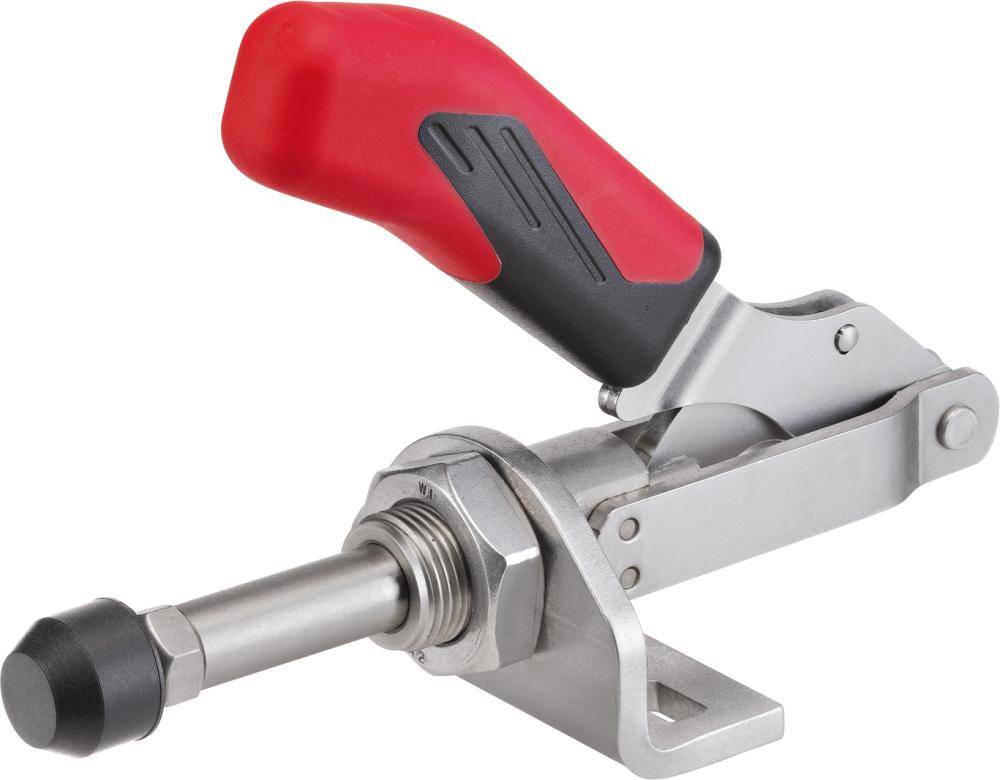

AMF push rod tensioner No. 6841 size 2 small angular base
- Thrust screw M6 x 25
- Small angled base
- Size: 2
- Holding force F1: 2 kN
- Holding force F2 2 kN
- Stroke: 26 mm
- Height of tensioned 85.5 mm
- Length tensioned by 114 mm
- Brand: AMF
- Clamping height 20 mm
Technical specifications
- Size: 2
- Thrust screw M6 x 25
- Stroke: 26 mm
- Small angled base
- Brand: AMF
- Clamping height 20 mm
- Holding force F1: 2 kN
- Height of tensioned 85.5 mm
- Length tensioned by 114 mm
- Holding force F2 2 kN
- Product type
Tensioner set
- Bore Ø
5.6 mm
- External length
114 mm
- Total length
114 mm
- Width
100 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3759207 Andreas Maier Schloss-u. Werkzeugfabrik 94128 Tensioner set
Description

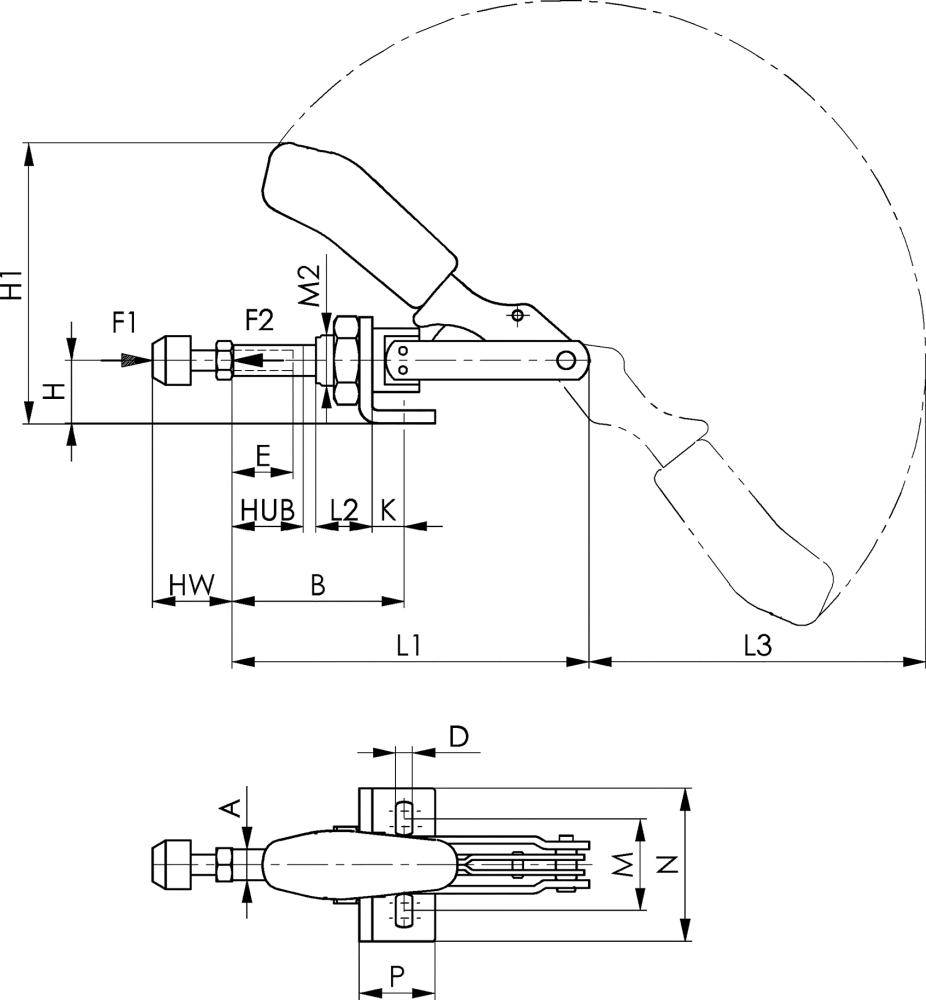

With small angular feet · Pressure and Tension clamp · With long push-rod guide · The tensioner can be attached to sheet metal walls without angle foot or screwed into device bodies with thread on front Other technical features: · P:34mm · Total height: 95mm · K: 12.5mm · D 5.6mm · F1 2 kN · L2:19mm · L1: 114mm · F2 2 kN · B min: 32.5mm · Bore diameter 5.6 mm · B max. 58.5mm · H: 20mm · N: 50 mm · E: 20mm · M min.: 31.8mm · A: 10mm · M max. 36 mm · M2: M16x1.5mm · H1: 85.5 mm · Total length 114mm.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 21020701
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
