Andreas Maier Schloss-u. Werkzeugfabrik 94318 Tensioner set
EAN:
Part number:
Item no:
Product type
Tensioner set
Total length
108 mm
Width
35 mm
UKCA
yes
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details

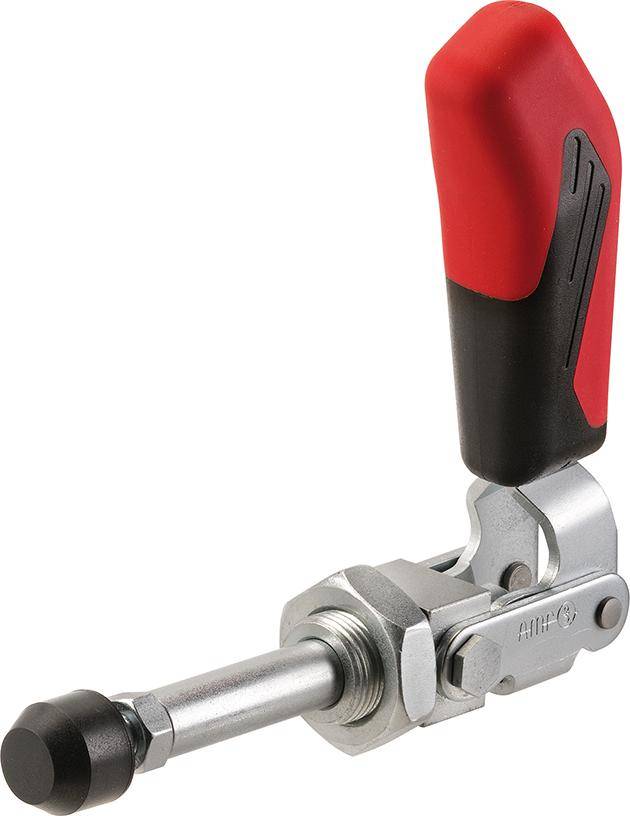

AMF push rod tensioner No. 6844 size 3 short
- Thrust screw M8 x 35
- Design: Short
- Size: 3
- Holding force F1: 2.5 kN
- Holding force F2 2.5 kN
- Stroke: 40 mm
- Height of tensioned 123 mm
- Length tensioned by 108 mm
- Brand: AMF
Technical specifications
- Size: 3
- Thrust screw M8 x 35
- Stroke: 40 mm
- Design: Short
- Brand: AMF
- Holding force F1: 2.5 kN
- Height of tensioned 123 mm
- Length tensioned by 108 mm
- Holding force F2 2.5 kN
- Product type
Tensioner set
- Total length
108 mm
- Width
35 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3759202 Andreas Maier Schloss-u. Werkzeugfabrik 94318 Tensioner set
Description

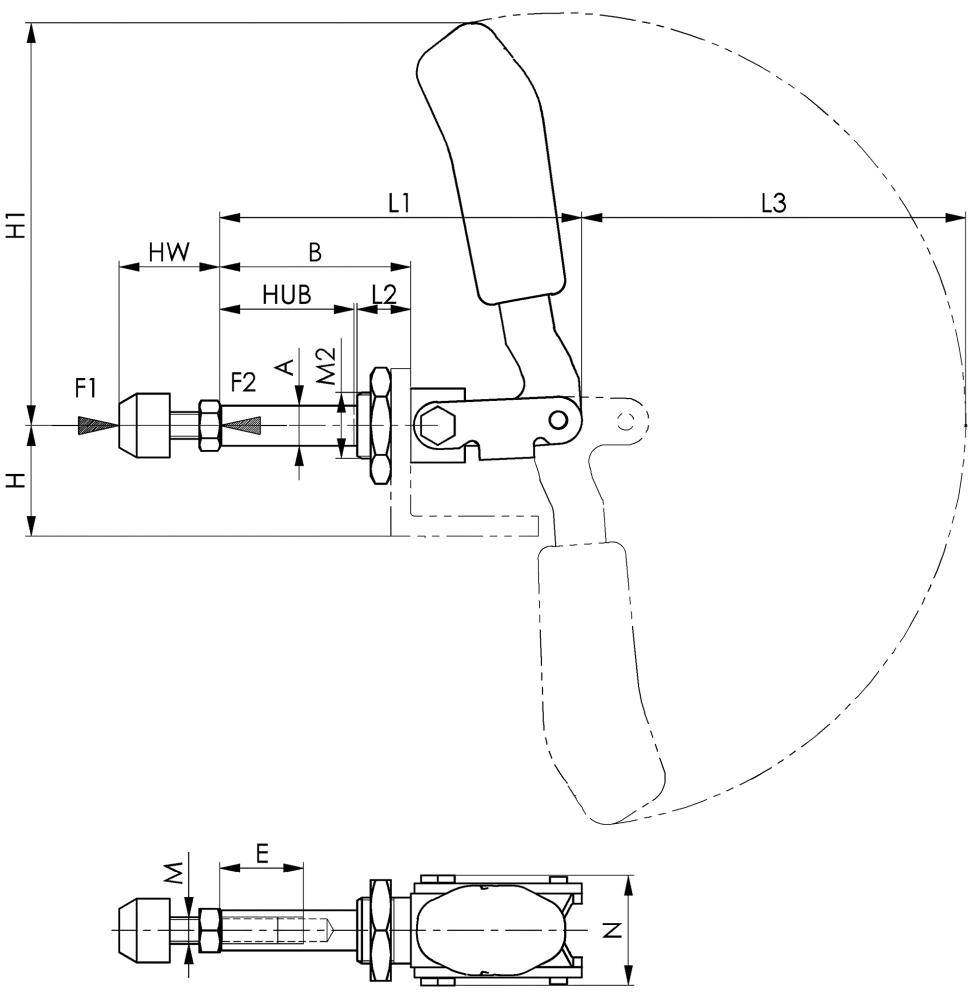

Short type · Pressure and Tension clamp · With long push-rod guide · The tensioner can be mounted on sheet metal walls or screwed into the fixture with thread on the front side · Stainless steel design available on request. Other technical features: · F2 2.5 kN · L3 115mm · B: 57 mm · Total height: 128mm · N: 33mm · E: 25mm · M 8mm · A: 12mm · F1: 2.5kN · M2: M20x1.5mm · L2 16mm · H1 123mm · HW min.: 22 mm · L1: 108mm · HW max. 35mm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 21020701
