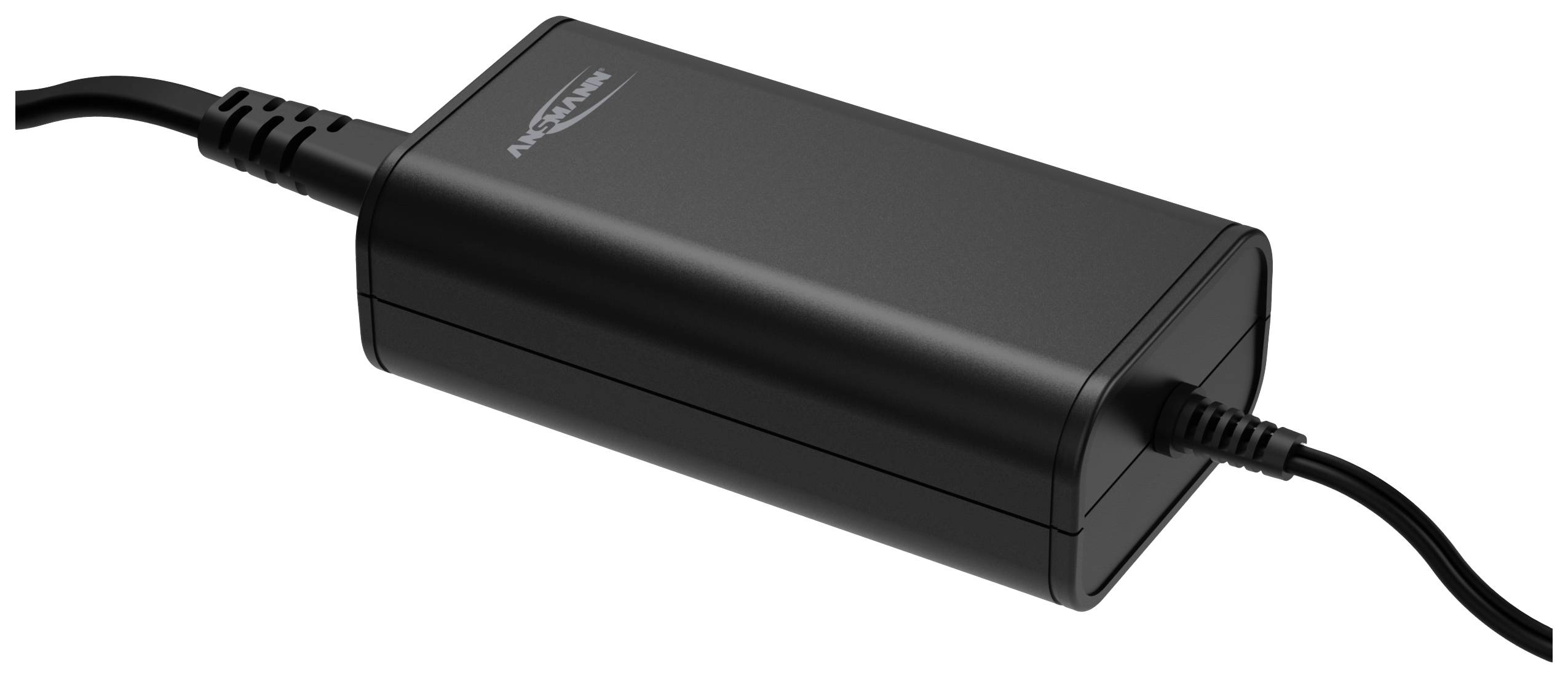

A black laptop power adapter with a connected power cable visible at both ends.

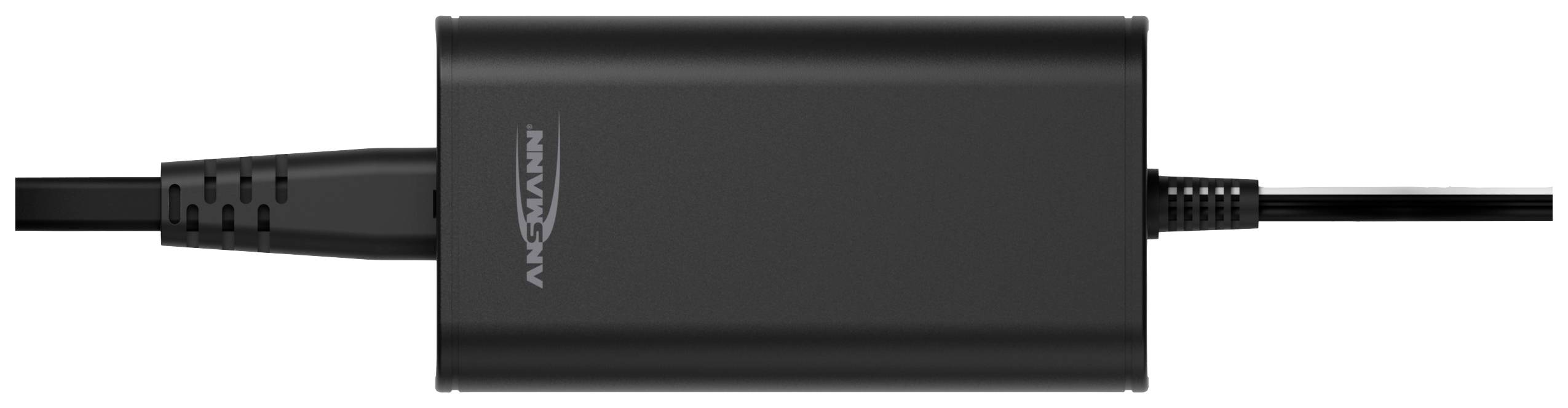

Black charger with the 'ANSMANN' text printed on the top surface. It has two cable connections on the sides.

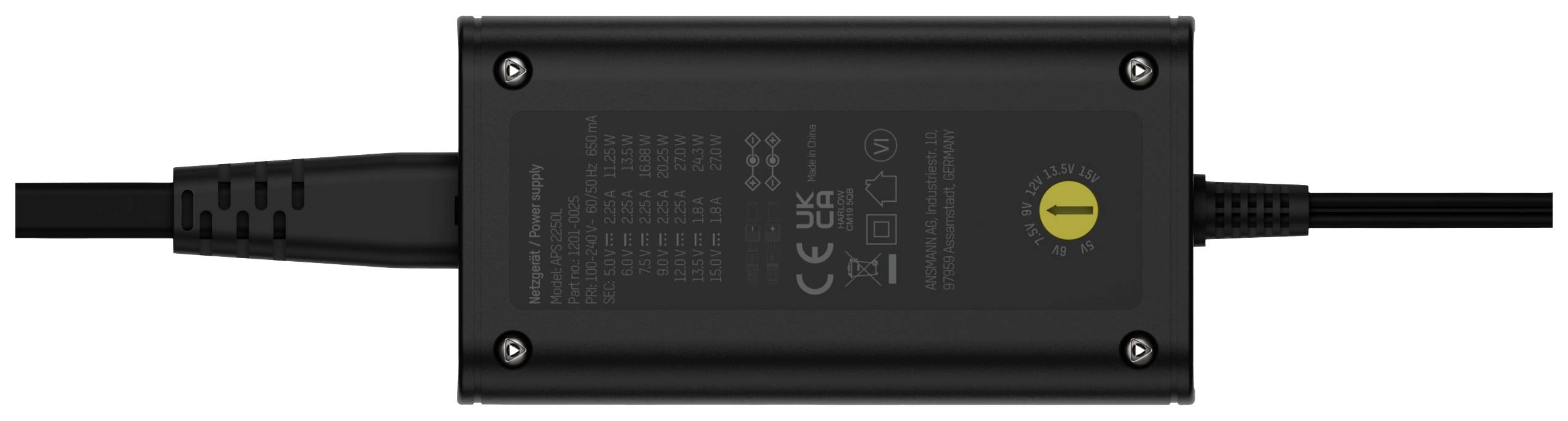

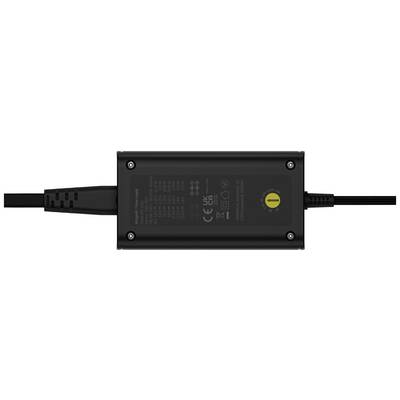

Black power supply with permanently attached power cables on both sides, showing CE marking and technical details on the surface.

Ansmann 1201-0025 Mains PSU (adjustable voltage) 15 V DC, 13.5 V DC, 12 V DC, 9 V DC, 7.5 V DC, 6 V, 5 V DC 2250 mA 27 W-4

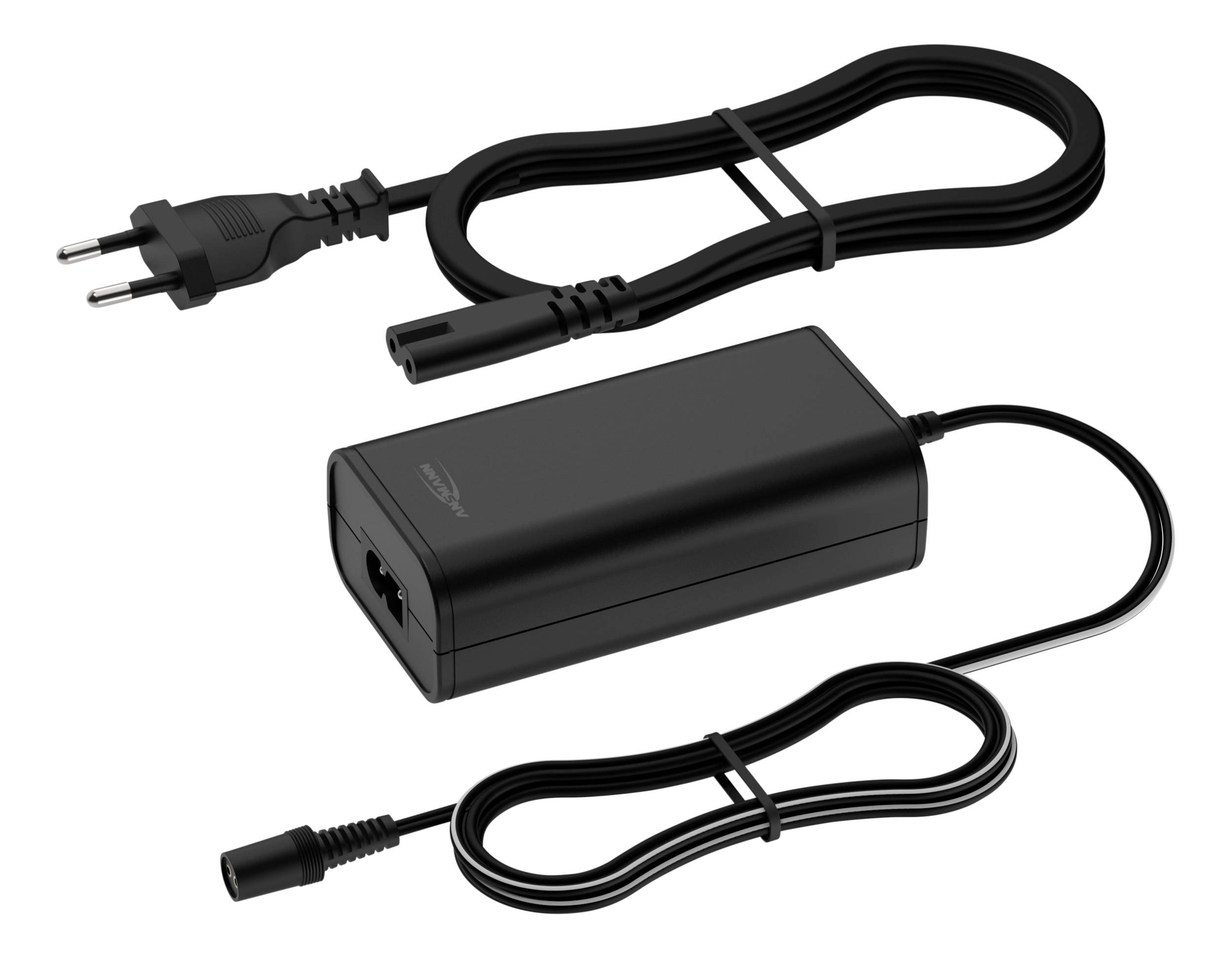

Black power supply with a detachable power cable for electronic devices, shown in a diagonal view.

Packaging of an ANSMANN Universal Power Supply with 5-15V, 2250mA and 27W. Includes cable and various adapter plugs.

'Universal Power Supply APS2250L' on the packaging: Input 5-15V, 2250mA, 27W, including adapter and three-year warranty from Ansmann.

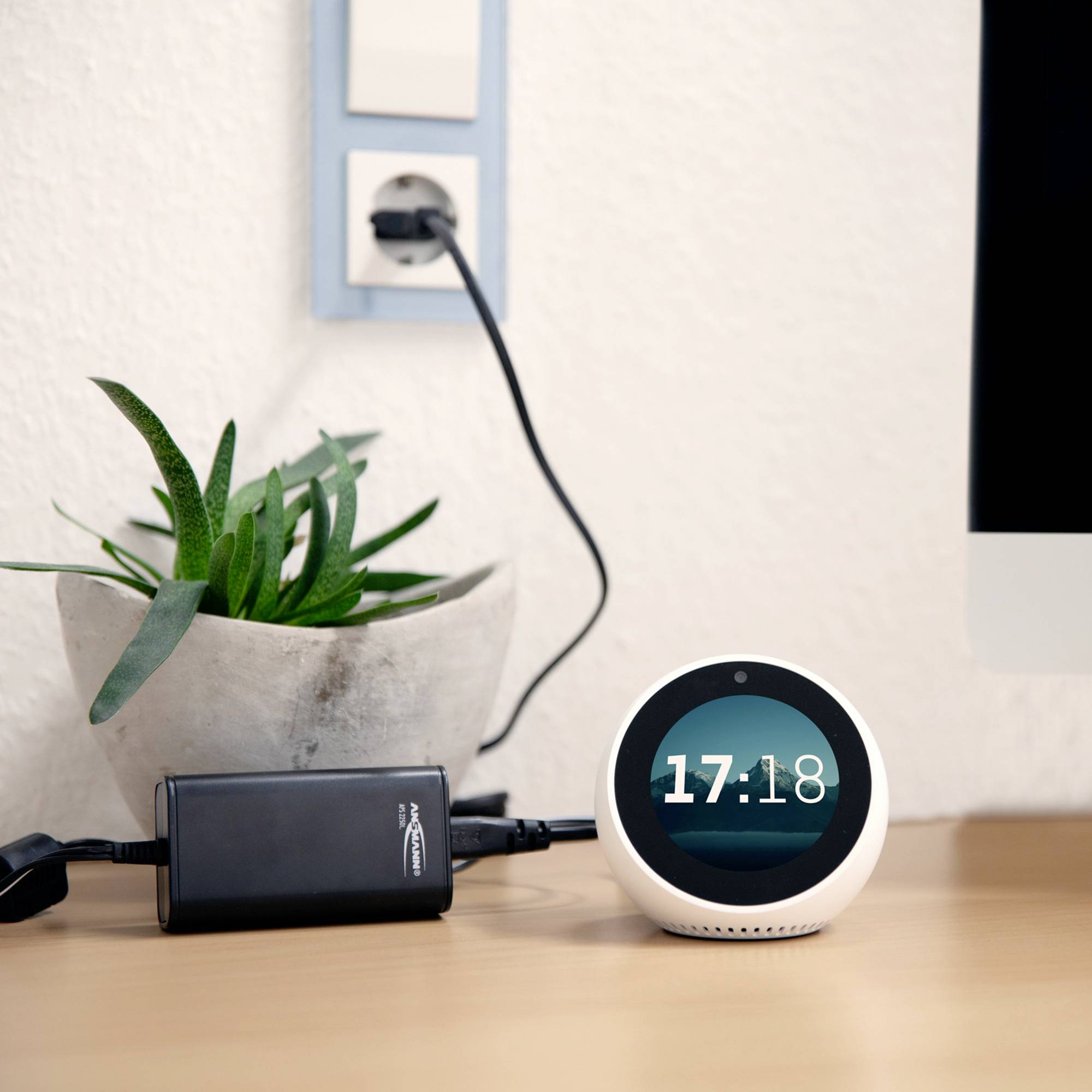

A round digital alarm clock displays the time as 17:18. Next to it sits a plant in a pot, and a charger is plugged in.

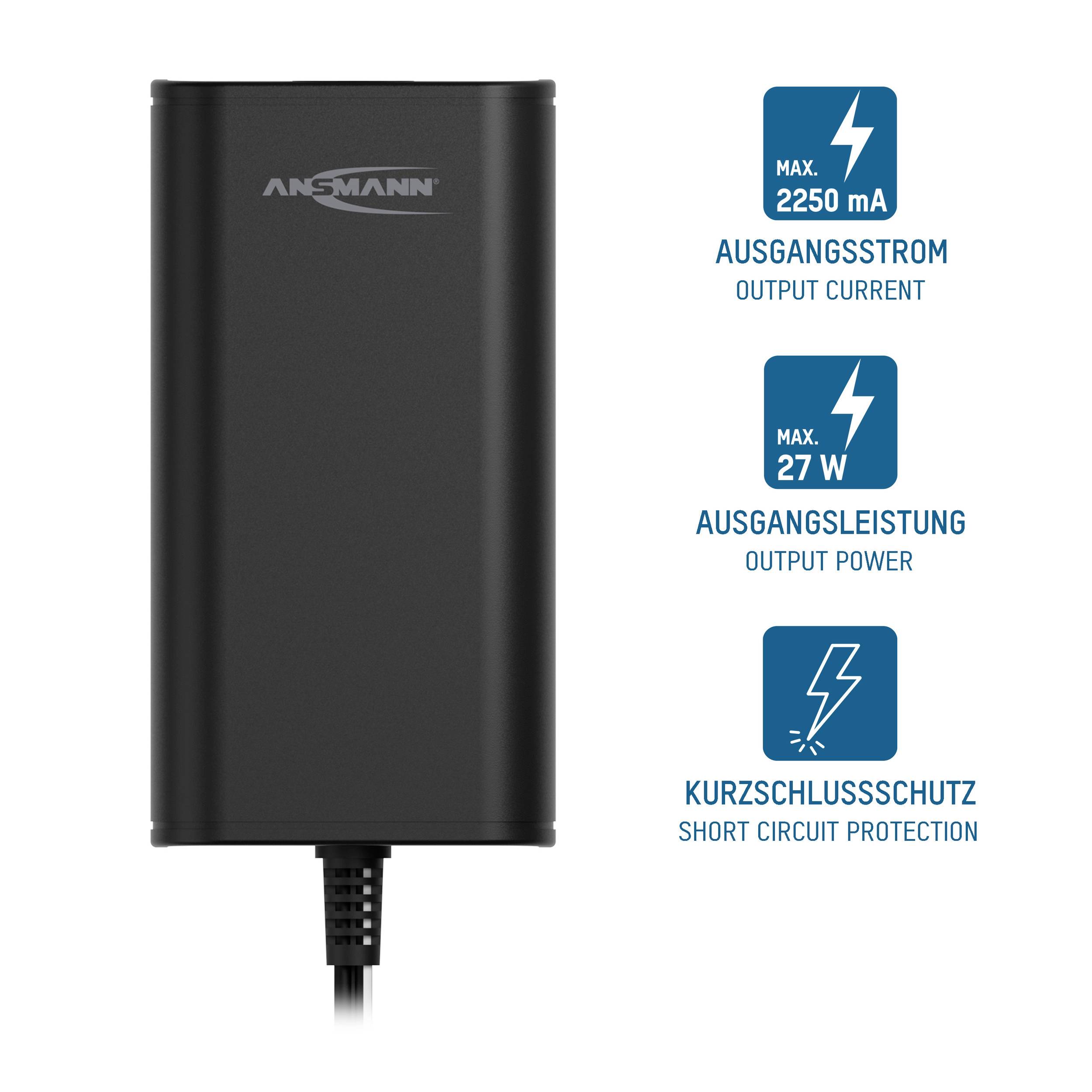

Black power supply with the marking 'ANSMANN'. Specifications on the right: Maximum output current 2250 mA, output power 27 W, short-circuit protection.

'Power supply with adjustable voltage from 9V to 24V. Voltage is adjusted via controller. Shows connection cable and CE marking.'

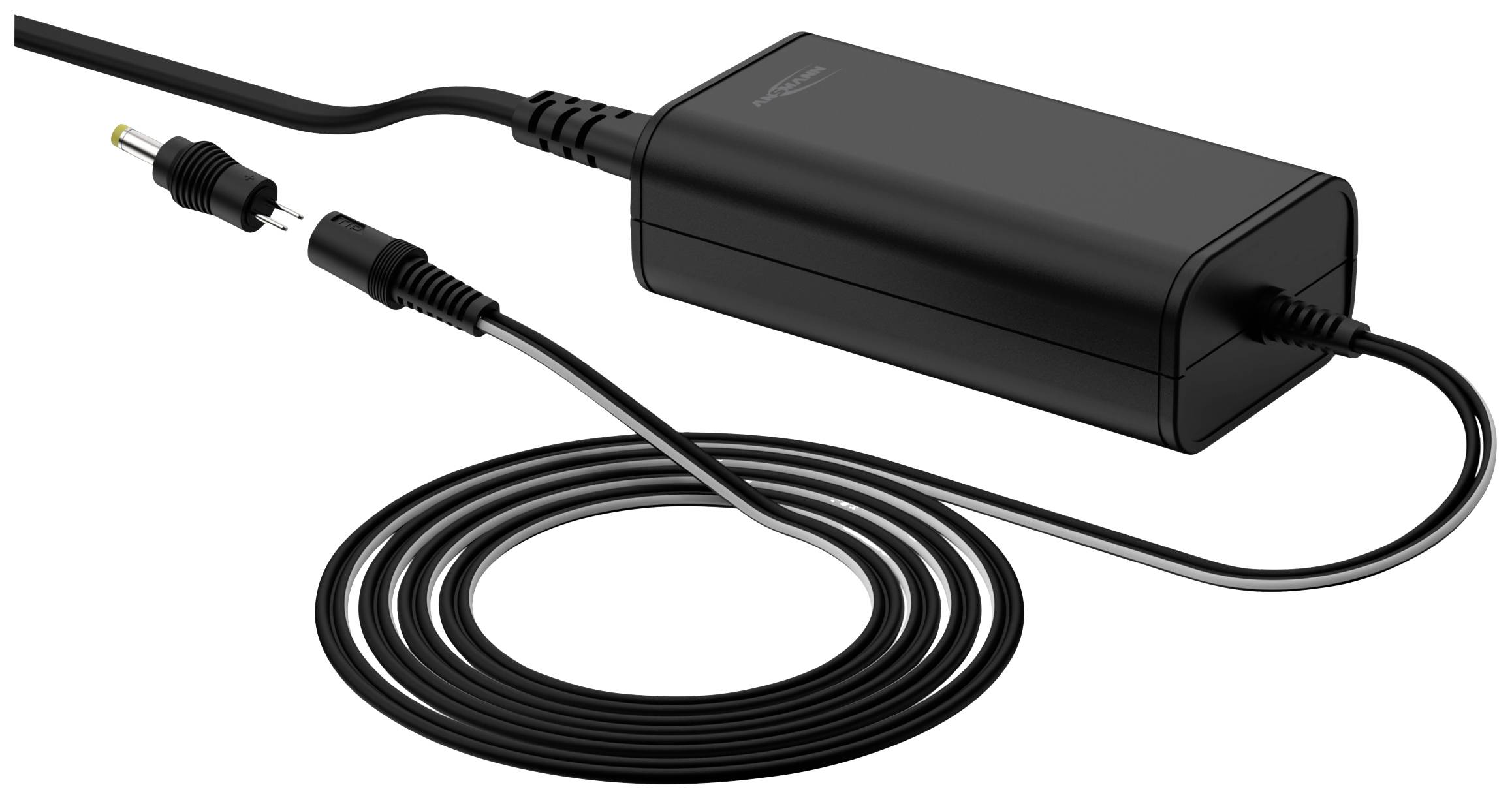

Power supply with 1.8 m cable and 7 different adapters for universal use.

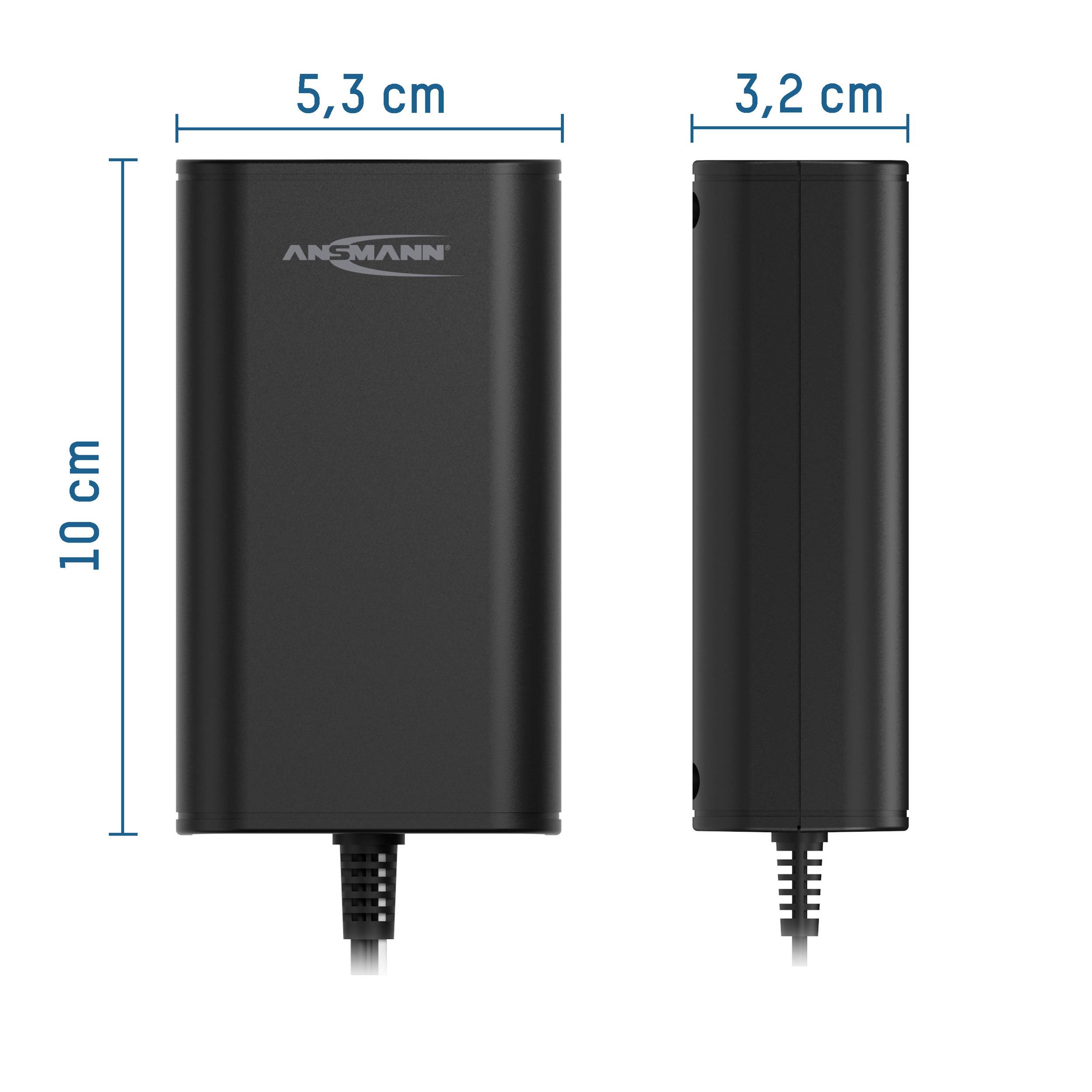

A black, rectangular power supply by Ansmann, 10 cm high, 5.3 cm wide, 3.2 cm deep, standing upright, with cable emerging.

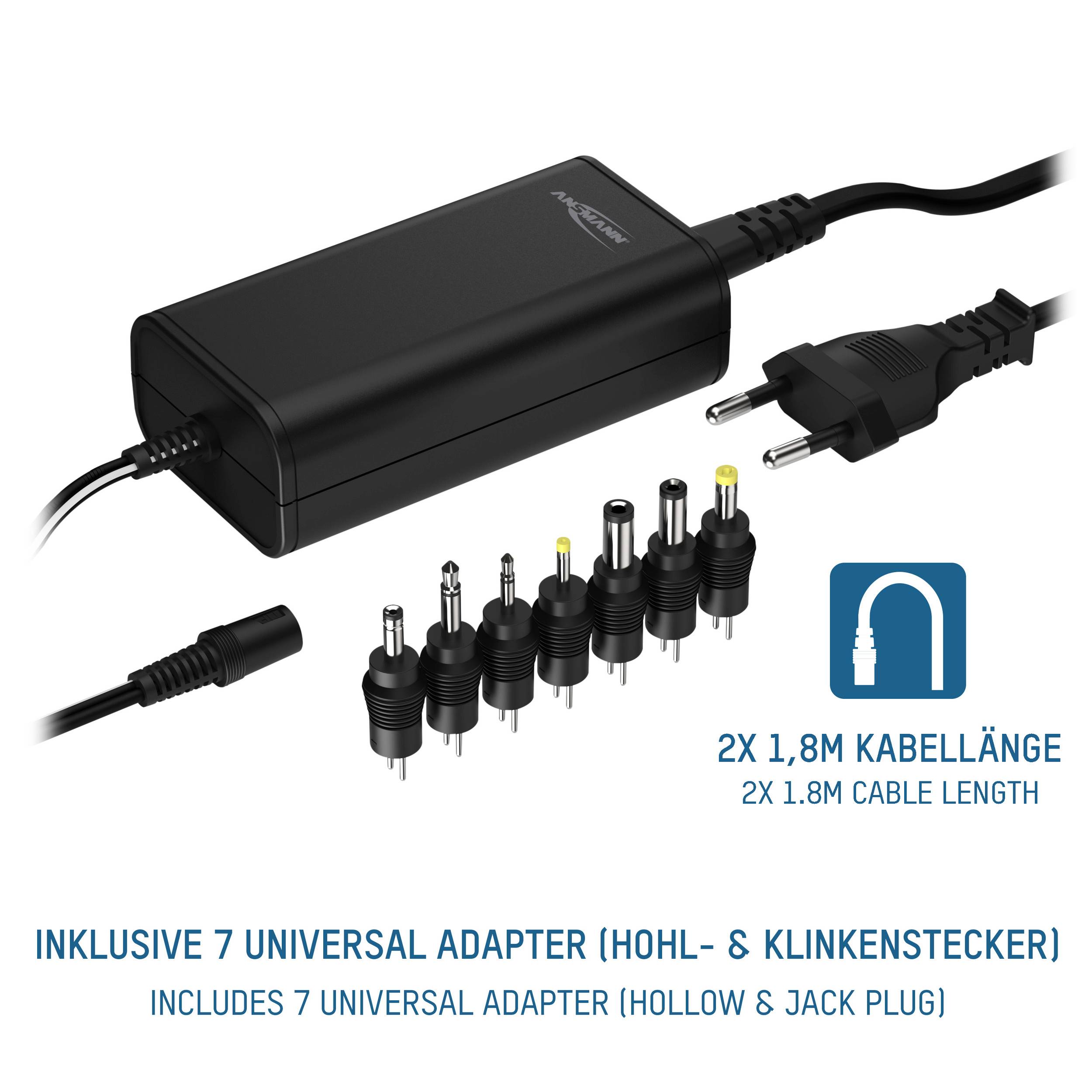

Power supply with 1.8 m cable and seven universal adapters, including hollow and jack plugs for various devices.

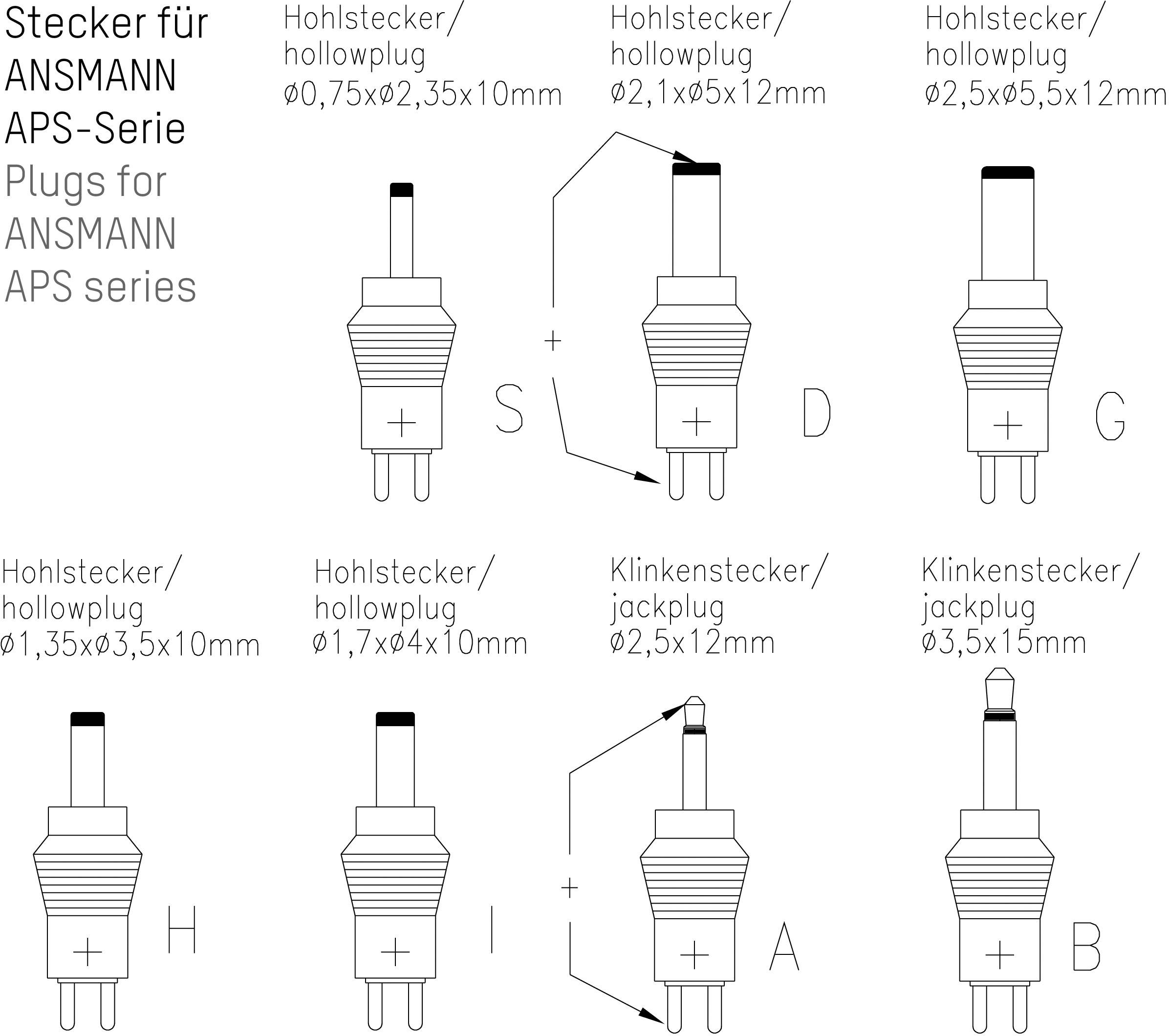

'Plug for ANSMANN APS Series: Hollow plugs in various sizes: S, D, G, H, I, A, B. Details on the diameter and length of the plugs.'

1/15

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 38.65 / piece)

€ 38.65

plus VAT.

14-day return policy included

Report legal concerns

ANSMANN UNIVERSAL POWER SUPPLY APS 2250L

Highlights & Details

UNIVERSAL thanks to seven adapter plugs
Check the current and voltage of the original power supply
Select THE VOLTAGE with the rotary switch on the back

Technical specifications

Product type: Mains PSU (adjustable voltage)

Used at: Mains socket
Indoors

Max. output current: 2250 mA

Output voltage: 15 V DC
13.5 V DC
12 V DC
9 V DC
7.5 V DC
6 V
5 V DC

Output current (max.) - rounded: 2.25 A

Input voltage: 240 V AC
100 V AC

: 27 W

Dim: (L x W x H) 53 x 100 x 32 mm

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 240 V

Min. input voltage: 100 V

Weight: 392 g

Cable length: 1.80 m

Width: 100 mm

Height: 32 mm

Length: 53 mm

Type: APS 2250L

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2300547 Ansmann 1201-0025 Mains PSU (adjustable voltage) 15 V DC, 13.5 V DC, 12 V DC, 9 V DC, 7.5 V DC, 6 V, 5 V DC 2250 mA 27 W

User & Safety Instructions

User & Safety Instructions 2300547 Ansmann 1201-0025 Mains PSU (adjustable voltage) 15 V DC, 13.5 V DC, 12 V DC, 9 V DC, 7.5 V DC, 6 V, 5 V DC 2250 mA 27 W

Warranty Terms

Warranty Terms 2300547 Ansmann 1201-0025 Mains PSU (adjustable voltage) 15 V DC, 13.5 V DC, 12 V DC, 9 V DC, 7.5 V DC, 6 V, 5 V DC 2250 mA 27 W

Description

Universal power supply for a variety of devices

With the APS 2250L you have the possibility to operate a variety of small electrical devices such as pocket computers, digital cameras, measuring devices, MP-3 players, CD players etc. For best compatibility with the many different devices a 7-part plug set is supplied. The common jack and hollow plugs contained in them provide for ideal contact. No matter which device is to be operated.

The output voltage can be set via a rotary switch on the back of the power supply unit. The APS 2250L is short circuit proof and voltage stabilized. Suitable for consumers up to max. 2.25 A, 27 W power.
