Buy Ansmann BC 6-12V / 2 A 1001-0143 Charger, Industrial charger, Battery monitor 6 V, 12 V 2 A

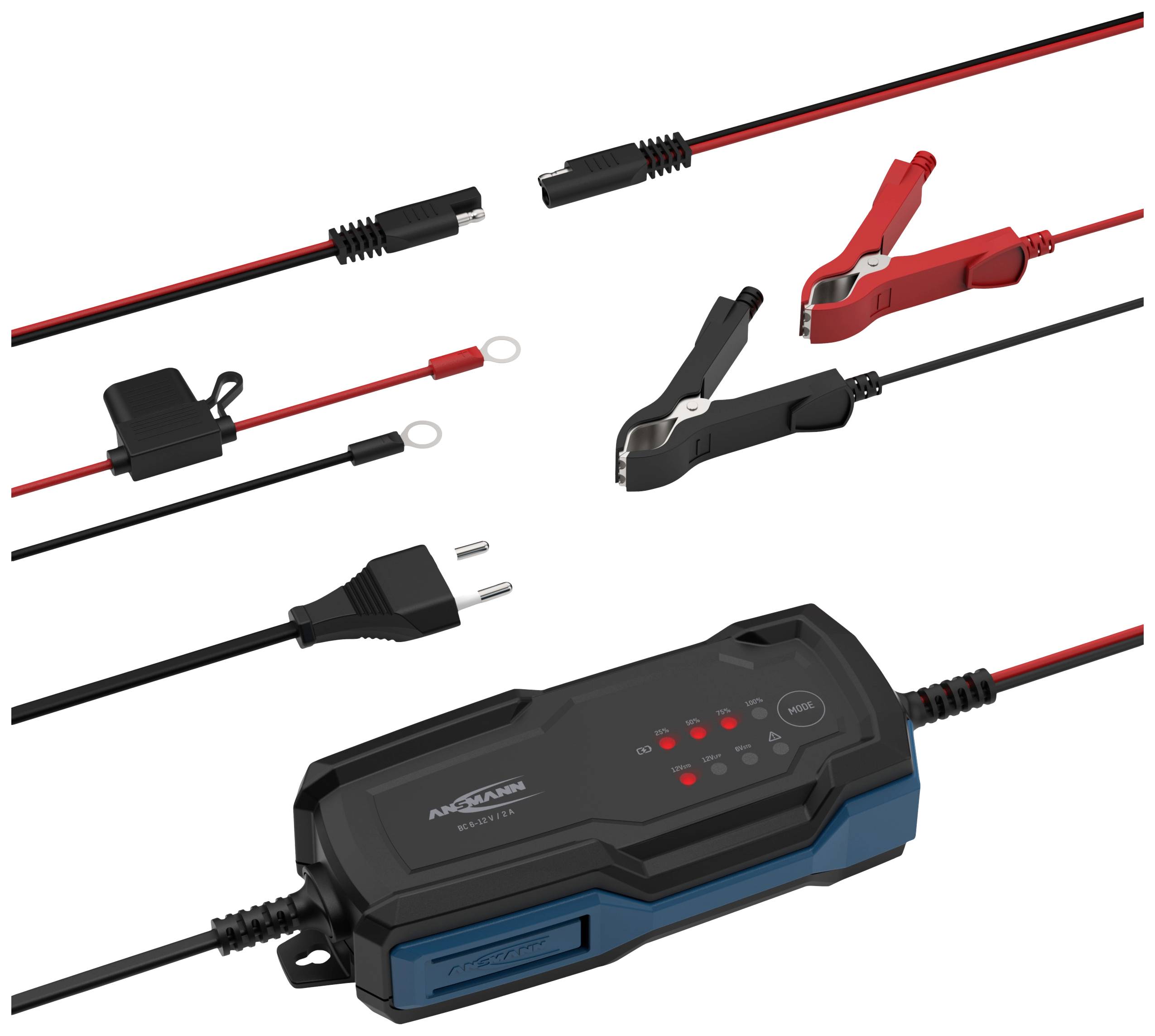

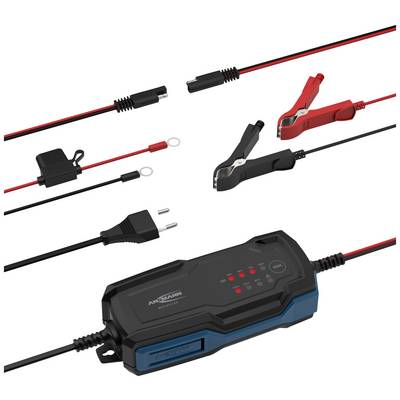

Battery charger with cables and clamps for connecting to various battery types. LEDs indicate the charging status.

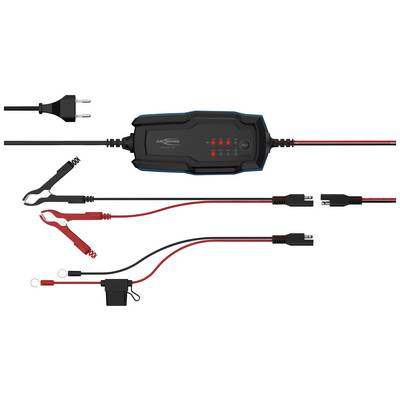

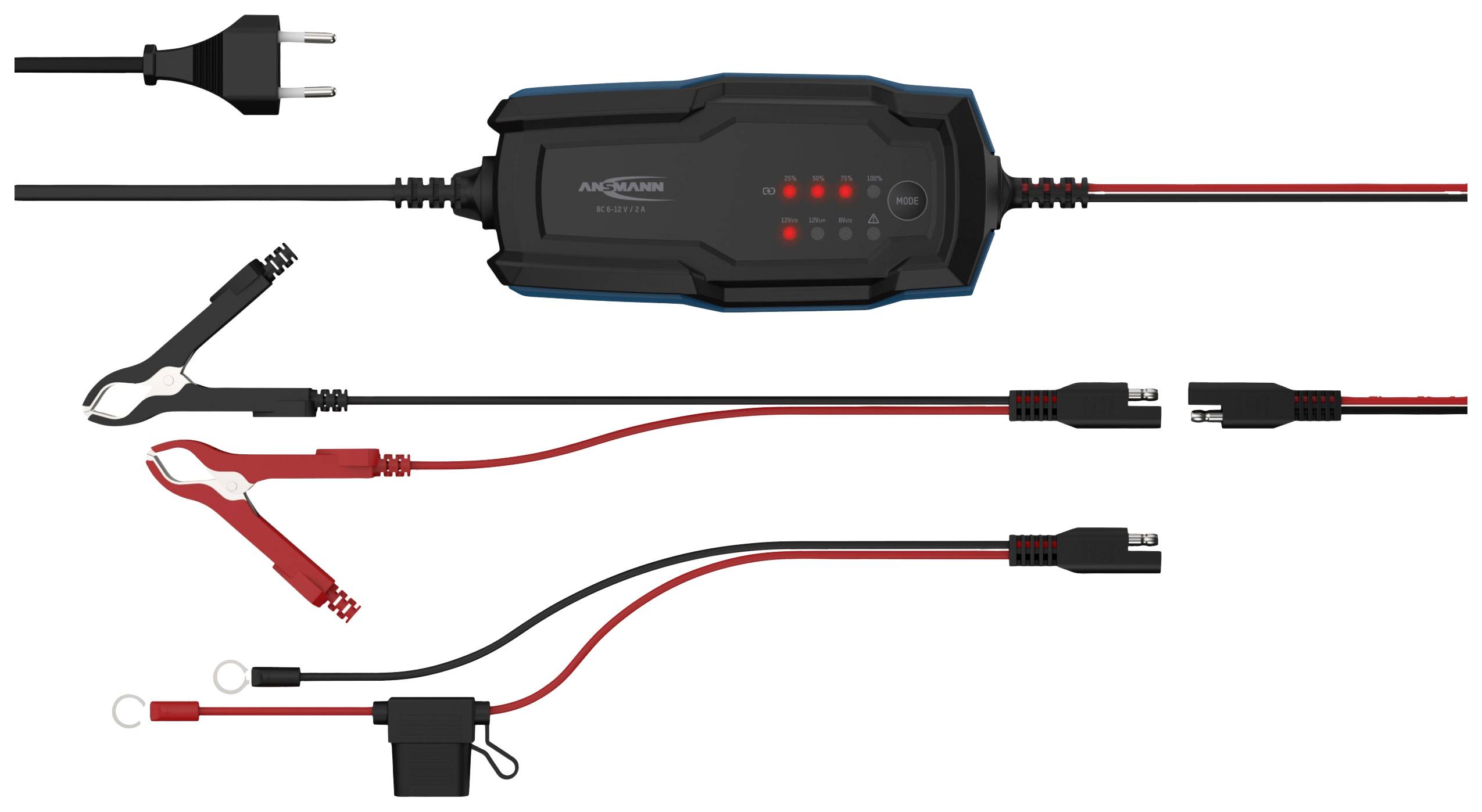

Charger with multiple cables and connectors, suitable for various battery connection types. Left: mains plug, right: cable connections.

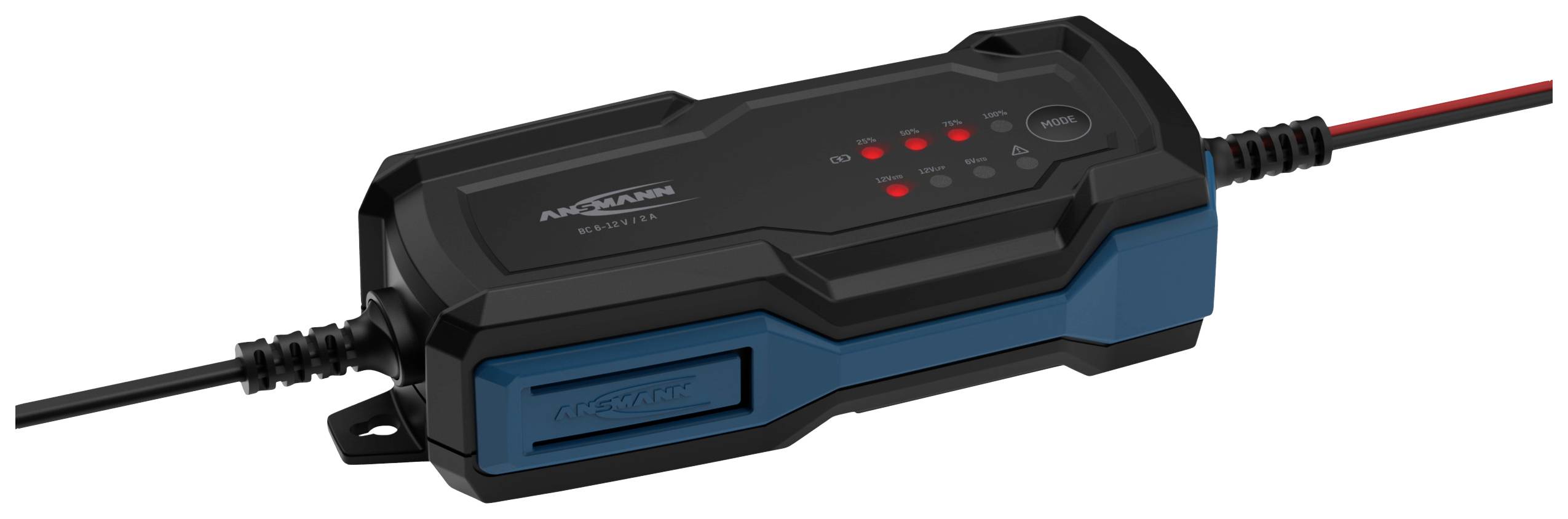

Black and blue battery charger with multiple LED indicators on the top surface, with two connected cables.

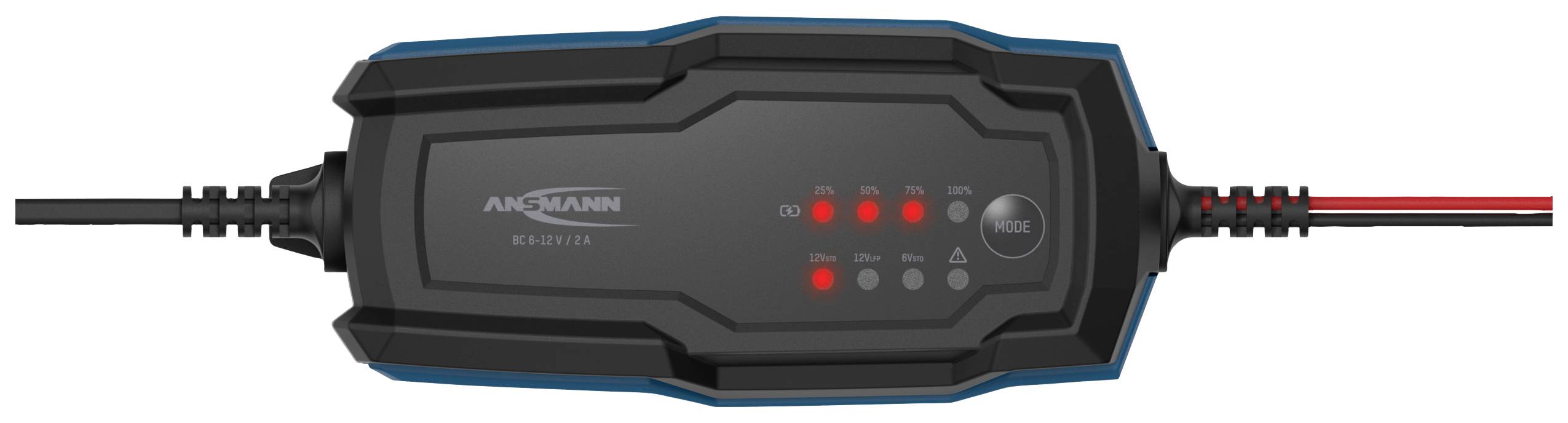

'ANSMANN' battery charger with multiple LEDs indicating the charging status.

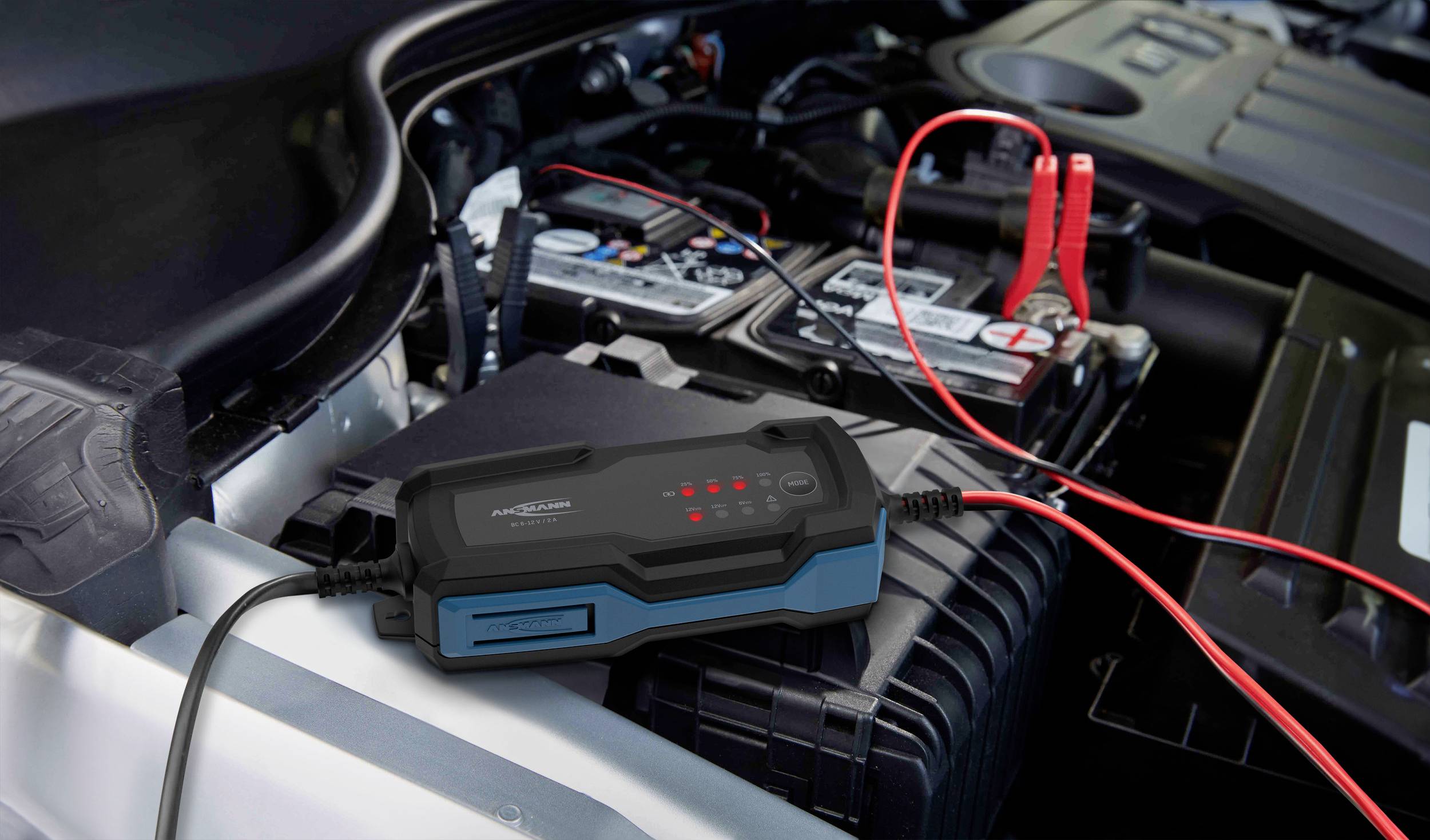

A car battery charger is connected to a car battery. Red and black cables connect the device to the battery terminals.

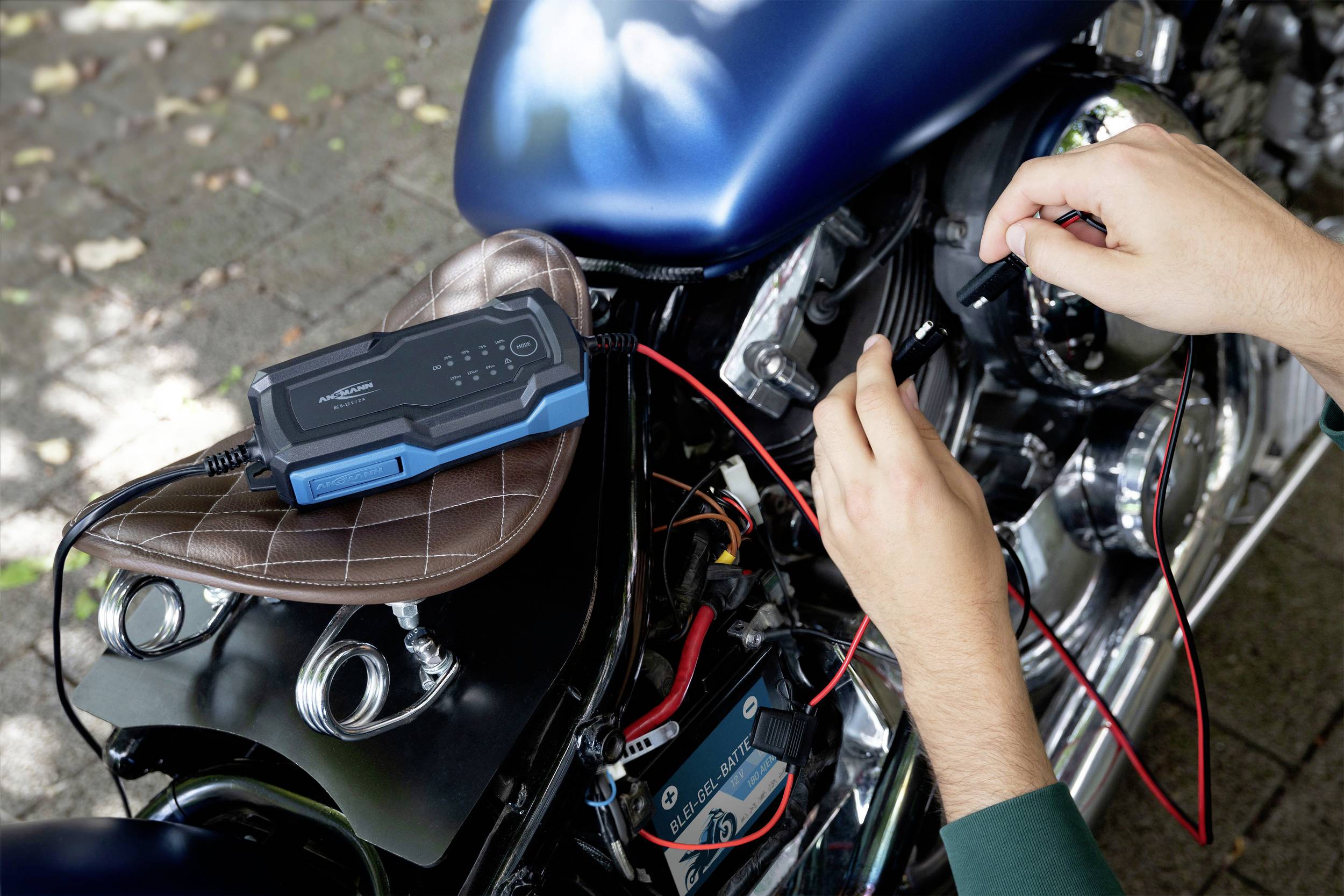

'A charger is connected to a motorbike. Two hands are holding the cables at the battery terminals. The seat is brown.'

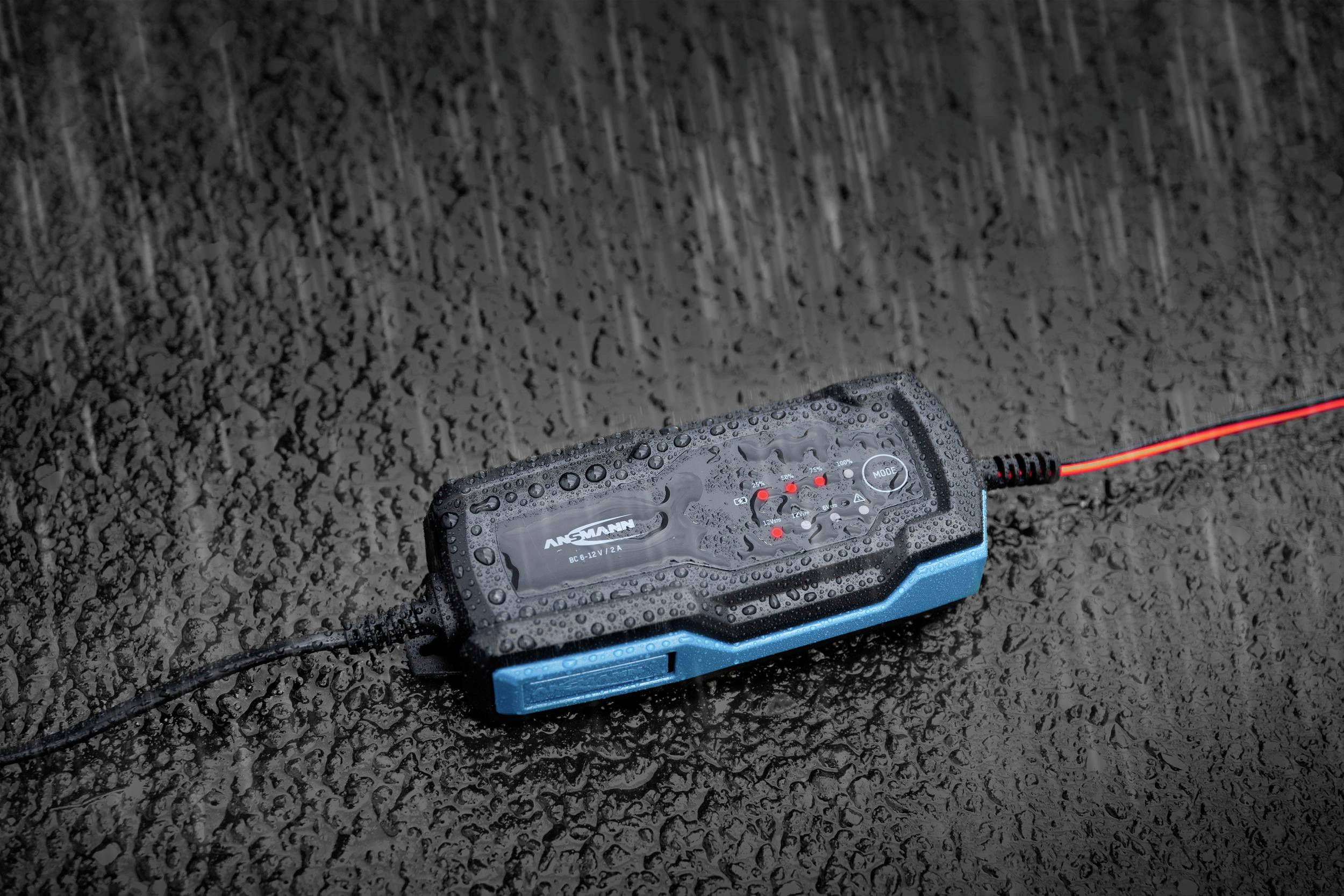

A battery-powered black and blue device with glowing red LED indicators is lying on a wet, rainy surface.

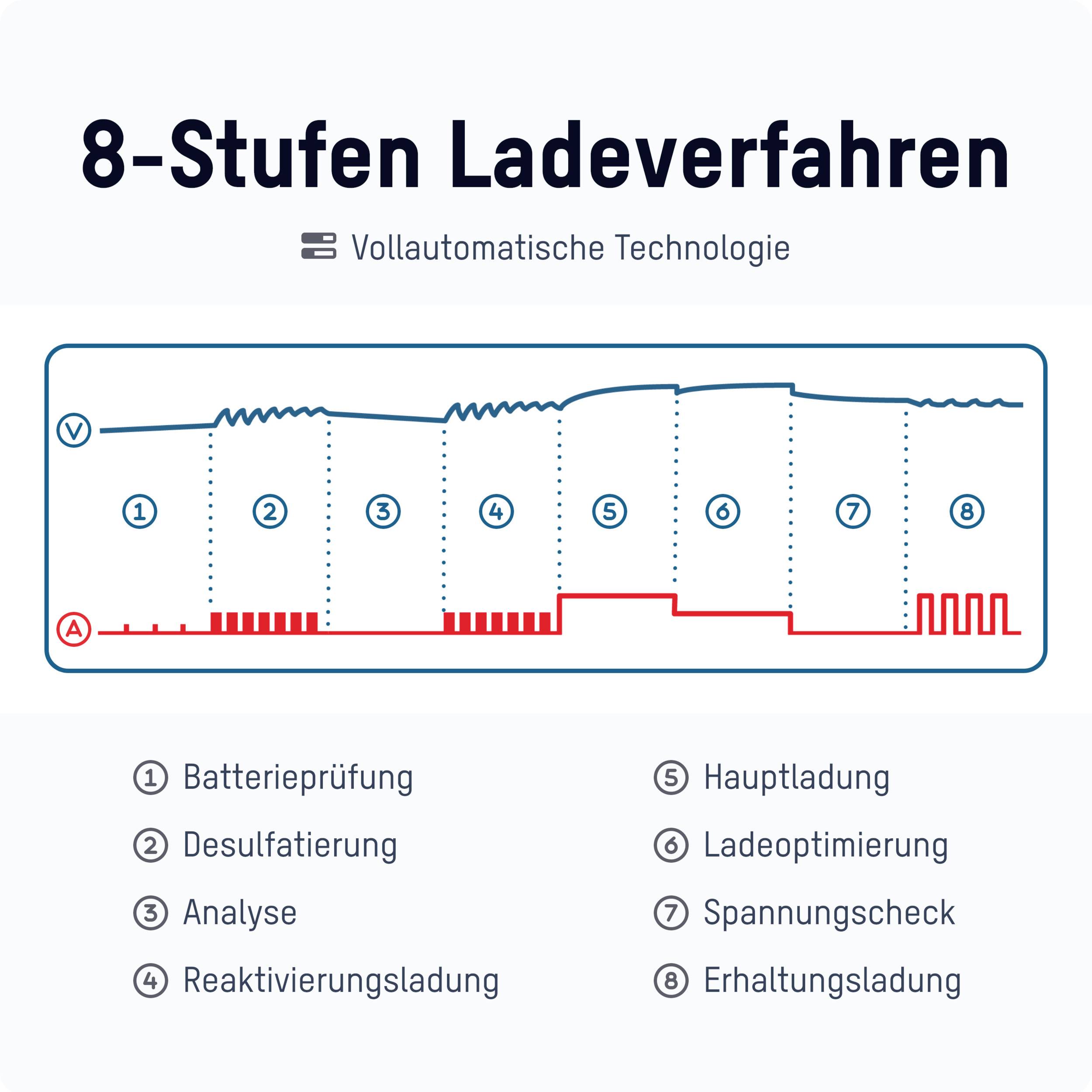

'8-Stage Charging Process: Fully Automatic Technology. Diagram shows charging phases from testing to maintenance charging.'<br><br>Note: This translation preserves the original technical meaning while using natural British English phrasing and terminology.

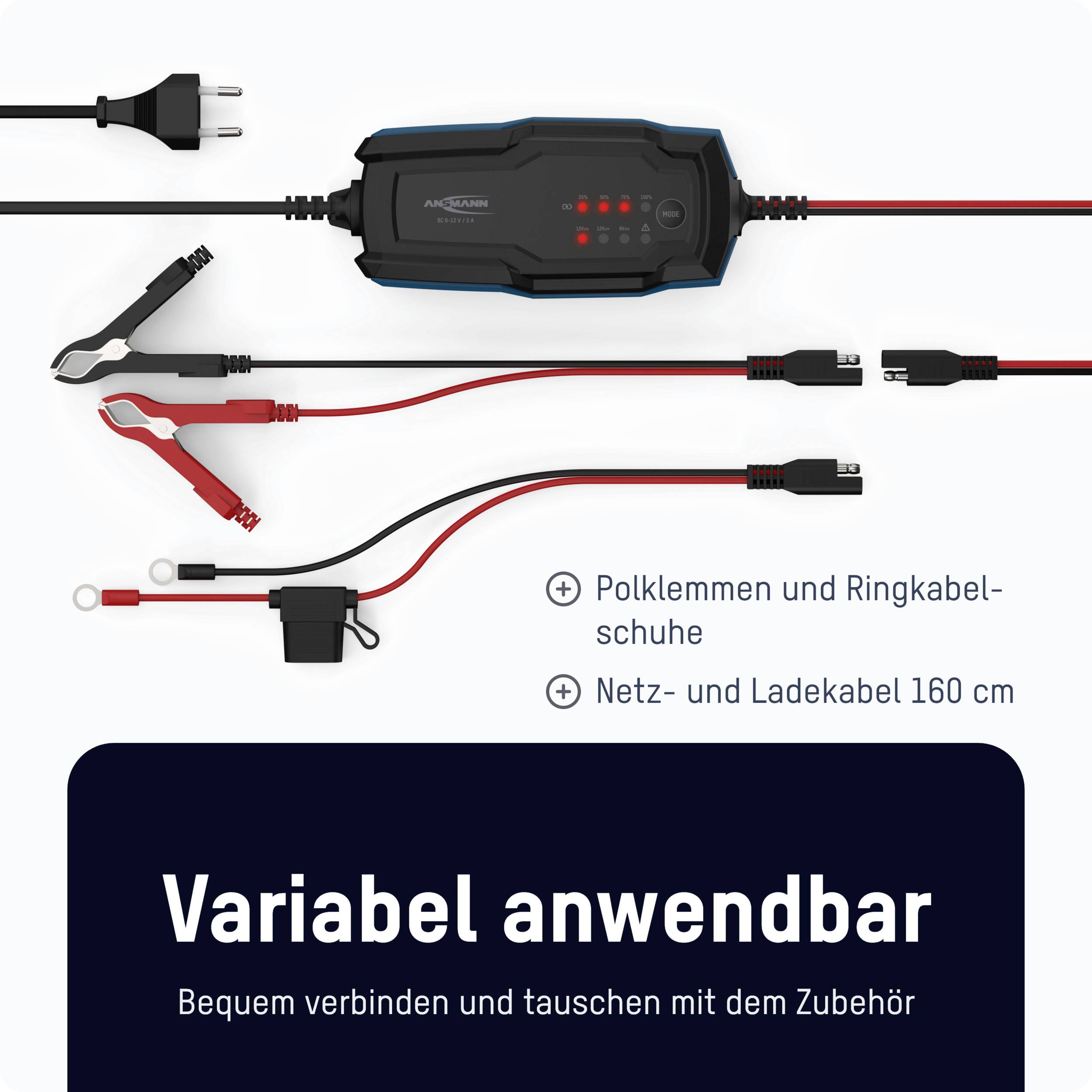

A battery charger with cables and clamps for connecting to car batteries. Text: 'Versatile - Conveniently connect and swap with the accessories'.

Device for detecting faults and automatic recharging of lead-acid and lithium batteries, with LED display. Three battery types illustrated.

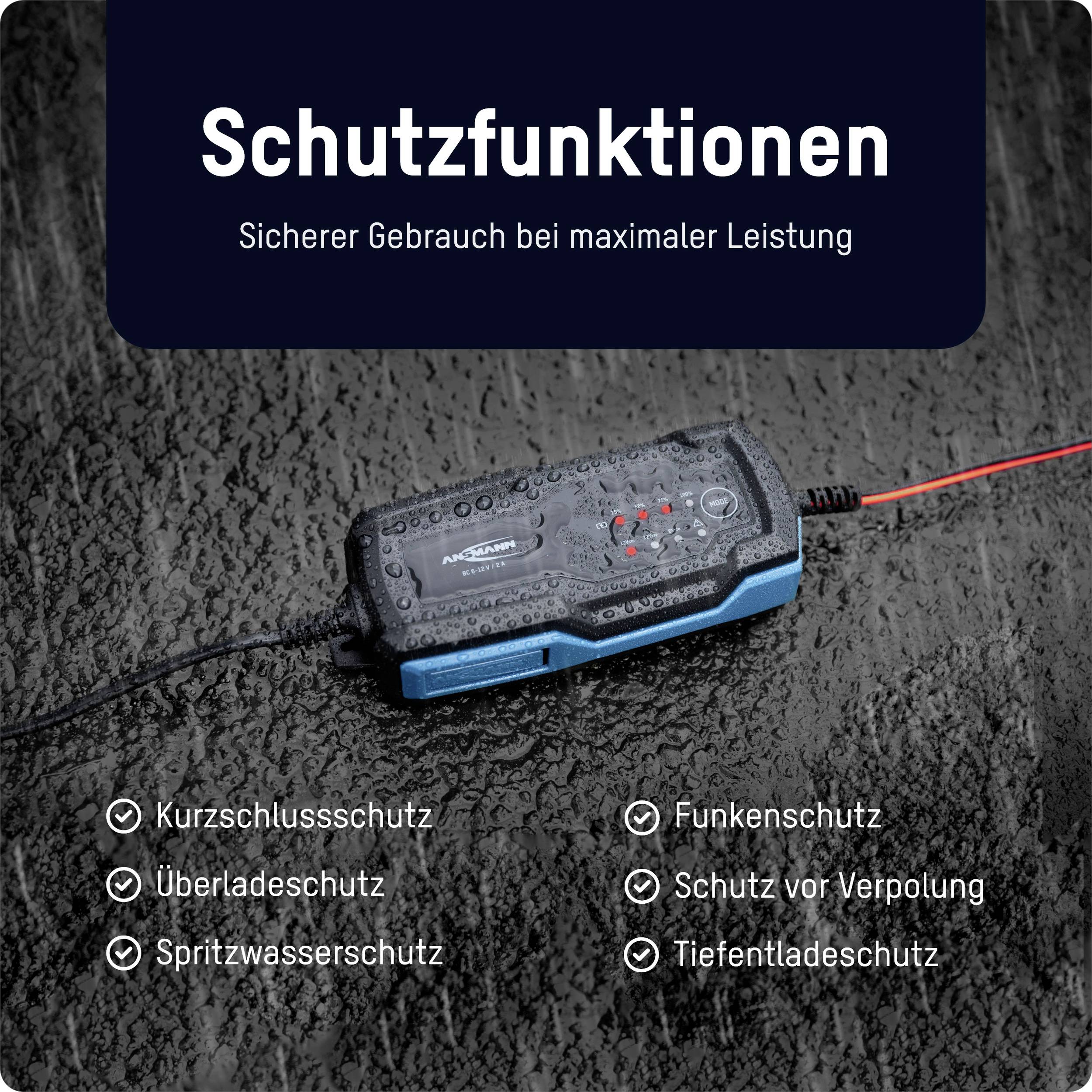

Water droplet on a charger, surrounded by text: 'Protective Functions - Safe Use at Maximum Performance'. List of protection types.

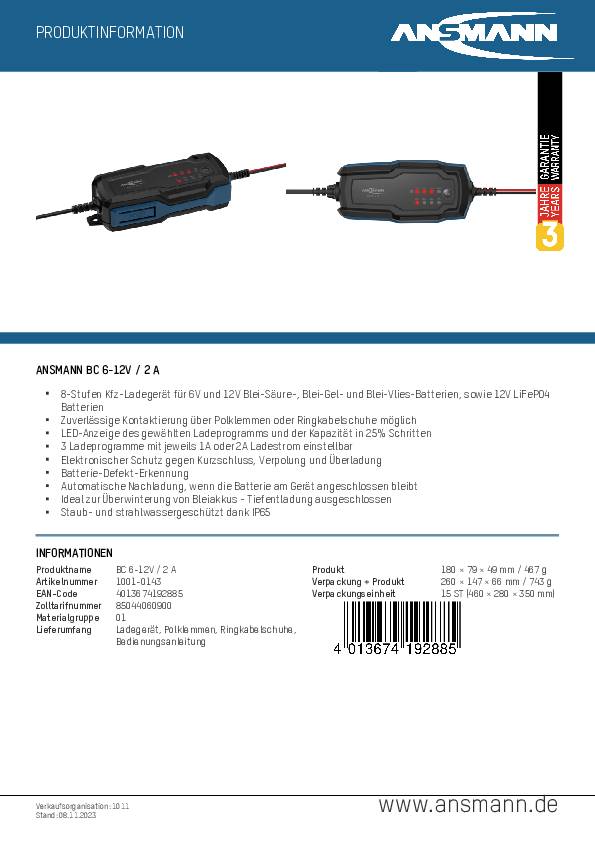

Battery Charger ANSMANN BC 6-12V/2A for Lead-Acid, Lead-Gel, Lead-Fleece Batteries. Data Sheet with Specifications and Functions.

1/12

Fast track dispatch on Tue, 6 Oct

14 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 41.17 / piece)

€ 41.17

plus VAT.

14-day return policy included

Report legal concerns

Pre-contractual information under the EU Data Act

Highlights & Details

Car charger BC 6-12V / 2 A

Intelligent and secure charging control
Reverse polarity protection, overload protection
Real long cable

Technical specifications

Product type: Charger

Dim: (L x W x H) 260 x 147 x 66 mm

Battery voltage: 6 V
12 V

Operating voltage: 230 V / AC

Recommended battery capacity at 12 V max.: 60 Ah

Recommended battery capacity at 12 V min.: 4 Ah

Recommended battery capacity at 6 V max.: 60 Ah

Recommended battery capacity at 6 V min.: 4 Ah

Suitable for: Lead acid
SLA
VRLA AGM
LiFePO4

Weight: 0.467 kg

Features: Charge monitoring
Multiple charging modes

Battery charging function: Fully automatic, intelligent 8-level charging

Charging current at 12 V: 2 A

Charging current at 6 V: 2 A

Width: 147 mm

Height: 66 mm

Length: 260 mm

Depth: 7.9 cm

Max. reverse current: 8 mA

: IP65

Cable length: 1.5 m

UKCA: yes

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3016244 Ansmann BC 6-12V / 2 A 1001-0143 Charger, Industrial charger, Battery monitor 6 V, 12 V 2 A

Information

Information 3016244 Ansmann BC 6-12V / 2 A 1001-0143 Charger, Industrial charger, Battery monitor 6 V, 12 V 2 A

Warranty Terms

Warranty Terms 3016244 Ansmann BC 6-12V / 2 A 1001-0143 Charger, Industrial charger, Battery monitor 6 V, 12 V 2 A

Description

Charger for 6V and 12V lead-acid batteries (lead-gel, lead-fleece, lead-acid)
With the help of high-quality pole terminals, a fast and reliable contact of the lead-acid batteries is possible.
Clear LCD display - easy to use
RECORD Mode, if the battery is totally discharged or switched on
Selectable COLD TEMP mode in cold temperatures
Battery fault detection
Electronic protection against short circuit, reverse polarity and overload
Automatic recharging, if the battery remains connected to the device
Ideal for hibernation of lead-acid battery completely excluded
Mains cable 160cm, charging cable 160cm
Dust and splash-water protected thanks to IP65

This text is machine translated.

Features

Thanks to numerous features, the BC 6-12V/2 A ensures a safe and gentle charging and ensures optimum performance and long life of lead-acid batteries.
For 6 or 12 V lead-acid batteries with a capacity of 4Ah 60Ah and 2 A charging current
Lead-gel, lead-fleece and lead-acid batteries can be charged with the nominal voltage 6V and 12V.
Maintenance-Mode Deep discharge of the battery is excluded and ensures a gentle hibernation.
The charger automatically recognizes when the connected battery is completely discharged and carefully charges it through pulsating charging currents until a sufficient basic voltage is reached for normal charging.
If the battery is permanently connected to the charger during hibernation, this detects a potential loss of capacity and then charges automatically. This prevents deep discharge. Batteries from motorcycles, motorboats, lawnmowers, etc. come so well over the winter and are always ready to use, if necessary.
Reverse polarity protection, overload protection, practical long cable
If the battery terminals are swapped, the LED will flash red. The long cable is particularly practical and allows charging without extension cable. The BC 6-12V / 2 A is suitable for standby parallel operation, i.e. it can remain connected to the battery without any interruption and keeps it fully charged, even if the battery is loaded/discharged simultaneously.

Scope of delivery

With 6 bits. Pole terminals
Ring Terminals

Description

Features

Thanks to numerous features, the BC 6-12V/2 A ensures a safe and gentle charging and ensures optimum performance and long life of lead-acid batteries.
For 6 or 12 V lead-acid batteries with a capacity of 4Ah 60Ah and 2 A charging current
Lead-gel, lead-fleece and lead-acid batteries can be charged with the nominal voltage 6V and 12V.
Maintenance-Mode Deep discharge of the battery is excluded and ensures a gentle hibernation.
The charger automatically recognizes when the connected battery is completely discharged and carefully charges it through pulsating charging currents until a sufficient basic voltage is reached for normal charging.
If the battery is permanently connected to the charger during hibernation, this detects a potential loss of capacity and then charges automatically. This prevents deep discharge. Batteries from motorcycles, motorboats, lawnmowers, etc. come so well over the winter and are always ready to use, if necessary.
Reverse polarity protection, overload protection, practical long cable
If the battery terminals are swapped, the LED will flash red. The long cable is particularly practical and allows charging without extension cable. The BC 6-12V / 2 A is suitable for standby parallel operation, i.e. it can remain connected to the battery without any interruption and keeps it fully charged, even if the battery is loaded/discharged simultaneously.
