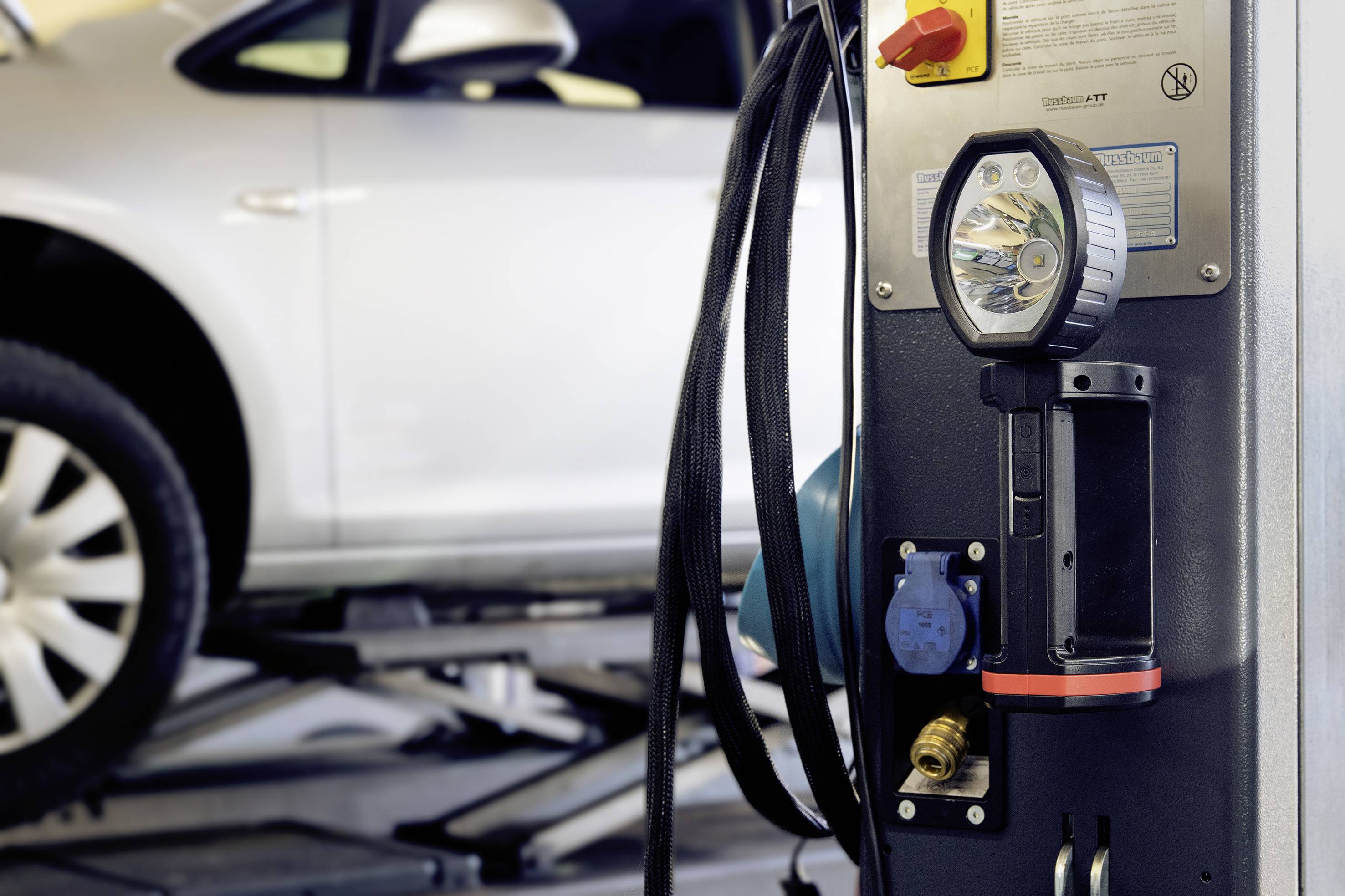

A car is positioned on a car lift in a garage workshop. In the foreground, a tyre inflation station with hoses and gauges is visible.

Three different portable LED lights illuminate brightly in a barn, with a cow looking on with interest in the background.

A hunter with a rifle and torch illuminating the surroundings at dusk in the snow.

Two people in safety clothing are working on technical equipment on a roof. A large torch is pictured on the right side of the image.

Ansmann LED (monochrome) Cordless handheld searchlight HS20R Pro 1700 lm 1600-0223-5

A man opens a pasture gate on a meadow, with a large torch dominating the foreground. A stag is visible in the left background.

A large wind turbine stands in an evening landscape. A pale blue light beam illuminates from the ground towards the rotor blades.

A person stands on a country lane at night, gazing at an illuminated wind turbine with red and blue lights against the sky.

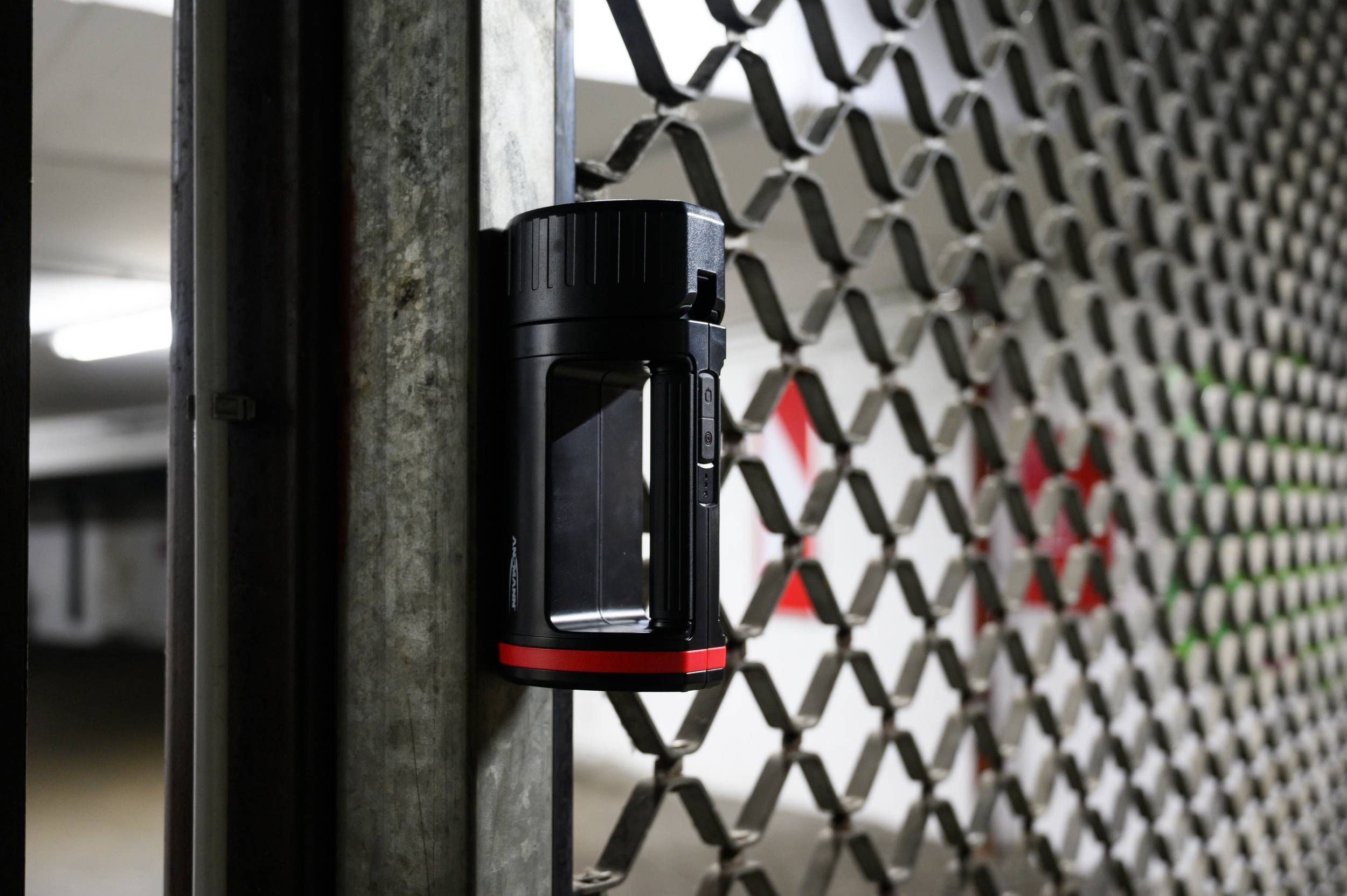

Ansmann LED (monochrome) Cordless handheld searchlight HS20R Pro 1700 lm 1600-0223-9

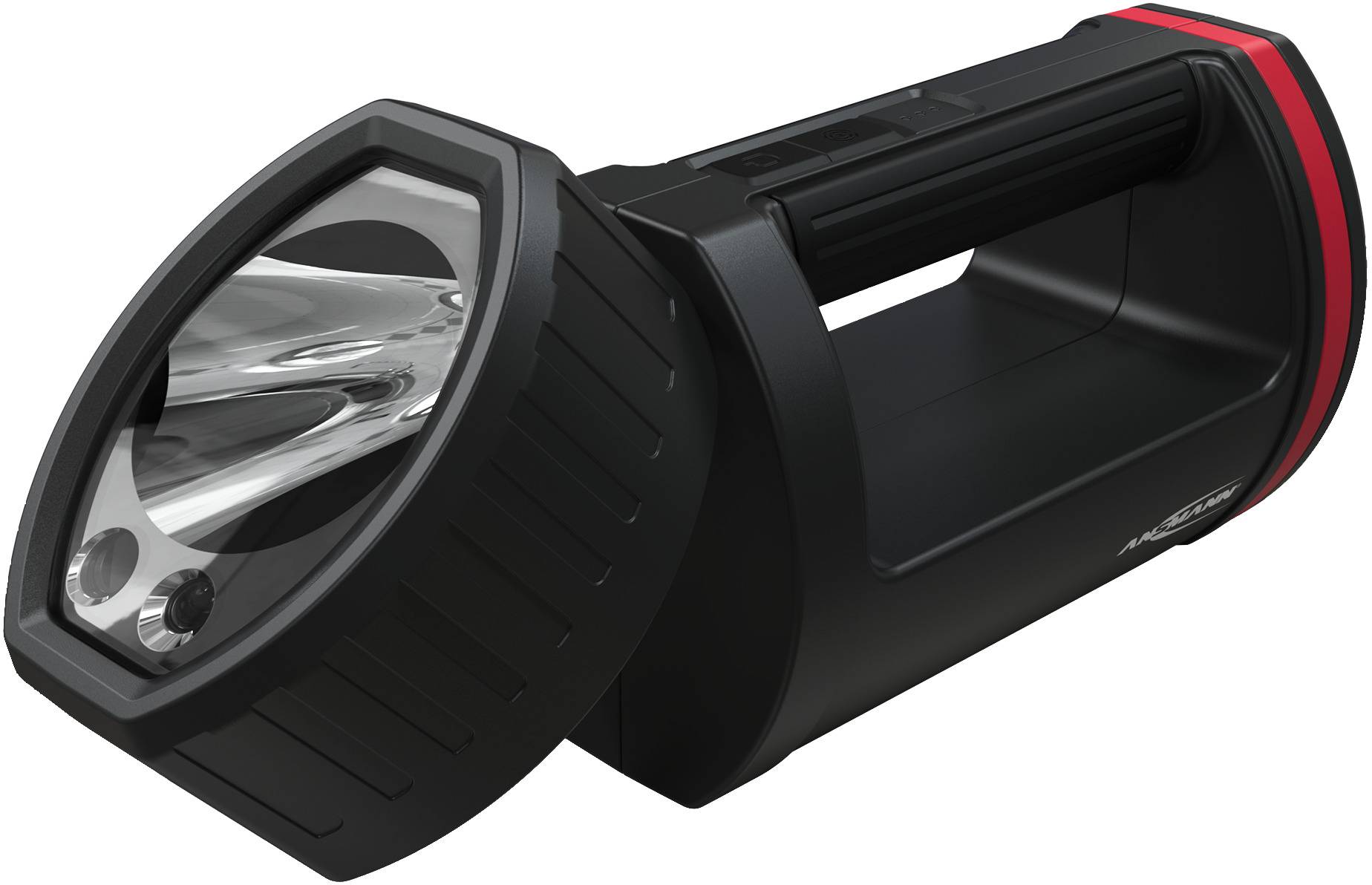

Black, portable torch with large headlamp and two buttons, ergonomic handle. Suitable for outdoor adventures.

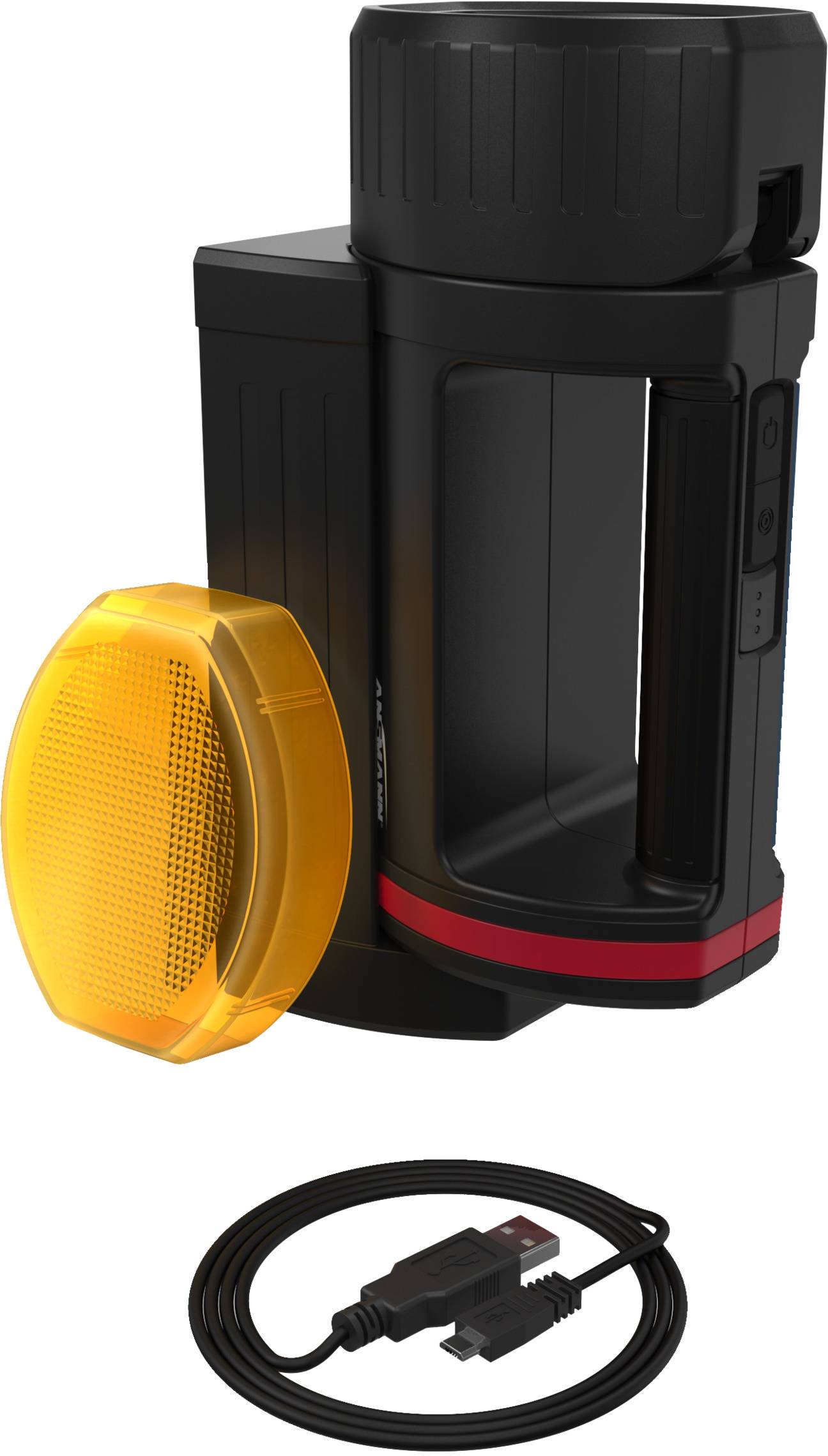

Portable black LED torch with red stripe, yellow reflector and USB charging cable, suitable for outdoor activities.

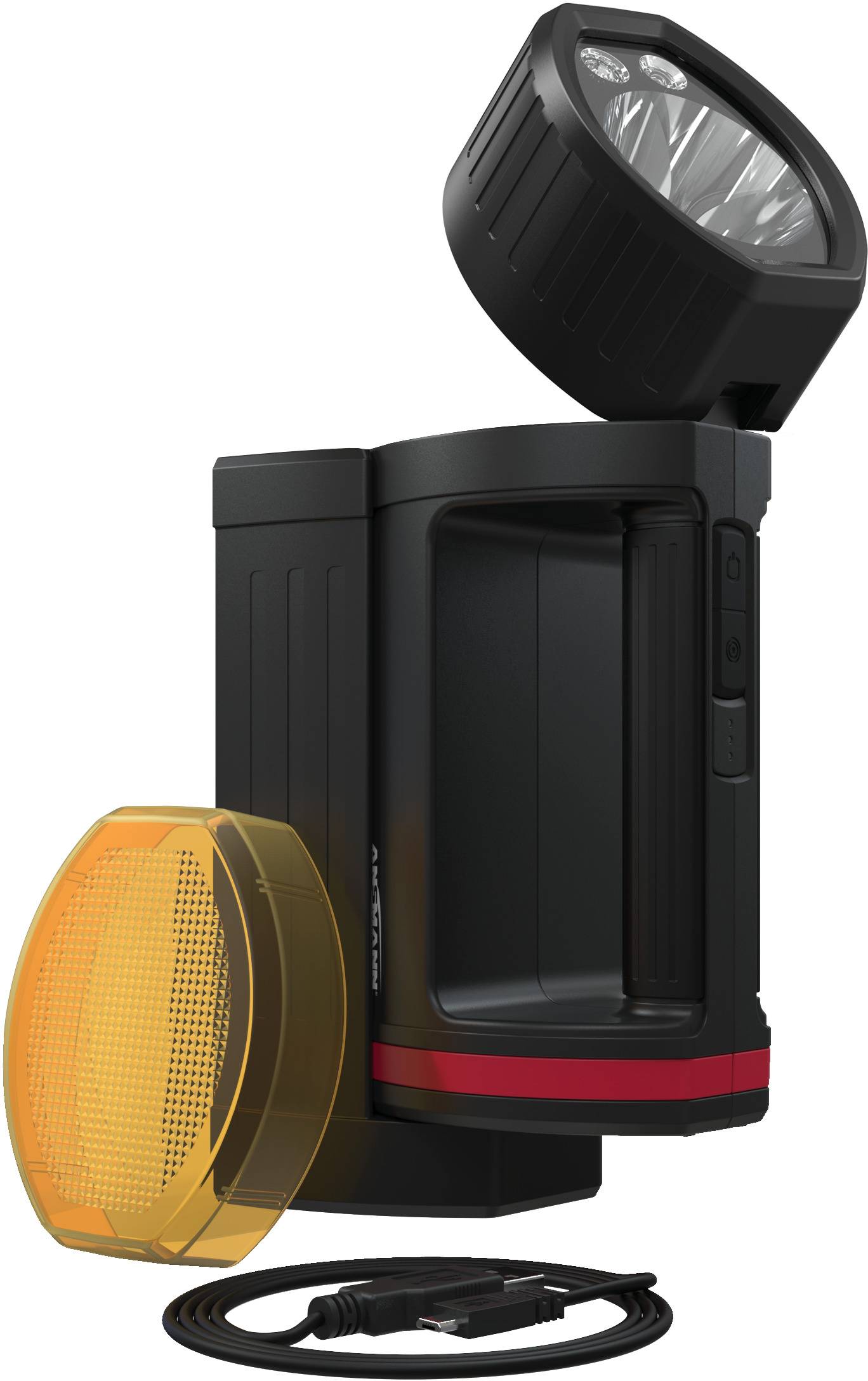

Portable black lamp with detachable spotlight and orange filter, USB charging cable in the foreground.

Packaging for an Ansmann Professional LED Torch. Features: rechargeable, Micro-USB, LED lights, 3-year warranty.

A rechargeable professional LED hand torch with 1700 lumens, 470m range, up to 11 hours of battery life and including a micro-USB cable.

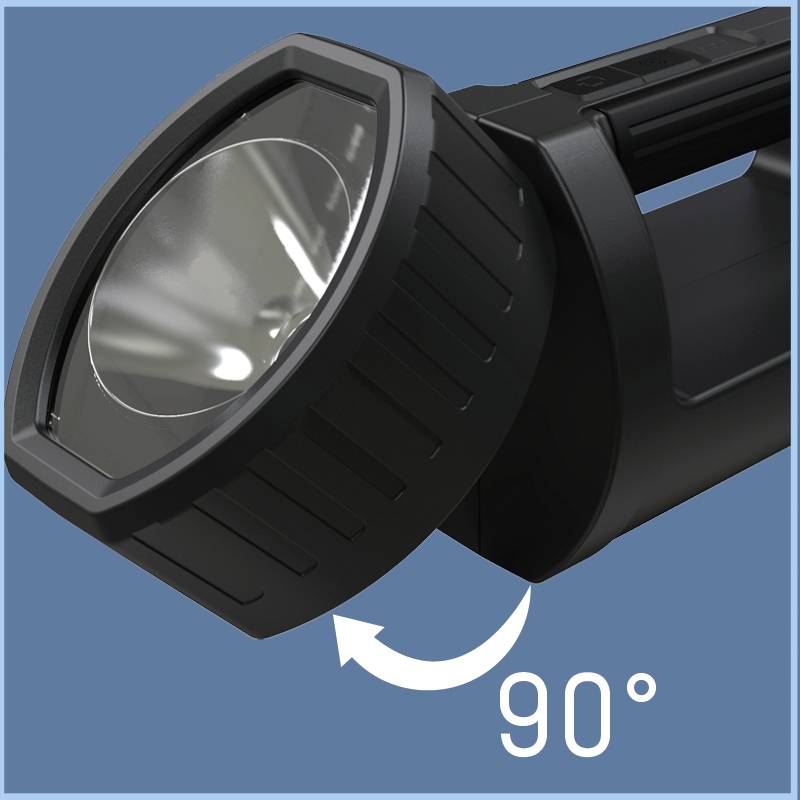

'Torch with a pivoting mechanism allowing a 90-degree rotation, shown against a blue background.'

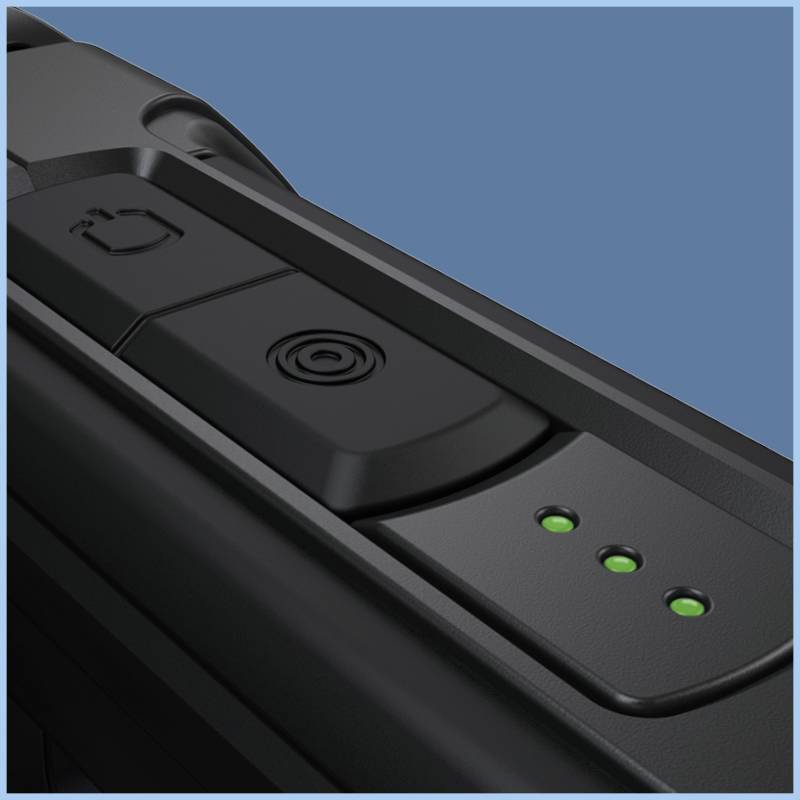

A close-up of a black electronic device with green LED indicators and a button on a blue background.

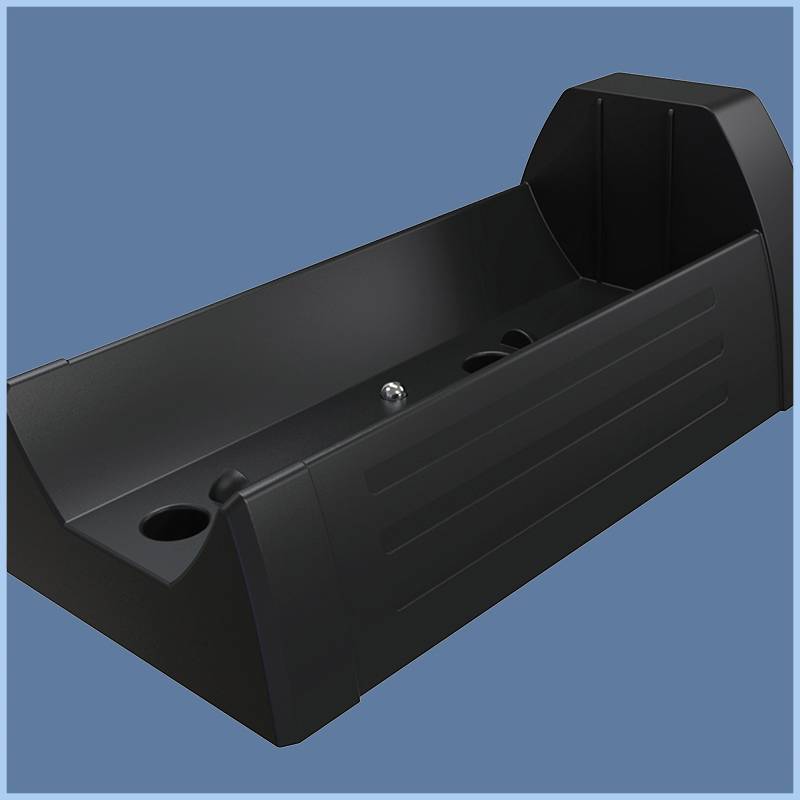

A dark grey, rectangular plastic enclosure against a blue background.

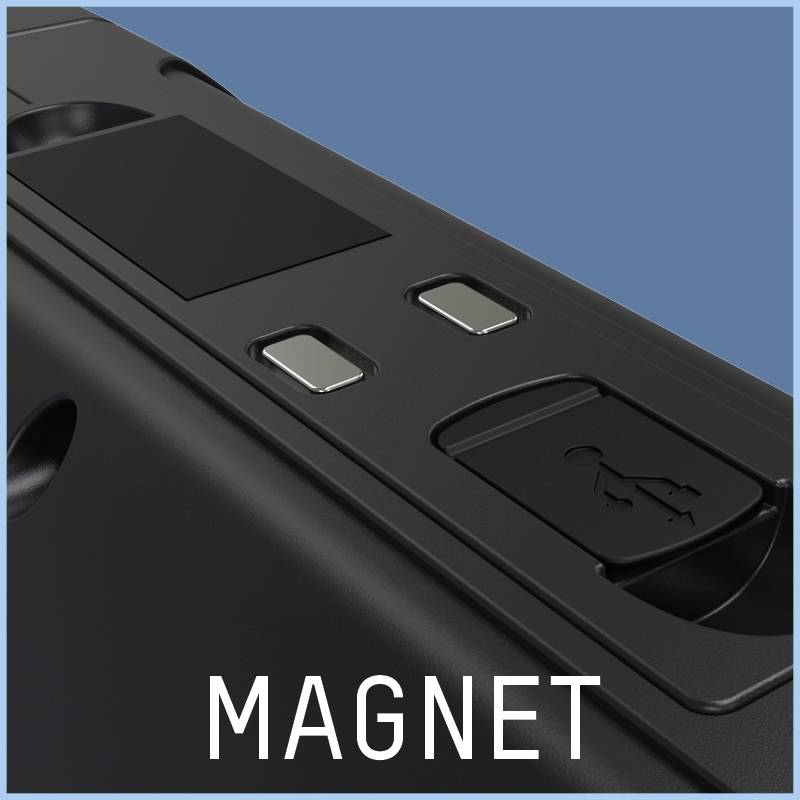

Close-up of a USB port on a black device, surrounded by two rectangular buttons. Text below: 'MAGNET'.

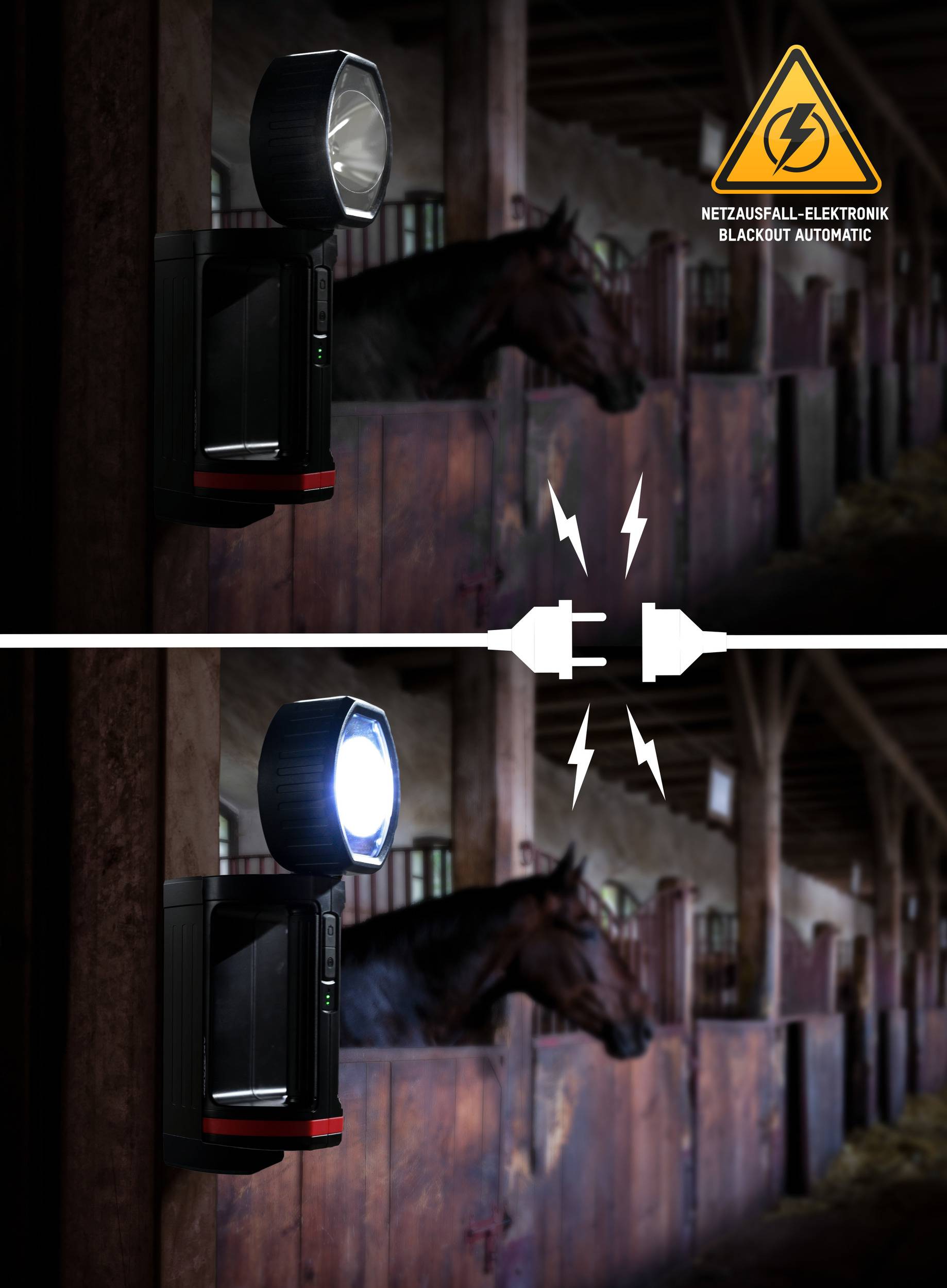

'Two pictures of a stable with a horse: top without light, bottom with emergency power lighting during a grid disruption. Symbol for power failure.'

1/20

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

45 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

14-day return policy included

Report legal concerns

Professional hand-held spotlight HS20R Pro

Highlights & Details

Professional hand-held spotlight made of robust ABS plastic with built-in LED technology with very high Leuchtkraft - Protection class IP20
Extremely bright through 3 LEDs (CREE-LED) with a power of max. 20W.
Permanently installed lithium-ion battery (3.7V / 10,400 mAh)

Technical specifications

Protection type IP20
Light duration at low luminosity max. 119 h
3.7 V, 10400 mAh Li-ion battery
Protection class III
Temperature range: -10 to +25 °C
Lamp in the wall bracket 238 x 126 x 91 mm

Product type: Cordless handheld searchlight

Bulb type: LED (monochrome)

Illumination range (high): 470 m

Factory colour: Black

Dim: (L x W x H) 216 x 82 x 105 mm

Weight: 990 g

LEDs: 3

Light duration (high): 7 h

Light duration (low): 10 h

Luminous flux (high): 1700 lm

Luminous flux (low): 360 lm

Luminous flux (medium): 950 lm

Width: 82 mm

Height: 105 mm

Length: 216 mm

Waterproof: No

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2227120 Ansmann LED (monochrome) Cordless handheld searchlight HS20R Pro 1700 lm 1600-0223

User & Safety Instructions

User & Safety Instructions 2227120 Ansmann LED (monochrome) Cordless handheld searchlight HS20R Pro 1700 lm 1600-0223

Conformity certificate

Conformity certificate 2227120 Ansmann LED (monochrome) Cordless handheld searchlight HS20R Pro 1700 lm 1600-0223

Warranty Terms

Warranty Terms 2227120 Ansmann LED (monochrome) Cordless handheld searchlight HS20R Pro 1700 lm 1600-0223

Description

Robust, reliable hand-held spotlight
The HS20R Pro is a robust and reliable battery-operated handheld spotlight for a wide range of applications, whether industrial, commercial, hunting or security services. The professional working lamp always provides for optimum and adequate brightness.
Due to the flashing function with the orange color filter disc provided, the spotlight is also ideal as a warning light, since the lamp head can be tilted by 90° and the lamp can be set up. The robust housing made of ABS plastic is also best suitable for use with gloves.
The lamp can be fixed quickly and easily on metallic surfaces by a strong holding magnet at the bottom of the casing or charged in connection with the charging/mounting tray.

Luminous efficacy
The light yield is outstanding: Three different LEDs provide for a perfect, homogeneous and bright light picture - exactly adjusted to your requirements. The 10 W LED with the specially developed reflector serves for the wide range and forms an even light picture over the entire lighting range. 5 W LEDs are used for the middle and near range, which imitate the light accordingly evenly for the respective application area with the help of the used optics.
With the function in which all LEDs light up, the lamp reaches up to 1700 lumen at a beam range of up to 470 meters.

Powerful lithium battery pack with microcontroller-controlled charging technology
A permanently installed and powerful Li-ion battery pack with 10400 mAh provides the necessary energy. The charging is done via a micro-USB connection, optionally at the socket or in the car/truck with commercially available USB-chargers - convenient for industry and rescue organizations such as fire brigade, THW etc., since no special connections are needed. If the battery capacity is low, the handheld spotlight switches off automatically to prevent damage to the battery pack due to deep discharge.
Thanks to the latest microcontroller-controlled charging technology, (with quadruple safety cut-off against short-circuit, overcharging, deep discharge and overload) which has been optimally adapted to the special properties of lithium batteries, the charging process is terminated automatically as soon as the battery is fully charged. Overcharging is thus not possible, which on the one hand ensures maximum safety and on the other hand ensures a high performance and long service life of the battery pack.
The charging can be done directly via the micro USB cable included in the delivery or via the wall holder/charging cradle. A control display on the on/off switch informs about the remaining capacity of the lithium battery pack as well as about the charging progress.

Focus and light modes
Two function buttons make it easy to operate the lamp: Switch 1 is the mode button and switch 2 allows the LEDs to be controlled. The light is switched on and off via the mode button. In addition, a continuous dimming is made possible by holding the button. The LED selection button controls the 3 LEDs one after the other and in the fourth stage allows all three LEDs to light up at the same time. Thus, the HS20R Pro achieves a strong 1700 lumens in 100% mode with a light duration of approx. 7 hours. Depending on the light status and LED selection, over 100 hours of light can be used! The practical warning light function, suitable for protection or for indicating dangers, even enables operating times of over 490 hours.

Power failure electronics
In the event of a power failure (in charging mode), the handheld spotlight is switched on automatically, so that there is always an emergency light with the lamp.
