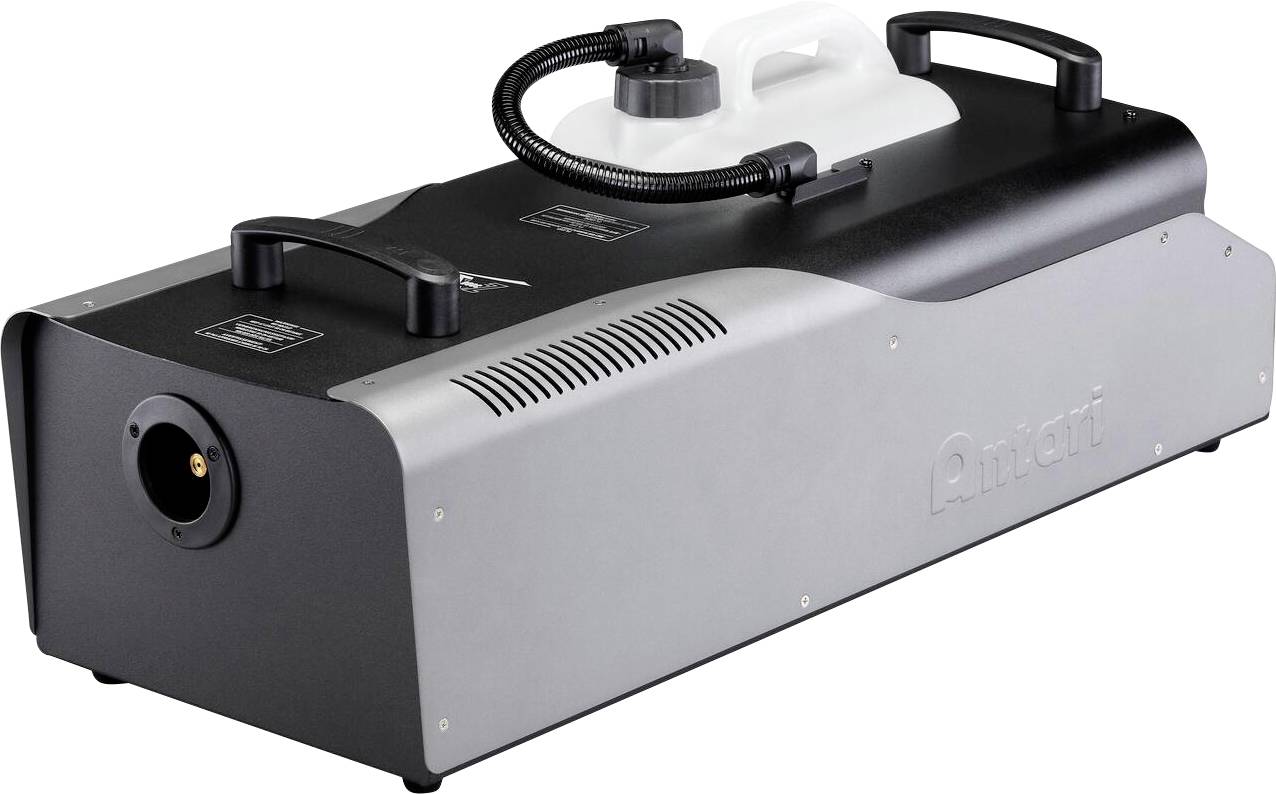

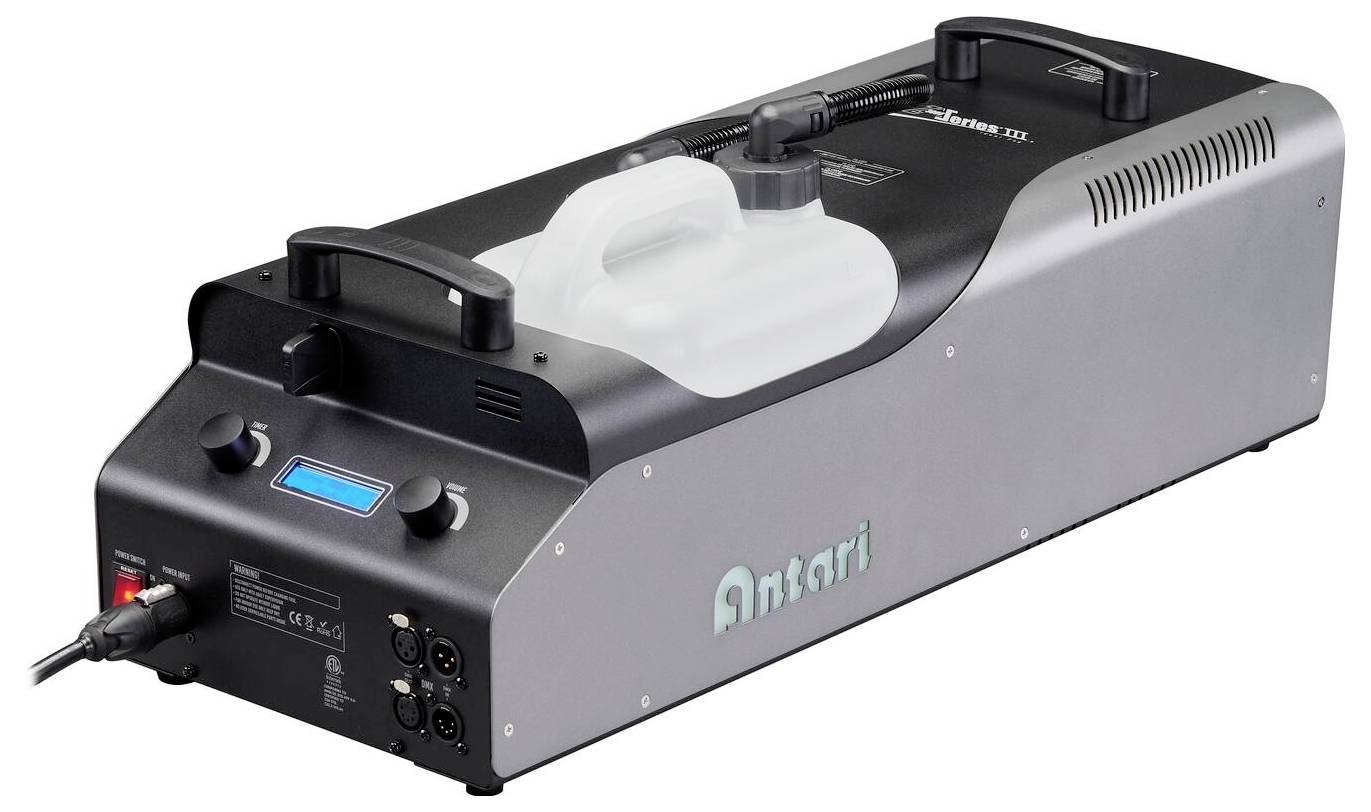

Antari Z-3000 MK3 Smoke machine
EAN:
Part number:
Item no:
Technical specifications
- Product type
Smoke machine
- Preheating time
10 min
- Width
71.2 cm
- Height
27.8 cm
- Dim
(W x H) 71.2 cm x 27.8 cm
- Weight
19.35 kg
IP20
- Case colour
Silver
- Operating voltage
230 V/AC, 50 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642600 Antari Z-3000 MK3 Smoke machine
Description
2300 watt strong fog machine with DMX/RDM, timer and optional radio remote control. High efficiency and long life. Completely reliable. Sturdy metal case. Auto temperature control. Adjustable timer with interval, duration and fog quantity, continuous fogging, manual activation Continuous output. Improved version with about 30% more output volume than the previous model. Large tank capacity. Operation with water-based fog liquid. Removable tank Can be controlled via DMX; stand-alone; radio remote control (optional); RDM. LCD display For application areas like: Clubs/dance schools; stage; theater; distributor. Possible application: Standing; flying
This text is machine translated.
This text is machine translated.
Features
- Power supply: 230 V AC, 50 Hz; total connection value: 2300 W; protection type: IP20; power connection: Power supply via PowerCon ® TRUE (M) installation version power connection cable with safety plug; heating time: Approx. 10 min; tank capacity: 6 l fog liquid on water basis removable tank; fluid consumption: Approx. 3 ml/min; DMX channels: 1; DMX input: 1 x 250-pin XLR (M) installation version; 1 x 5-pin XLR (M) installation version; DMX output: 1 x 3-pin XLR (W) installation version; 1 x 5-pin XLR (W) installation version; activation: DMX; stand-alone; wireless remote control (optional); RDM; Case Colour: Silver; Display Type: LCD Display; Dimensions: Length: 71.2 cm; Width: 27.5 cm; Height: 27.8 cm; Weight: 19.35 kg; Noise classification: Class 3 (clearly audible noise)
Scope of delivery
- 1 x device
- 1x user manual
- 1 x Power cable/power cable
- 1 x containers
- 1 x filters
