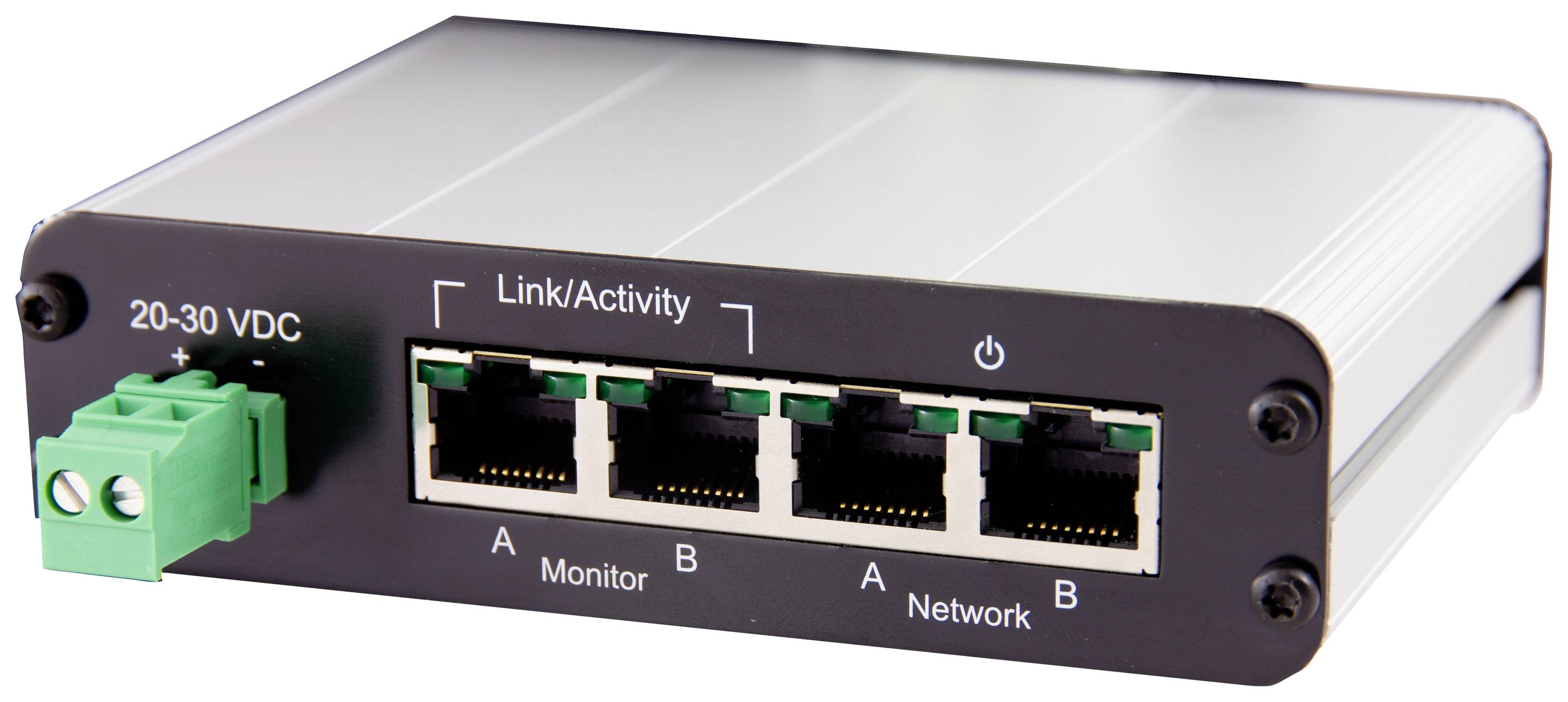

Anybus 513-00032 EtherMIRROR 1G Bus Ethernet, RJ-45 20 V DC, 30 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,763.87 / piece)
€ 1,763.87
plus VAT.
Highlights & Details
EtherCon 1G
- Full duplex 10/100 Mbit
- Passive diagnosis
- Recording and exporting the telegrams
- Cycle time per device
- Jitter (deviation of the time of arrival of the telegrams)
- Number of lost packets
- The Alarm
- Network load
- Other applications Wireshark / ProfiShark / Neutities
- Ports 4x RJ45 (2 are connected to the network and 2 for TAP measurements)
Technical specifications
- Product type
Bus
- Interfaces
Ethernet
RJ-45
- Type
EtherMIRROR 1G
- Operating voltage
20 V DC
30 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
0 °C
- Operating voltage
20-30 V DC
- Operating temperature
0 up to 70 °C
- Dim
(W x H) 133 mm x 30 mm
- Height
30 mm
- Width
133 mm
- Manufacturer part #
513-00032
- Interfaces
4x RJ45 (2 are connected to the network and 2 for TAP measurements)
- Current consumption
90 mA at 24Vdc
Documents & Downloads
Datasheet
Datasheet 2900973 Anybus 513-00032 EtherMIRROR 1G Bus Ethernet, RJ-45 20 V DC, 30 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900973 Anybus 513-00032 EtherMIRROR 1G Bus Ethernet, RJ-45 20 V DC, 30 V DC 1 pc(s)
Description
The new EtherMIRROR from PROCENTEC was developed to enable access to passive diagnostic information without shutting down the system. It serves as a measurement access that can easily be installed in any industrial network with PROFINET or Ethernet/IP.
In conjunction with the PROCENTEC EtherTAP, the EtherMIRROR enables access to telegram traffic and diagnostic information without even actively participating in the network. The ports thereby support a transfer speed of up to 1Gbit in the full-duplex method. The main advantage of the EtherTAP is to avoid costly plant downtime, since no connections need to be disconnected to access diagnostics. The EtherTAP and EtherMIRROR (work in harmonic symbiosis) are fully compatible with each other and continuously reflect all messages between the PLC and the first switch. Valuable information from message frame recordings, such as lost packets, jitter, cycle times and alarm messages, is therefore immediately available.
This text is machine translated.
In conjunction with the PROCENTEC EtherTAP, the EtherMIRROR enables access to telegram traffic and diagnostic information without even actively participating in the network. The ports thereby support a transfer speed of up to 1Gbit in the full-duplex method. The main advantage of the EtherTAP is to avoid costly plant downtime, since no connections need to be disconnected to access diagnostics. The EtherTAP and EtherMIRROR (work in harmonic symbiosis) are fully compatible with each other and continuously reflect all messages between the PLC and the first switch. Valuable information from message frame recordings, such as lost packets, jitter, cycle times and alarm messages, is therefore immediately available.
