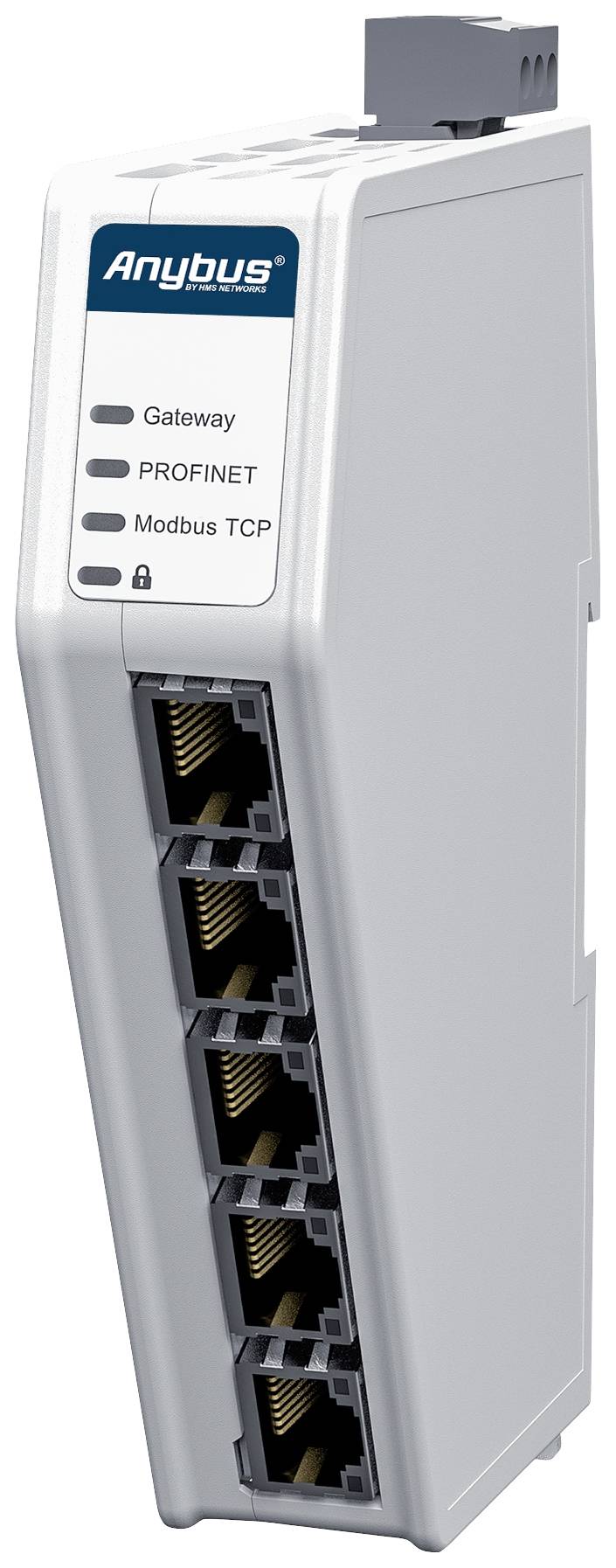

Anybus ABC3213 Data gateway Gateway, Modbus-TCP, Profinet 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 726.89 / piece)
€ 726.89
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Protocol converter for connecting Modbus TCP devices with PROFINET control systems
- Cybersecurity with physical safety switch
- Hardware-accelerated Endian conversion (byte swap)
- DIAG: Connection status with I/O data mapping is displayed in real time
- Intuitive, web-based user interface
Technical specifications
- Connections: 4xRJ45 configuration port
- Mounting: DIN-rail (EN 50022 standard)
- Power connection 5.08 Phoenix plug connector
- Protection against incorrect polarity and short-circuit
- Product type
Data gateway
- Interfaces
Gateway
Modbus-TCP
Profinet
- Type
ABC3213
- Operating voltage
24 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
-25 °C
- Operating voltage
12-32 V DC
- Operating temperature
-25 up to 70 °C
- Dim
(W x H) 144 mm x 27 mm
- Height
27 mm
- Width
144 mm
- Manufacturer part #
ABC3213
- Interfaces
ModBUS-TCP Client
Profinet Device
- Current consumption
90 mA
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3206844 Anybus ABC3213 Data gateway Gateway, Modbus-TCP, Profinet 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3206844 Anybus ABC3213 Data gateway Gateway, Modbus-TCP, Profinet 24 V DC 1 pc(s)
Description
You can connect Modbus TCP devices with PROFINET controls using the Anybus Communicator Modbus TCP client on PROFINET. Anybus Communicator ensures reliable, secure and fast data transfer between various industrial networks. Thanks to the intuitive, web-based user interface they are also easy to use.
This text is machine translated.
This text is machine translated.
Scope of delivery
- ModBUS-TCP Client Gateway
- 3-pin power supply plug (Phoenix)
