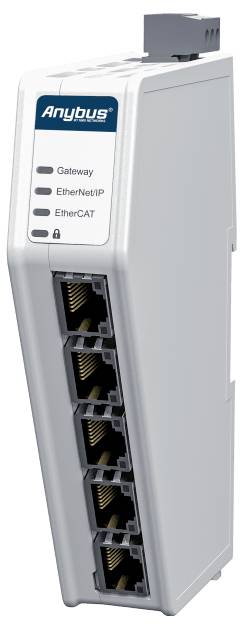

Anybus ABC3361 Gateway Ethernet/IP, EtherCat 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,231.09 / piece)
€ 1,231.09
plus VAT.
14-day return policy included
Highlights & Details
Anybus Communicator Ethernet/IP Scanner – EtherCAT SubDevice
- Transmission of up to 1500 bytes (depending on the network)
- Import EDS files into the Web UI
- diagnostics
- Endian conversion (byte swap)
Technical specifications
- Product type
Gateway
- Interfaces
Ethernet/IP
EtherCat
- Type
ABC3361
- Operating voltage
24 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
-25 °C
- Operating voltage
12-30 V DC
- Operating temperature
-25 up to 70 °C
- Dim
(W x H) 27 mm x 144 mm
- Max. current consumption
125 mA
- Height
144 mm
- Width
27 mm
- Manufacturer part #
ABC3361
- Interfaces
Ethernet/IP scanner
EtherCAT subdevice
- Current consumption
90 mA
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3368935 Anybus ABC3361 Gateway Ethernet/IP, EtherCat 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3368935 Anybus ABC3361 Gateway Ethernet/IP, EtherCat 24 V DC 1 pc(s)
Description

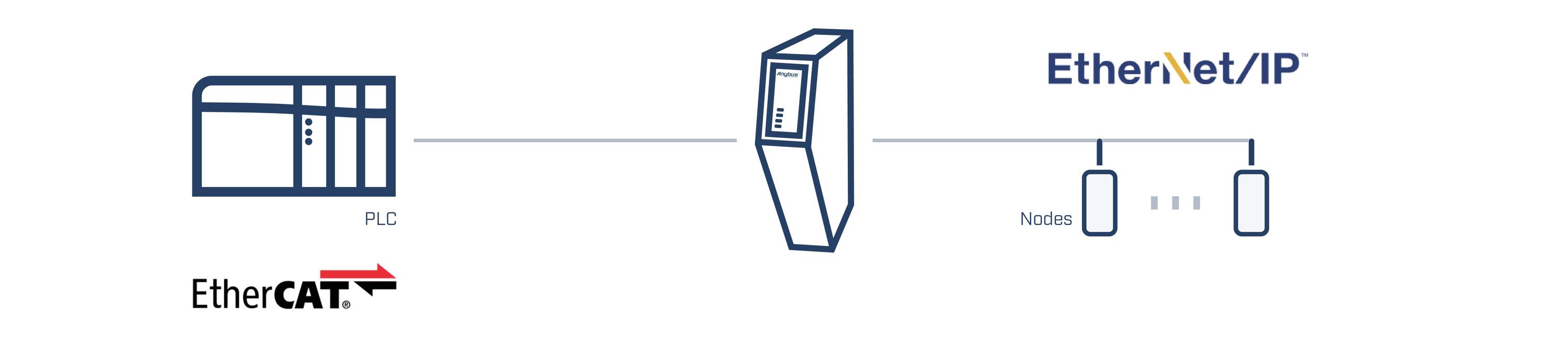

The Anybus Communicator Ethernet/IP Scanner on EtherCAT allows you to connect Ethernet/IP devices to EtherCAT controls. Anybus Communicator ensures reliable, secure and fast data transfer between industrial networks. They are also easy to use thanks to the intuitive user interface.
