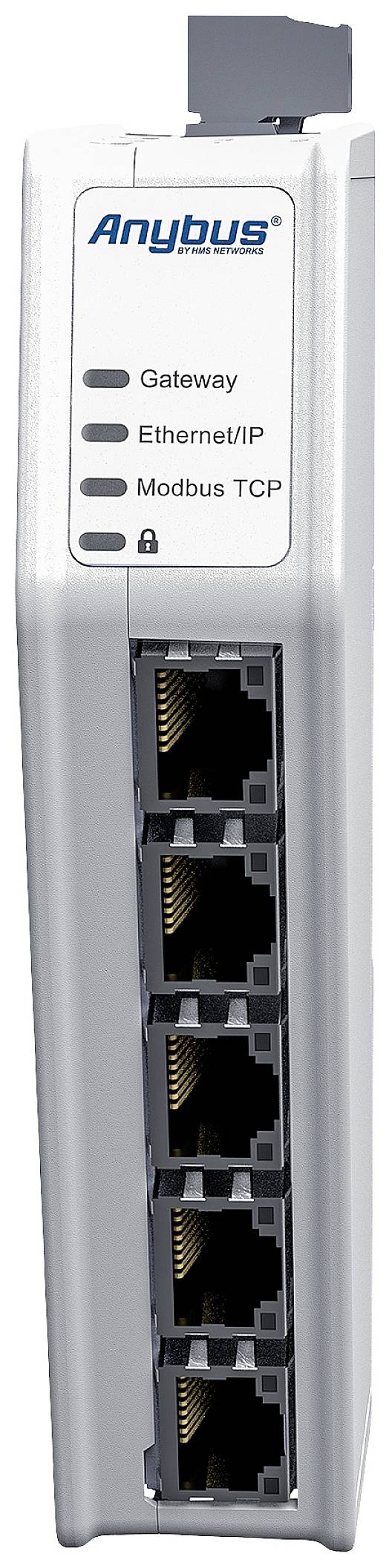

Anybus ABC4011 ABC4011 Data gateway Ethernet/IP, Modbus-TCP, Gateway, Industrial Ethernet 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 802.52 / piece)
€ 802.52
plus VAT.
Technical specifications
- Dimensions (L x W x H) with serial connection and power plug 98 x 27 x 144 mmNet weight: 150 gButtons and switches: Reset button and safety switchLEDs: Status display for the gateway, network 1, and network 2IP protection class IP20HOUSING MATERIAL PC ABS, UL 94 VOMounting: Top hat rail (35 * 7.5/15) ENVIRONMENTOperating temperature -25 to +70° C.Storage temperature: 40 to 85°C.Relative humidity: 0-95% non-condensingInstallation height: Up to 2,000 m.POWER SUPPLYInput voltage: 12 - 30 VDCPower consumption: Typical values: 160 mA at 24 V, maximum 400 mA at 12 VMains connection 3-pin screw terminal connectionProtection: Polarity reversal and short-circuit protectionETHERNET CONNECTIONS2+2 x Ethernet connection Insulation: Galvanic separationBit rate: 10/100 Mbit/s full duplexRJ45 plugDual port cut-through switchETHERNET/IPOperating mode adapter (slave) Messages: Implicit and explicitMax. Number of scanner connections: 1 input/output ("Exclusive owner" connection) 3 "List only" or "Input only" connectionsInput data size: 1,448 bytes (with "large forward open")Output data size: 1,448 bytes (with "large forward open")Network redundancy: Device level ring (DLR), beacon-based Quick Connect Class B Minimum cycle time: 1 ms for Class 1 connections, 100 ms for Class 3 connectionsEDS file: AvailableMODBUS TCPOperating mode: Server Max. Number of connections: 4Input data size: 1 500 bytes Output data size: 1 500 bytes CERTIFICATIONS AND STANDARDSUL: CULFile No. E214107CE: 2014/30/EUKC: R-R-ABJ COMMUNICATOREMC ACCORDING TO EN 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-4, EN 55032Environment: IEC 60068-2-1 Ab, IEC 60068-2-2 Bb, IEC 60068-2-1 Ab, IEC 60068-2-2 Bb, IEC 60068-2-14 Nb, IEC 60068-2-30 DB, IEC 60068-2-78 cab, IEC 60068-2-78 cabVibration and shock resistance IEC 60068-2-27, IEC 60068-2-6Disposal: WEECONFIGURATIONConfiguration software: Web-based configurationConfiguration Ports: Dedicated 10/100 Mbps RJ45 Ethernet configuration port and other Ethernet portsSECURITYSecure boot (Secure boot): Ensures software authenticitySafety switch: Physical switch that enables/disables access to the Web-based configuration interface
- Product type
Data gateway
- Interfaces
Ethernet/IP
Modbus-TCP
Gateway
Industrial Ethernet
- Type
ABC4011
- Operating voltage
24 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
-25 °C
- Operating voltage
12-30 VDC
- Operating temperature
-25 up to 70 °C
- Dim
(W x H) 27 mm x 144 mm
- Max. current consumption
400 mA
- Height
144 mm
- Width
27 mm
- Manufacturer part #
ABC4011
- Current consumption
160 mA
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2637478 Anybus ABC4011 ABC4011 Data gateway Ethernet/IP, Modbus-TCP, Gateway, Industrial Ethernet 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2637478 Anybus ABC4011 ABC4011 Data gateway Ethernet/IP, Modbus-TCP, Gateway, Industrial Ethernet 24 V DC 1 pc(s)
Information
Information 2637478 Anybus ABC4011 ABC4011 Data gateway Ethernet/IP, Modbus-TCP, Gateway, Industrial Ethernet 24 V DC 1 pc(s)
Description
The Anybus Communicator Ethernet/IP adapter — Modbus TCP server is an industrial protocol converter that enables data to be seamlessly exchanged between Ethernet/IP and Modbus TCP networks.Anybus Communicator ensures reliable, secure and fast data transfer between various industrial Ethernet and fieldbus networks. These stand-alone gateways are easy to operate and allow transparent data exchange between SPSs, so that you can integrate even older field devices into modern industrial networks with minimal changes to the software.The Anybus Communicator is based on the proven Anybus NP40 network processor, which is network compliant, high performance and reliability. When exchanging data between PLCs from different networks, it is possible to transfer very fast data with up to 1500 bytes in each direction, WAS meets most of the requirements of current and future control applications.Startup is fast thanks to the intuitive configuration, the easy-to-understand documentation and the intelligent hardware and housing design. Outstanding performanceImmediate data transmission - The time required for data transmission between two PLCs is the cycle time of the first network plus the cycle time of the second network. The internal data transfer in Communicator is negligible as it corresponds to the natural fluctuations in the network cycle times (jitter).Hardware-accelerated Endian conversion (byte swap)Communicator can change the data appearance (endianness) by hardware-accelerated endian conversion to ensure that the data is displayed correctly in each PLC. You can even convert different parts of the data area in different ways to process different data types. This has no impact on performance, relieves the PLC from the data conversion task, and simplifies PLC programming.Simple setupDedicated Ethernet configuration port - no special cables required.Intuitive, web-based drag-and-drop configuration interface - no installation of additional software required.Front-facing connections simplify the connection of cables and the slim form factor saves space on the DIN rail.Troubleshoot with powerful diagnostic capabilities, including live data monitor, status screen, and support package.Latest security featuresSecure boot capability to detect firmware tampering and protect against malware attacks and infections. Safety switch that locks your configuration and prevents any unauthorized access.For industrial environmentsRobust, compact housingIndustrial components are tested and certified according to CE and UL.Large temperature range, -25°C to 70°C.DIN rail mounting for installation near the connected devices, which reduces the wiring effort.
This text is machine translated.
This text is machine translated.
System requirements
- ChromeEdgeFirefox web browser
