Anybus ABC4028-A Gateway Modbus-TCP, Modbus-RTU 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

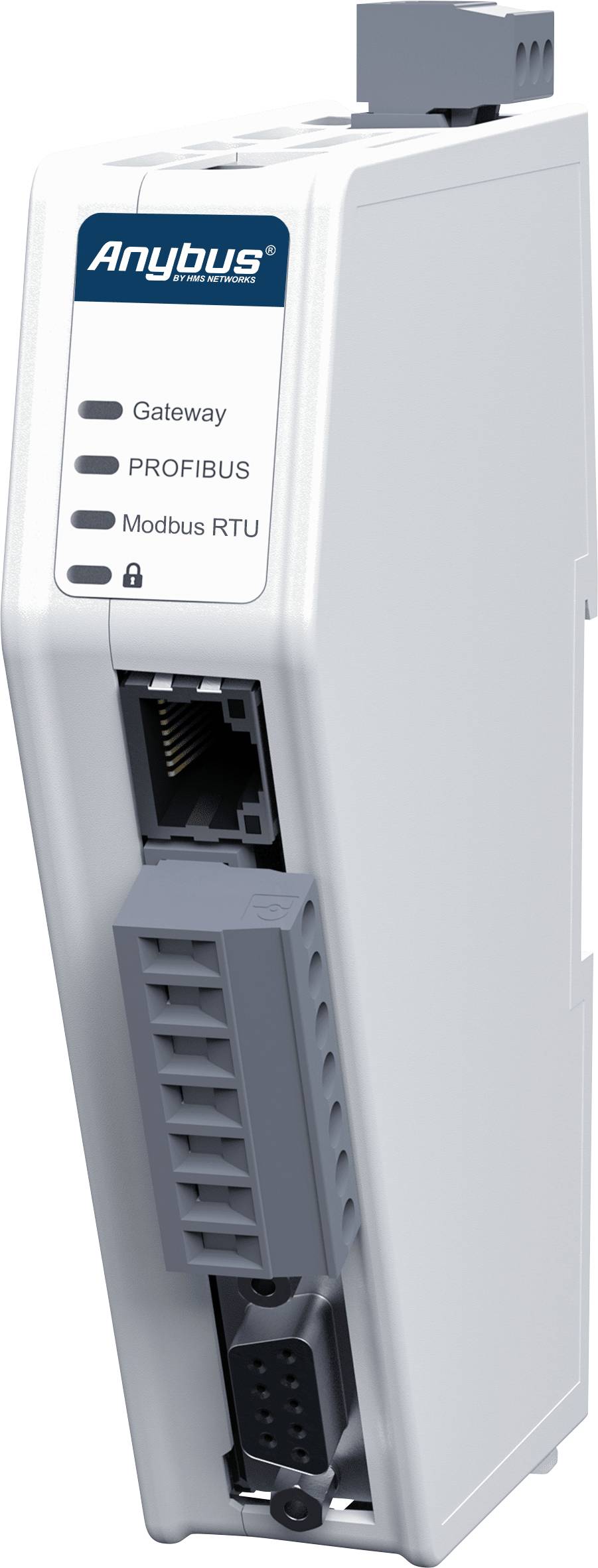

Anybus Communicator - Modbus RTU server on PROFIBUS-DP Device
- Immediate data transfer
- Transfer of 1500 bytes from and to Modbus RTU control (SPS)
- Transfer of 244 bytes from and to PROFIBUS control (PLC)
- Diagnostics and support
- Secure and segment networks
- Easy configuration via web interface
Technical specifications
- Interfaces
Modbus-TCP
Modbus-RTU
- Type
ABC4028-A
- Operating voltage
24 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
-25 °C
- Operating voltage
12-30 V DC
- Operating temperature
-25 up to 70 °C
- Dim
(W x H) 27 mm x 144 mm
- Max. current consumption
125 mA
- Height
144 mm
- Width
27 mm
- Manufacturer part #
ABC4028-A
- Interfaces
ModBUS-RTU Server
Profibus device
- Current consumption
90 mA
- Plastic free packaging
Plastic-free packaging
- Product type
Gateway
Documents & Downloads
Datasheet
Datasheet 3413050 Anybus ABC4028-A Gateway Modbus-TCP, Modbus-RTU 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3413050 Anybus ABC4028-A Gateway Modbus-TCP, Modbus-RTU 24 V DC 1 pc(s)
Description

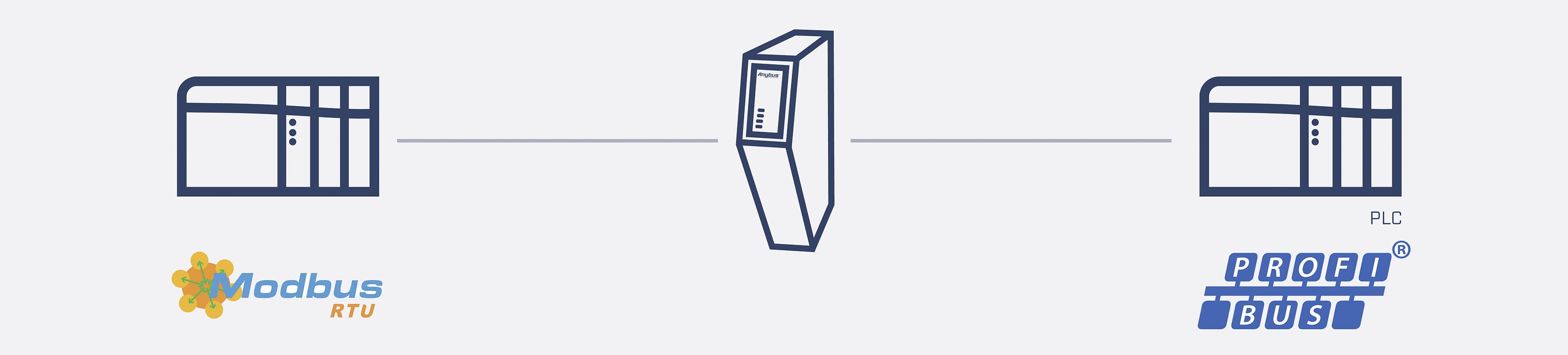

You can connect a Modbus RTU control system to a PROFIBUS DP control system using the Anybus Communicator Modbus RTU server on PROFIBUS DP device. Anybus Communicator ensures reliable, secure and fast data transfer between various industrial networks. Thanks to the intuitive, web-based user interface they are also easy to use.
