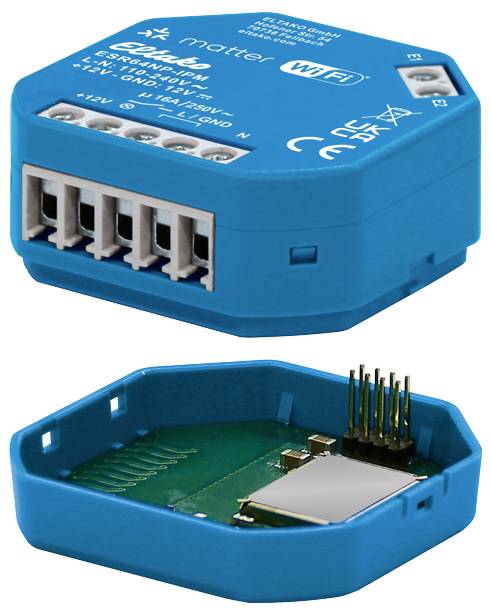

AP64ESR+E Eltako Impluse changeover relay Flush mount

Surge current switch relay with IP, mat via Wi-Fi, optional EnOcean, 1 no potential-free 16 A/250 V AC, 230 V LED lamps up to 600 W, 230 V incandescent and halogen lamps 2000 W. REST API. Standby loss of only 0.7 watt. For panel mounting. 46 x 45 mm, 20 mm deep. The terminals are screw terminals for conductor cross-sections up to 2.5 mm². Contact switching in zero crossing to protect the contacts and lamps. Supply voltage 12V DC or 110-230 V AC, switch and control voltage 12 V DC or 110-230 V AC. The switching, control and supply voltage must have the same potential. Most modern hybrid technology combines the advantages of wear-free electronic control with the high output of special relays. With control input for a control button or switch that may be installed before. A glow lamp current is not permitted. The Wi-Fi connection uses the 2.4 GHz frequency band and enables over the air updates (OTA). This actuator is Matter-certified and can therefore be learned and operated in parallel in different ecosystems. For control via Matter, a compatible Matter controller is required for each ecosystem. For Apple home, for instance, a home pod mini, for Amazon Alexa as e.g. a compatible echo dot and for Google HOME e.g. a Nest mini. The optional configuration of the actuator is via the Eltako Connect APP. A development version of the REST API according to the OpenAPI specification is available via the device's online product page. This is being developed further on an ongoing basis. The range of functions can be extended by plug-on adapters. The EnOcean Adapter (EOA64) allows access to the EnOcean ecosystem. Further information in this respect on the product page of the relevant adapter.
