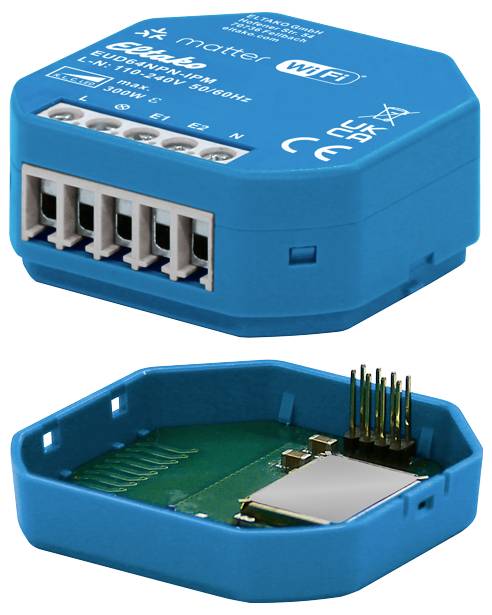

AP64EUD+E Eltako Multi-purpose dimming actuator Flush mount

Universal dimming actuator with IP, mat over Wi-Fi, optional EnOcean. With Power MOSFET. Dimmable 230 V-LED lamps in the 'phase section' up to 300 W operating mode, or in the 'phase section' up to 100 W mode, depending on the ventilation conditions. 230 V incandescent and halogen bulbs up to 300 W, depending on the ventilation conditions No minimum load. REST API. Standby loss of only 0.7 watt. For panel mounting. 46 x 45 mm, 20 mm deep. The terminals are screw terminals for conductor cross-sections up to 2.5 mm². Switch with soft on and soft off for protecting the lamp. Supply, switching and control voltage locally 110-240 V. The brightness level selected remains stored when switching off (memory). Automatic electronic overload protection and excess temperature cut-off. With control input for a control button or switch that may be mounted in front of it. A glow lamp current is not permitted. The Wi-Fi connection uses the 2.4 GHz frequency band and enables over the air updates (OTA). This actuator is Matter-certified and can therefore be learned and operated in parallel in different ecosystems. For control via Matter, a compatible Matter controller is required for each ecosystem. For Apple home, for instance, a home pod mini, for Amazon Alexa as e.g. a compatible echo dot and for Google HOME e.g. a Nest mini. The optional configuration of the actuator is via the Eltako Connect APP. A development version of the REST API according to the OpenAPI specification is available via the device's online product page. This is being developed further on an ongoing basis. The range of functions can be extended by plug-on adapters. The EnOcean Adapter (EOA64) allows access to the EnOcean ecosystem. Further information in this respect on the product page of the relevant adapter.

This text is machine translated.
