1/7

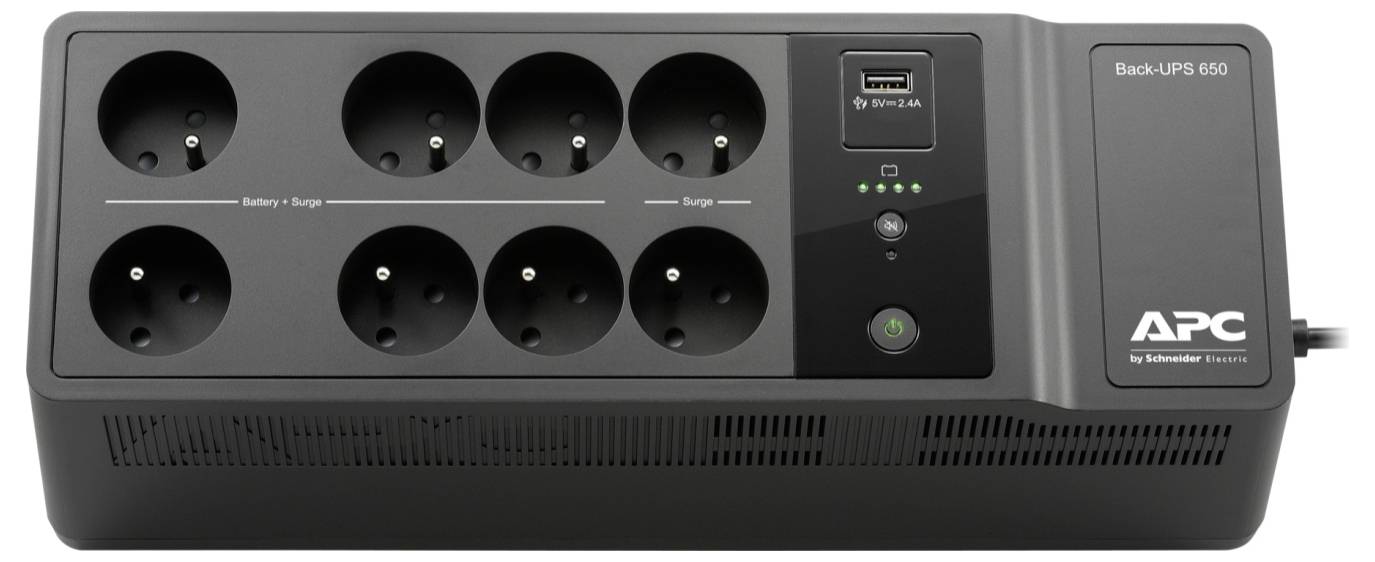

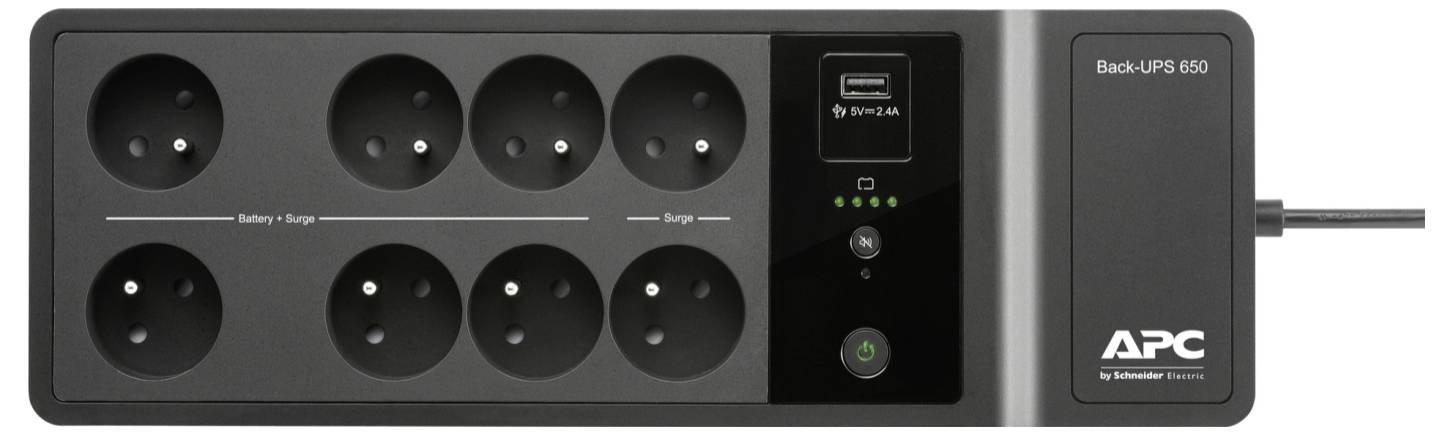

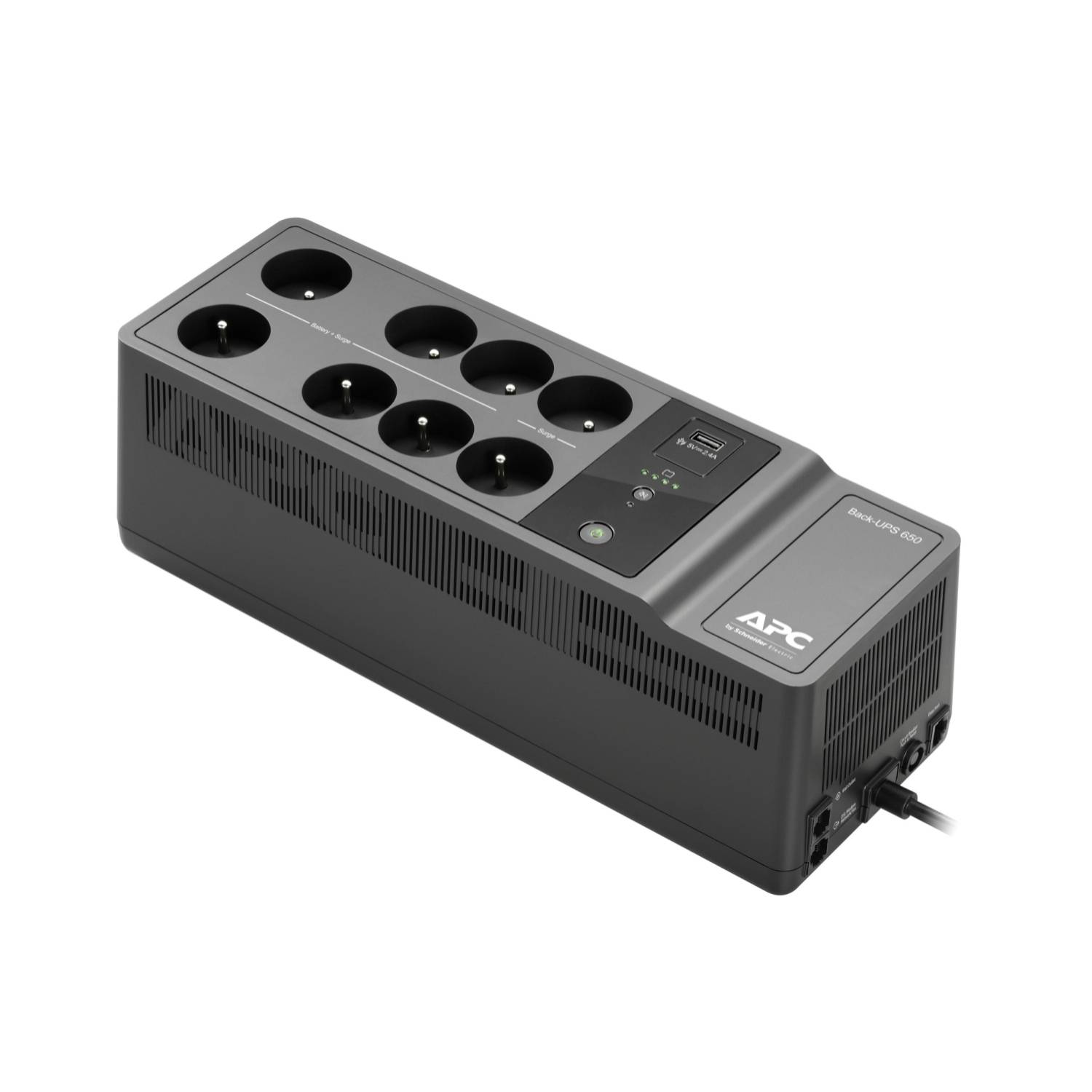

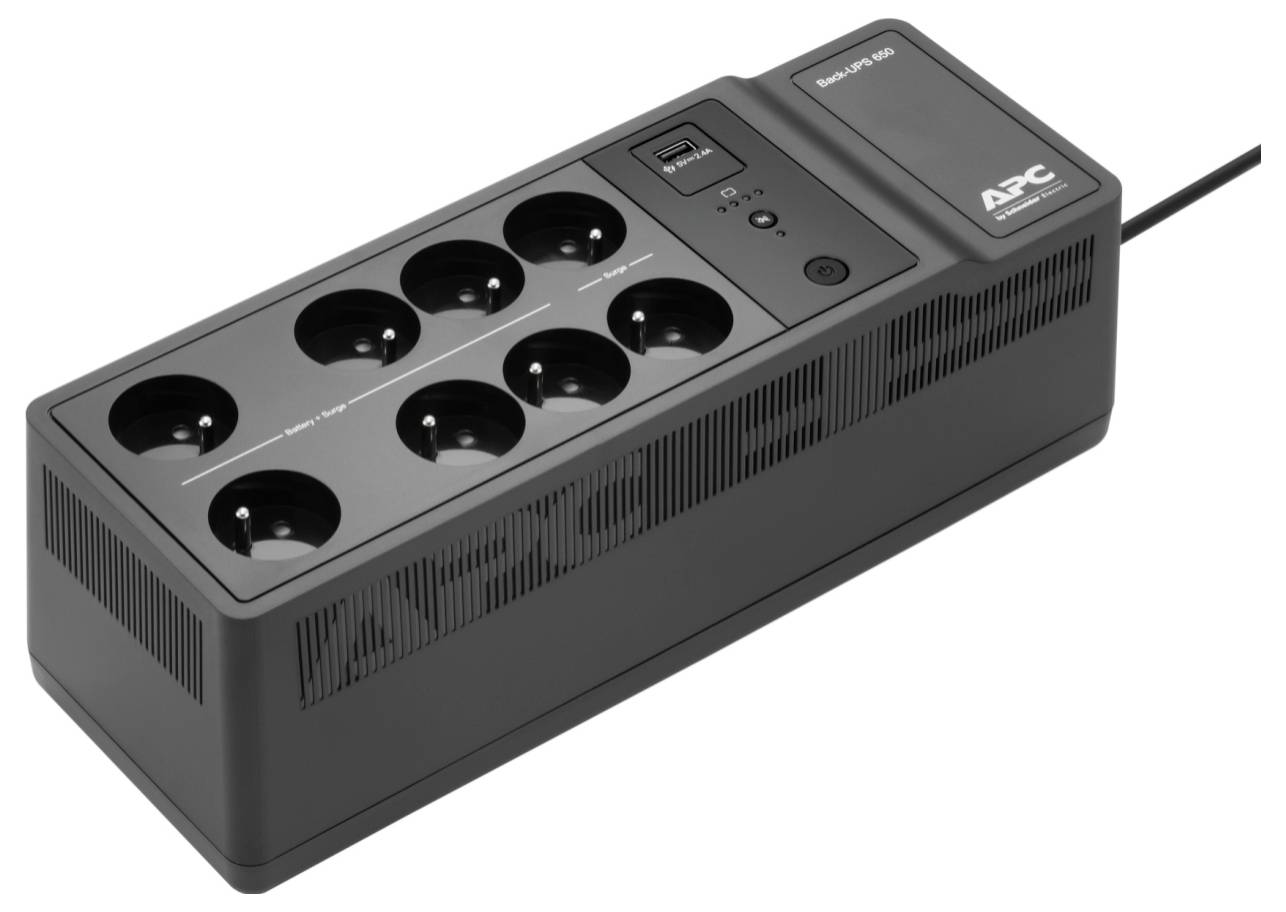

APC APC Back-UPS 650VA 230V 1USB charging UPS charger
EAN:
Part number:
Item no:
Highlights & Details
APC APC Back-UPS 650VA 230V 1USB charging UPS charger
- Standby (Offline)
- 0.65 kVA 400 W
- Waveform: Sinusoidal
- Compact black
Technical specifications
- Form factor: Compact
- Product type
UPS charger
- Type
APC Back-UPS 650VA 230V 1USB charging
- Width
130 mm
- Height
120 mm
- Depth
365 mm
- Weight
4 kg
- Cable length
1.83 m
- Factory colour
Black
- Load (max.)
6 A
- 10/100/1000 Mbps ports
1 x
- Max. operating noise
45 dB
400 W
- Nominal load efficiency
80 %
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Storage relative humidity (H-H)
0 - 95 %
- Non-operating altitude
0 - 4500 m
- Battery recharge time
16 h
- Audible alarm(s)
yes
- Output power capacity
0.65 kVA
- Surge energy rating
310 J
- USB port
yes
- Battery life (max)
5 Jahr(e)
- SmartSlot
no
- Hot-swap battery
yes
- Management card included
no
- Manual
yes
- Operating relative humidity (H-H)
0 - 90 %
- Storage temperature (T-T)
-15 - 45 °C
- Package weight
4.5 kg
- Surge protection
yes
- Cold start
yes
- Automatic battery test
yes
- Input operation voltage (max)
230 V
- Input operation voltage (min)
220 V
- Output operation voltage (min)
220 V
- Output operation voltage (max)
230 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3771232 APC APC Back-UPS 650VA 230V 1USB charging UPS charger
Description
Adjustable voltage sensitivity
Adapts the UPS to the appropriate power environment or generator application for optimum performance.
Warning tone
Notifies users when the power or UPS system status changes.
Automatic self-test
Periodic battery self-tests for replacing used batteries in a timely fashion.
Batterien charging diesen
Indicates when the battery is being charged and when the charging process is complete.
Notification in case of battery failure
Analyses for early detection of battery faults enable timely preventive maintenance
Battery-supported outputs and outputs only with surge protection
Reserves capacity and backup time for attached devices that must be switched on UPS-battery in emergency; less important devices are protected only against overvoltages
Display of wiring problems
This LED indicates potentially dangerous cabling problems in the flush-mounted lines.
Supports a cold start
Enables temporary battery operation if the mains power supply fails.
Overvoltage protection devices
Protects connected devices against surges on the data lines.
Notification with disconnected battery
Provides a warning if a battery is not available for power supply.
Batteries can be exchanged during operation
Ensures uninterrupted power supply to protect systems during battery replacement.
Approval by testing institutions
Ensures that the product has been tested and is approved for safe operation with the connected service provider devices and within the specified environment.
Simple battery replacement
Improves the availability of the UPS through a quick and convenient battery exchange.
USB connection
Use your PC to access additional management functions of your UPS via a USB connection.
User-replaceable batteries
Increases availability and reduces mean time to repair by using trained users to perform upgrades and replace batteries.
This text is machine translated.
Features
- APC back ups 650VA, 230V, 1USB charging port
- UPS system with surge protection for electronic devices and computers
- Includes: User manual
