APC APC Service Bypass Panel 230V 100A MBB Bypass Pane
EAN:
Part number:
Item no:

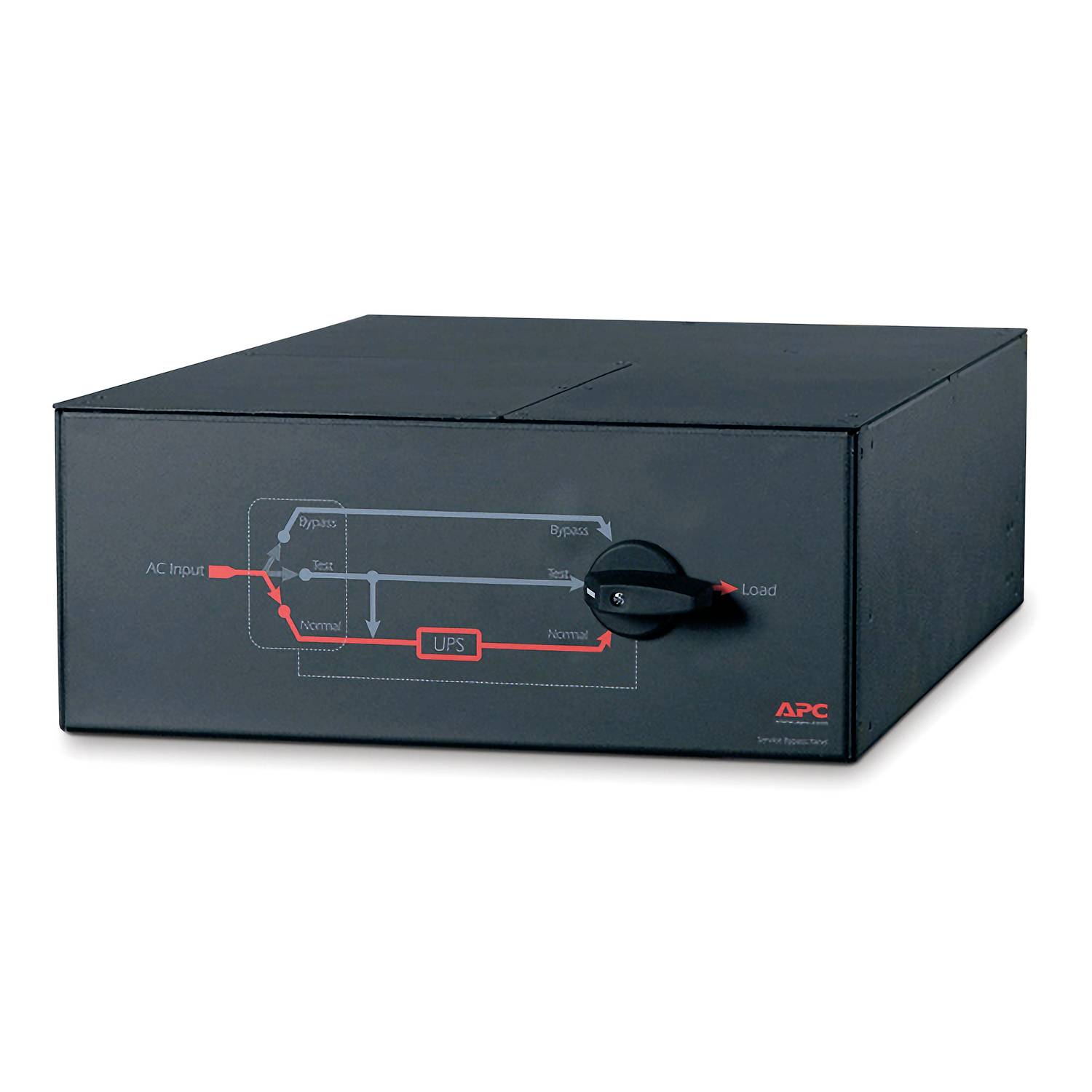

APC Service Bypass Panel 230 V, 100 A, MBB, Input hard wired, (3) 30 A output hard wired
Highlights & Details
- Bridging switch
- Rack mountable
- Rack capacity 4U
- 21.8 kg.
- Black
Technical specifications
- Product type: Bypass switch
- Rack capacity 4U
- Product type
Bypass Pane
- Type
APC Service Bypass Panel 230V 100A MBB
- Width
432 mm
- Height
178 mm
- Depth
673 mm
- Weight
21.8 kg
- Cable length
0 cm
- Factory colour
Black
- Input voltage
230 V
- Compatible with
CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
- UKCA
yes
- Operating temperature (T-T)
-20 - 45 °C
- Storage relative humidity (H-H)
0 - 95 %
- Non-operating altitude
0 - 15000 m
- Maximum total current draw per phase
100 A
- Load capacity
20000 VA
- Operating altitude
0 - 4500 m
- Operating relative humidity (H-H)
0 - 95 %
- Number of phases
1
- Storage temperature (T-T)
-40 - 65 °C
- Package weight
31.8 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3771229 APC APC Service Bypass Panel 230V 100A MBB Bypass Pane
Description
Highly reliable service bypass panel specifically designed for APC InfraStruXure Type A, Smart UPS and Symmetra UPS products
