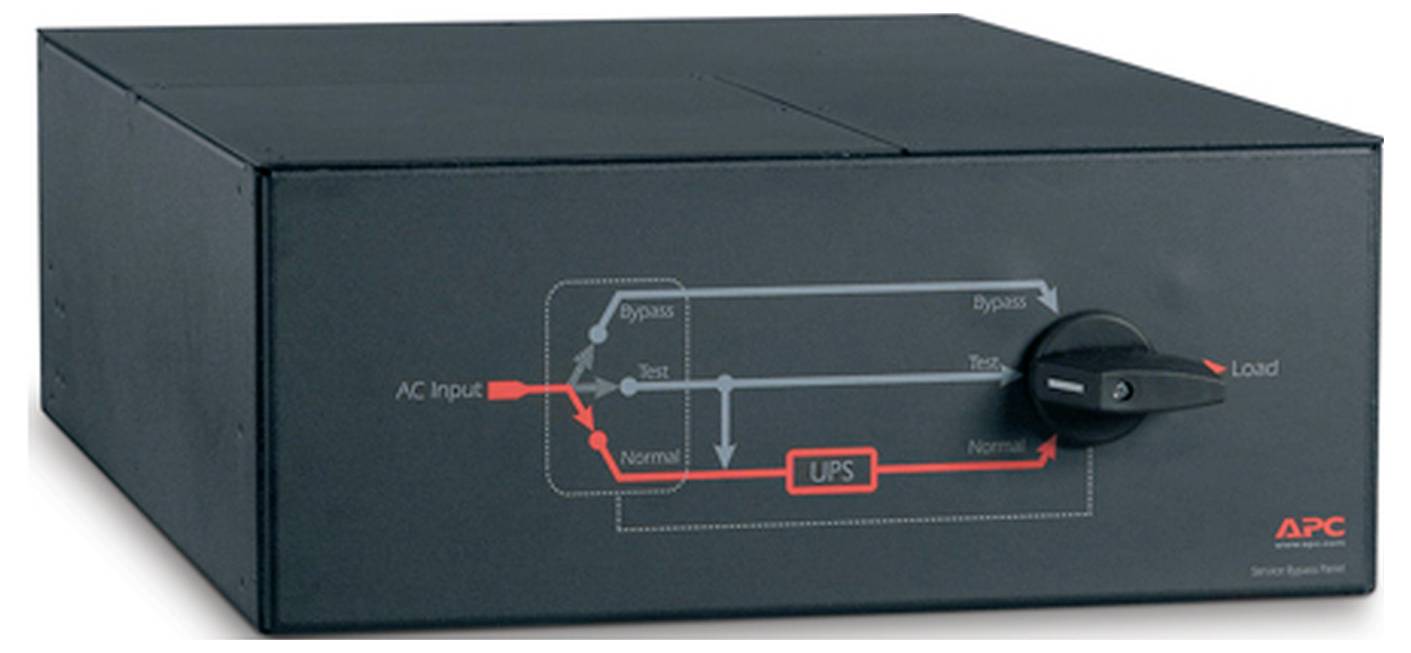

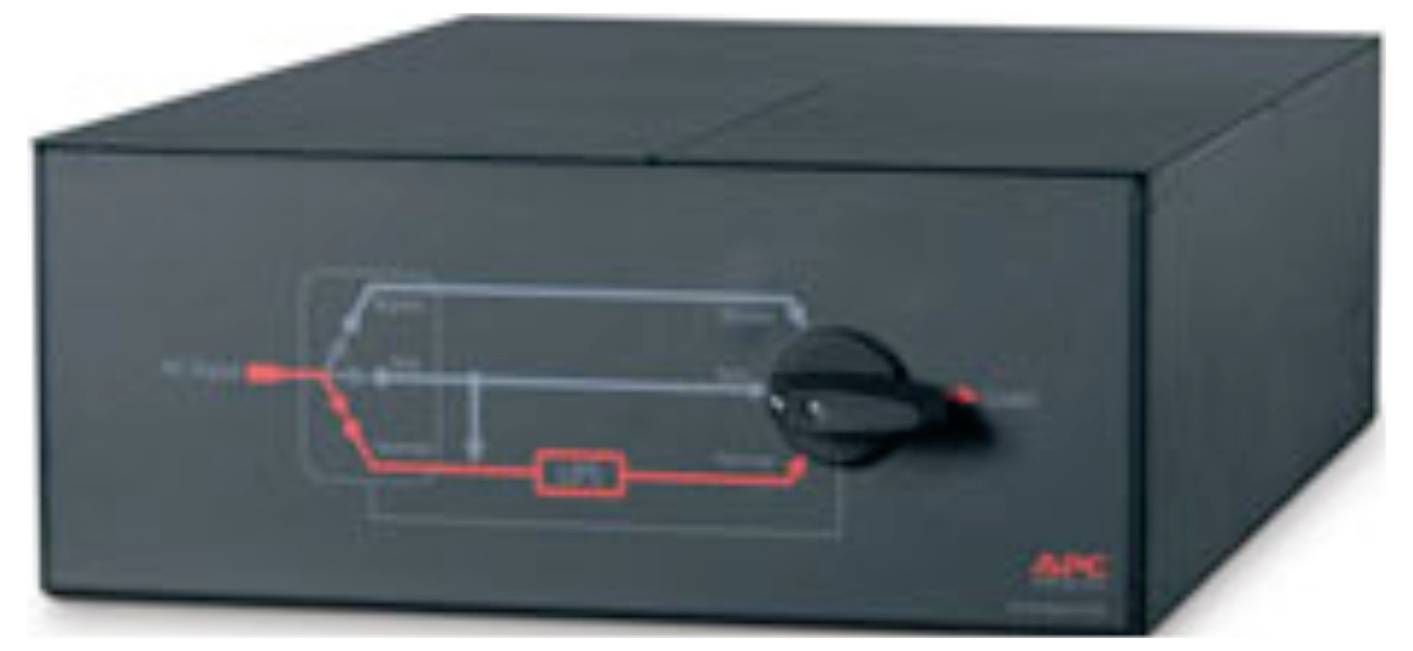

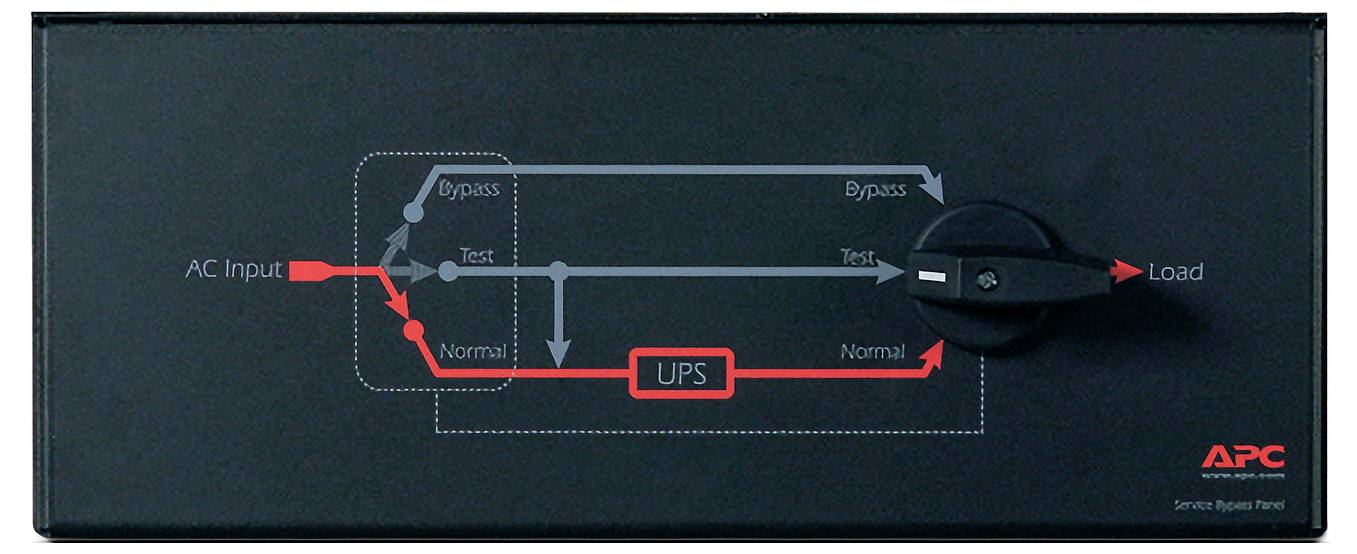

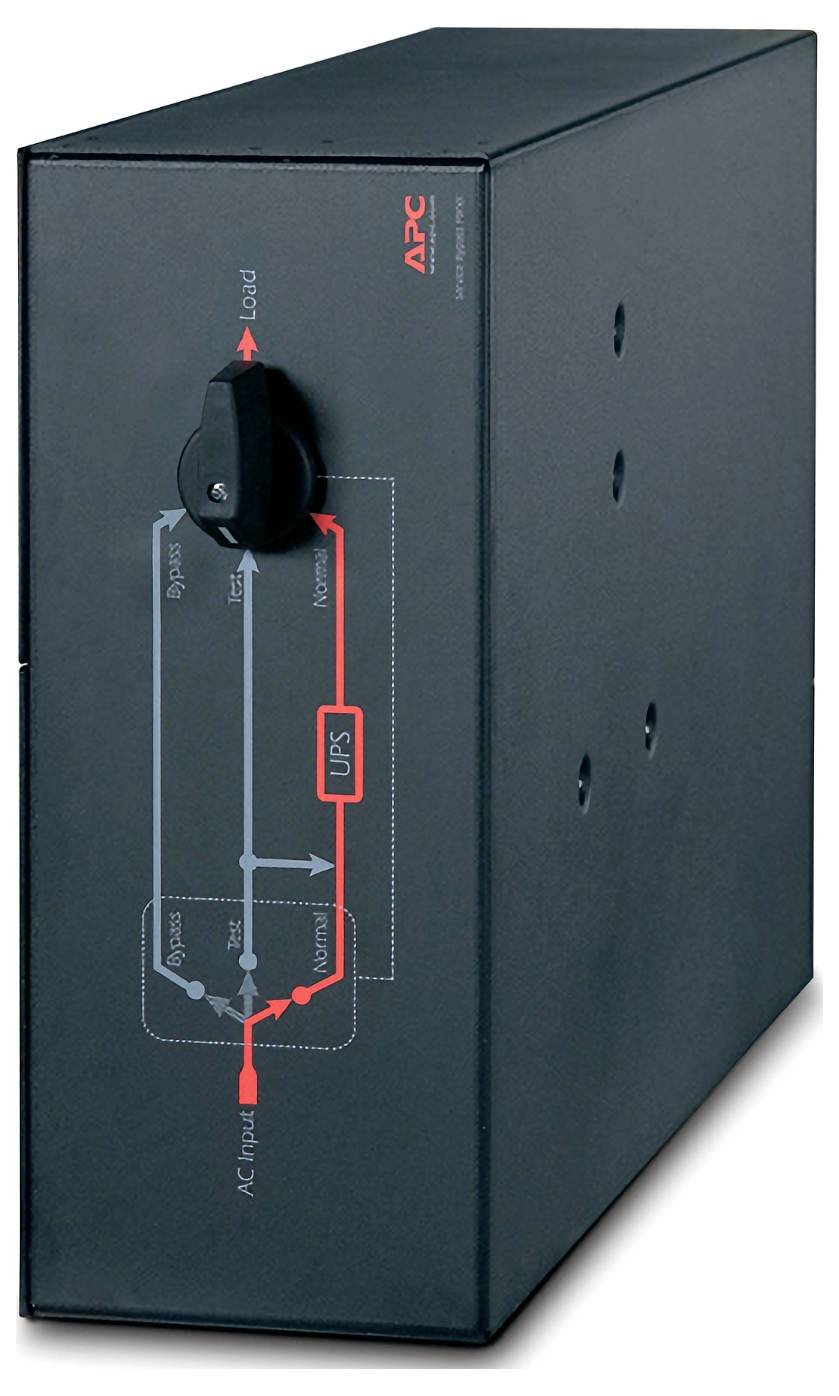

APC Service Bypass Panel - 200/208/240 V, 100 A, MBB, hard-wired input/output

Technical specifications

Rack capacity 4U

Product type: Maintenance bypass

Width: 432 mm

Height: 178 mm

Weight: 21.4 kg

Power supply (details): 200 / 208 / 230 / 480 3 phase

UKCA: yes

Operating temperature (T-T): -20 - 50 °C

Operating relative humidity (H-H): 0 - 95 %

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 3781591 APC APC ServiceBypassPanel 200/208/240V 100A Maintenance bypass

Description

The APC Service Bypass Panel supports voltages of 200 V, 208 V and 240 V. It has a 4U rack design and is rack mounted. It includes an installation guide, rack mounting bracket, and user guide.

This text is machine translated.

Features

Supports up to 100 A, suitable for large-scale applications
Compatible with various input and output voltages
Including bypass switch for seamless maintenance.
Designed for rack mounting, saves space in data centers
