Name: APC APC Smart-UPS 750VA LI SD 2HE SmartC UPS
Brand: APC
SKU: 3771235

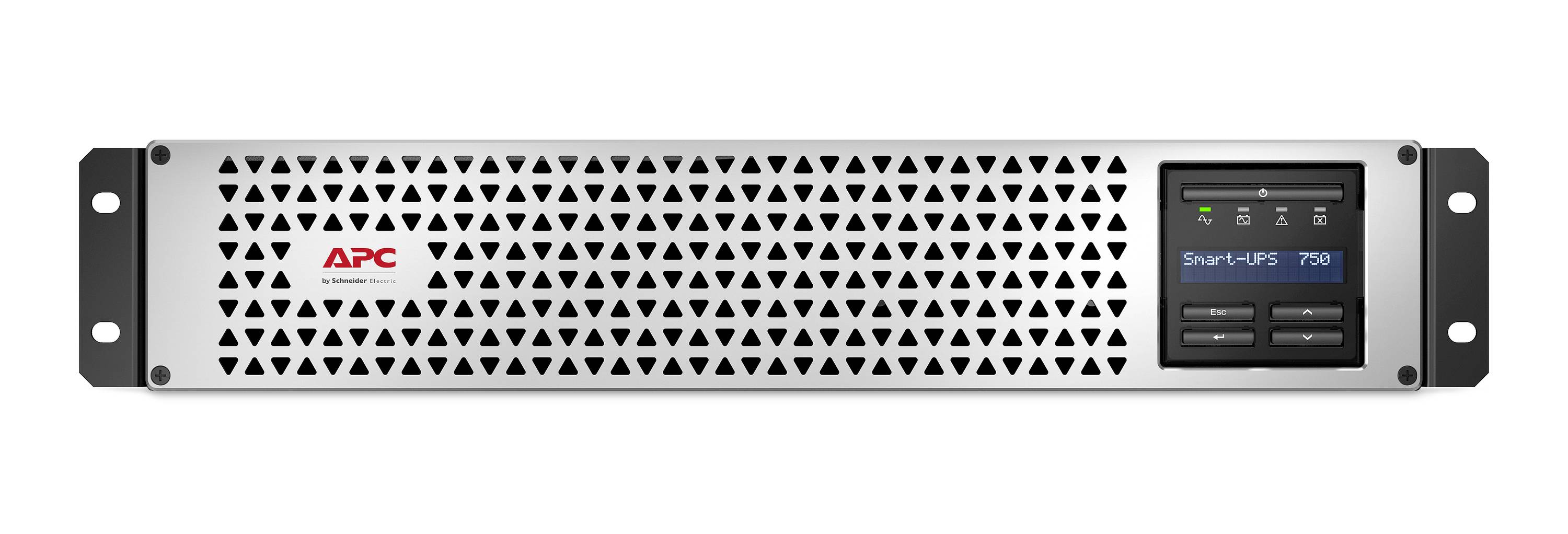

Front view of an APC Smart-UPS 750 rackmount uninterruptible power supply with vented panel, LCD display, and mounting ears.

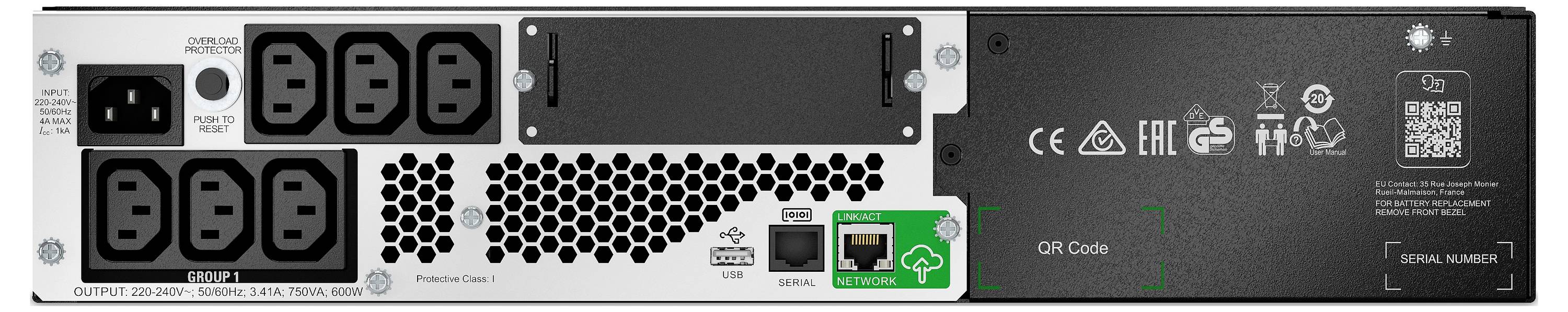

Rear panel of a power supply unit with AC input sockets, ventilation holes, Ethernet and USB ports, and a QR code on the right.

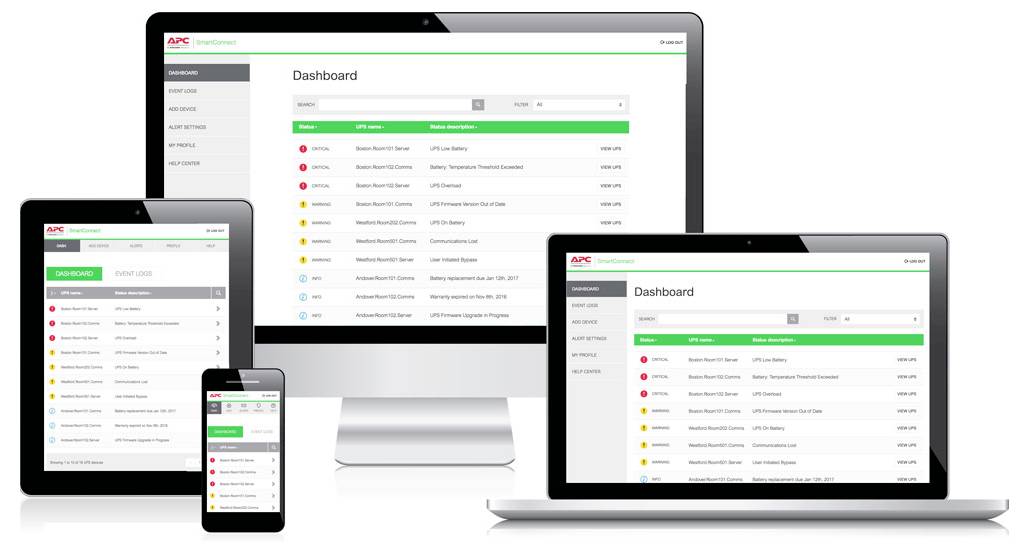

Responsive dashboard interface displayed on desktop, laptop, tablet, and phone screens<br>

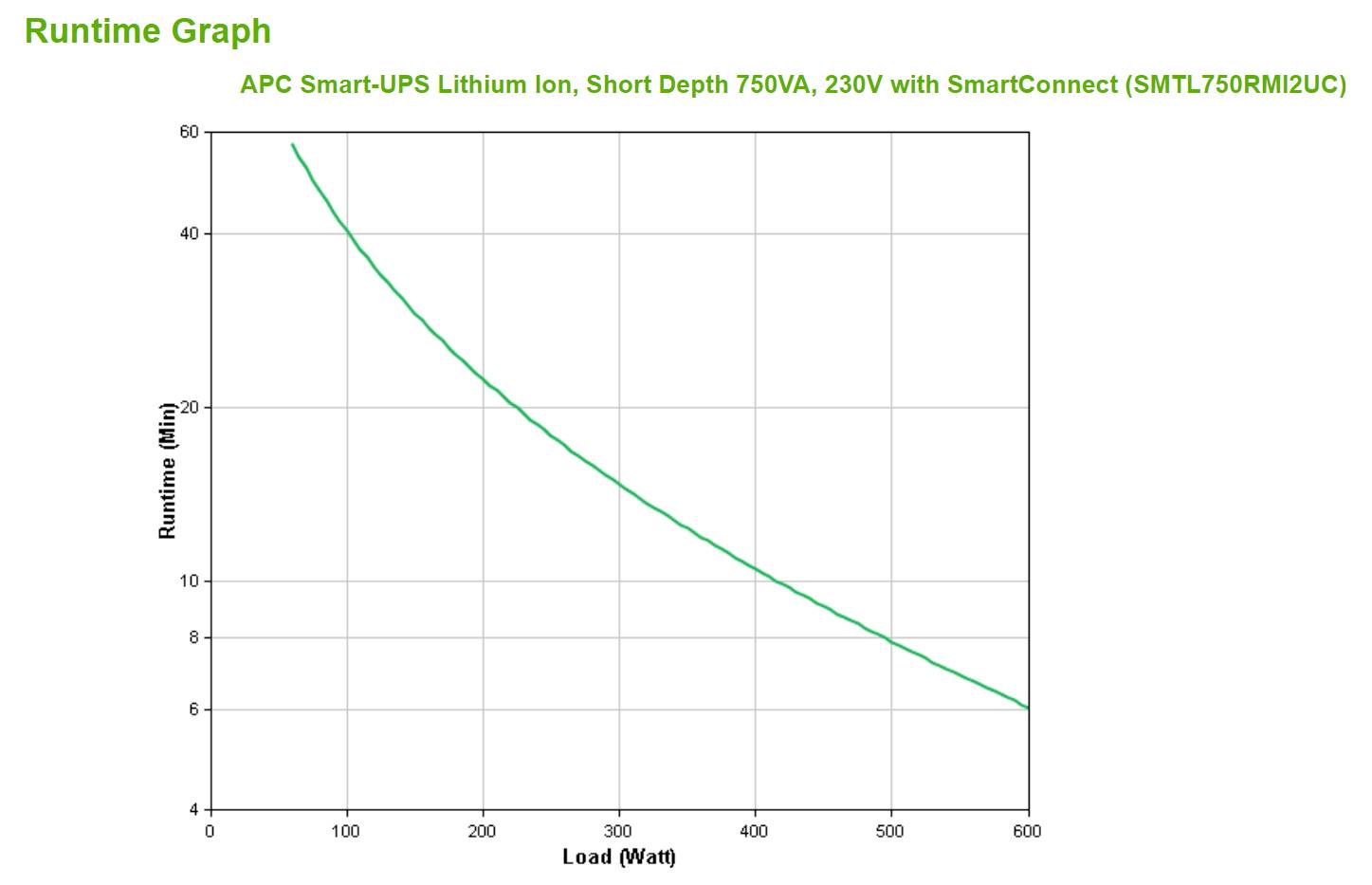

Line chart titled 'Runtime Graph' showing APC Smart-UPS runtime decreases as load increases, from about 58 min at 75W to about 6 min at 600W.<br>

Promotional graphic for lithium-ion batteries with icons highlighting 3x life, lighter weight, lower total cost, faster charging, less degradation, and lower environmental impact beside a city highway at dusk.

SmartConnect Ethernet Port for UPS remote power monitoring, showing firmware upgrades, remote diagnostics, proactive email notifications, and recommended actions across desktop and mobile screens.

Promotional graphic for PowerChute Serial Shutdown Software, showing desktop, server, and workstation UPS management with graceful shutdown and energy management, alongside a monitor displaying the PowerChute interface.

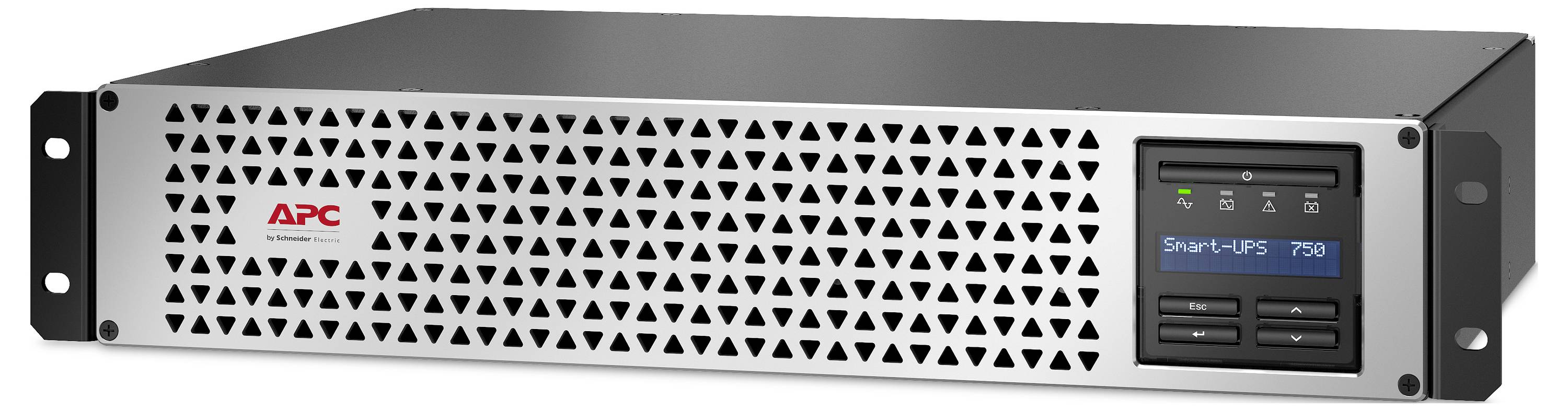

Front view of an APC Smart-UPS 750 rackmount uninterruptible power supply with perforated metal faceplate and LCD status display.

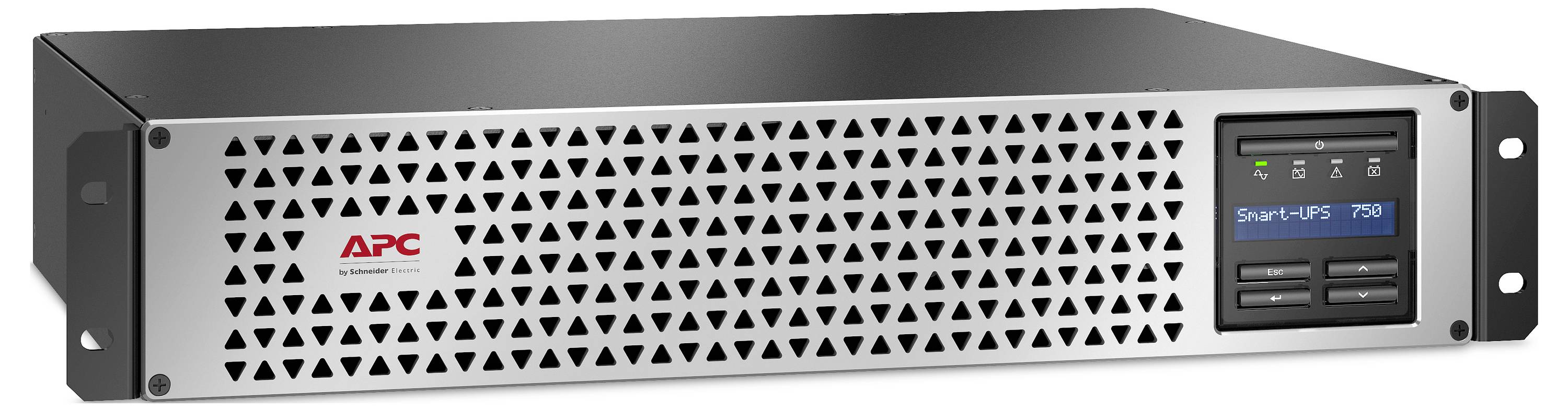

APC Smart-UPS rackmount uninterruptible power supply with front display panel and ventilation grille.

1/10

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

APC Smart UPS, Line Interactive, 750VA, Lithium-ion, rack/tower, 2HE, 230V, 6 IEC 13-outputs, SmartConnect-port+SmartSlot, short depth, AVR, LCD

Line interactive
0.75 kVA 600 W
Waveform: Pure sine
6 AC outputs
Lithium iron phosphate (LiFePO4)
Rackmount gray

Technical specifications

Number of AC outputs: 6 AC outputs
Battery technology: Lithium-iron phosphate (LiFePO4)
Form factor: Rackmount

Product type: UPS

Dim: (W x H x D) 438 x 86 x 318 mm

Weight: 17.7 kg

Width: 438 mm

Height: 86 mm

Depth: 318 mm

Type: APC Smart-UPS 750VA LI SD 2HE SmartC

Factory colour: Grey

: 600 W

UKCA: yes

Output power capacity: 0.75 kVA

Rack mount kit: yes

SmartSlot: yes

Management card included: no

Input operation voltage (max): 302 V

Input operation voltage (min): 151 V

Output operation voltage (min): 220 V

Output operation voltage (max): 240 V

Documents & Downloads

Security datasheet

Security datasheet 3771235 APC APC Smart-UPS 750VA LI SD 2HE SmartC UPS

Description

This APC Smart UPS was developed for IT experts and network administrators to ensure operating time and operational continuity. This 710A, short-depth, power-interactive 2U rack mount UPS delivers pure sine wave power to support critical electronics during power interruptions. It has an IEC 320 C14-input, 6 IEC 320 C13-output plug and 2 IEC-jumper cable. This rack-mount UPS can be converted into a tower using the separately available stabilization feet (SMTL2USF). It provides cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics, and proactive email notifications with action recommendations.
It features a SmartSlot for an optional network management card that allows physical servers, virtual machines, and HCI clusters to be shut down properly via PowerChute Network Shutdown. The UPS can be connected to EcoStruxure IT or to centralized third-party management platforms. It offers overvoltage protection against lightning strikes, voltage drops, power outages and surges. The SMTL UPS has the lithium-ion battery.
