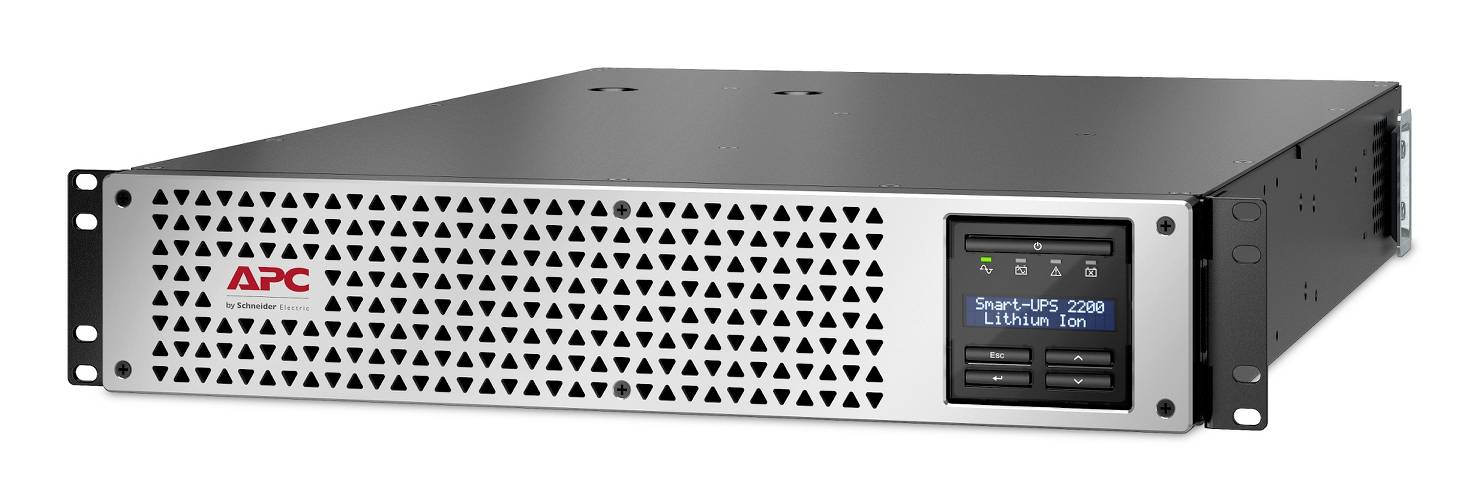

APC APC Smart-UPS Lithium-Ion 2200VA 230V UPS
EAN:
Part number:
Item no:
Highlights & Details
APC Smart-ups line interactive 2200VA, lithium-ion, rack, 2HE, 230V, 8x IEC C13 + 1x IEC C19, SmartConnect, with network management card, AVR, LCD
- Line interactive
- 2.2 kVA 1980 W
- Waveform: Sinusoidal
- 9 AC outputs
- Lithium-Ion
- Rack mount/tower black, gray
Technical specifications
- Number of AC outputs: 9 AC outputs
- Form factor: Rackmount/tower
- Rack capacity 2U
- Product color: Black, gray
- Product type
UPS
- Type
APC Smart-UPS Lithium-Ion 2200VA 230V
- Width
432 mm
- Height
86 mm
- Depth
683 mm
- Weight
33.3 kg
- Rechargeable battery technology
Li-ion
IP20
- Max. operating noise
55 dB
1980 W
- Response time
6 ms
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Automatic Voltage Regulation (AVR)
yes
- Storage relative humidity (H-H)
0 - 95 %
- Non-operating altitude
0 - 7620 m
- Battery recharge time
2 h
- Serial interface
yes
- Audible alarm(s)
yes
- Emergency Power Off (EPO)
yes
- Output power capacity
2.2 kVA
- Surge energy rating
739 J
- Rack mount kit
yes
- Emergency Power Off (EPO) connector
yes
- USB port
yes
- SmartSlot
yes
- Hot-swap battery
yes
- Management card included
yes
- Operating altitude
0 - 3048 m
- Operating relative humidity (H-H)
0 - 95 %
- Storage temperature (T-T)
-15 - 45 °C
- Package weight
41.5 kg
- Automatic battery test
yes
- Input operation voltage (max)
286 V
- Input operation voltage (min)
160 V
- Output operation voltage (min)
220 V
- Output operation voltage (max)
240 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3771275 APC APC Smart-UPS Lithium-Ion 2200VA 230V UPS
Description

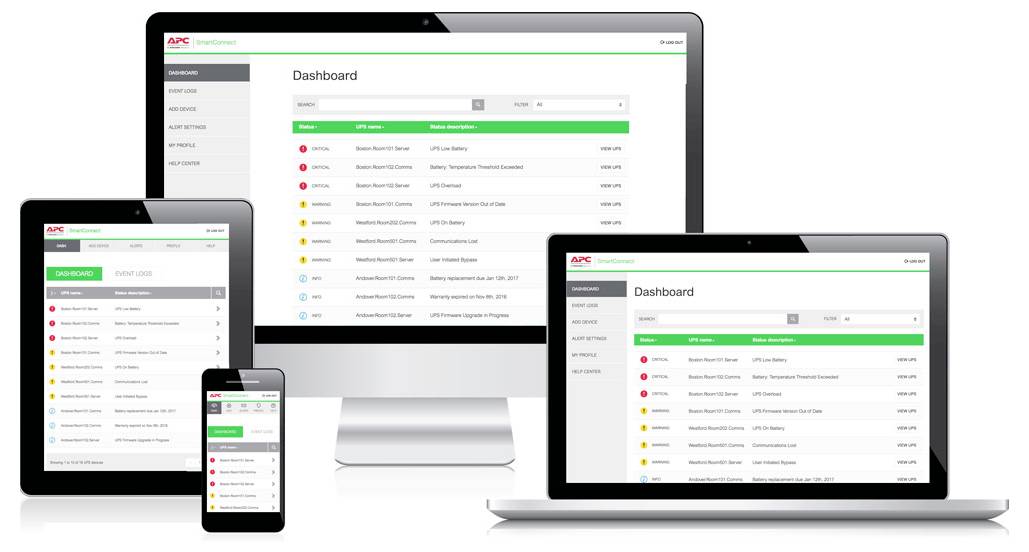

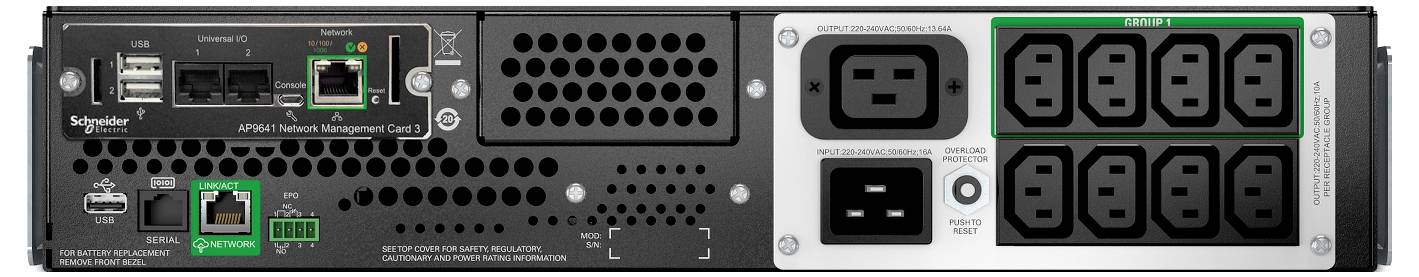

This APC Smart UPS is designed for IT professionals and network administrators to maintain business uptime and continuity. The interactive 2 HE-Rackmount-UPS with 2200 VA supplies pure sine wave power for supporting critical electronic devices in case of power interruptions. It has an IEC 320 C14 input, 8x IEC 320 C13 and 1x IEC 320 C19 outputs. It has a pre-installed network management card for network-based UPS monitoring and management. It provides cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics, and proactive email notifications with action recommendations. The UPS can be connected to EcoStruxure IT or third-party centralized management platforms. It offers overvoltage protection against lightning strikes, voltage drops, power outages and surges. The SMTL UPS has the lithium-ion battery.
