Name: APC APC Smart-UPS On-Line-G 5kVA 5kW Tower UPS
Brand: APC
SKU: 3771258

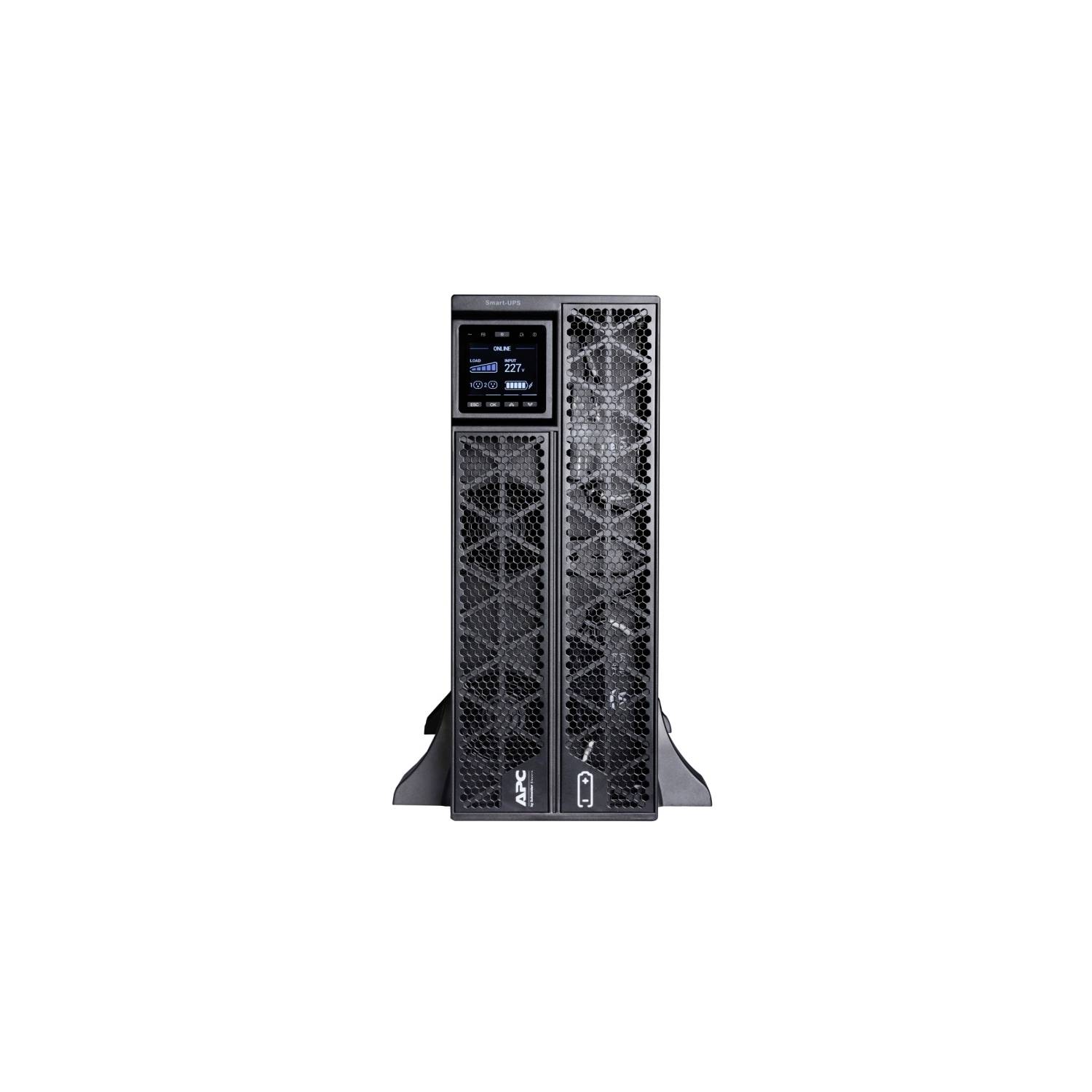

Front view of a black APC tower uninterruptible power supply with digital display and vented grille panels.

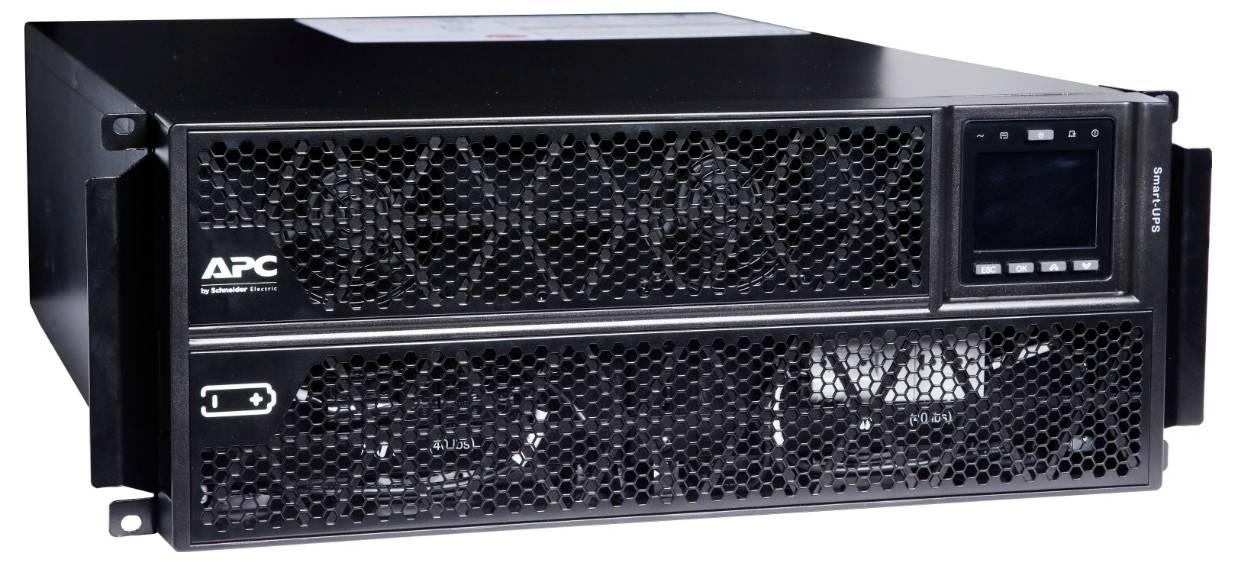

APC rack-mounted uninterruptible power supply with perforated front panels and a small status display on the right.

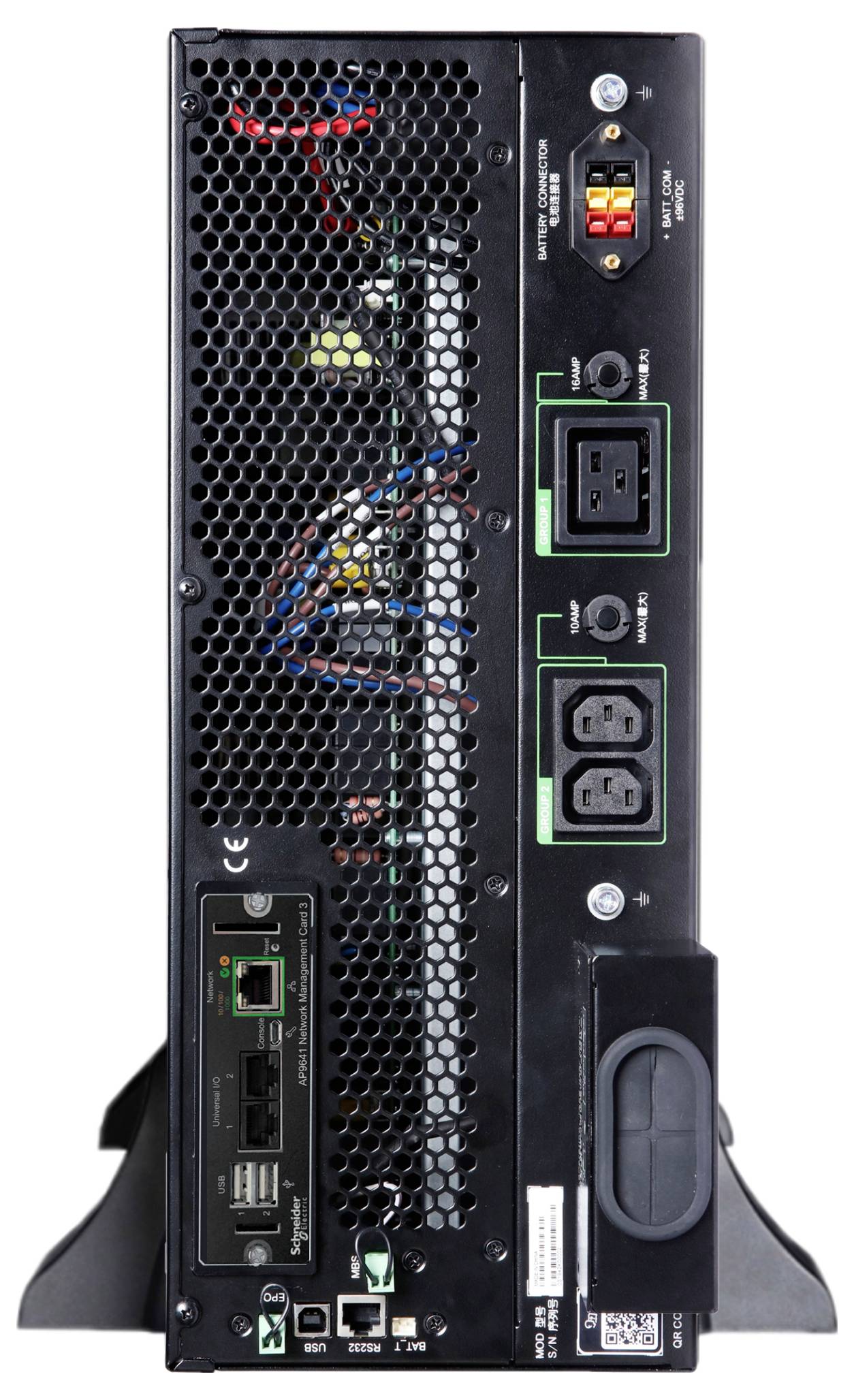

Rear view of a power supply unit with cooling fan grille, AC input connector, on/off switch, and output cables/ports.

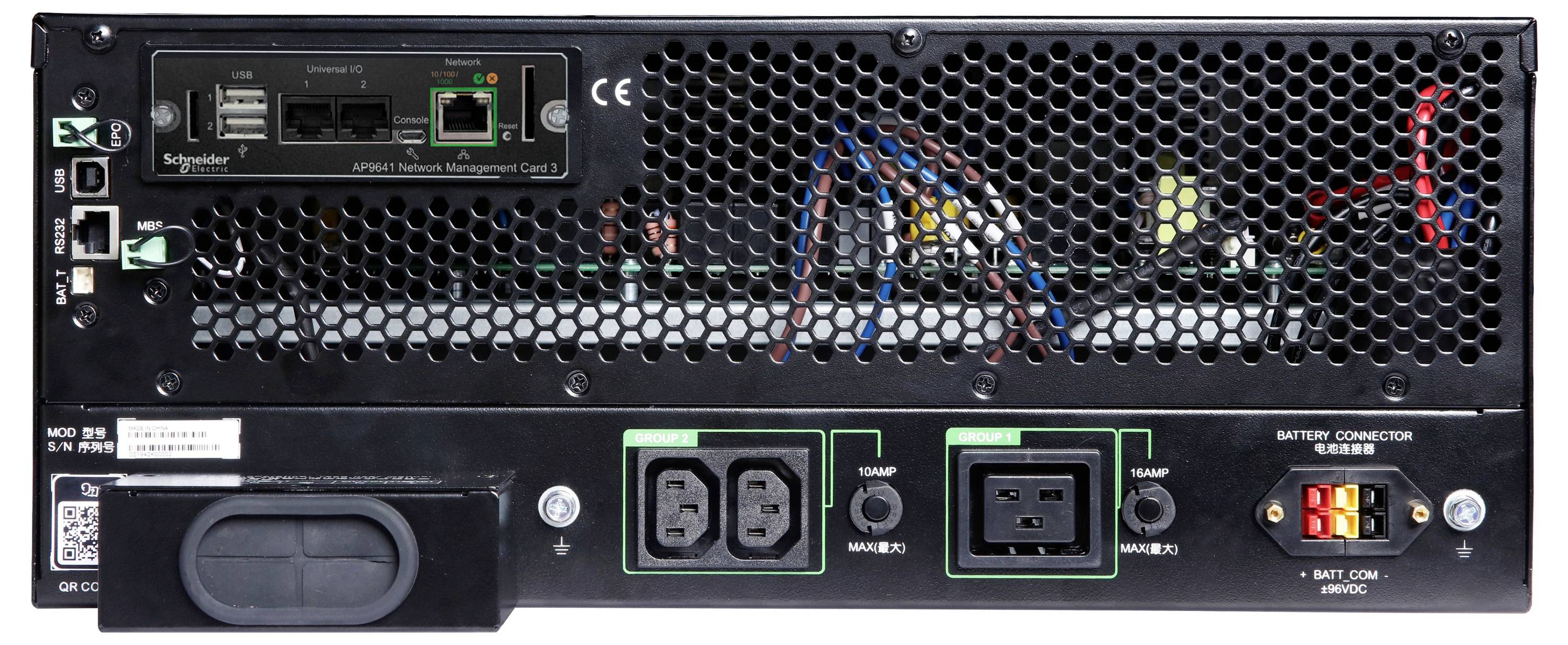

Front view of a Schneider Electric UPS back panel with ventilation grille, power outlets, battery connector, and communication ports for backup power connections.

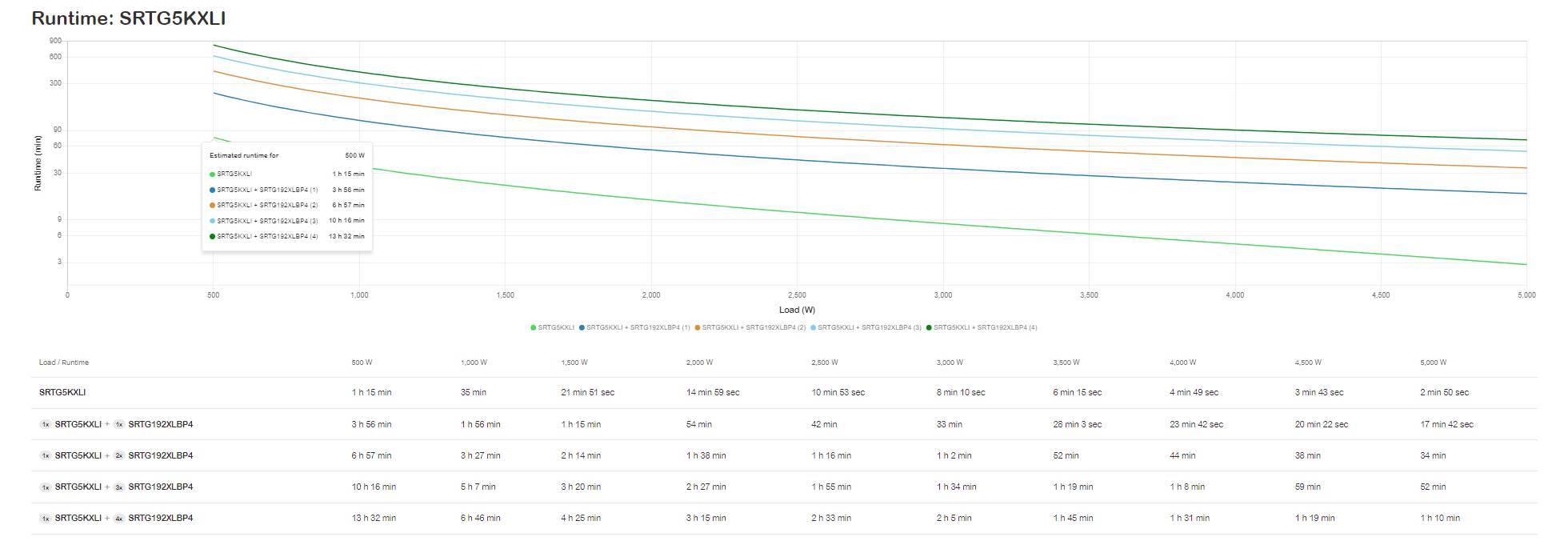

Line chart titled 'Runtime: SRTGSKLIL' showing several colored series declining over time, with a legend on the left and a data table below.

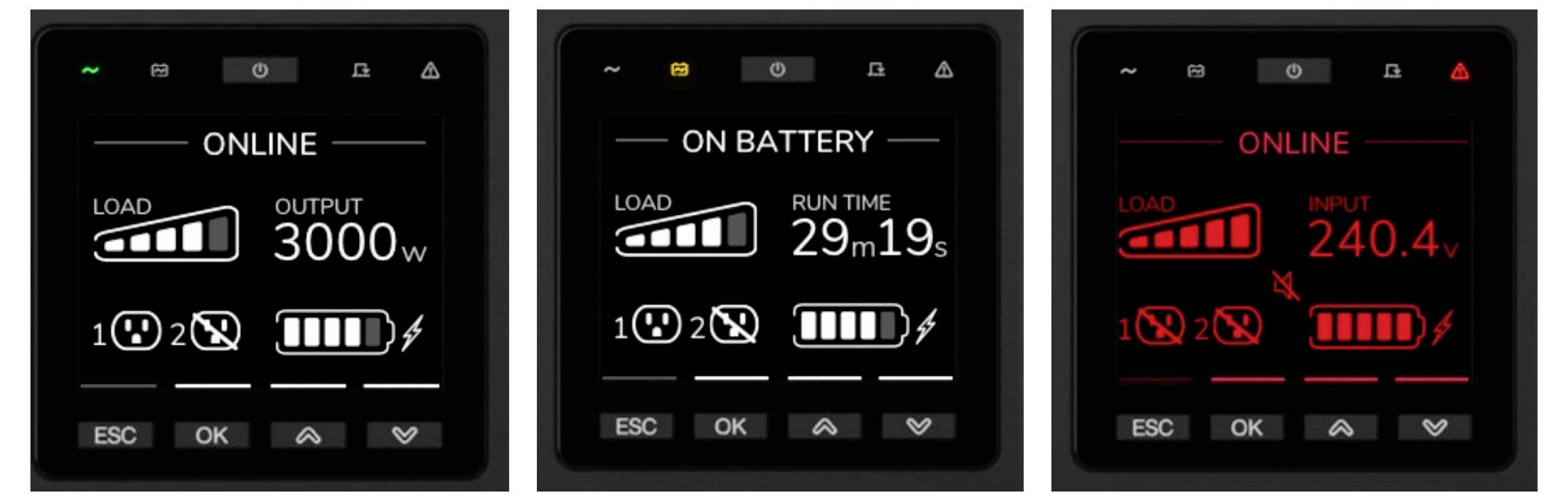

Three UPS display screens showing status: online with 3000W output, on battery with 29m19s runtime remaining, and online with 240.4V input/output.

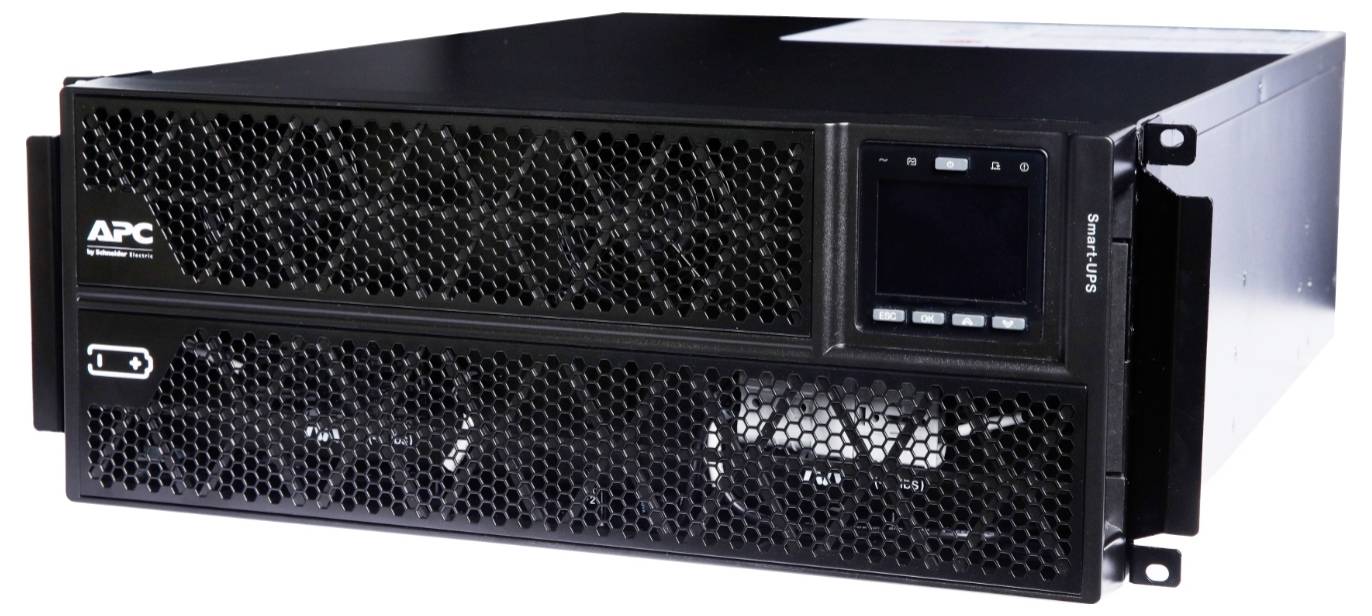

Front view of an APC rack-mounted UPS battery backup unit with display and ventilation grille, shown on a white background.

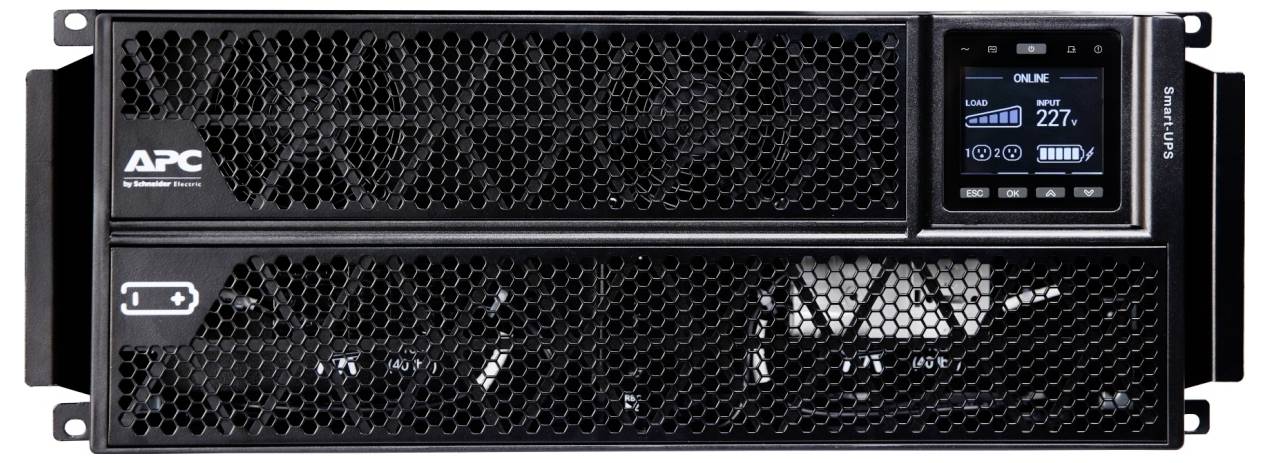

Front view of an APC rack-mounted uninterruptible power supply with a digital status display showing battery and load information.

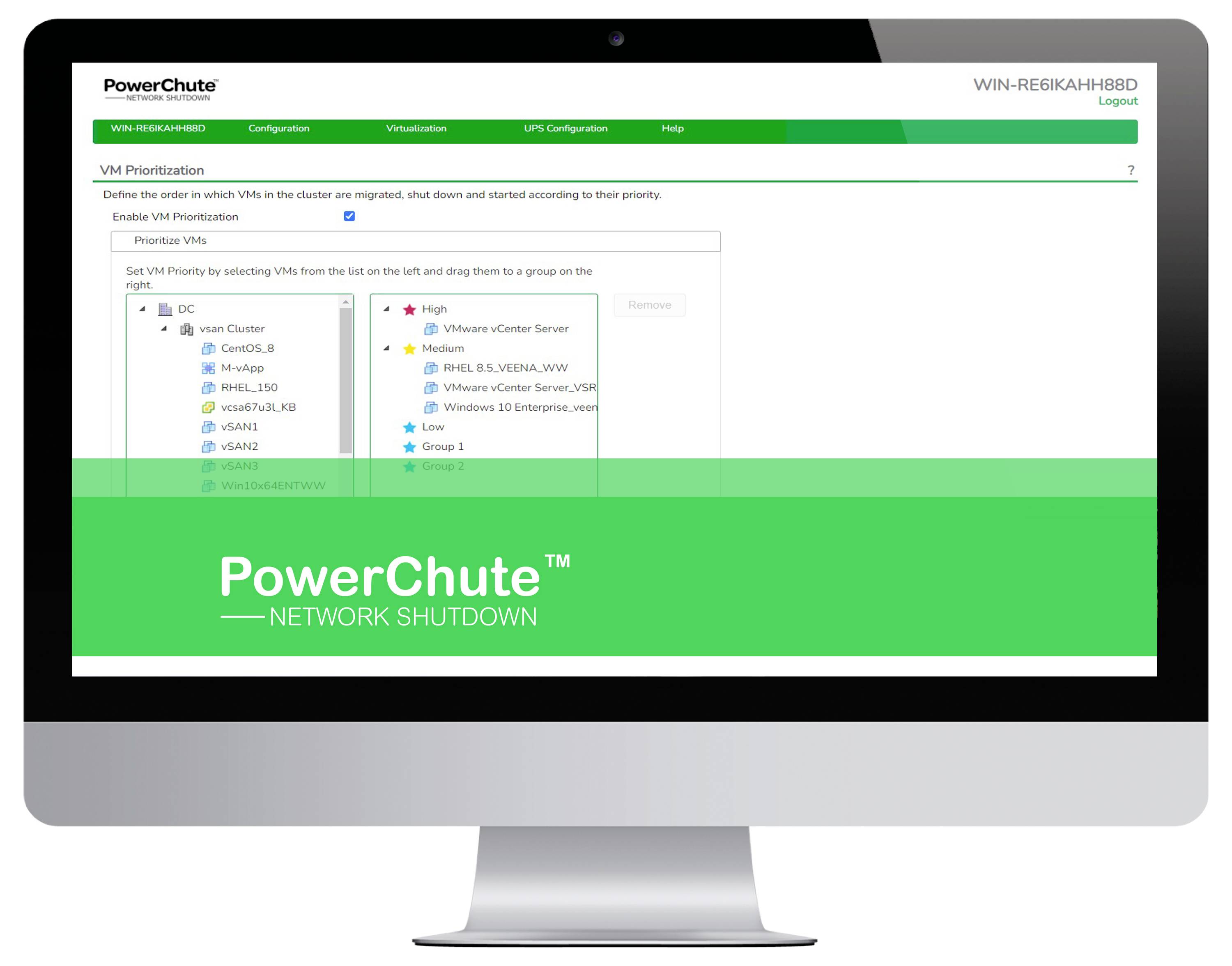

Computer screen showing the PowerChute Network Shutdown web interface on the VM Prioritization page, with a left-right tree list of virtual machines and priorities.

1/10

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

APC Smart-UPS On-Line, 5kVA/5kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+fixed wiring 3-wire (1P+N+E) Output, network card, without rack installation kit

Double Converter (Online)
5 kVA 5000 W
Waveform: Sinusoidal
3 AC outputs
Lead acid (VRLA) sealed 96 V
Compact black

Technical specifications

Number of AC outputs: 3 AC outputs
Rechargeable battery technology: Lead-acid (VRLA)
Form factor: Compact
Rack capacity 4U

Product type: UPS

Dim: (W x H x D) 440 x 178 x 620 mm

Weight: 51.9 kg

Width: 440 mm

Height: 178 mm

Depth: 620 mm

Type: APC Smart-UPS On-Line-G 5kVA 5kW Tower

Factory colour: Black

: IP20

Battery voltage: 96 V

10/100/1000 Mbps ports: 1 x

Max. operating noise: 55 dB

: 5000 W

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 0 - 95 %

Non-operating altitude: 0 - 15240 m

Battery recharge time: 4 h

Serial interface: yes

Audible alarm(s): yes

Emergency Power Off (EPO): yes

Output power capacity: 5 kVA

Surge energy rating: 600 J

Emergency Power Off (EPO) connector: yes

USB port: yes

Battery life (max): 5 Jahr(e)

SmartSlot: yes

Hot-swap battery: yes

Management card included: yes

Operating altitude: 0 - 2011 m

Operating relative humidity (H-H): 0 - 95 %

Output voltage Total Harmonic Distortion (THD): 2 %

Storage temperature (T-T): -15 - 45 °C

Package weight: 59 kg

Cold start: yes

Automatic battery test: yes

Input operation voltage (max): 285 V

Input operation voltage (min): 100 V

Output operation voltage (min): 220 V

Output operation voltage (max): 240 V

ECO mode: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3771258 APC APC Smart-UPS On-Line-G 5kVA 5kW Tower UPS

Description

This APC Smart UPS is designed for IT professionals and network administrators to maintain business uptime and continuity. This 5kVA online rack/tower UPS offers pure sine wave power and extended runtime to support critical electronics during power interruptions. It has a hard-wired 3-wire input (1P+N+E), 2x IEC 320 C13 and 1x IEC 320 C19 outputs. The UPS has an integrated network management card for the network-based monitoring and management of the UPS. The UPS can be connected to EcoStruxure IT or third-party centralized management platforms. The UPS has the built-in lead-acid battery. The UPS is compatible with the separately available SRTGRK1 rail kit.

This text is machine translated.
