APC APC Smart UPS RT 1000 VA Marine 2HE UPS
EAN:
Part number:
Item no:
Highlights & Details
APC APC Smart UPS RT 1000 VA Marine 2HE UPS
- 1 kVA 700 W
- Waveform: Sinusoidal
- 8 AC outputs
- Lead acid seal (VRLA)
- Rackmount black
Technical specifications

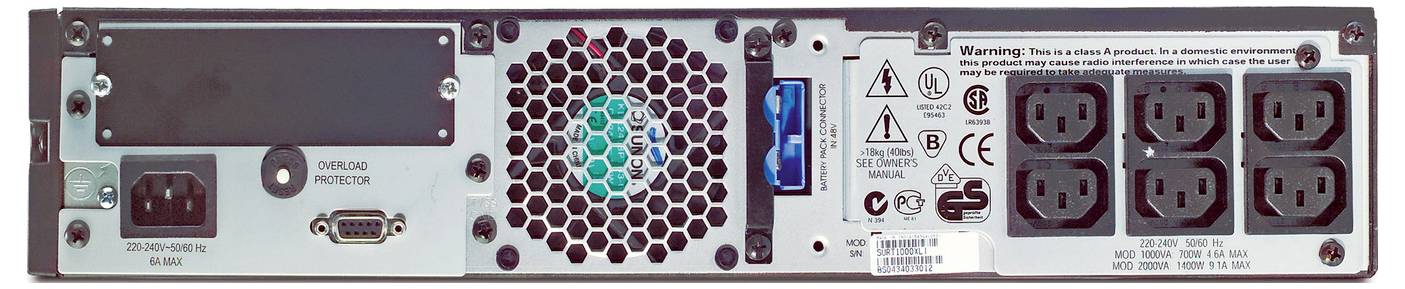

- Number of AC outputs: 8 AC outputs
- Rechargeable battery technology: Lead-acid (VRLA)
- Form factor: Rackmount
- Rack capacity 2U
- Product type
UPS
- Type
APC Smart UPS RT 1000 VA Marine 2HE
- Width
85 mm
- Height
432 mm
- Depth
483 mm
- Weight
23 kg
- Cable length
2.5 m
- Factory colour
Black
- Output voltage
230 V
- Max. operating noise
55 dB
700 W
- Nominal load efficiency
88 %
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Storage relative humidity (H-H)
0 - 95 %
- Non-operating altitude
0 - 15000 m
- Battery recharge time
3 h
- Emergency Power Off (EPO)
yes
- Output power capacity
1 kVA
- Surge energy rating
420 J
- RS-232 ports
1
- Number of output IEC jumpers
2
- Customs product code (TARIC)
8504409590
yes
- Dimensions (WxDxH)
85 x 483 x 432 mm
- Package dimensions (WxDxH)
630 x 594 x 286 mm
- Operating altitude
0 - 3000 m
- Operating relative humidity (H-H)
0 - 95 %
- Output voltage Total Harmonic Distortion (THD)
3 %
- Storage temperature (T-T)
-20 - 50 °C
- Package weight
27.8 kg
- Input operation voltage (max)
280 V
- Input operation voltage (min)
100 V
- Output operation voltage (min)
220 V
- Output operation voltage (max)
240 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3781696 APC APC Smart UPS RT 1000 VA Marine 2HE UPS
Description
Reinforced UPS systems for marine use and other transport applications. Not intended for use by consumers.
This text is machine translated.
This text is machine translated.
Features
- Ideal for uninterrupted power supply in critical marine applications
- Type-tested DNV
- Hot-swappable, front accessible, user-replaceable batteries
- Frequency conversion function 50Hz to 60Hz
- Operating temperature up to 55 °C.
