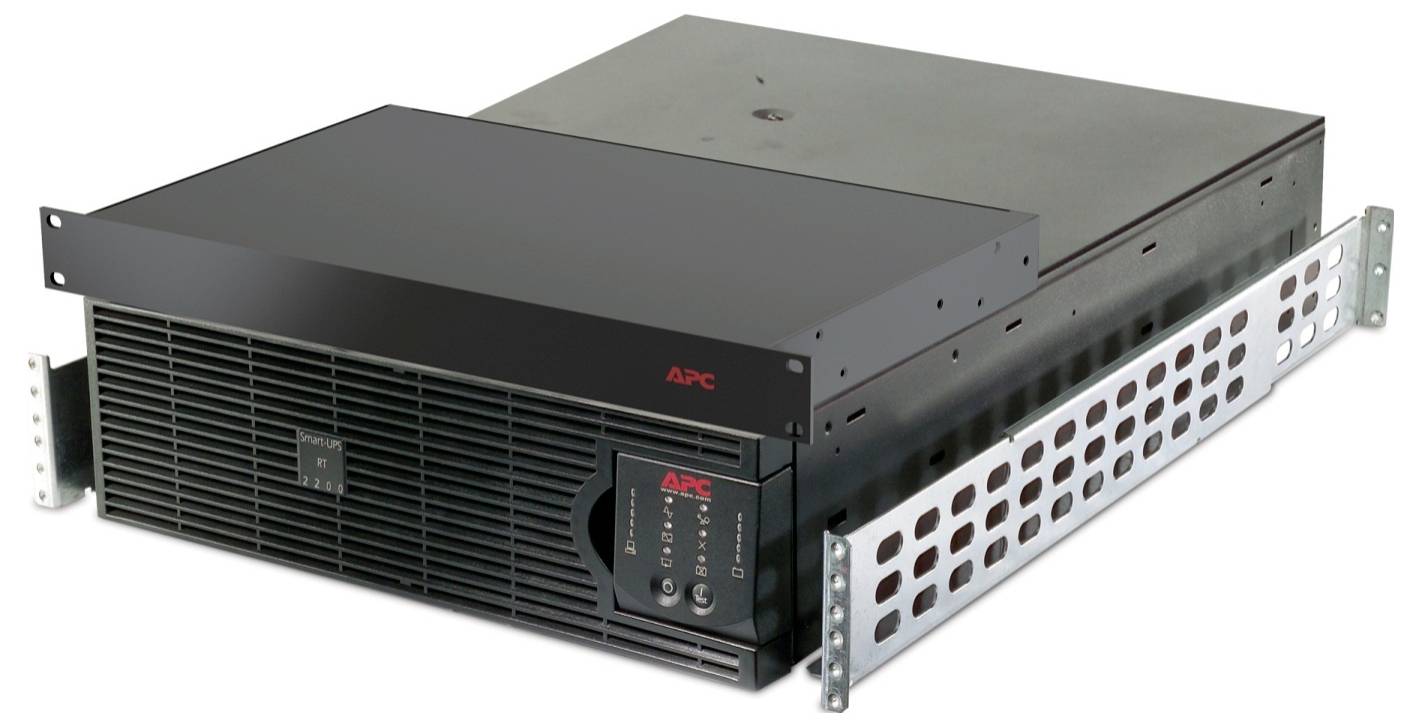

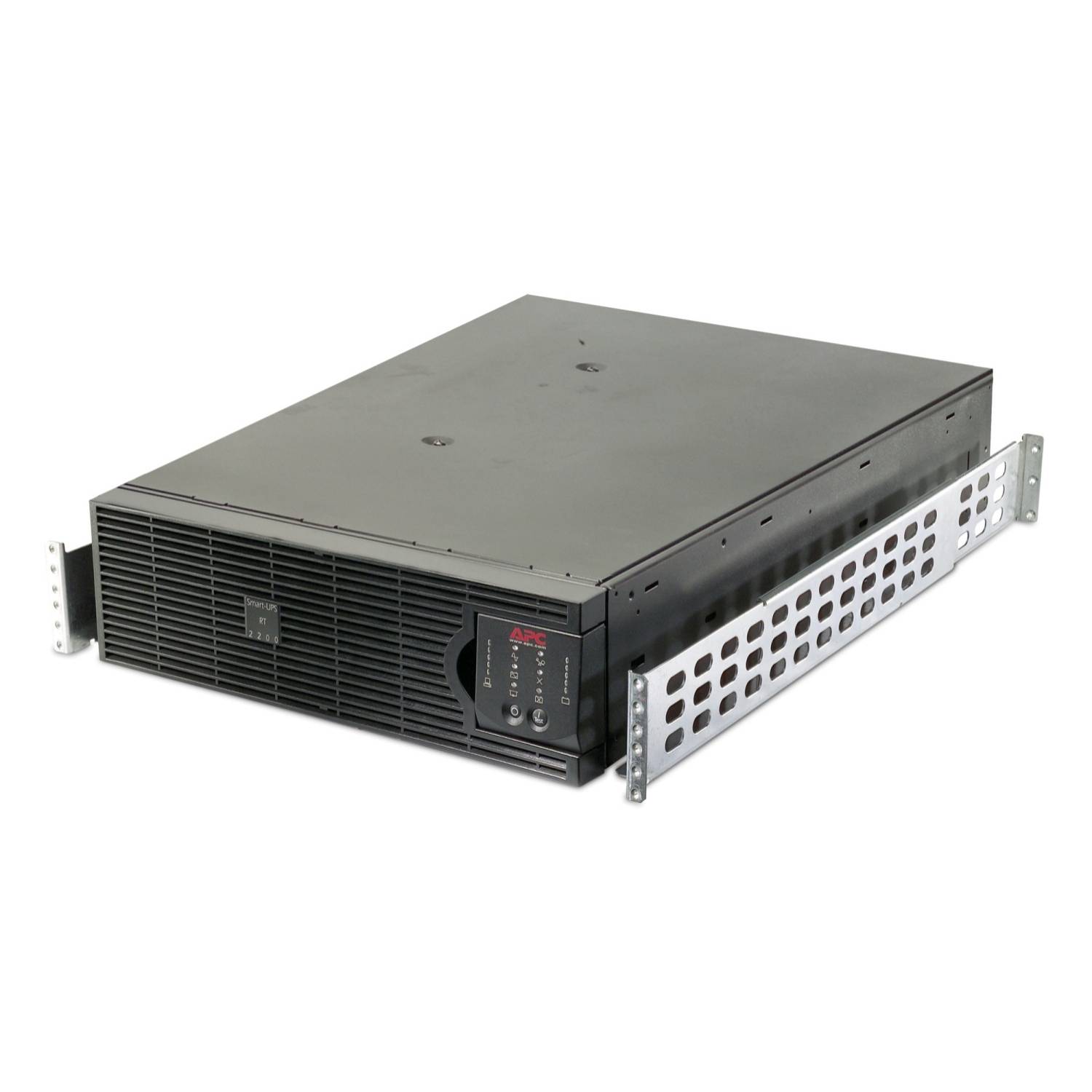

APC APC Smart UPS RT 2200 VA Marine 3HE UPS
EAN:
Part number:
Item no:
Highlights & Details
APC Smart ups RT 2200 VA, 230 V marine
- 2.2 kVA 1540 W
- Waveform: Sinusoidal
- 10 AC outputs
- Lead acid seal (VRLA)
- Rackmount black
Technical specifications

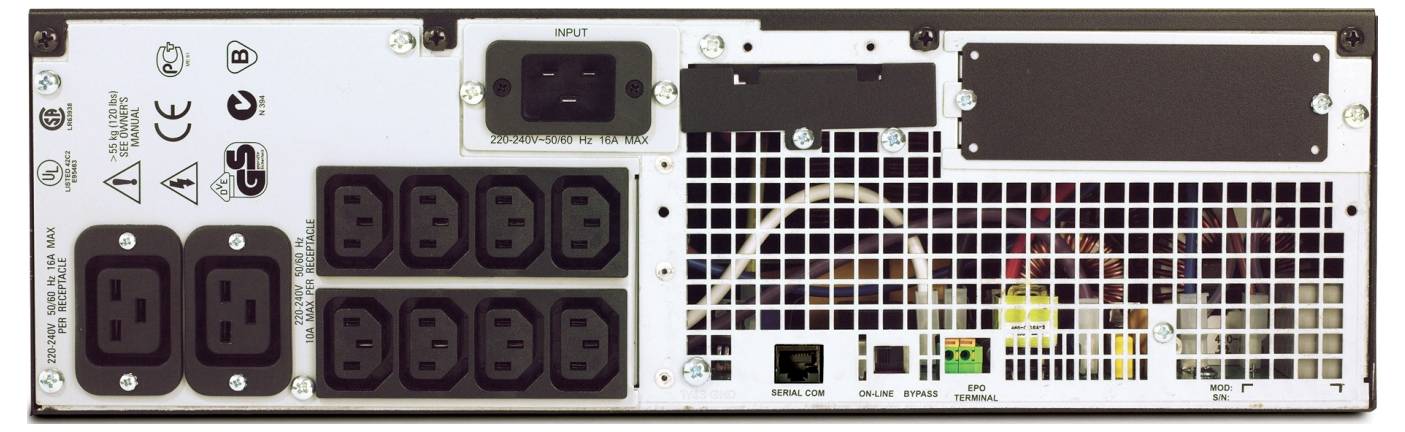

- Number of AC outputs: 10 AC outputs
- Rechargeable battery technology: Lead-acid (VRLA)
- Form factor: Rackmount
- Rack capacity 3U
- Product type
UPS
- Dim
(W x H x D) 130 x 432 x 660 mm
- Weight
54.5 kg
- Width
130 mm
- Height
432 mm
- Depth
660 mm
- Type
APC Smart UPS RT 2200 VA Marine 3HE
- Cable length
2.5 m
- Factory colour
Black
- Output voltage
230 V
- 10/100/1000 Mbps ports
1 x
- Max. operating noise
55 dB
1540 W
- Nominal load efficiency
92 %
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Storage relative humidity (H-H)
0 - 95 %
- Non-operating altitude
0 - 15000 m
- Battery recharge time
2.5 h
- Audible alarm(s)
yes
- Emergency Power Off (EPO)
yes
- Output power capacity
2.2 kVA
- Surge energy rating
555 J
- Number of output IEC jumpers
2
- Customs product code (TARIC)
8504409590
yes
- Dimensions (WxDxH)
130 x 660 x 432 mm
- Package dimensions (WxDxH)
603 x 980 x 347 mm
- Operating altitude
0 - 3000 m
- Operating relative humidity (H-H)
0 - 95 %
- Output voltage Total Harmonic Distortion (THD)
3 %
- Storage temperature (T-T)
-15 - 45 °C
- Package weight
63.6 kg
- Input operation voltage (max)
280 V
- Input operation voltage (min)
100 V
- Output operation voltage (min)
220 V
- Output operation voltage (max)
240 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3781697 APC APC Smart UPS RT 2200 VA Marine 3HE UPS
Description
Highly available, robust power protection for ships and other transport applications.
This text is machine translated.
This text is machine translated.
Features
- Ideal for uninterrupted power supply in critical marine applications
- Type-tested DNV
- Hot-swappable, front accessible, user-replaceable batteries
- Manual bypass switch
- Operating temperature up to 55 °C.
