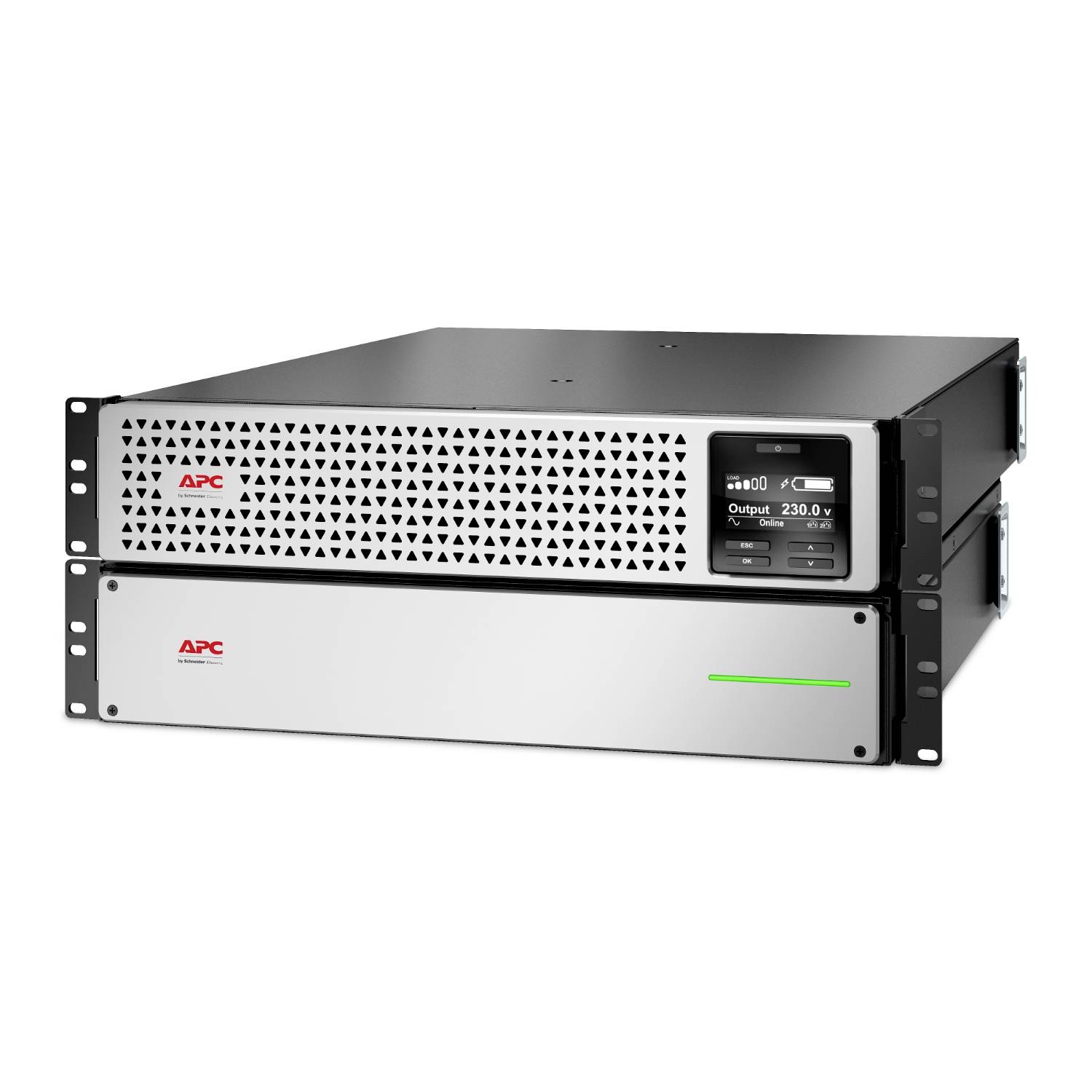

Two stacked APC rack-mount power units, the top with a perforated front grille and digital display showing 'Output 230.0 V', the bottom with a plain silver face and green status light.<br>

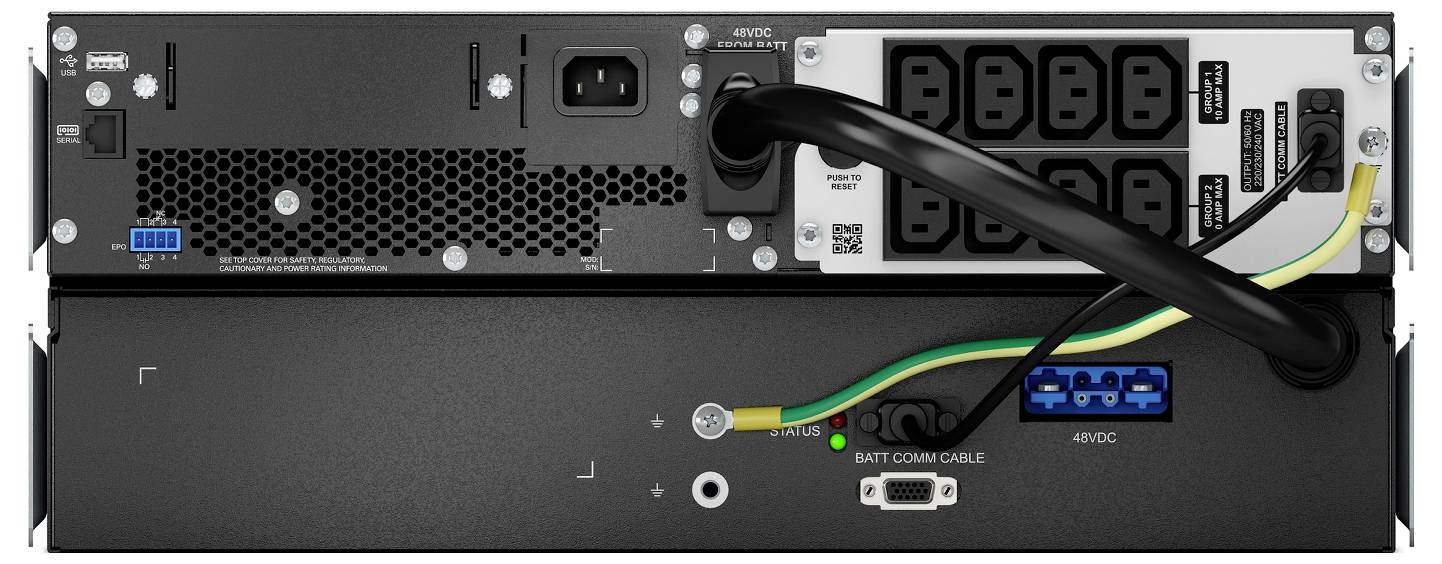

Rear view of a rackmount power unit showing AC input, cable ports, and status LEDs on the back panel.

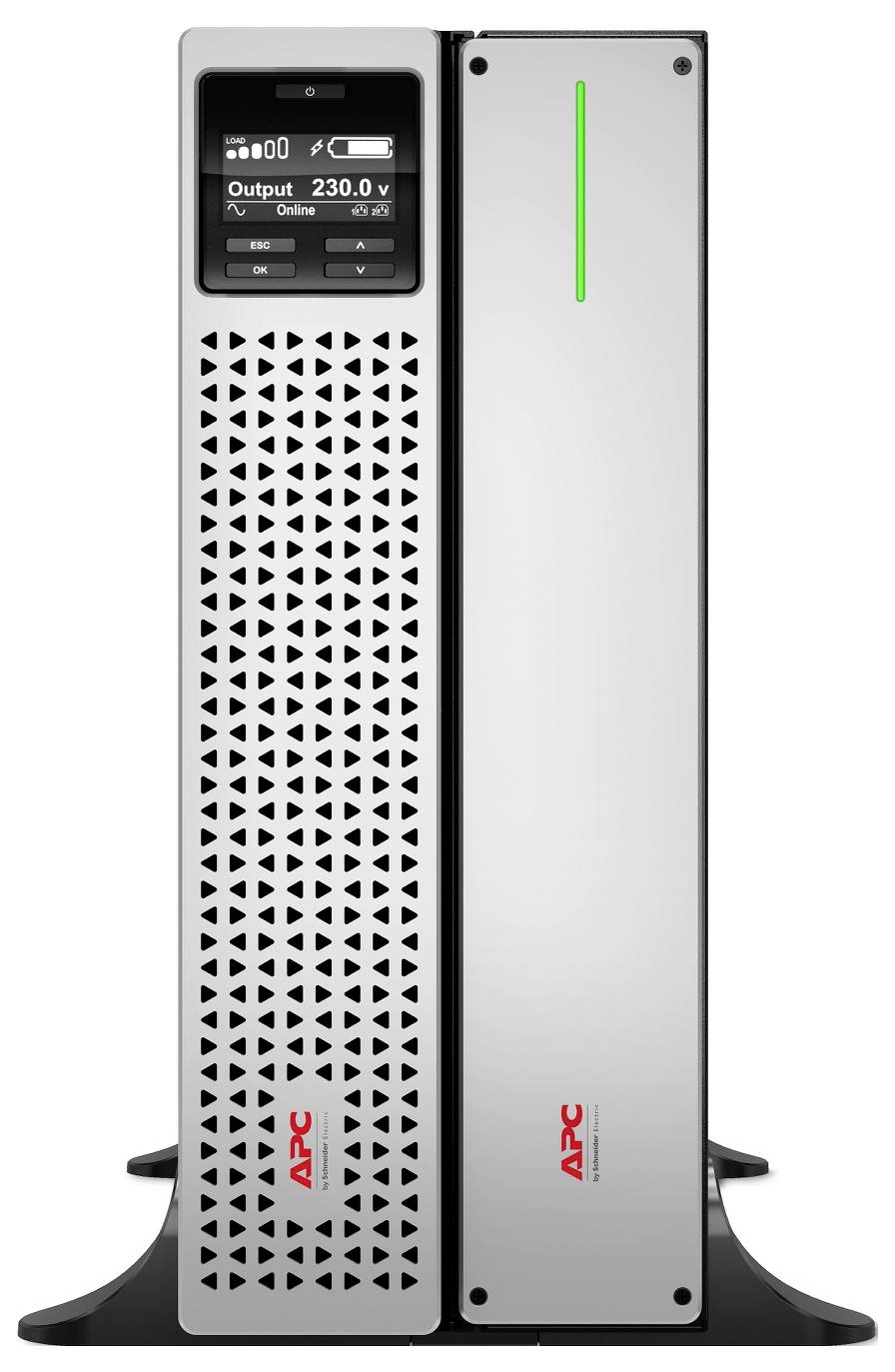

APC uninterruptible power supply with front display showing output 230.0 V and a vertical green status light.

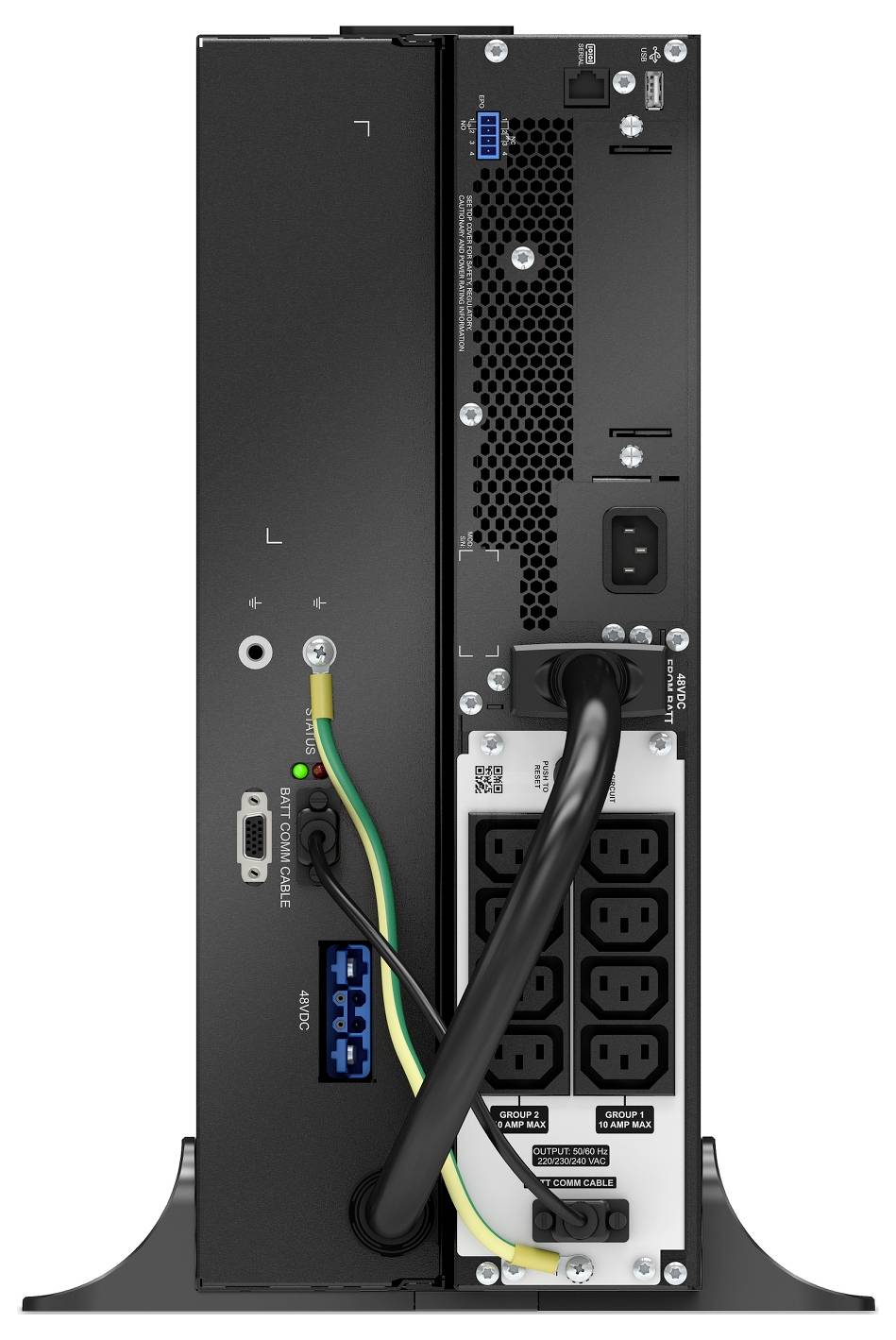

Rear view of a desktop computer or UPS showing power inlet, ventilation, multiple outlets, and connected power cables on the back panel.

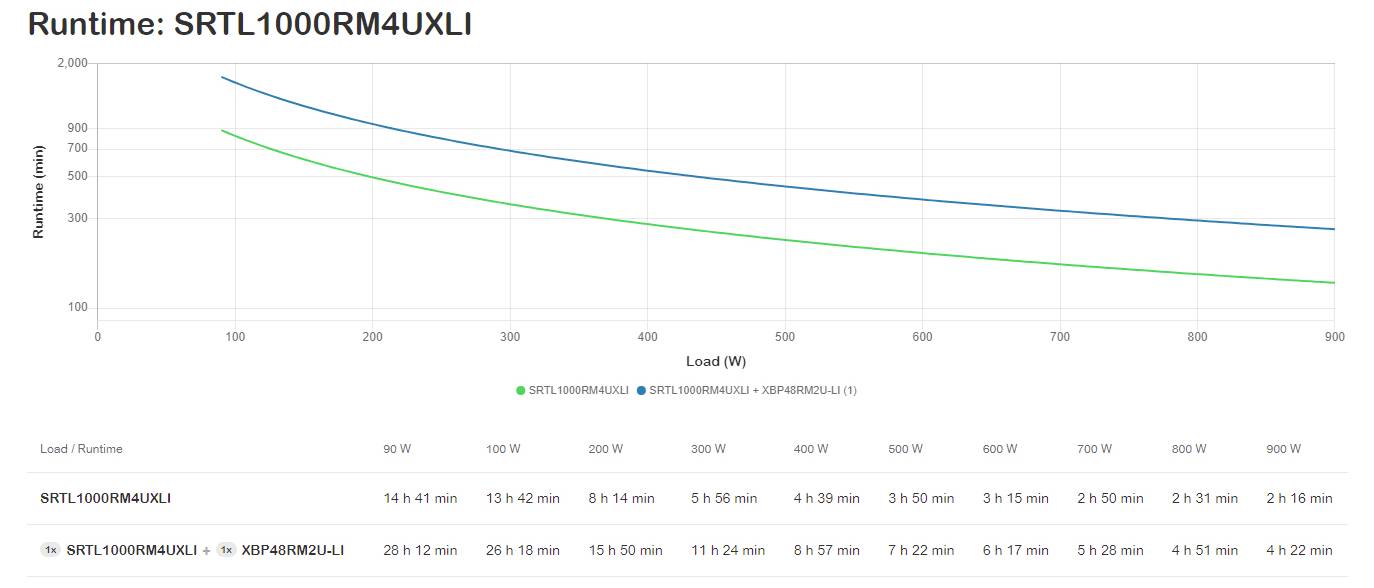

Line chart titled 'Runtime: SRTL1000RM4UXLI' showing runtime vs load in watts for two UPS models; runtime drops as load increases, with the blue series consistently above the green.

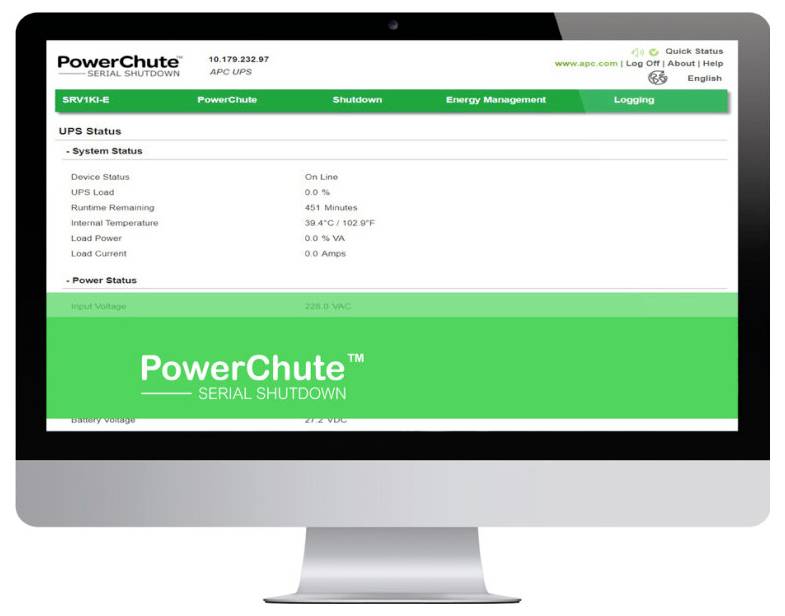

A computer monitor displays the PowerChute Serial Shutdown web interface with a green header and UPS status details showing the system is online.<br>

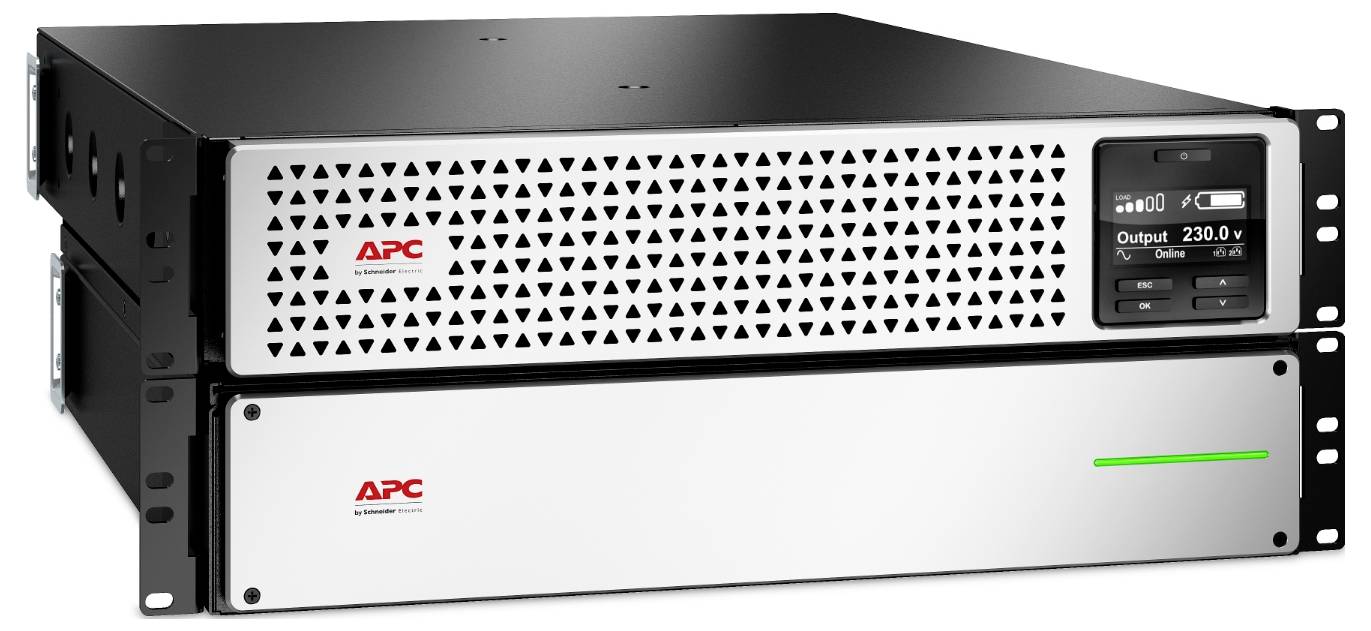

Stacked APC rack-mounted power units, one with a front display showing output 230.0 V and one blank silver module.

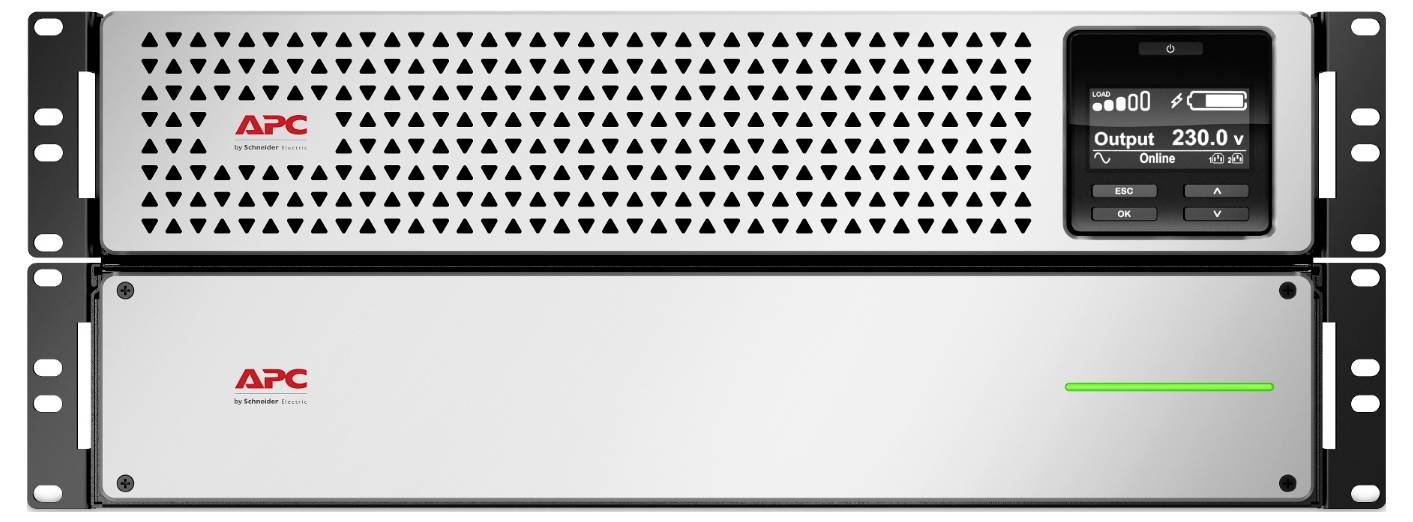

Two APC rack-mounted power units: a perforated front module with digital display and a plain silver unit below.

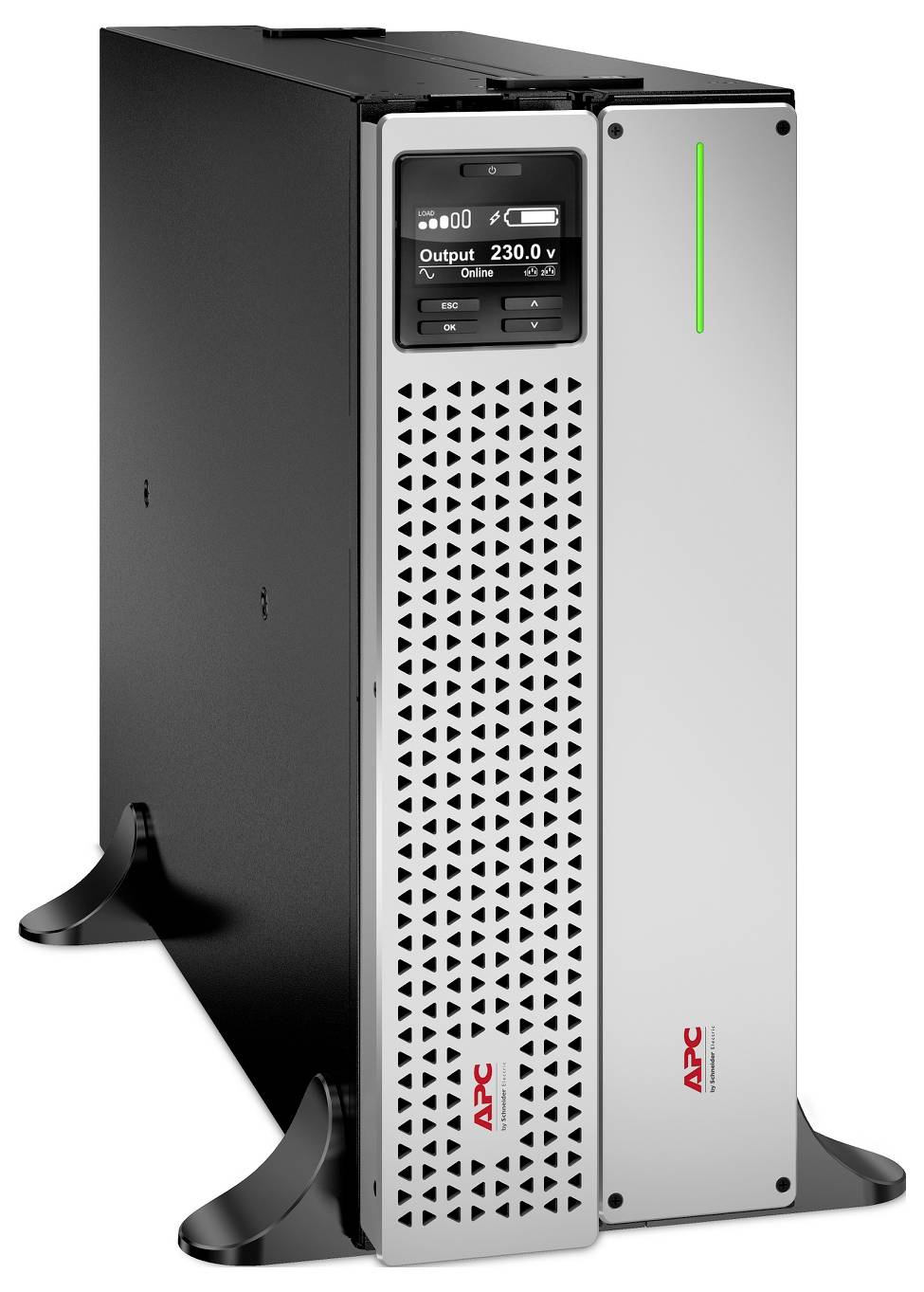

Front view of a black and silver APC uninterruptible power supply with LCD showing 'Output 230.0 V' and a green status light.

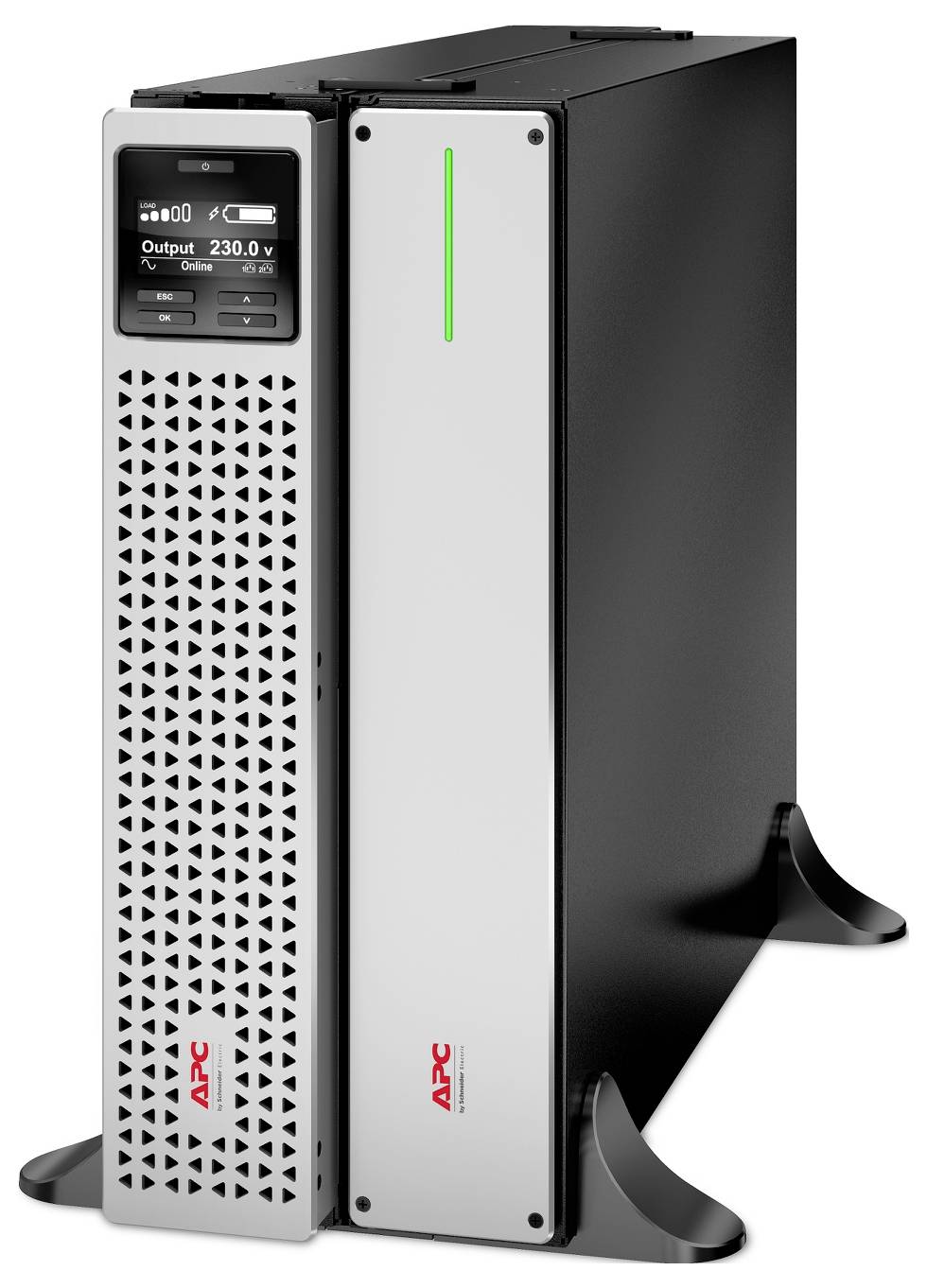

Black APC UPS tower with front display and status light, shown in a studio product shot.

1/11

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

APC Smart-ups on-line, 1000VA, lithium-ion, rack mount 4HE, 230V, 8x C13 IEC outputs, SmartSlot, extended run time, including rack installation kit

Double Converter (Online)
1 kVA 900 W
Waveform: Sinusoidal
8 AC outputs
Lithium-Ion (Li-Ion) 48 V 2400 Ah
Rack mount/tower black, silver

Technical specifications

Number of AC outputs: 8 AC outputs
Form factor: Rackmount/tower
Rack capacity 4U
Product color: Black, silver

Product type: UPS

Dim: (W x H x D) 432 x 171 x 59 mm

Weight: 40.7 kg

Width: 432 mm

Height: 171 mm

Depth: 59 mm

Type: APC Smart-UPS SRT Lithium Ion 1000VA RM

Rechargeable battery technology: Li-ion

Cable length: 1.83 m

: IP20

Keyboard layout: German, QWERTZ

Battery capacity: 2400 Ah

Battery voltage: 48 V

Max. operating noise: 50 dB

: 900 W

UKCA: not relevant

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 0 - 95 %

Non-operating altitude: 0 - 15240 m

Emergency Power Off (EPO): yes

Output power capacity: 1 kVA

Surge energy rating: 340 J

Typical backup time at half load: 252 min

Typical backup time at full load: 136 min

Rack mount kit: yes

Battery life (max): 10 Jahr(e)

SmartSlot: yes

Management card included: no

Modular: yes

Detachable power cord: yes

Operating altitude: 0 - 3048 m

Operating relative humidity (H-H): 0 - 95 %

Storage temperature (T-T): -15 - 45 °C

Input operation voltage (max): 275 V

Input operation voltage (min): 160 V

Output operation voltage (min): 220 V

Output operation voltage (max): 230 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3771264 APC APC Smart-UPS SRT Lithium Ion 1000VA RM UPS

Description

With 900W/1000VA, this Smart-UPS on-line lithium-ion battery backup system offers a dense, double conversion online power supply with pure sine wave. In addition to its clean and quiet power protection, this UPS is only about half the size and weight of comparable UPS systems with a similar runtime and offers flexible rack and tower installation options. A new battery module with extended runtime ensures a longer runtime in a small 2U area and triples the life expectancy of the UPS. SRTL 1-3kVA UPS with this long-life battery module is perfect for applications where runtime is important.
