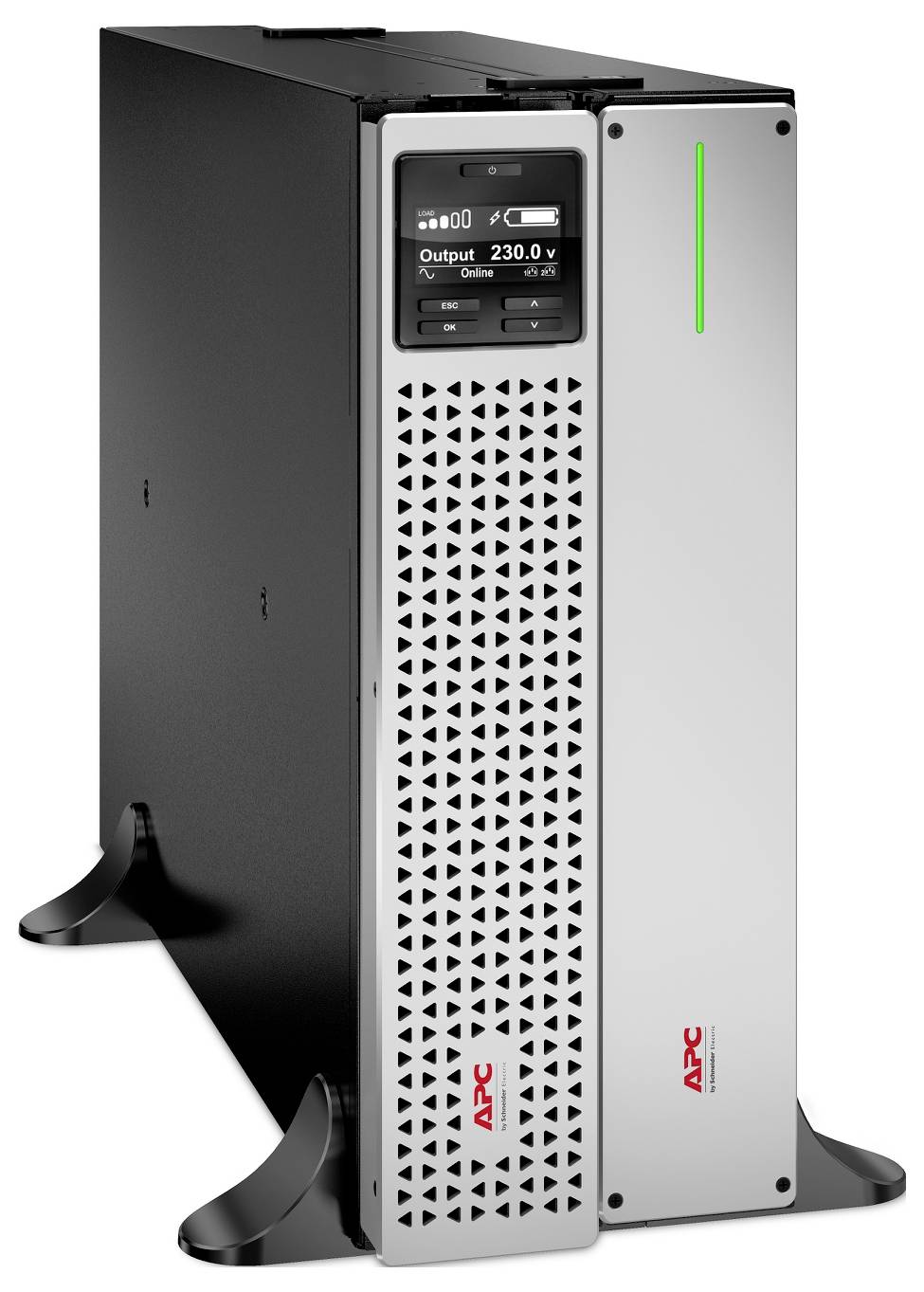

Front view of a black-and-silver APC tower UPS with digital display showing 'Output 230.0 V' and a green status light.<br>

1/10

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

APC Smart-ups on-line, 2200kVA, Lithium-ion, Rack Mount 4HE, 230V, 6x C13+2x C19 IEC output, SmartSlot, power card, long run time, rack installation kit

Double Converter (Online)
2.2 kVA 1980 W
Waveform: Sinusoidal
8 AC outputs
Lithium-Ion (Li-Ion) 48 V
Rack mount/tower black, silver

Technical specifications

Number of AC outputs: 8 AC outputs
Form factor: Rackmount/tower
Rack capacity 4U
Product color: Black, silver

Product type: UPS

Dim: (W x H x D) 432 x 171 x 639 mm

Weight: 44.5 kg

Width: 432 mm

Height: 171 mm

Depth: 639 mm

Type: APC Smart-UPS SRT Lithium Ion 2200VA NC

Rechargeable battery technology: Li-ion

Cable length: 1.83 m

: IP20

Keyboard layout: German, QWERTZ

Battery voltage: 48 V

: 1980 W

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 0 - 95 %

Audible alarm(s): yes

Output power capacity: 2.2 kVA

Surge energy rating: 432 J

Rack mount kit: yes

Battery life (max): 10 Jahr(e)

SmartSlot: yes

Management card included: yes

Operating altitude: 0 - 3048 m

Operating relative humidity (H-H): 0 - 95 %

Output voltage Total Harmonic Distortion (THD): 2 %

Storage temperature (T-T): -20 - 50 °C

Input operation voltage (max): 230 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3771263 APC APC Smart-UPS SRT Lithium Ion 2200VA NC UPS

Description

With 1980W/2200VA, this Smart-UPS On-Line lithium-ion battery backup system offers a dense, double-conversion online power supply with pure sine wave, pre-installed network management card In addition to its clean and quiet power protection, this UPS is only about half as large and heavy as comparable UPS systems with a similar runtime and offers flexible rack and tower installation options. A new battery module with extended runtime ensures a longer runtime in a small 2U area and triples the life expectancy of the UPS. SRTL 1-3kVA UPS with this long-life battery module is perfect for applications where runtime is important.
