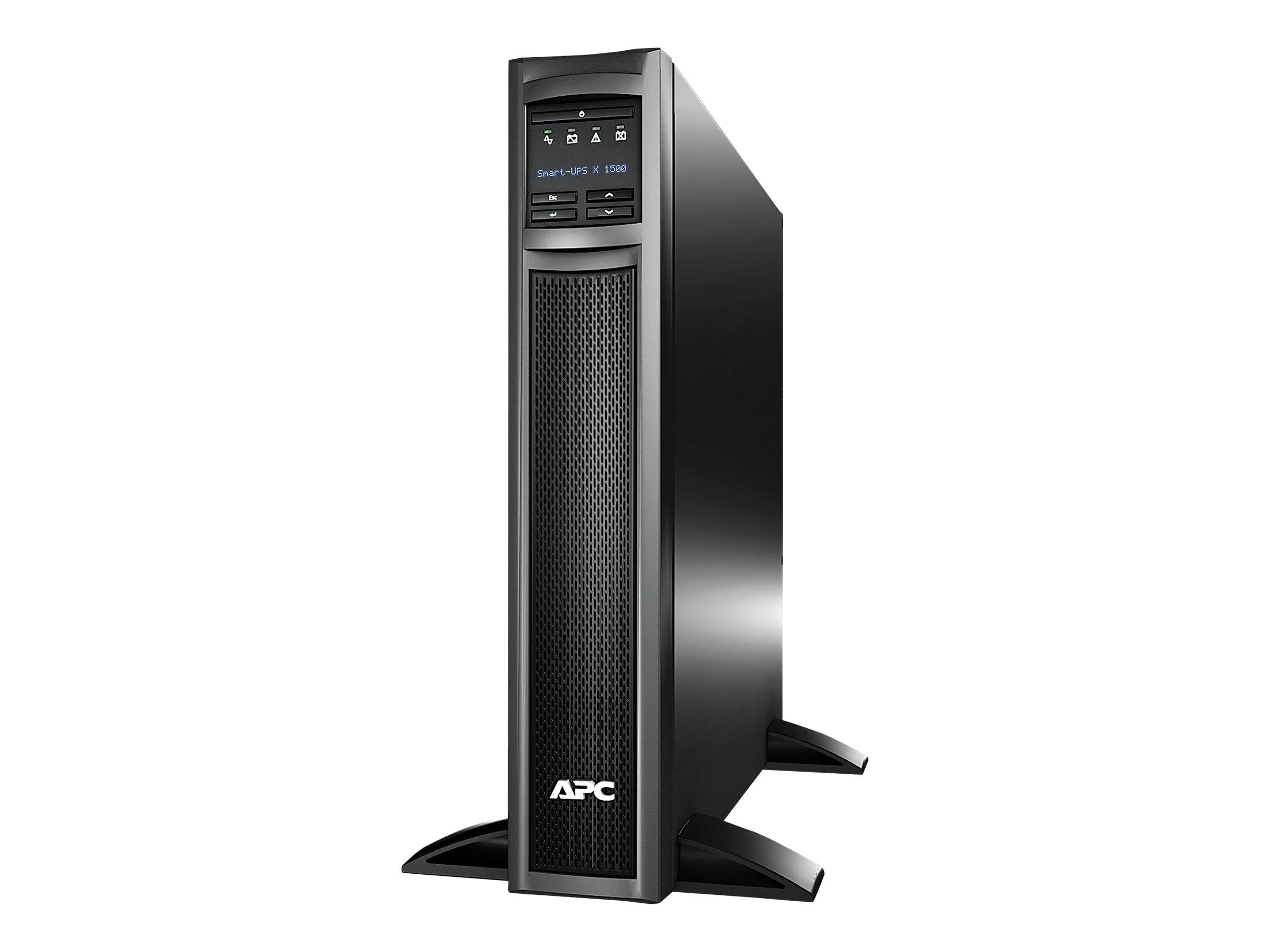

APC APC Smart-UPS X 1500 Rack/Tower LCD - USV (Rack - einbaufähig) 19" UPS

Always stay online and prevent data loss

As soon as the power fails, an APC Smart-UPS supplies immediately the emergency power for all connected devices. Since this is done automatically in an APC UPS, you can prevent undesired failures of a PC, server or switch, for example. With the APC PowerChute Network Shutdown software, you can even shutdown critical IT hardware automatically and in a controlled way, when the battery of the UPS is almost empty. This helps prevent data loss, downtime, and physical damage to the hardware.


Extend the runtime

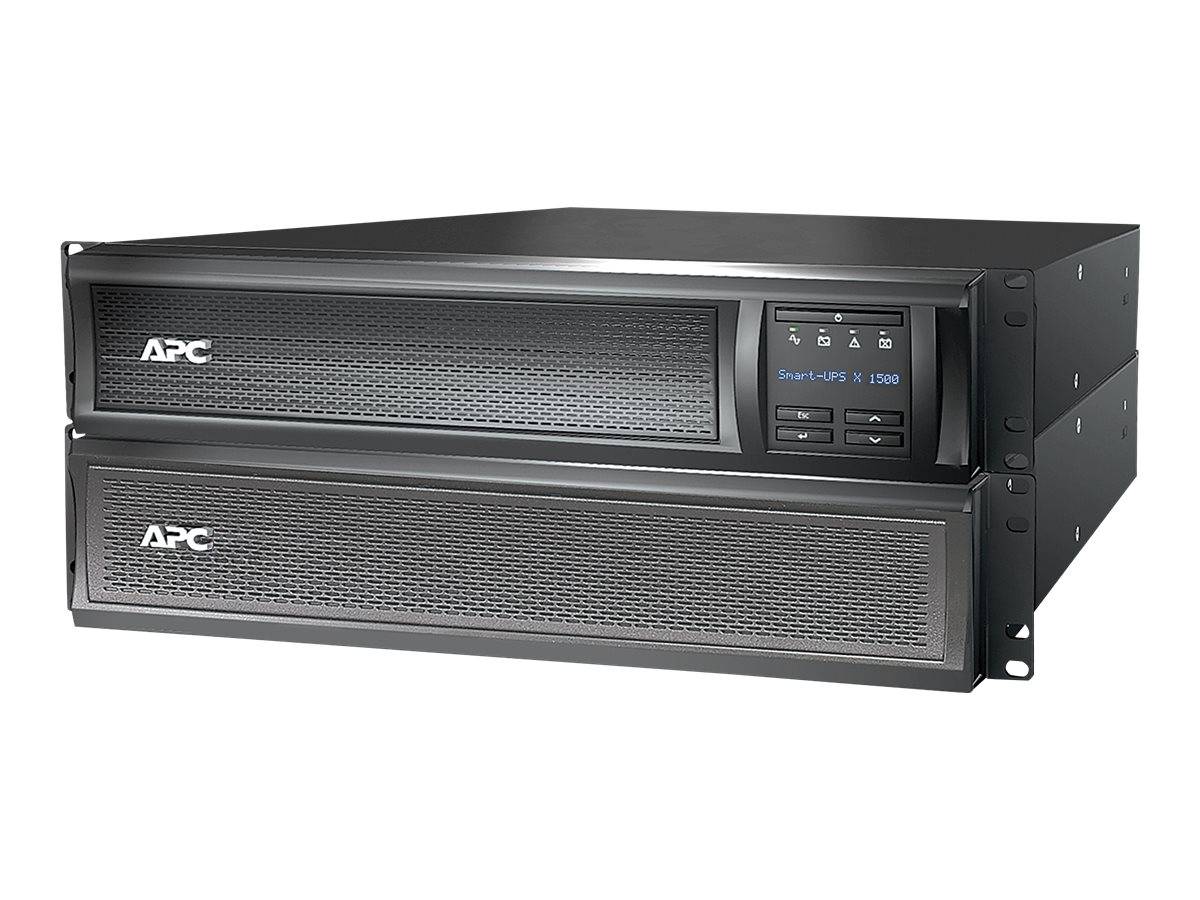

By connecting external battery packs (SMX48RMBP2U), you can easily increase the number of minutes in which the APC SMX UPS can provide emergency power.
Even several hours runtime is possible.


Security

In addition, a Smart-UPS connected devices protects against voltage peaks, which are caused by lightning strikes. This APC emergency power supply is suitable for Ideal use in (small) companies.


Manage your Smart UPS

Thanks to the pre-installed network card (ap9641), you can connect the APC-UPS to the network without any problem. This allows you to remotely monitor and manage the UPS (SNMP) and the UPS can send a power-off signal to multiple physical and/or virtual servers using the PowerChute Network Shutdown software.


PowerChute-Network disconnection

PowerChute Network Shutdown is a UPS management software that works with the UPS network management card to protect Windows, Linux, and host ESXi, as well as hyper-converged and virtual infrastructure*. In the event of a power failure, PowerChute can properly shut down your virtual machines and the pre-configured boot sequence will ensure that they are powered on again.

*An additional license is required to support HCI and virtual machines:
1 year: SWPCNS1Y-DIGI
3 years: SWPCNS3Y-DIGI
5 years: SWPCNS5Y-DIGI


Remote management and monitoring of your network

The network card can be remotely managed using the easy-to-use web browser interface, the EcoStruxure™ IT remote management software (SFTWES1-DIGI), or another SNMP-compatible system. Tip: EcoStruxure™ IT also includes the functionality of the support contract below.


Support Agreement

The optional NIC support contract license* ensures that you are always up to date and secure and includes additional benefits such as frequent updates with:
• New and improved functions
• Security updates
• Extended support
(The support contract functionality is included free of charge in the first year of the UPS)

*The above license and available in variants:

1
Year: SWNMC3SU
1
Y DIGI
Up to (replace the bold number in the part number for the desired variant)

6
Years: SWNMC3SU
6
Y DIGI


Easy to use

By means of physical keys and an LCD-screen the setting and reading of the basic functions is possible.


Rack/Tower changeable

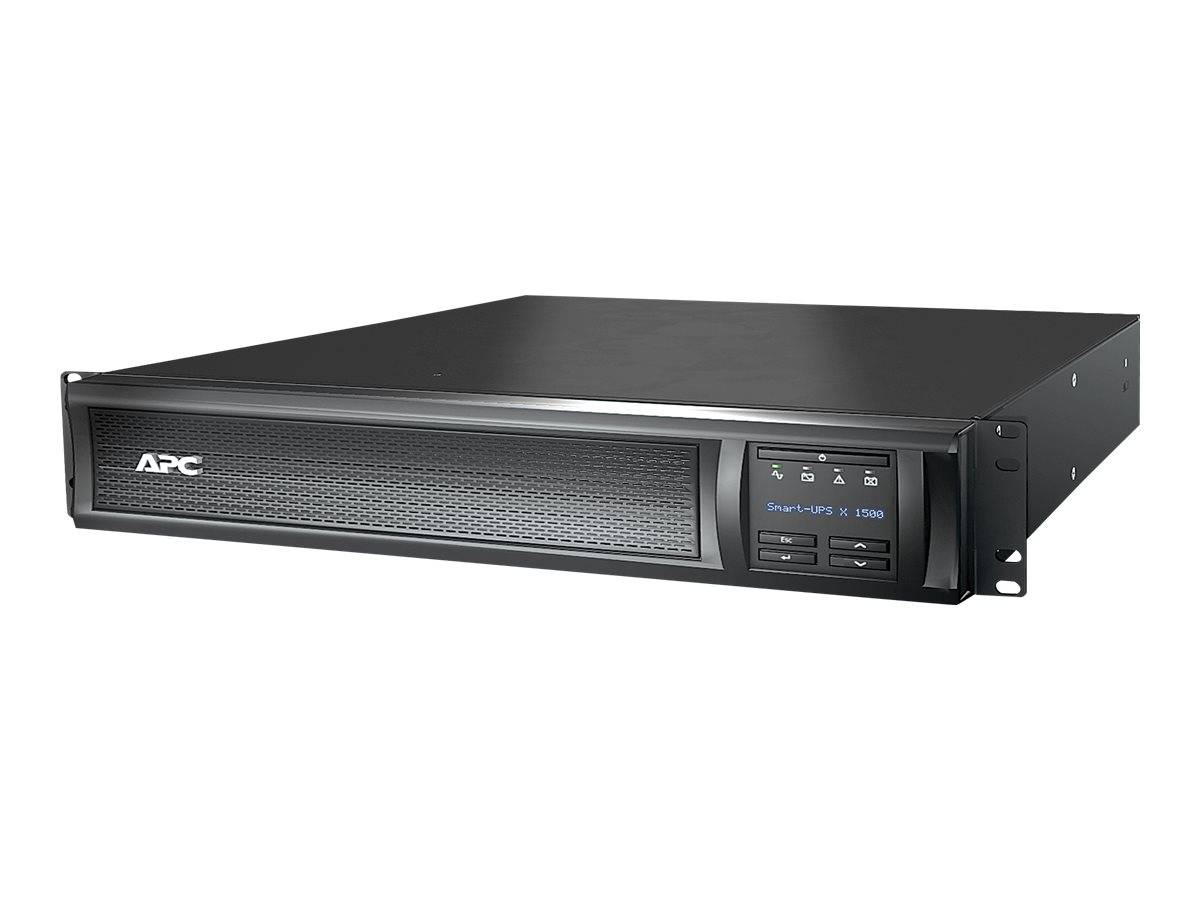

The APC Smart-UPS SMX can be converted as rack/tower. Since both the feet and the 4-post rack mounting brackets are included, you can mount it in a rack (2U) or stand upright.


Extend the service life

The internal battery cartridge (APCRBC115) can be replaced by the user simply, securely and independently. This does not require switching off the APC SMX1500RMI2UNC or connected devices. In this way you can extend the life of the APC Smart UPS easily and inexpensively and your devices remain always online.


extension

The manufacturers of the SMX1500RMI2UNC are 3 years, except for the battery used by a 2-year manufacturer. Both are 3 extended to 6 years and 5 years respectively with the APC Service Pack (WBEXTWAR3YR-SP-04).

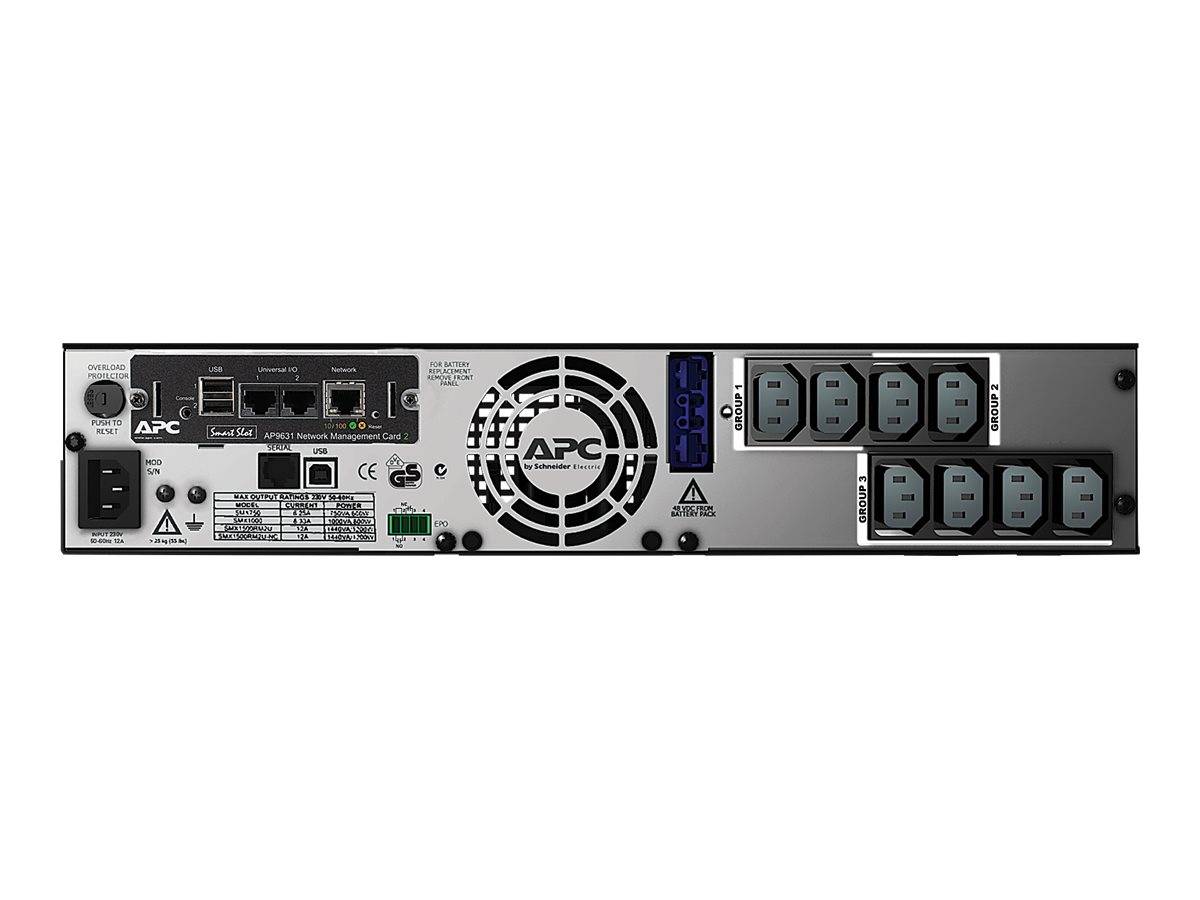

Switched socket groups: Remote restart and step-by-step start

The switched outlet groups enable the configuration of a phase-wise/delayed power-on per UPS output group. This reduces the peak load of the UPS and brings it closer to the constant load, limiting the over-dimensioning of the UPS.

It is also possible to reset a group of multiple UPS outputs and the devices connected to them. When using a network card (ap9640) in combination with EcoStruxure IT Expert (SFTWES1-DIGI), this is even possible remotely.

You cannot eliminate critical loads, which extends the runtime of critical devices.

This text is machine translated.
