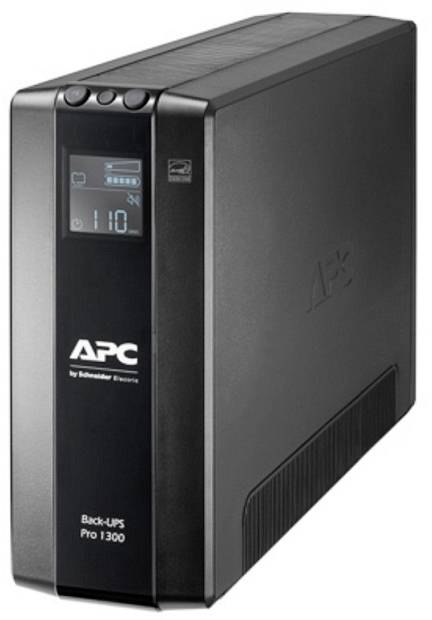

APC BR1300MI UPS 1300 VA No. of outputs 6 x
EAN:
Part number:
Item no:
Highlights & Details
APC BR1300MI UPS 1300 VA No. of outputs 6 x
- Powerful UPS with premium protection functions for computers and electronic systems

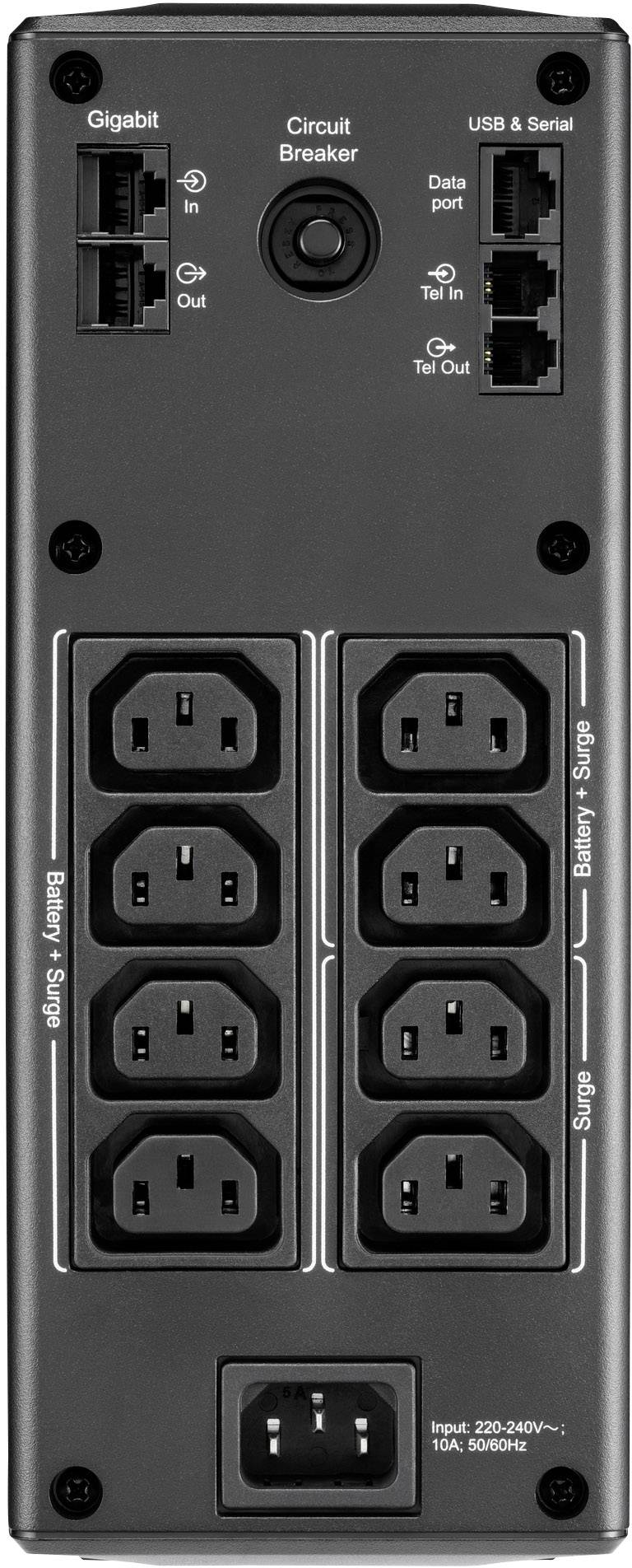

- Output connections: (2) IEC 320 C13 (surge protection), (6) IEC 320 C13 (power failure protection)
- Nominal output voltage: 230V
- Nominal input voltage: 230V
- Input connection type: IEC-320 C14
Technical specifications
- Maximum configurable power (watts): 780 watts / 1.3 kVA
- Output frequency (line-synchronous): 50/60 Hz +/- 1 Hz
- Topology: Line-Interactive
- Input frequency: 50/60 Hz +/-3 Hz (automatic sampling)
- Input voltage range for mains operation: 176 - 294 V.
- Battery type: Maintenance-free sealed lead-acid battery with suspended electrolyte leak-proof
- Typical charging time: 16 hours
- Expected battery life (in years): 3 - 5
- Number of replacement batteries (RBC): 1
- Battery charge capacity (watts): 11 watts
- Data interface: USB
- Control panel: Alarm when battery is on; specific low battery alarm; overload alarm with continuous tone
- Data Line Protection: RJ45 10/100/1000 Base-T Ethernet protection
- Operating temperature range: 0 - 40°C
- Operating relative humidity: 0 -95%
- Operating elevation: 0 - 3000 meters
- Storage temperature: -15 - 45°C.
- Relative humidity during storage: 0 - 15000 meters
- Noise level (1 meter distance): 45 dBA
- A-tick, C-tick, CE, EAC, GS mark, RCM, TISI
- RoHS compliant
- Product type
UPS
- Nominal power
1300 VA
- No. of outputs
6 x
- Output
IEC socket
- Type
BR1300MI
- Width
250 mm
- Height
100 mm
- Depth
382 mm
- Weight
10.2 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2246671 APC BR1300MI UPS 1300 VA No. of outputs 6 x
Warranty Terms
Warranty Terms 2246671 APC BR1300MI UPS 1300 VA No. of outputs 6 x
Description
Warning Tones—notifies users when the power or UPS system status changes.
Automatic self-test: Periodic battery self-tests for timely replacement of used batteries.
Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance.
Battery replacement without tools: Enables quick and easy replacement of batteries.
Battery-supported outputs and outputs with surge protection only: Reserves capacity and backup time for connected devices that need to be switched to UPS battery operation in case of emergency; less important devices are only protected against overvoltages.
Automatic voltage regulation (AVR) with boost and trim function: Avoids voltage fluctuations, which can affect AV-signals, and relieves the component power supply.
Supports cold start: Allows temporary battery operation in the event of a power failure.
Surge protection devices: Protects connected devices against surges on data lines.
Battery disconnected notification: Gives a warning when a battery is not available for power supply.
Hot-swappable batteries: Provides continuous power supply to protect systems during battery replacement.
LCD graphic screen: Display of operating modes, system parameters and alarms in the form of texts and overview circuit diagrams.
Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
USB port allows management of the UPS via USB port.
User-replaceable batteries: Increases availability and reduces average repair time by using trained users to upgrade and replace batteries.
This text is machine translated.
Automatic self-test: Periodic battery self-tests for timely replacement of used batteries.
Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance.
Battery replacement without tools: Enables quick and easy replacement of batteries.
Battery-supported outputs and outputs with surge protection only: Reserves capacity and backup time for connected devices that need to be switched to UPS battery operation in case of emergency; less important devices are only protected against overvoltages.
Automatic voltage regulation (AVR) with boost and trim function: Avoids voltage fluctuations, which can affect AV-signals, and relieves the component power supply.
Supports cold start: Allows temporary battery operation in the event of a power failure.
Surge protection devices: Protects connected devices against surges on data lines.
Battery disconnected notification: Gives a warning when a battery is not available for power supply.
Hot-swappable batteries: Provides continuous power supply to protect systems during battery replacement.
LCD graphic screen: Display of operating modes, system parameters and alarms in the form of texts and overview circuit diagrams.
Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
USB port allows management of the UPS via USB port.
User-replaceable batteries: Increases availability and reduces average repair time by using trained users to upgrade and replace batteries.
This text is machine translated.
Features
- Green operating mode: Patent-pending operating mode in which unused electrical components are switched off under good power conditions, so that very high operational efficiency can be achieved without compromising safety.
- Adjustable voltage switching points: Adjust the minimum and maximum values of the voltage (size of the voltage range) at which the UPS switches to battery current to increase the battery life and protect sensitive electronics.
- Adjustable voltage sensitivity: Switch between predefined thresholds (high, medium or low tolerance) depending on the available power quality to increase battery life and protect sensitive electronics.
- Intelligent battery management: An intelligent precision charging system optimizes the performance, life and reliability of batteries.
- Supports cold start: Allows temporary battery operation in the event of a power failure.
- Sockets for connecting plug-in power supplies: Protect devices with input transformers without covering other sockets.
- Automatic self-test: Periodic battery self-tests for timely replacement of used batteries.
- Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance.
- Automatic voltage control (AVR) with boost and trim function: Increases the UPS availability by correcting over and under voltages without using the battery.
- USB Connection: Use your PC to access additional management functions of your UPS via a USB connection.
- Battery disconnected notification: Gives a warning when a battery is not available for power supply.
- LCD status display: Important parameters for UPS status at a glance: Several status displays with bar graphs for load and battery status.
- Warning Tones—notifies users when the power or UPS system status changes.
- Surge protection devices: Protects connected devices against surges on data lines.
- Outputs with battery buffer and overvoltage protection: Protect your hardware in case of power failures, overvoltages and voltage peaks.
- Surge-only outputs: Protect other electronic systems against surges and voltage spikes without limiting battery life to support the most important systems.
- Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
- Battery-supported outputs and outputs with surge protection only: Reserves capacity and backup time for connected devices that need to be switched to UPS battery operation in case of emergency; less important devices are only protected against overvoltages.
- Automatic voltage regulation (AVR) with boost function: Extends the life span and bridging time of batteries by correcting undervoltage without discharging the battery.
- Resettable breaker: Easy recovery after overload; no need to replace a backup.
- Easy battery replacement: Improves UPS availability with fast and convenient battery replacement.
Scope of delivery
- USB cable
- User manual
