APC BV650I-GR UPS 650 VA No. of outputs 4 x
EAN:
Part number:
Item no:
Highlights & Details
APC BV650I-GR UPS 650 VA No. of outputs 4 x
- Ups with battery backup and surge protection for electronics and computers
- Output connections: (4) Schuko CEE 7 (power failure protection)
- Nominal output voltage: 230V
- Nominal input voltage: 230V
- Input connection type: Schuko CEE 7/7P
Technical specifications
- Maximum configurable power (watts): 375 watts/650 VA
- Output frequency (not synchronized): 50/60 Hz +/- 1 Hz
- Topology: Line-Interactive
- Type of waveform: Gradual approach to a sine wave
- Transfer Time: 6ms (typical); 10ms (max.)
- Input frequency: 50/60 Hz +/- 5 Hz (automatic scanning)
- Number of supply lines: 1
- Battery type: Maintenance-free sealed lead-acid battery with suspended electrolyte; leak-proof
- Expected battery life (in years): 3 - 5
- Control panel: LED status indicator for mains operation; battery operation
- Control panel: Alarm when battery is on; specific low battery alarm; overload alarm with continuous tone
- Operating temperature range: 0 - 40 °C
- Operating relative humidity: 0 - 90 %
- Operating Elevation: 0 - 1968.3 meters
- Noise level (1 meter distance): 40.0 dBA
- RoHS compliant
- CE
- Product type
UPS
- Nominal power
650 VA
- No. of outputs
4 x
- Output
PG socket
- Type
BV650I-GR
- Width
165 mm
- Height
92 mm
- Depth
305 mm
- Weight
4.5 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2246666 APC BV650I-GR UPS 650 VA No. of outputs 4 x
Warranty Terms
Warranty Terms 2246666 APC BV650I-GR UPS 650 VA No. of outputs 4 x
Description
Automatic voltage regulation (AVR): Automatically increases the low voltage step by step and reduces the high voltage to levels suitable for your devices.

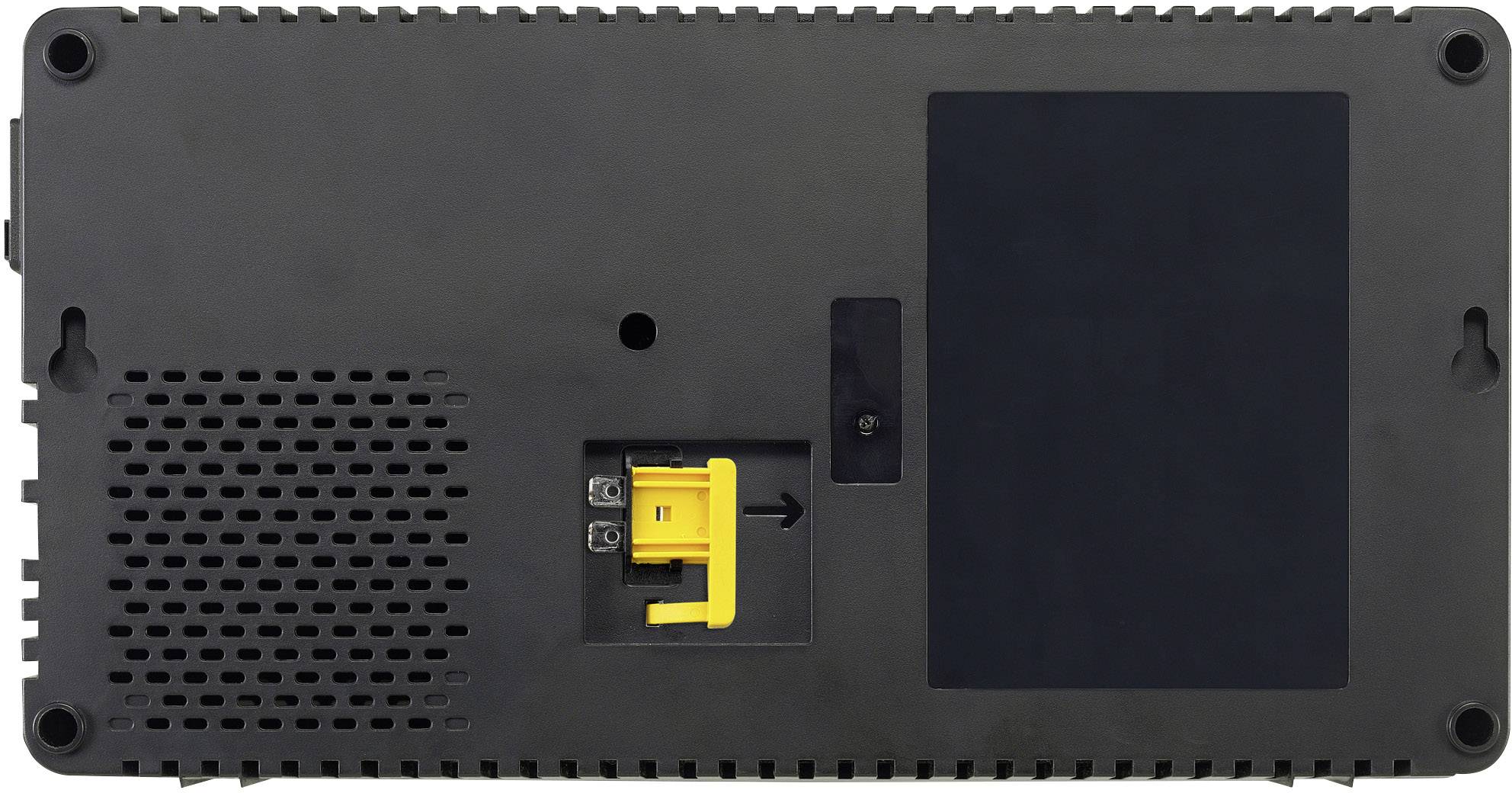

Wall mounting holes: Flexibility for installation in confined spaces; wall mounting or other surfaces.
Outputs with battery buffer and overvoltage protection: Protect your hardware in case of power failures, overvoltages and voltage peaks.
Ups systems and surge protection: The outputs provide ample autonomy for network gateways and other important devices. Thus, even in the event of a power failure, the Internet access remains functional for several hours.
Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
Control - Warning Sounds - notifies users when the power or UPS system status changes.
Control - LED indicator: Clear indicators for power quality, UPS and battery status.
Automatic voltage regulation (AVR) with boost function: Extends the life span and bridging time of batteries by correcting undervoltage without discharging the battery.
Supports cold start: Allows temporary battery operation in the event of a power failure.
Sockets for connecting plug-in power supplies: Protect devices with input transformers without covering other sockets.
Slim design: The slim, modern housing can be positioned vertically or horizontally. Wall mounting is also possible. It fits in any technical environment or in private households.
Powerful security features: Protect your Home UPS from overloads, mains surges, short-circuits, installation errors and battery damage due to under-voltages.
Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance
Intelligent battery management: An intelligent precision charging system optimizes battery performance, life and reliability.
This text is machine translated.
Wall mounting holes: Flexibility for installation in confined spaces; wall mounting or other surfaces.
Outputs with battery buffer and overvoltage protection: Protect your hardware in case of power failures, overvoltages and voltage peaks.
Ups systems and surge protection: The outputs provide ample autonomy for network gateways and other important devices. Thus, even in the event of a power failure, the Internet access remains functional for several hours.
Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
Control - Warning Sounds - notifies users when the power or UPS system status changes.
Control - LED indicator: Clear indicators for power quality, UPS and battery status.
Automatic voltage regulation (AVR) with boost function: Extends the life span and bridging time of batteries by correcting undervoltage without discharging the battery.
Supports cold start: Allows temporary battery operation in the event of a power failure.
Sockets for connecting plug-in power supplies: Protect devices with input transformers without covering other sockets.
Slim design: The slim, modern housing can be positioned vertically or horizontally. Wall mounting is also possible. It fits in any technical environment or in private households.
Powerful security features: Protect your Home UPS from overloads, mains surges, short-circuits, installation errors and battery damage due to under-voltages.
Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance
Intelligent battery management: An intelligent precision charging system optimizes battery performance, life and reliability.
This text is machine translated.
Scope of delivery
- Power cord (1.5 m)
- User manual
