Technical specifications

Product type: 19" UPS

Nominal power: 8000 VA

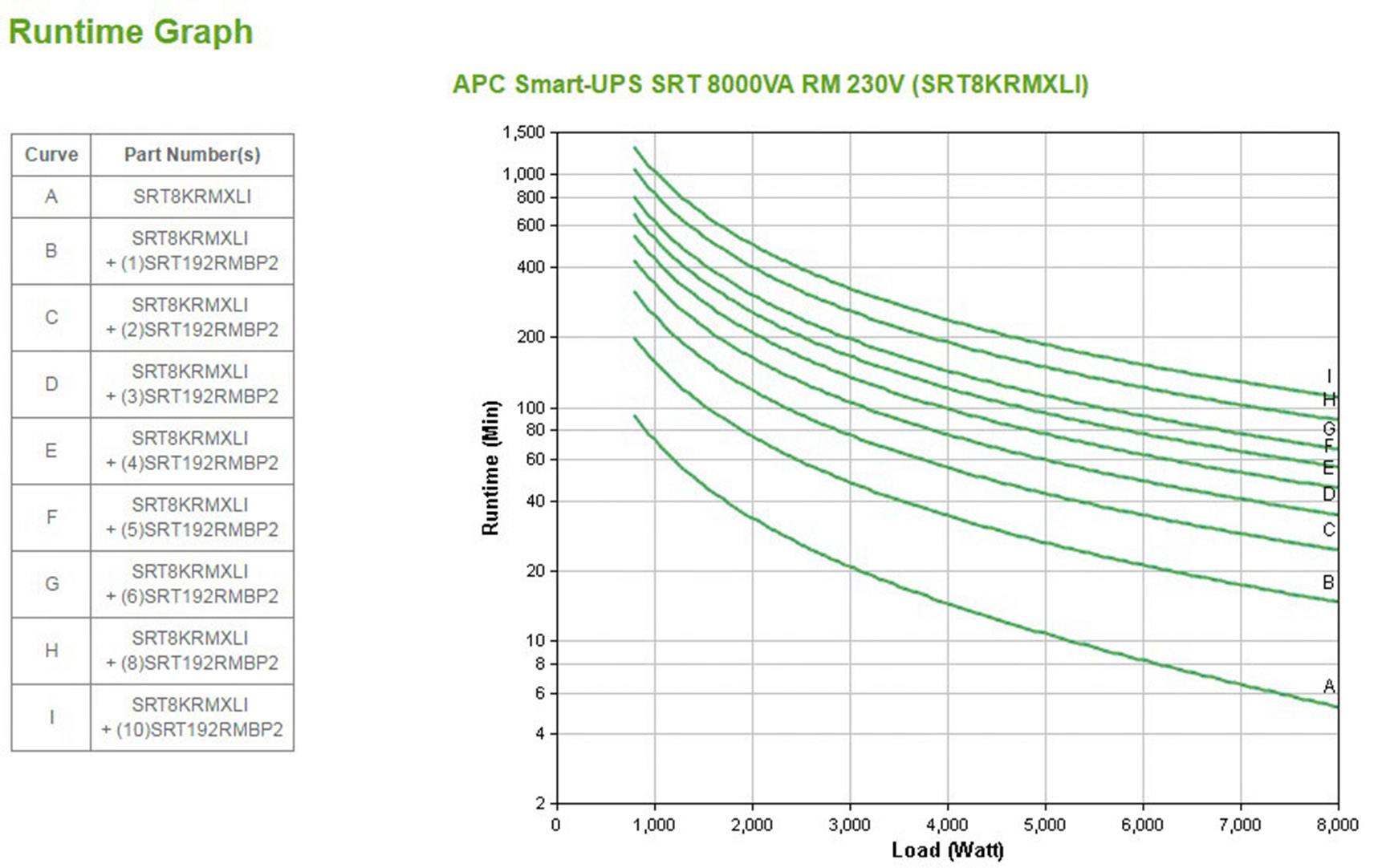

Bridging time normal load: 14.5 min

Bridging time, max load: 5.2 min

No. of outputs: 10 x

of which battery-buffered: 10

Output: IEC C13 socket
IEC C19 socket

Features: LCD

Dim: (W x H x D) 43.2 x 26.3 x 71.5 cm

Weight: 111.82 kg

Width: 43.2 cm

Height: 26.3 cm

Depth: 71.5 cm

Type: APC Smart-UPS SRT 8000VA RM - USV (Rack - einbaufähig)

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Auto-restart: yes

Software CD: yes

Storage relative humidity (H-H): 0 - 95 %

Non-operating altitude: 0 - 15000 m

Battery recharge time: 1.5 h

Serial interface: yes

Audible alarm(s): yes

Emergency Power Off (EPO): yes

Output power capacity: 8 kVA

Surge energy rating: 480 J

Typical backup time at half load: 14.5 min

Typical backup time at full load: 5.2 min

Temperature sensor: yes

Rack mount kit: yes

Bracket: yes

USB port: yes

Battery life (max): 5 Jahr(e)

SmartSlot: yes

Hot-swap battery: yes

Management card included: yes

Number of output IEC jumpers: 3

Warranty card: yes

Quick installation guide: yes

Operating altitude: 0 - 3000 m

Operating relative humidity (H-H): 0 - 95 %

Products per pallet: 1 Stück(e)

Output voltage Total Harmonic Distortion (THD): 3 %

Storage temperature (T-T): -15 - 45 °C

Surge protection: yes

Cold start: yes

Automatic battery test: yes

Input operation voltage (max): 476 V

Input operation voltage (min): 100 V

Output operation voltage (min): 220 V

Output operation voltage (max): 240 V

Battery capacity: 1728 VAh
